Rubber Recycling Machines Rubber Powder Devulcanizer machine Reclaimed Rubber Production Machine
- Category: >>>
- Supplier: Qingdao Hangsen Industry And Trade Co. Ltd.
Share on (1600455032965):
Product Overview
Description
1.Compact structure，small space and easy maintenance
2.Low energy consumption and good cost performance
3.Automatic control product line，higher operation stability，and lower labor intensity
4.No polluted water，waste gas and waste residue in production process
5.Granulate waste tires into rubber powder of 40-200 mesh，and separate steel，fiber and nylon completely of normal temperature
2.Low energy consumption and good cost performance
3.Automatic control product line，higher operation stability，and lower labor intensity
4.No polluted water，waste gas and waste residue in production process
5.Granulate waste tires into rubber powder of 40-200 mesh，and separate steel，fiber and nylon completely of normal temperature

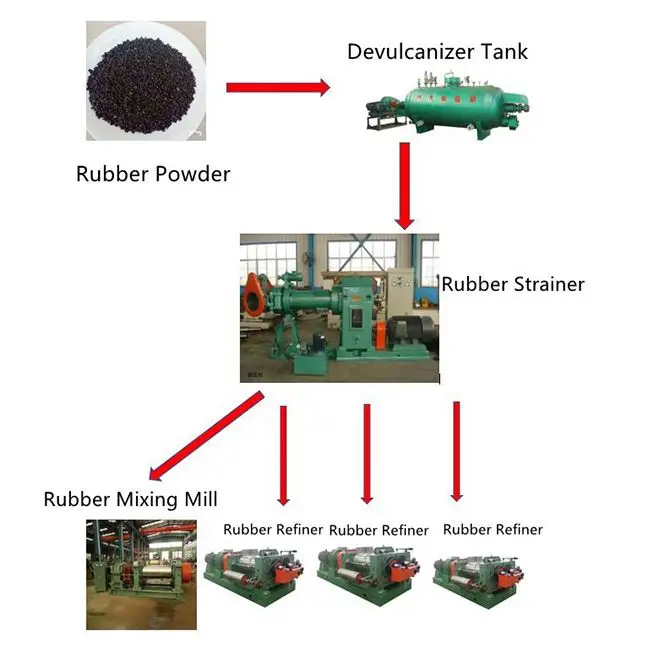

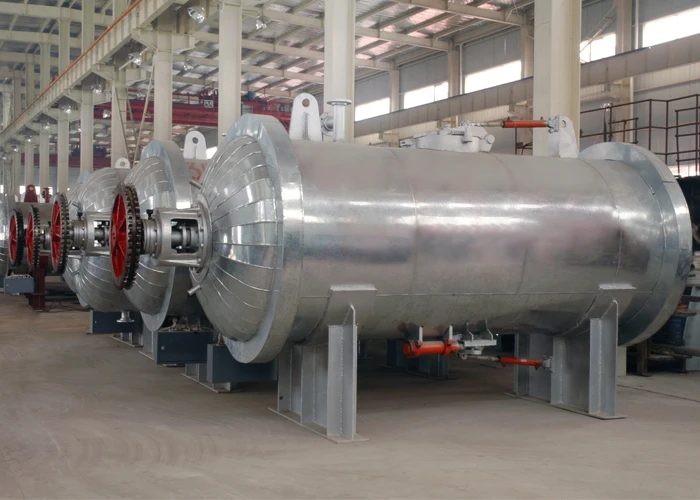

1.Devulcanizer Tank
item | 4CBM dynamic devulcanizer | 6CBM dynamic devulcanizer | 8CBM dynamic devulcanizer | 10CBM dynamic devulcanizer |
designed pressure | 4.0MPA | 4.0MPA | 4.0MPA | 4.0MPA |
jacket materials & thickness electricity heating power | Q245, 10mm 150kw | Q245R, 10mm 185kw | Q245R, 10mm 245kw | Q245R, 12mm 275kw |
heating type | conduction oil or electricity | conduction oil or electricity | conduction oil or electricity | conduction oil or electricity |
devulcanizer materials | Q345R, 26mm | Q345R, 26mm | Q345R, 26mm | Q345R, 28mm |
reducer type | ZQ650 | ZQ650 | ZQ850 | ZQ1000 |
door open & close type | hydraulic & automatic | hydraulic & automatic | hydraulic & automatic | hydraulic & automatic |
main motor power | 15kw | 22kw | 30kw | 45kw |
hydraulic station motor power | 3.0kw | 3.0kw | 3.0kw | 3.0kw |

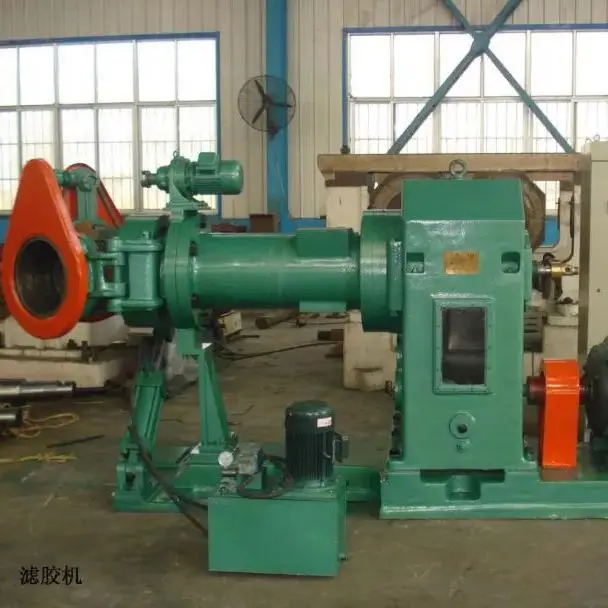

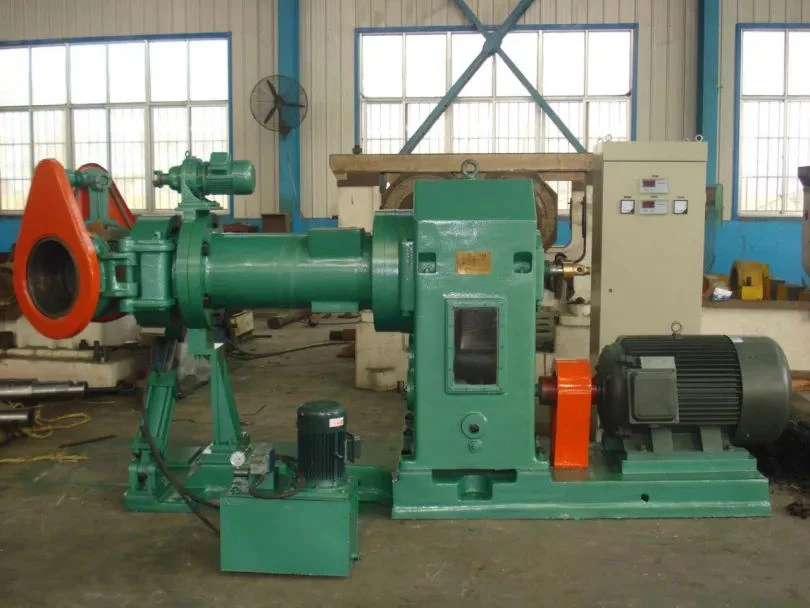

2.Rubber strainer machine
Type | XJL-200 | ||||||
Screw diameter | 250mm | ||||||
Screw ratio | 45r/min | ||||||
Screw form | Double-head equal-depth and isometry | ||||||
Length-diameter ratio of screw | 4.5:1 | ||||||
KW Motor power | 55kw | ||||||
Production capacity | 900kg(hour) | ||||||
Cooling water pressure | 0.2Mpa | ||||||
Size:Length×Width×Height | 3900×990×1650 | ||||||

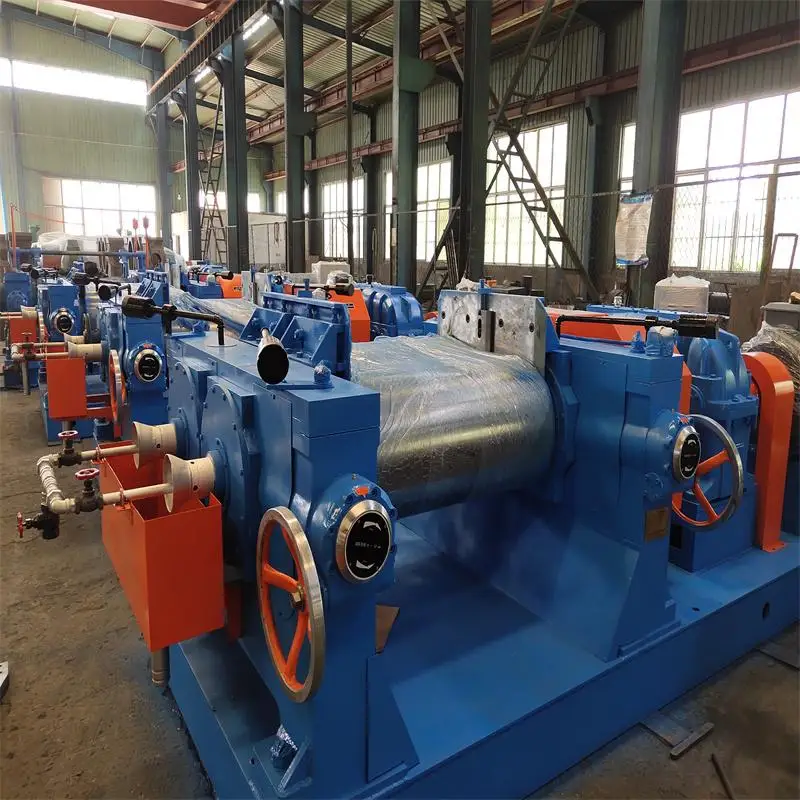

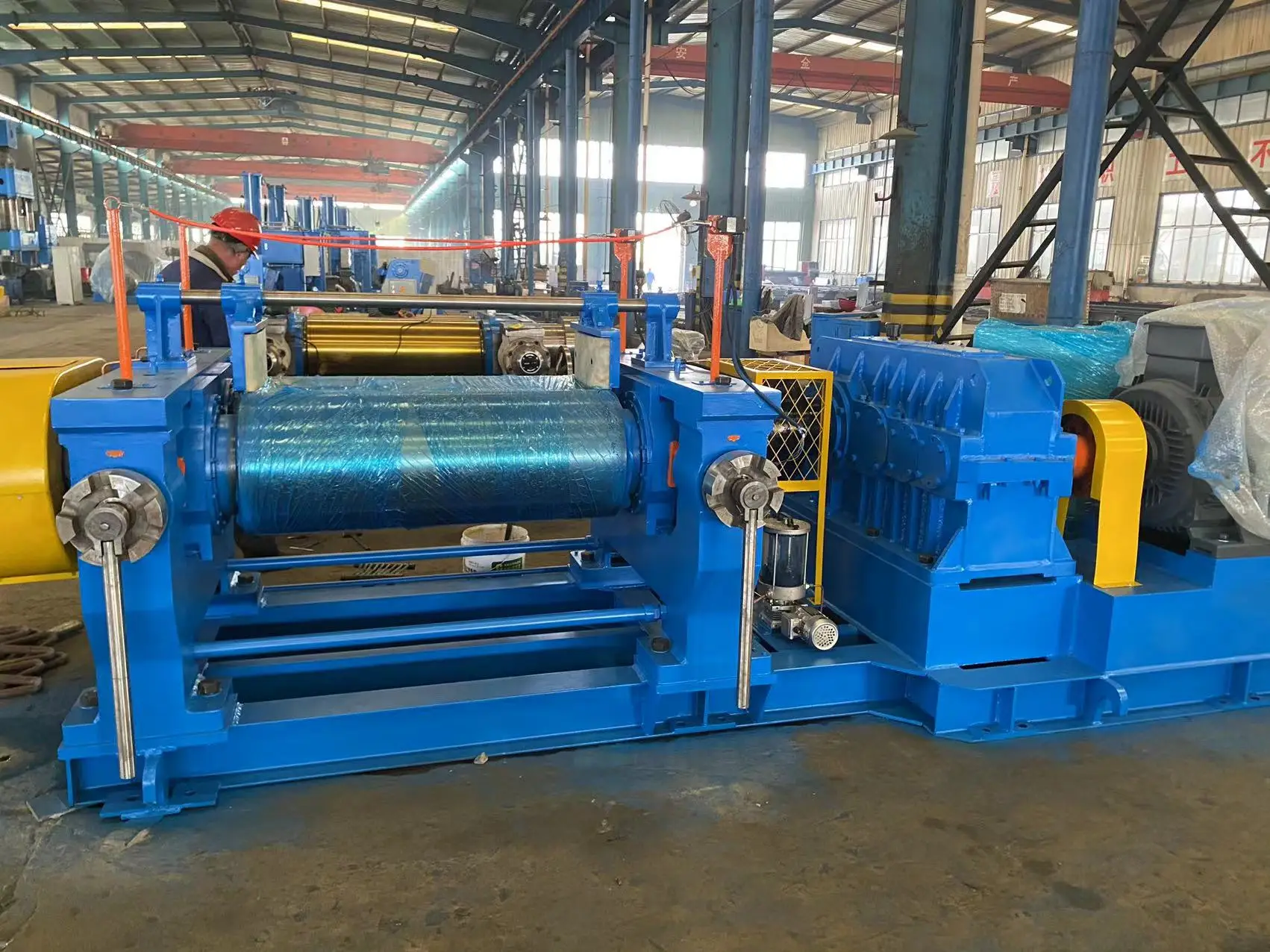

3. Rubber mixing mill
Type | XK-400 | XK-450 | XK-560 | XK-550B | XK-660 |
Working diameter of rolls (mm) | 400 | 450 | 560/510 | 550 | 660 |
Working Length of rolls (mm) | 1000 | 1200 | 1530 | 1500 | 2130 |
Front roll surface speed (m/min) | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 |
Friction ratio | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 |
Max. nip (mm) | 10 | 15 | 15 | 15 | 15 |
Capacity per batch (kg) | 18-35 | 25-50 | 35-50 | 50-60 | 165 |
Motor power (KW) | 37 | 55 | 90 | 110 | 245 |
Size (L*W*H) (mm) | 4350*1850*1785 | 5200*2380*1840 | 5845*2284*1978 | 5878*2475*2045 | 7455*3662*2080 |

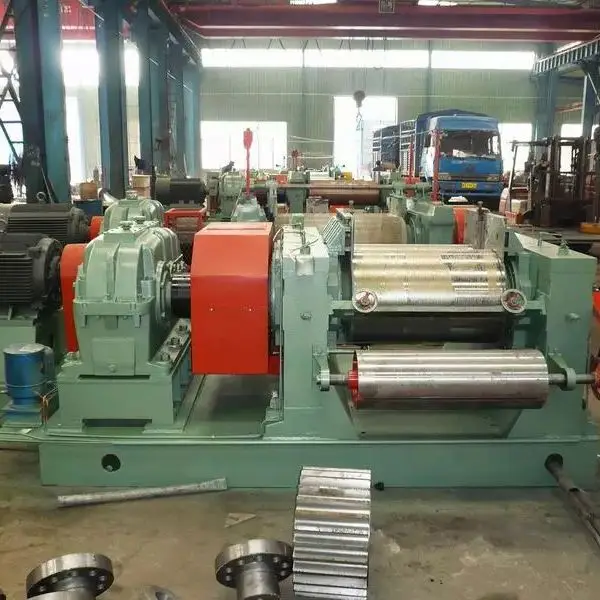

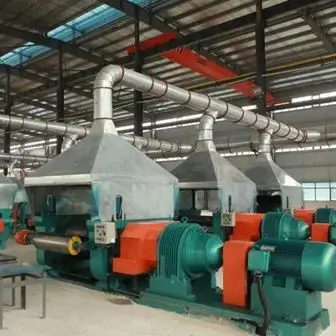

4. Rubber Refining Machine
Refining Mill is used to remove impurities from the pure and fine rubber powder when processing reclaimed rubber. The rollers are set very close to each other, with the gap at the ends closer than the centre; harder impurities are squeezed by the rollers to the ends and removed. Refined rubber in thin-sheet form, smooth and of uniform thickness of 0.1mm or less, is produced.
Type | XKJ-450 | XKJ-450 | XKJ-480 | XKJ-480 | XKJ-480B |
Front roll diameter(mm) | 450 | 450 | 480 | 480 | 480 |
Rear roll diameter (mm) | 510 | 510 | 612 | 612 | 612 |
Working length of rolls (mm) | 1000 | 800 | 1200 | 1016 | 870 |
Front roll surface speed(m/min) | 56 | 63 | 67 | 67 | 75 |
Friction ratio | 1:1.29/1:1.93 | 1:1.29 | 1:1.27 | 1:1.82 | 1:1.27 |
Max.nip(mm) | 10 | 10 | 15 | 15 | 15 |
Motor power(kg) | 55 | 55 | 110 | 90 | 75 |
Size (L*W*H) (mm) | 4900*2100*1400 | 4900*2100*1400 | 6350*2800*2000 | 6200*2800*2000 | 5070*2800*1978 |
