Product Overview

Description

 nRF52832 uTag or Microtag

                        – Ultra-compact BLE5.0® Smart Beacon



BLE5.0 nRF52832 Beacon

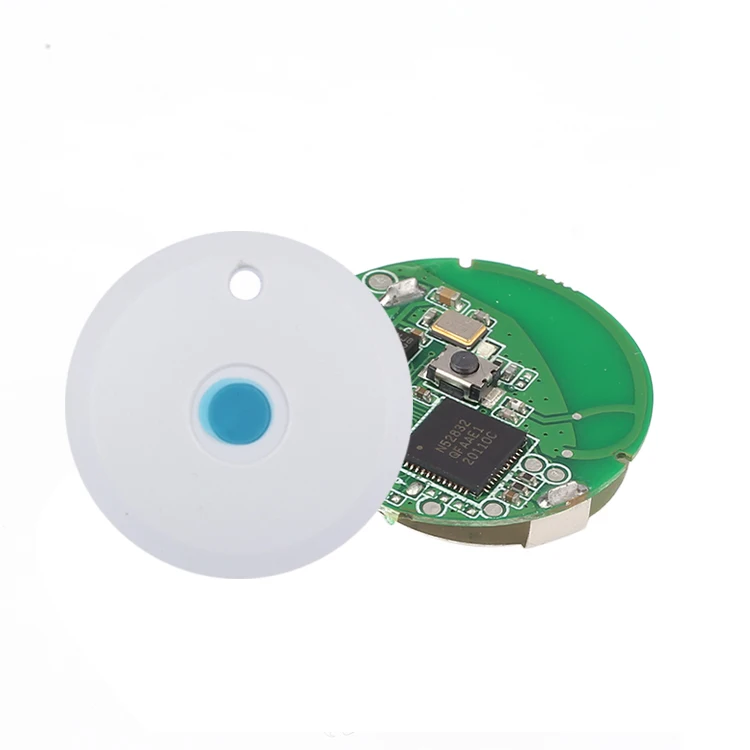

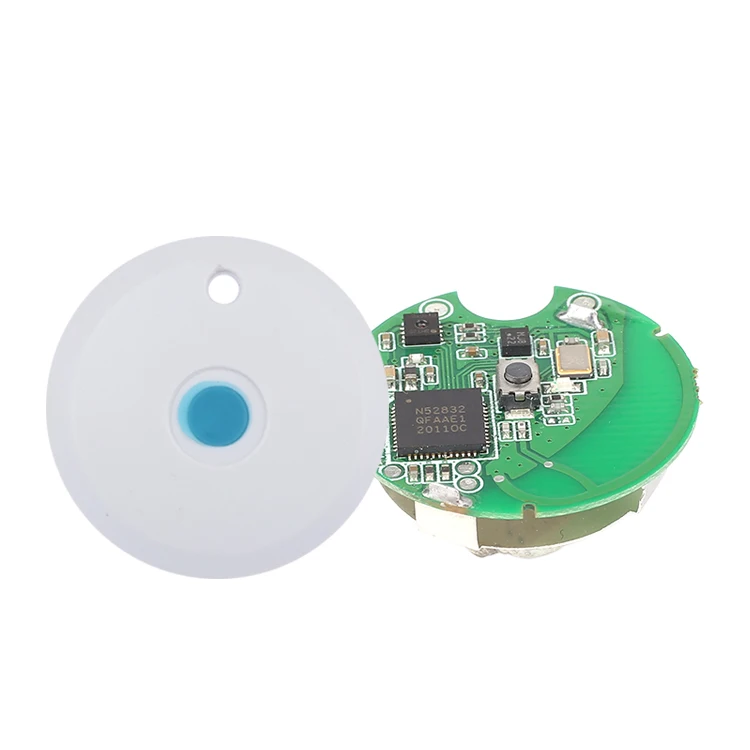

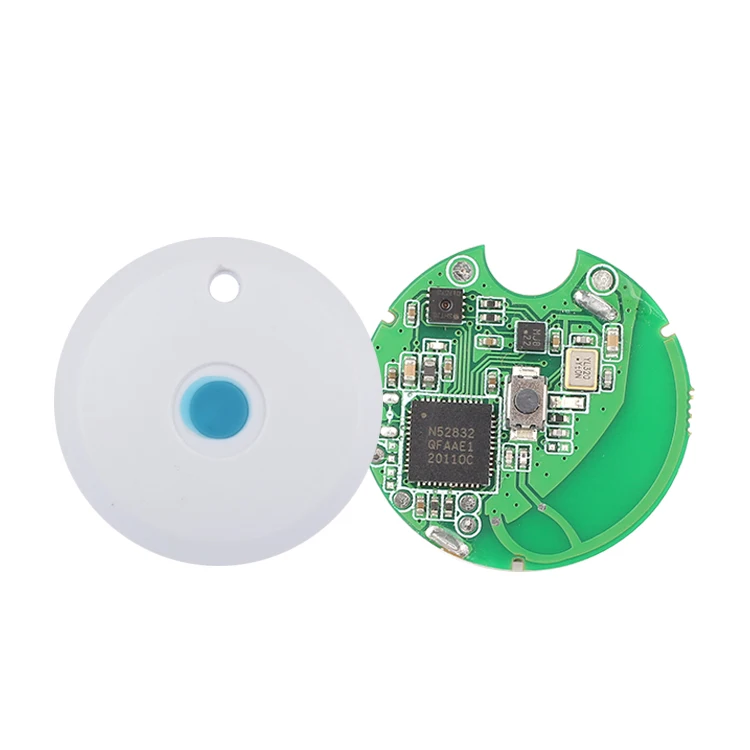

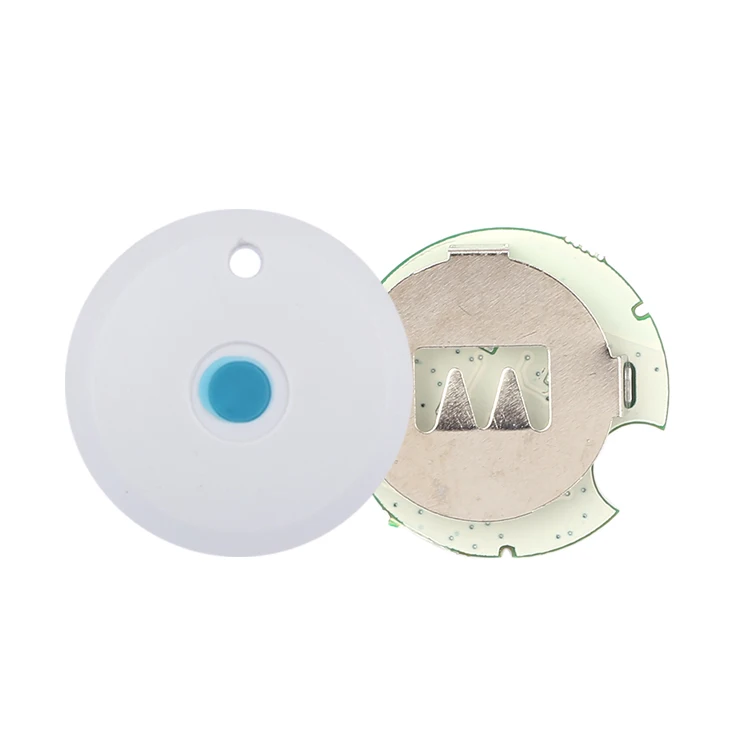

The nRF52832 µTag is a general-purpose multiprotocol SoC. It supports BLE5.0 Low Energy, including the high-speed 2 Mbps feature. The PCB measures contains the nRF52832 chip, sht3x  temperature sensor, an accelerometer, push button, and an LED. The board is powered from a CR2032 coin battery.







The Catalog about BLE Beacon(Can be customized)

Design Features



1.Onboard Ultra-compact size with PCB Antenna

2.accelerometer and temperature sensor

3.3-axis Accelerometer ST LIS2DH

4.Humidity Sensor STH30 from Sensiron

5.User mini push button and 0402 LED

6.Designed for BLE® Smart5.0









Featured Applications

• Medical Applications

• BLE5.0 Low Energy Beacon

• Home Automation

• Environmental Sensor

• IoT Applications





Configure App(RL beacon Tool)



UUID, Major, Minor, Measured Power, Transimisson power, Password, Broadcasting Interval, Serial ID,iBeacon name, Connection Mode all could be configured by our special configuration app.

The IOS APP you can download it in the iphone store with "RL beacon Tool”.

The Android APP you can contact our sales to get it.

Programing the firmware

Customers can program the firmware by themselves or we can also help customers program

Also we can customize the QR code for customers by laser carving.
