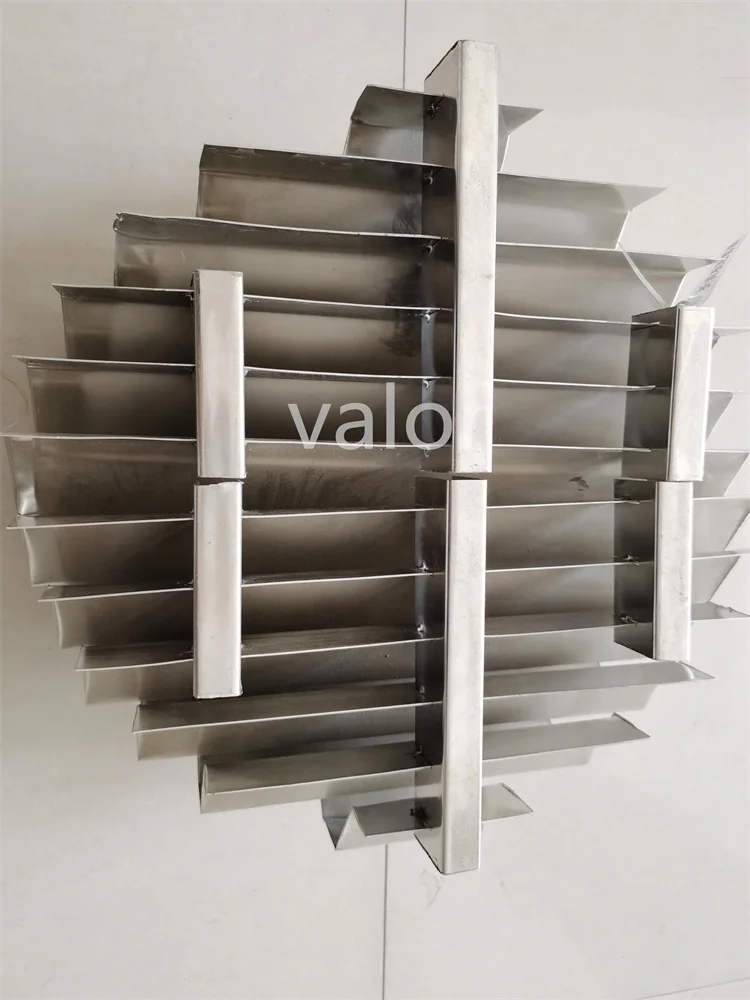

SS304 2 Pass Vane Mist Eliminator Drift Eliminator For Tower Packing

Product Overview

Description

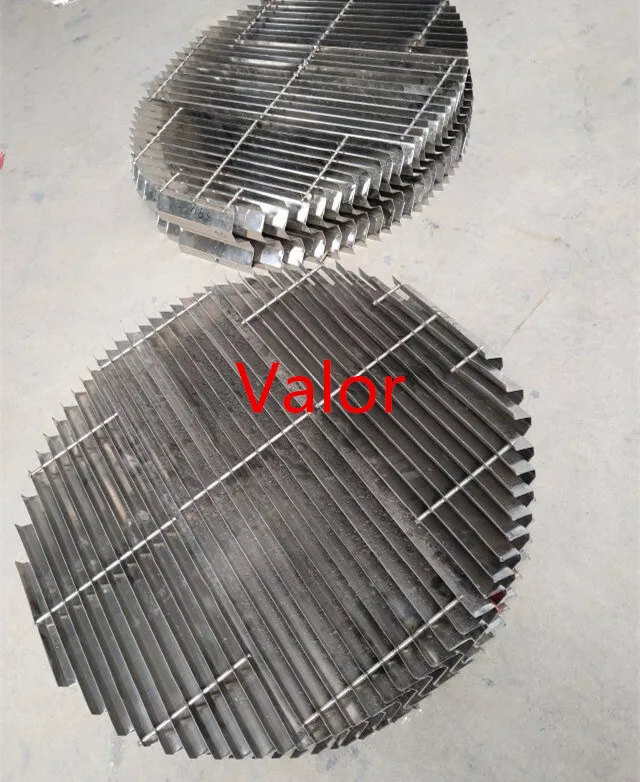

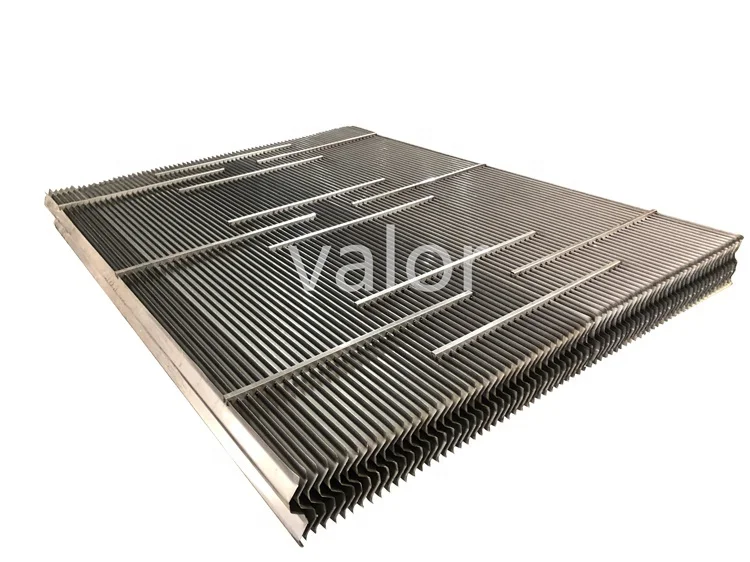

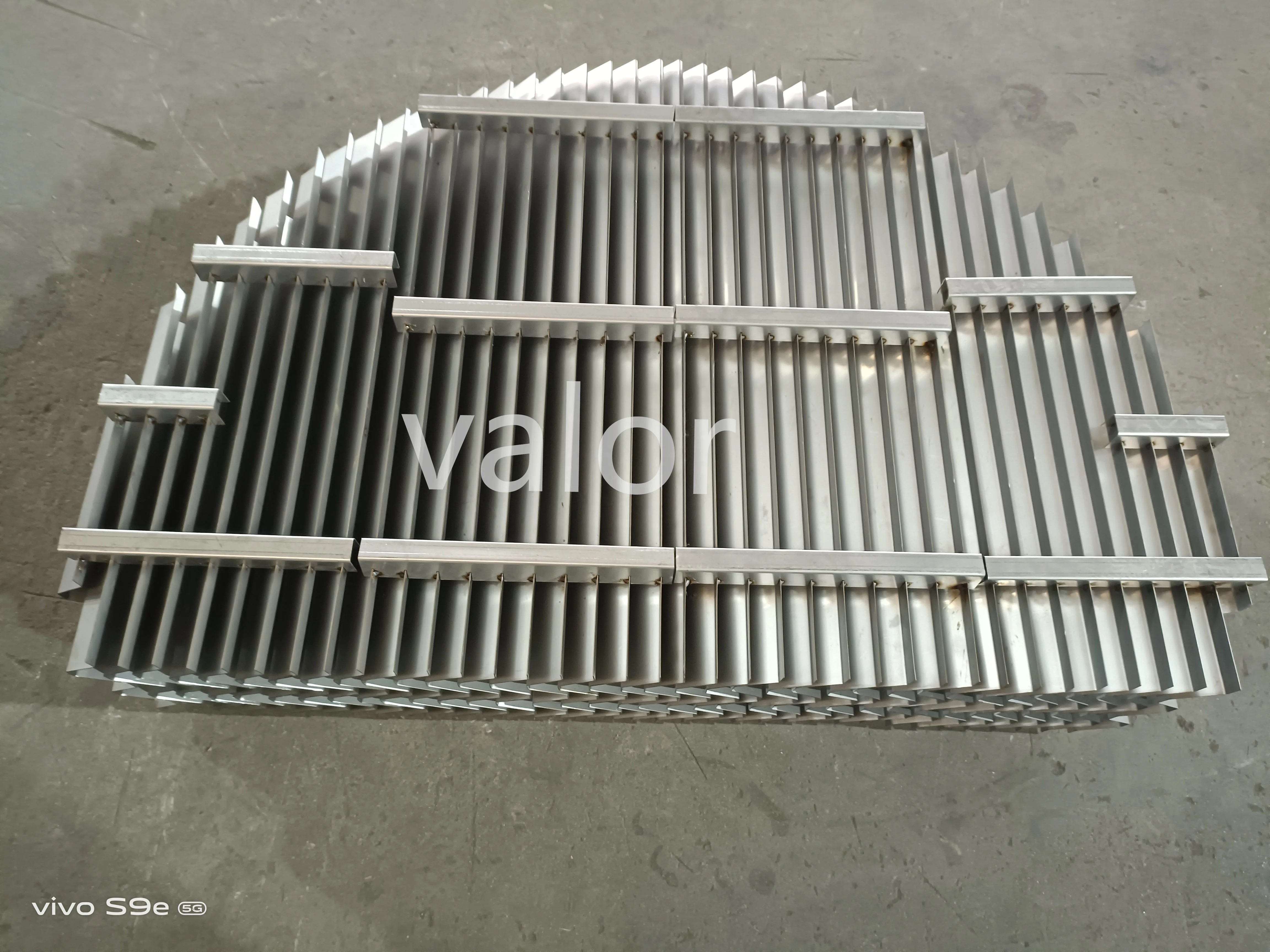

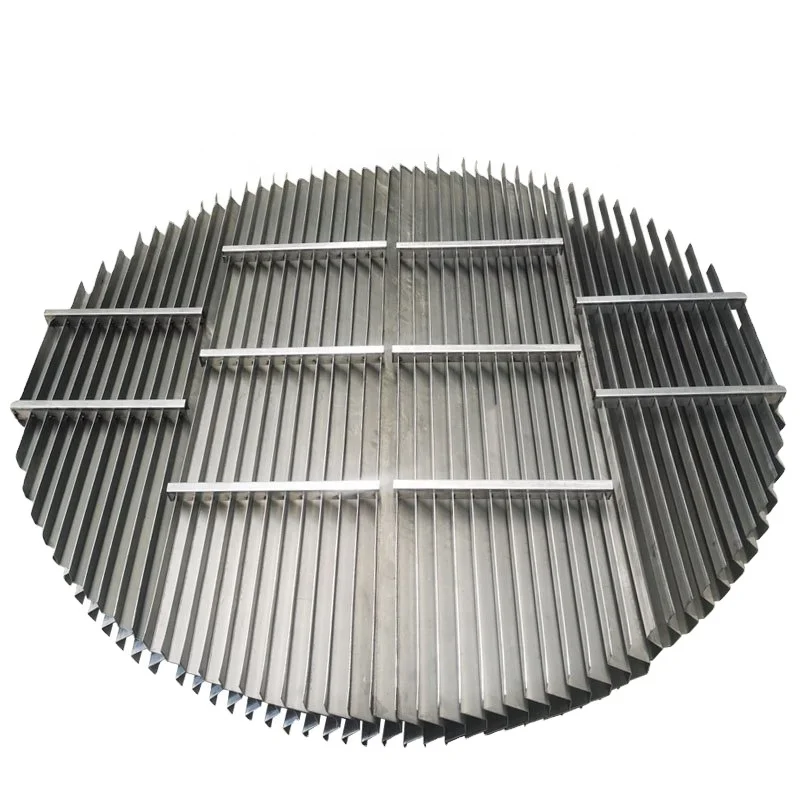

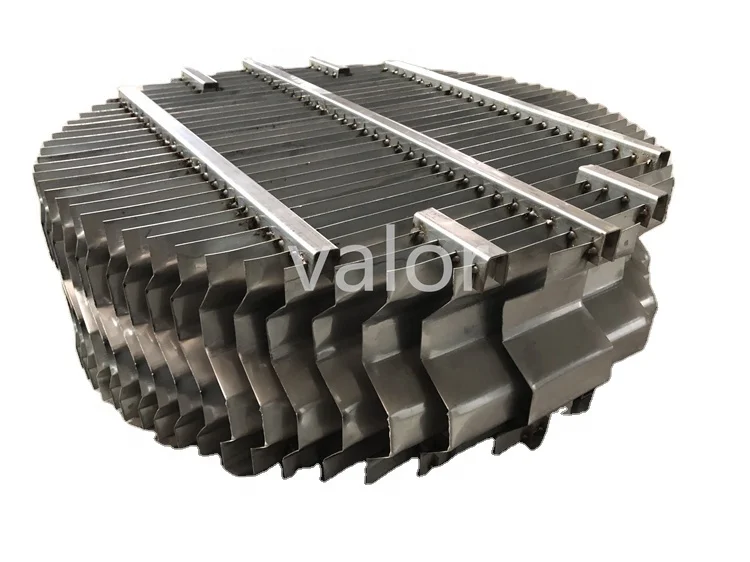

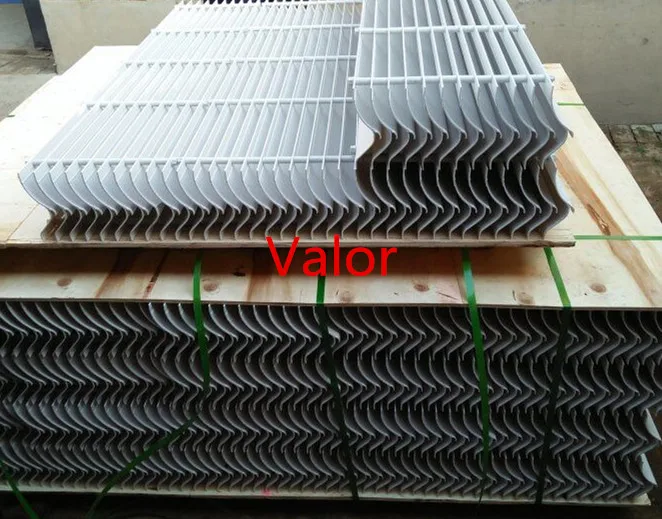

Images of drift mist eliminator











Product description of drift mist eliminator

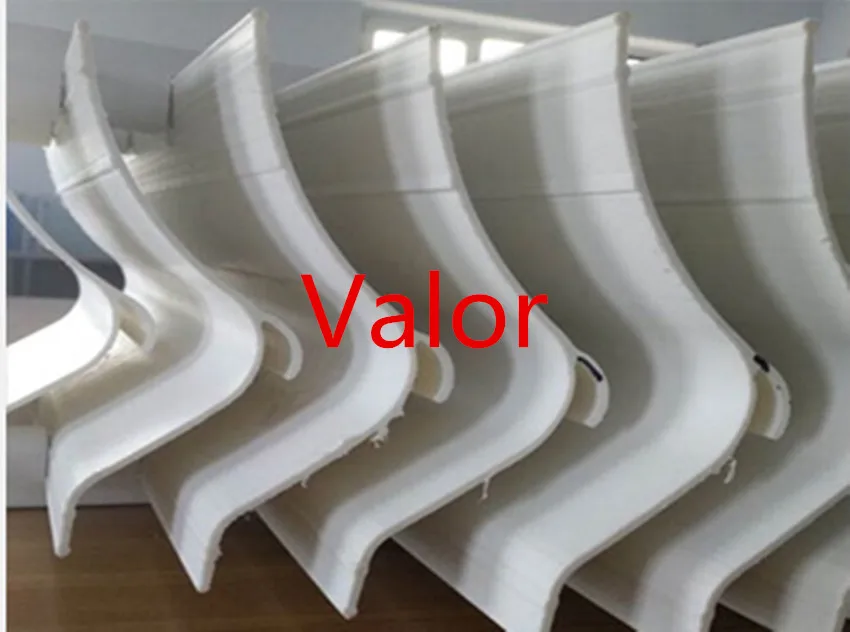

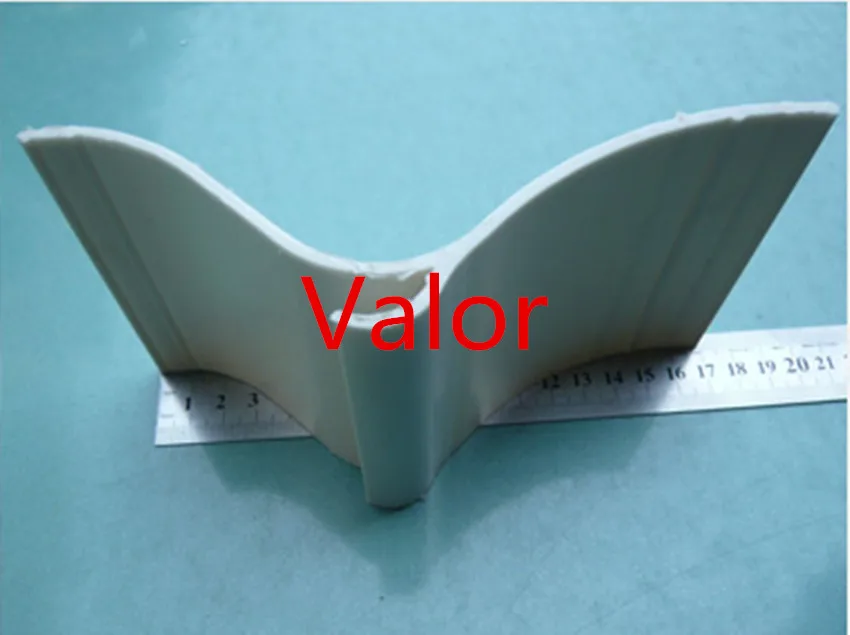

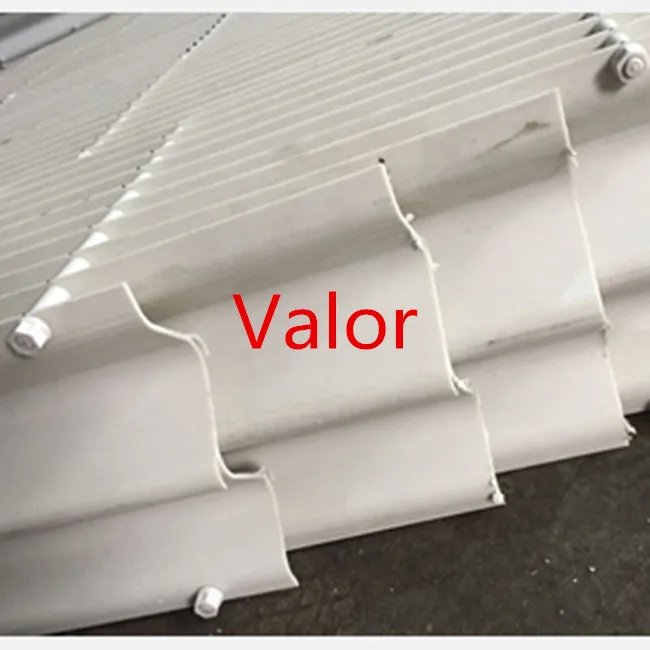

Demister vanes are the most basic and important components of the demister. The performance of the demister is crucial to the operation of the entire defogging system. Demister vanes are usually made of polymer materials (polypropylene, FRP, etc.) and corrosion-resistant stainless steel, two major categories of materials. There are many types of vanes. By geometry can be divided into polygonal and streamlined.

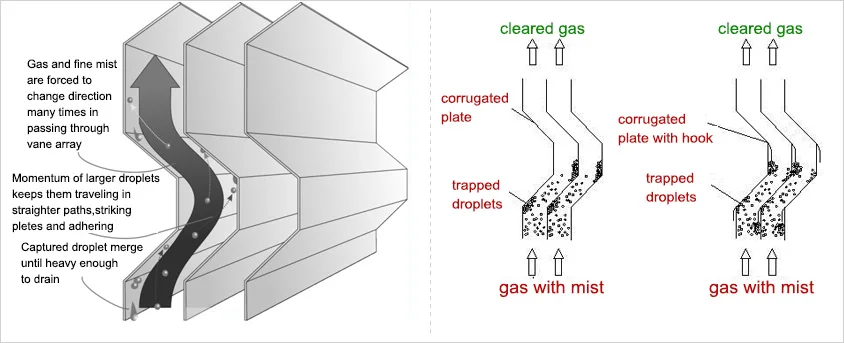

Working theory of drift mist eliminator





Structure of drift mist eliminator
Demister system consists of mist eliminator body and flushing system. Usually two different specifications eliminator body, flushing water pipes, nozzles, support frame, support beam and related connections, fasteners, seals and other components.





Characteristic of drift mist eliminator
1. Maximum drift capture through efficient design
2. Light weight
3. Easy to handle, lift and remove for inspection and service of water distribution system and at transfer surface (fill and coil)
4. Nested modules to guarantee watertight seam
5. Corrosion resistance.
6. Perfect fit: model specific size kits



Specifications of drift mist eliminator

Items	Specific Introduction			Unit
Materials of drift eliminator	FRPP	Stainless steel	Fiberglass
Tem resistance	70-80℃	200℃	130℃	℃
Baffle plate thickness	3mm	Set by customer requirements	Around 2.3mm	mm
Price	Lower	Higher	Higher	RMB
Form	Horizontal type (plate type), Herringbone type (weir type), V type, combined type, etc.
Area of drift eliminator	The inner diameter of the desulfurization tower area or cross-section area of flue			M2
Flow velocity of air tower	Plate type 3-4 m/s, weir type 2.5-5.5 m/s			m/s
Degree	Two degrees			degree
Interval and height between baffle plates	Designed by different desulphurization craft
Flushing layers of flushing systems	Upper and bottom of first-degree drift eliminator, bottom of second-degree drift eliminator, configurable and topper layer of some drift eliminator be flushed in hand			layer
