Industrial Multiple nozzles Automate Large Character Variable Data Production Date Coding Machine pattern TIJ Inkjet Printer
- Category: >>>
- Supplier: Guangzhou Aokdi Inkjet Equipment Co. Ltd.
Share on (1600455749366):
Product Overview
Description

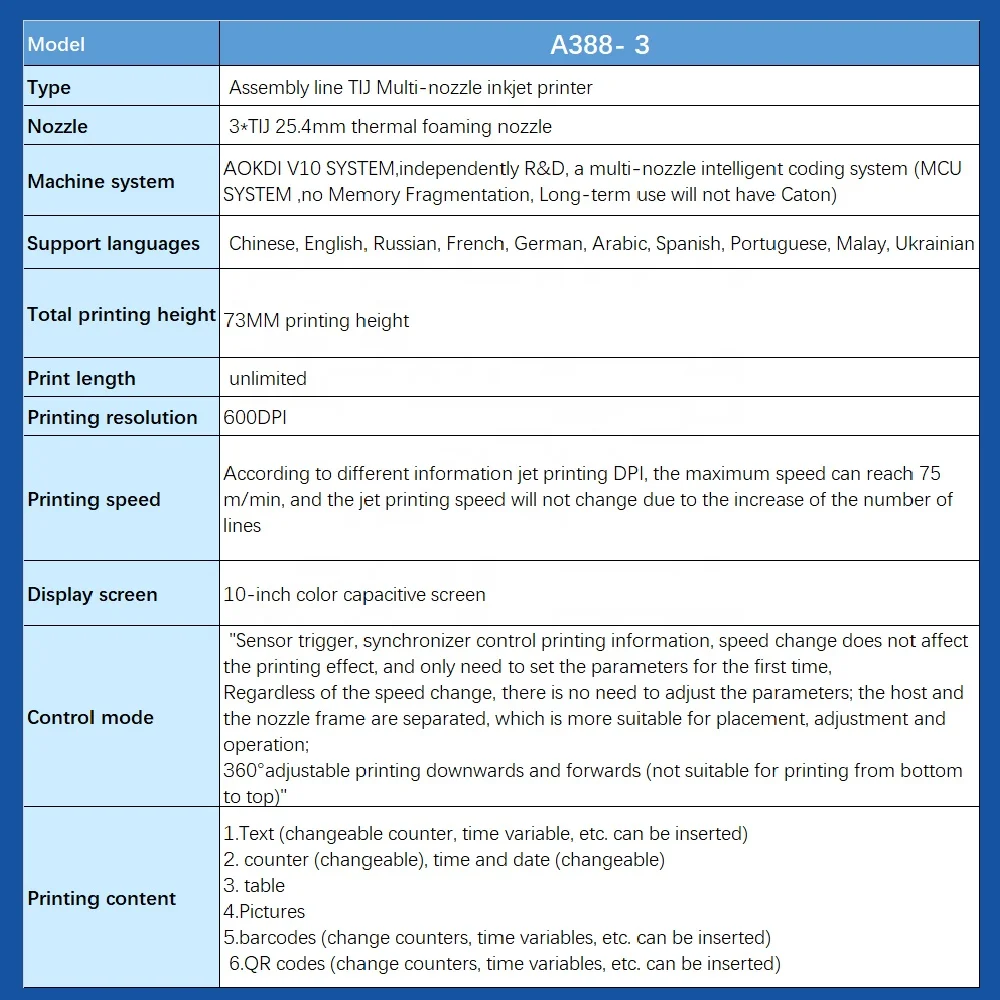

Product Parameters
Model | A388- 3 | ||
Type | Assembly line Multi-nozzle inkjet printer | ||
Nozzle | 3 *TIJ 25.4mm thermal foaming nozzle | ||
Machine system | AOKDI independently R&D, a multi-nozzle intelligent coding system (SCM control,no Memory Fragmentation, Long-term use will not have Caton) | ||
Support languages | Chinese, English, Russian, French, German, Arabic, Spanish, Portuguese, Malay, Ukrainian | ||
Total printing height | 3 nozzle of 25.4MM, about 73.5mm printing height can be printed (up to 8 nozzles can be spliced, each additional nozzle increases by 24MM,) | ||
Within the height, the number of printing lines is unlimited, the nozzles can be combined and controlled individually, and the data adjustment of the splicing of multiple nozzles is very simple and convenient. | |||
Print length | unlimited | ||
Printing resolution | Up to 60ODPI | ||
Printing speed | According to different information jet printing DPI, the maximum speed can reach 75 m/min, and the jet printing speed will not change due to the increase of the number of lines | ||

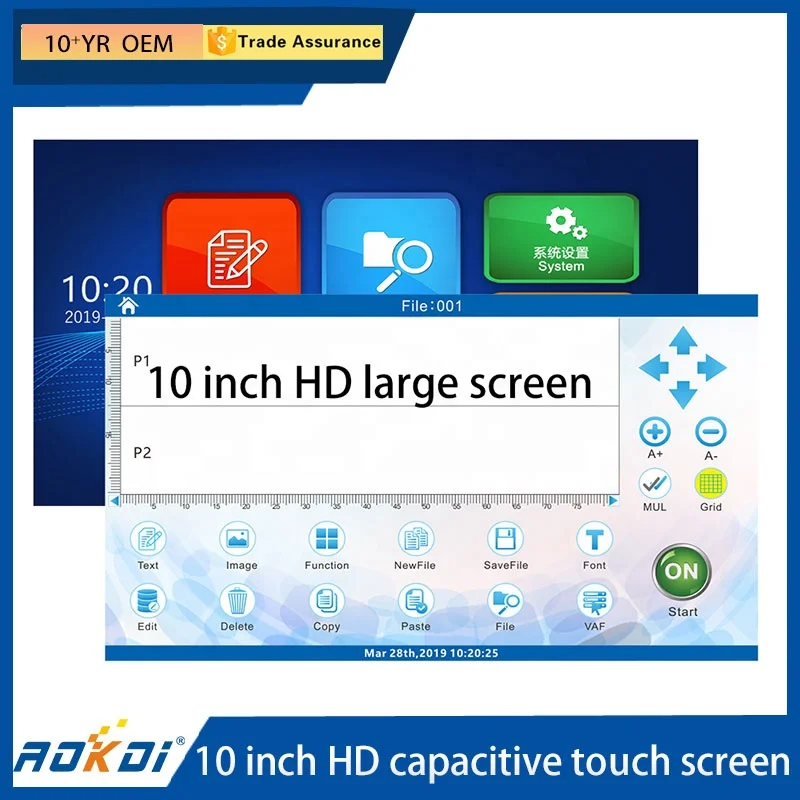

Display screen | 10-inch HD capacitive screen, convenient and simple to touch directly by hand | ||
Operation method | It is visible and available, the interface layout is reasonable, the operation is simple and convenient; the most convenient and simple operation of the inkjet printer system | ||
Control mode | Sensor trigger, synchronizer control printing information, speed change does not affect the printing effect, and only need to set the parameters for the first time, Regardless of the speed change, there is no need to adjust the parameters; the host and the nozzle frame are separated, which is more suitable for placement, adjustment and operation; 360°adjustable printing downwards and forwards (not suitable for printing from bottom to top) | ||
Printing content | Text (changeable counter, time variable, etc. can be inserted), counter (changeable), time and date (changeable), table, Pictures,barcodes (change counters, time variables, etc.can be inserted), QR codes (change counters, time variables, etc. can be inserted) | ||
D-type machine: independent database management, database files can be copied to the inkjet printer system, and the database files can be set according to the requirements and then coded; S-type machine: It can be connected to computers, PLCs, weighing equipment, electronic scales, scanning guns and other equipment,data can be customized and extracted, and support 3 lines of external device variable data, powerful function, simple setting and convenient control | |||
System Features | 1. Two lines of information can be input at the same time (first in the industry) 2. Counter variables and time variables can be directly inserted into the input information (industry first) 3. The setting of multi-jet splicing parameters is simple and convenient. After setting, the adjustment of printing parameters will not affect 4. The standard company independently designs two professional inkjet printers with Chinese and English dot matrix font libraries and a variety of commonly used font libraries, and can load system fonts such as WIN to the inkjet printer by itself. 5. Independent file management system, edit information and files can be copied and pasted arbitrarily, etc. 6. Each file has independent technical parameters, and the parameters can be adjusted directly in the printing state (industry first) 7. The ink volume of each nozzle is displayed separately, and the remaining ink volume is calculated based on the number of printable information. 8. The ink volume is adjustable, and the patent of the nozzle blocking prevention has been obtained, etc. 9. Independent picture management, which can copy pictures to the inkjet printer system, and manage pictures such as zoom settings | ||
the advantages of aokdi | 1. No matter how long it is used, the system will not slow down 2. The inkjet printer interface design is reasonable, simple to operate, powerful and practical (it is a simpler and more convenient system for the entire industry) 3. The coding setting and control are more simple and convenient, and the accuracy is high | ||
Printing material | on the surface of metal, plastic, wood, aluminum platinum, carton, building materials, electronics, packaging bags, pipes, etc. | ||
Communication Interface | Sensor, synchronizer, USB, RS232, information feedback interface, ink shortage alarm interface, audio interface | ||
power supply | 100-240VAC 50/60Hz | ||

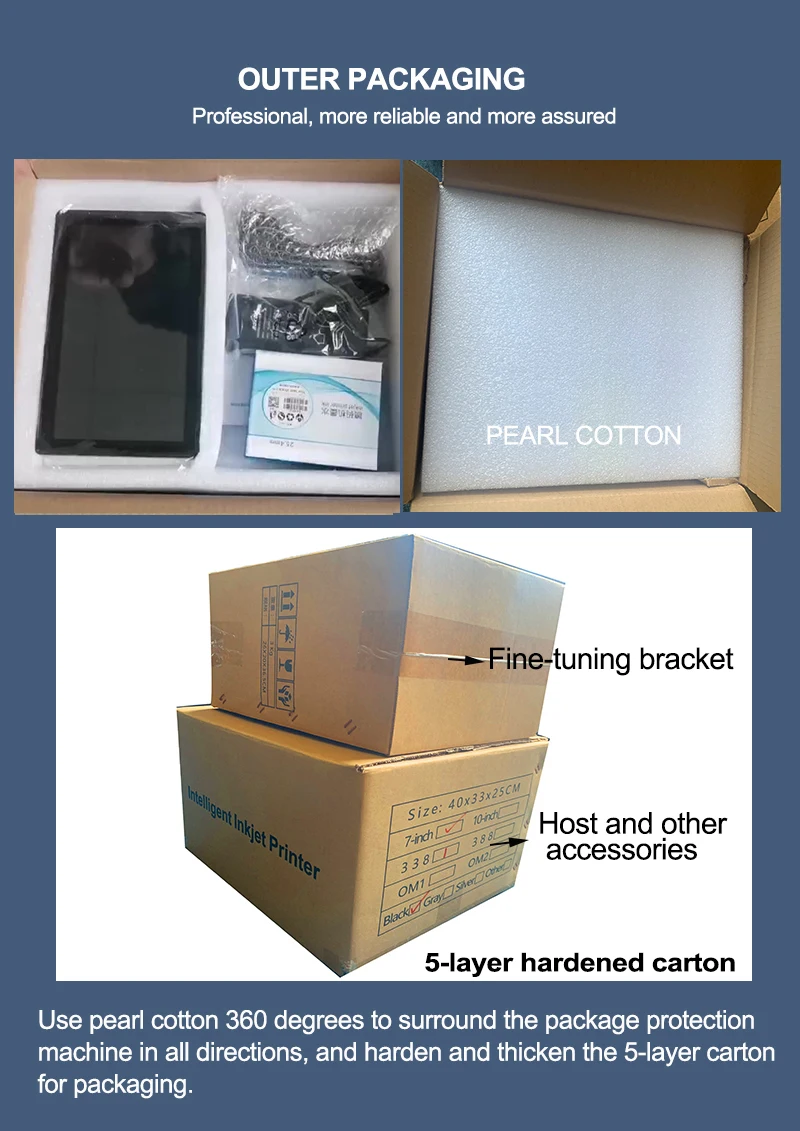

Packing specification | Machine size: 33*27*1Machine host net size and weight: 22*14.5*5cm /1kg Host packaging size: 33*27*17cm /2.5kg Fine-tuning bracket: size 26*20 *36.5 cm, Fine-tuning bracket weight 2.9kg | ||
Products Description

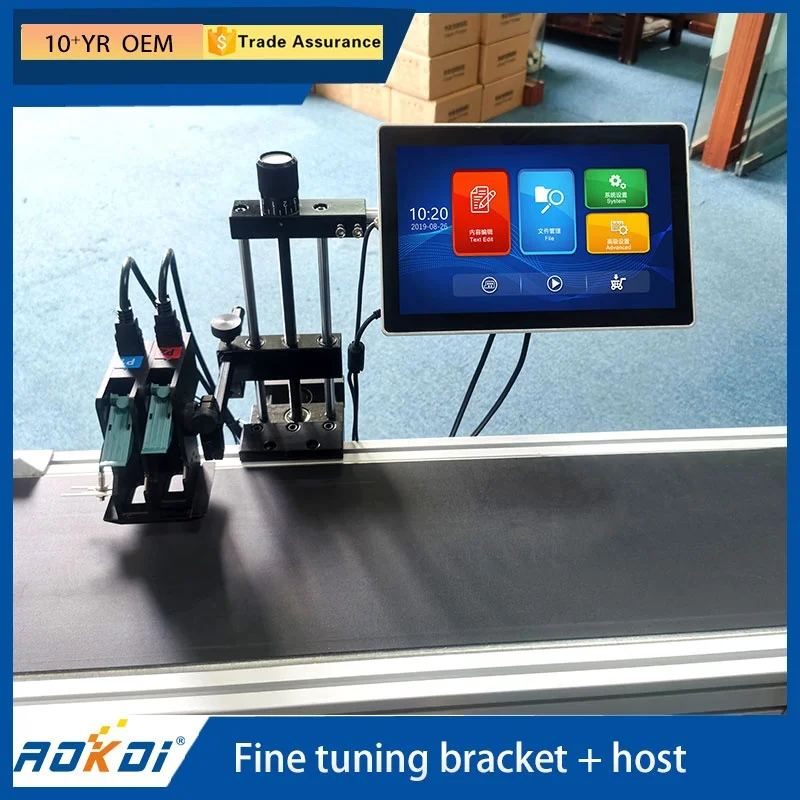

AOKDI professional fine-tuning bracket
,Nozzle bracket to fix the nozzle,The front and back up and down can be fine-tuned for better printing effect.
Others Simple bracket
Simple bracket, once fixed, adjustment is troublesome.
product size
Front of host
Series A: ：
the screen above the 25.4mm*2 nozzle of the host is a 10inch HD screen. Single nozzle is 7inch screen.
The fuselage is made of aluminum alloy+spray paint.
Back of host
The back of the host is the nozzle connection port.Up to 8 nozzles can be connected
Left and right sides of main engine
Includes: power supply interface and synchronizer interface. Sensor interface, RS232 interface power switch, usb interface, inkjet feedback signal, ink shortage feedback signal.
Host top
Radiating hole，Help the machine dissipate heat and keep the machine running stably.
A388 -3 Nozzle size
Aluminum alloy+paint material. Corrosion-resistant and durable
Back of nozzle rack
Size of cartridge holder, cartridge buckle, sensor holder, power lamp, connection interface.
Side of nozzle support
Side of nozzle support
Front of nozzle support
Front of nozzle support
When the green light on the nozzle holder is on, the ink cartridge cannot be removed or inserted.
Editable content
If you have any questions about the printing content, please click here to contact us for consultation.

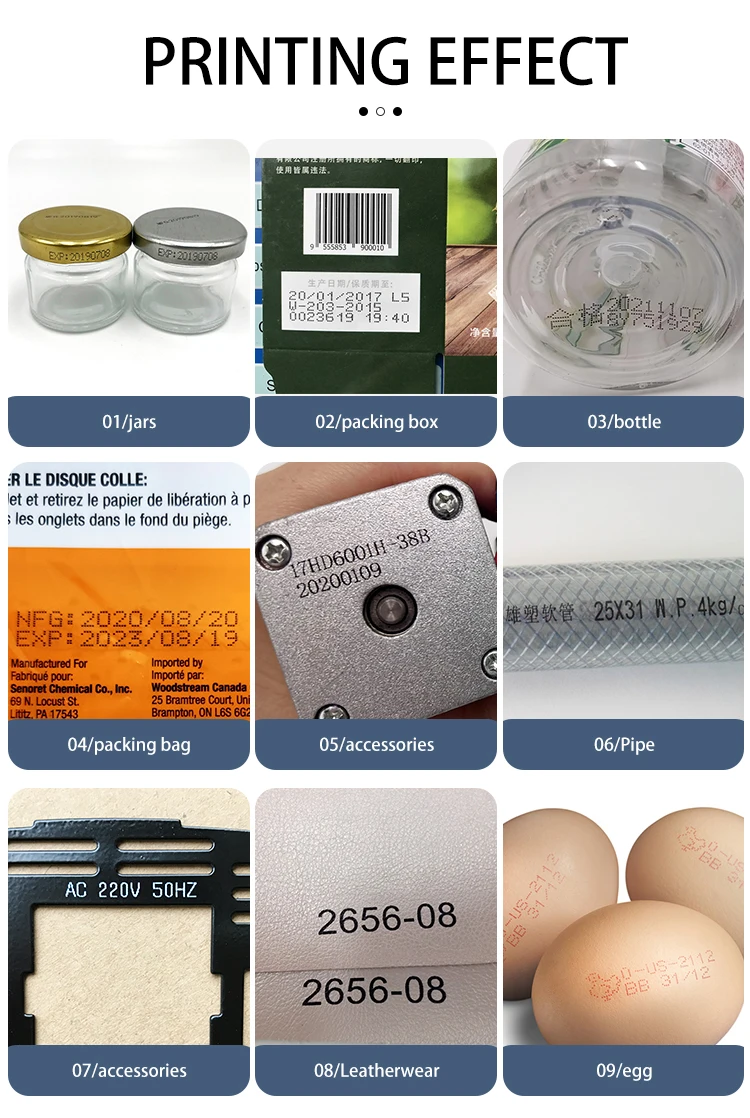

Printing effect

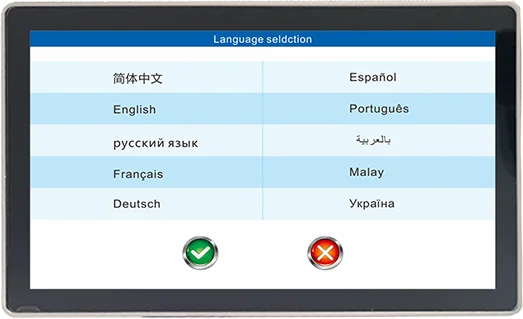

Chinese, English, Russian, French, German, Arabic, Spanish, Portuguese, Malay, Ukrainian

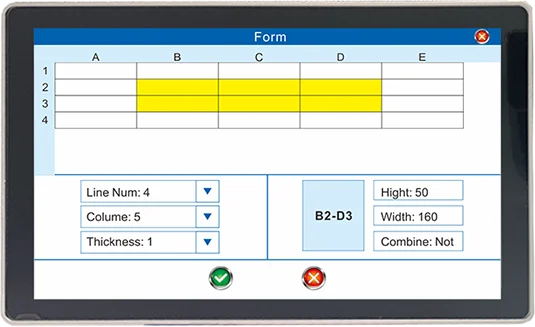

You can set the number of rows and columns of the table. Then fill in the content.

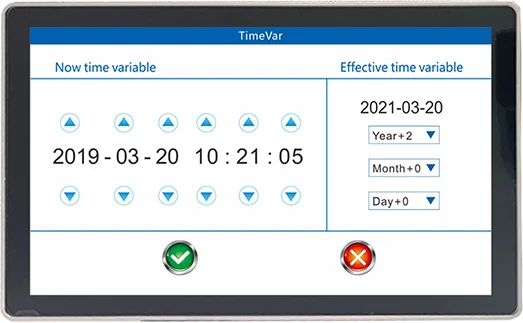

After setting, the production date can be sprayed according to the system setting time, or the expiration date can be sprayed according to the effective time variable.

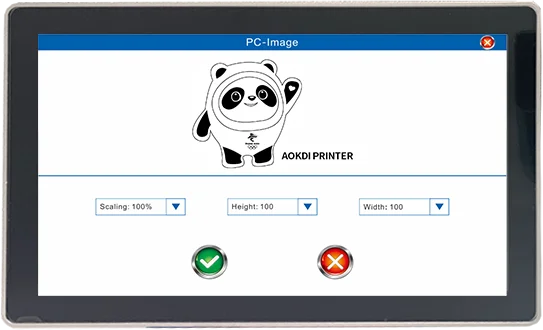

Image import interface
You can see pictures like bmp, unlimited number of digits, unlimited size.

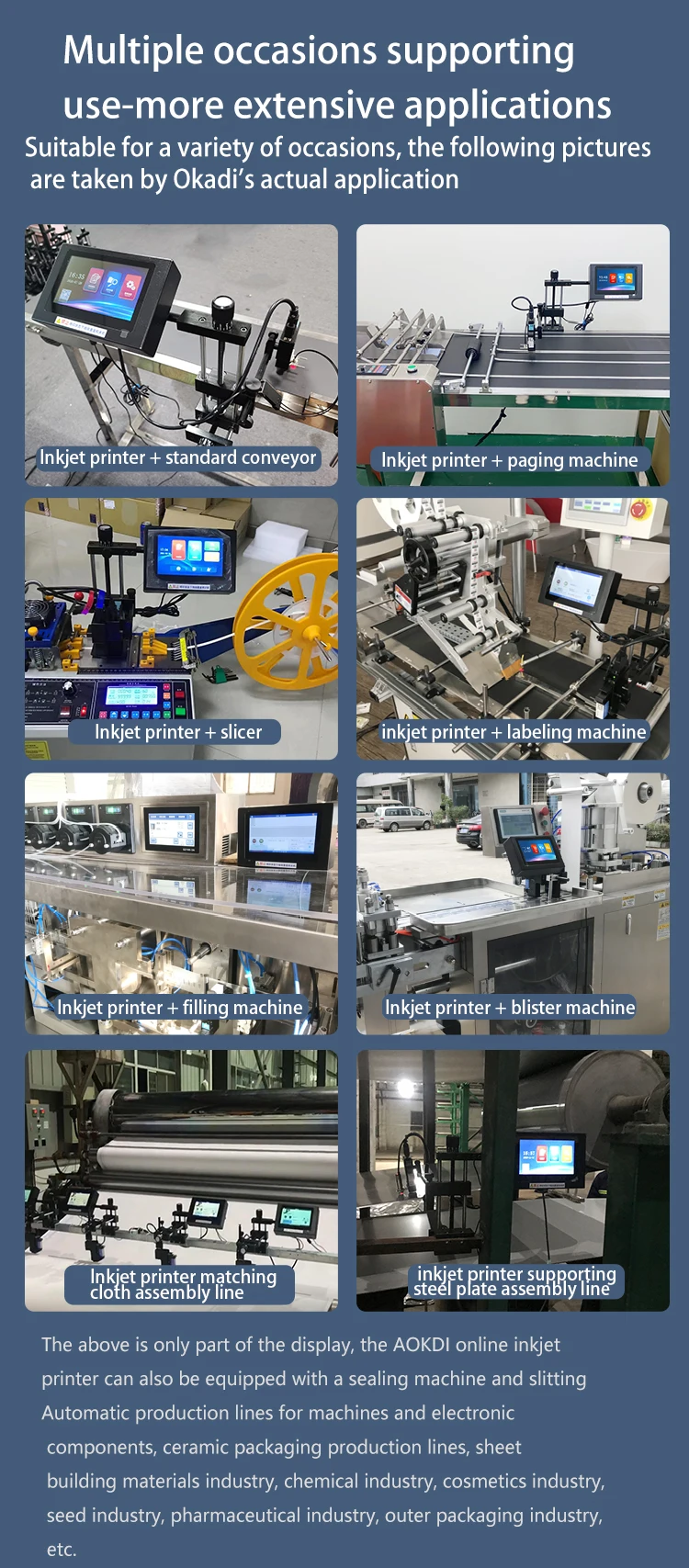

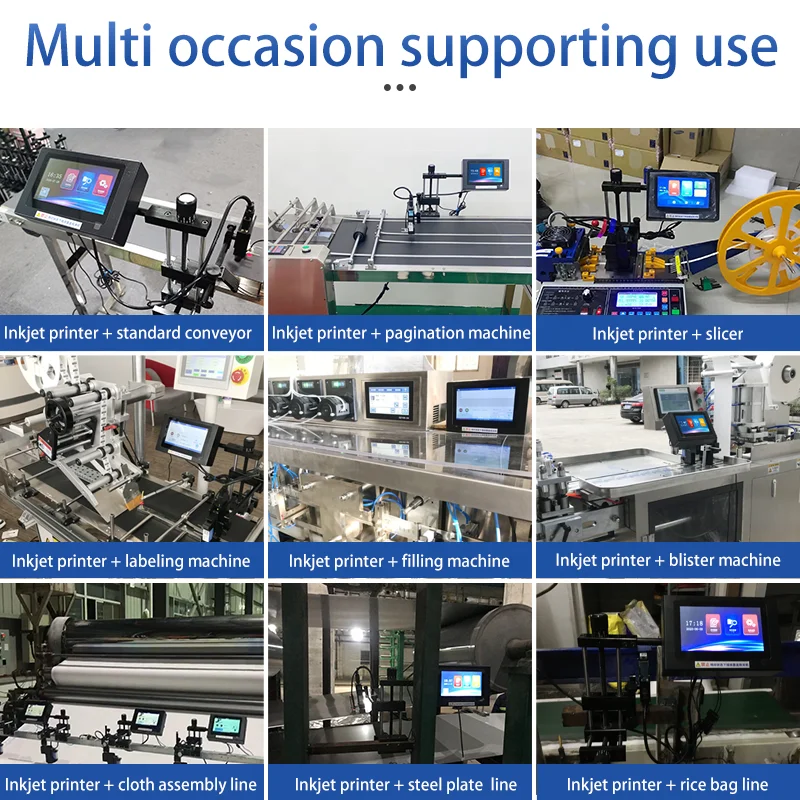

Applications
Product packaging
