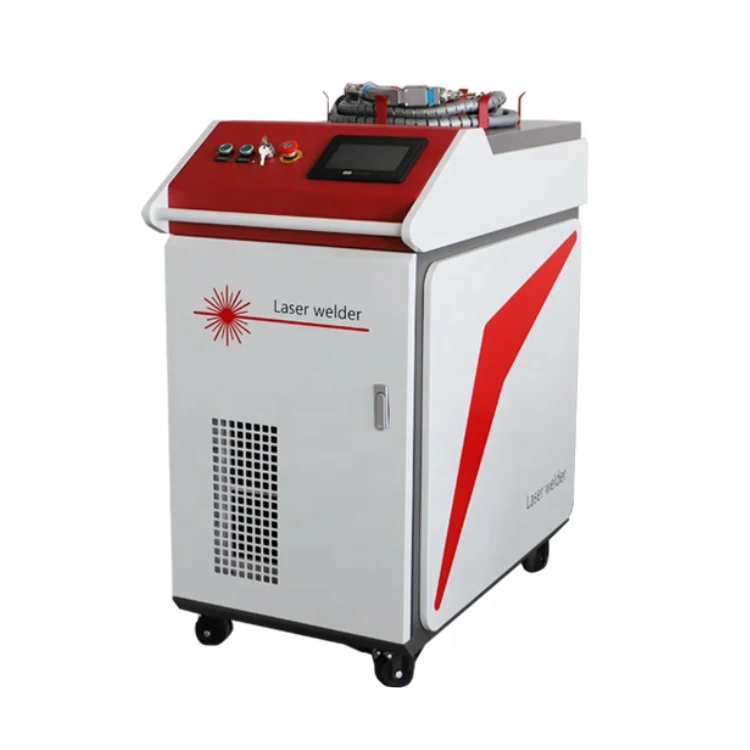

hand held mini laser welder for metal portable laser welding machine
- Category: Laser Welders >>>
- Supplier: Huizhou Yunchuang Laser Technology Co. Ltd.
Share on (1600455778907):
Product Overview
Description
Product Description
Introduction
The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple
operation, beautiful welding beam, fast welding speed and no consumables. Welding in thin stainless steel sheet, iron
sheet,galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding andotherprocesses.
Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless
steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular
weldingprocess.
The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple
operation, beautiful welding beam, fast welding speed and no consumables. Welding in thin stainless steel sheet, iron
sheet,galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding andotherprocesses.
Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless
steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular
weldingprocess.
Features:
1. The energy, pulse width and frequency can be adjusted in a large range to realize different welding effects.
2. The laser machine have high energy density,low heat input, small thermal deformation, deep penetration welding depth.
3. Compared with contact welding, laser welding eliminate the need for electrodes, reducing daily maintenance costs and
increasingyour work efficiency.
4. The welding seam is smooth,flat and beautiful, no need post-weld treatment.
5. Low operating and maintenance costs.
6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Advantage:
1. The energy, pulse width and frequency can be adjusted in a large range to realize different welding effects.
2. The laser machine have high energy density,low heat input, small thermal deformation, deep penetration welding depth.
3. Compared with contact welding, laser welding eliminate the need for electrodes, reducing daily maintenance costs and
increasingyour work efficiency.
4. The welding seam is smooth,flat and beautiful, no need post-weld treatment.
5. Low operating and maintenance costs.
6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Advantage:
Deep penetration depth,fast welding speed 2-10 times faster than tradition welding method), small heat effected
zone,Low power consumption, Low maintenance costs, easy operation no need training.
zone,Low power consumption, Low maintenance costs, easy operation no need training.
Technical parameters
Max laser power | 1000W | ||||||
Laser source | Raycus/IPG/Nlight/JPT/MAX | ||||||
Beam quality | 1.3m² | ||||||
Laser wavelength | 1080±5nm | ||||||
Dimension | 103*60*114cm | ||||||
Water chiller | 1.5P | ||||||
Power required | 220V±10%/50Hz | ||||||
Power Consumption | 7.5KW | ||||||
Fiber optical length | 10m | ||||||
lifetime | 100,000 hours | ||||||
Wattanty | 2 years | ||||||
Laser Frequency | 50-5000Hz | ||||||
Adjustable power rate | 5-100% | ||||||
Gross weight | 260kg | ||||||
More details

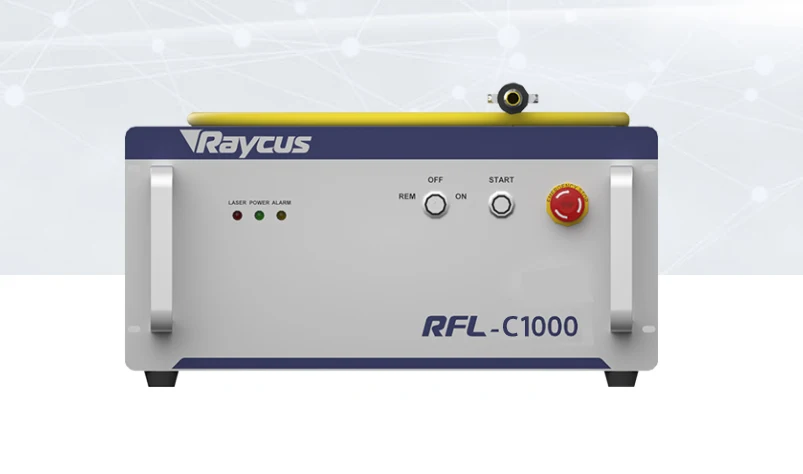

Brand: Raycus/ IPG/ Nlight
For Stainless steel and carbon steel welding, we suggest Raycus and IPG, IPG is better than Raycus.
For Aluminum brass welding, we suggest Nlight or IPG laser source.
For Stainless steel and carbon steel welding, we suggest Raycus and IPG, IPG is better than Raycus.
For Aluminum brass welding, we suggest Nlight or IPG laser source.

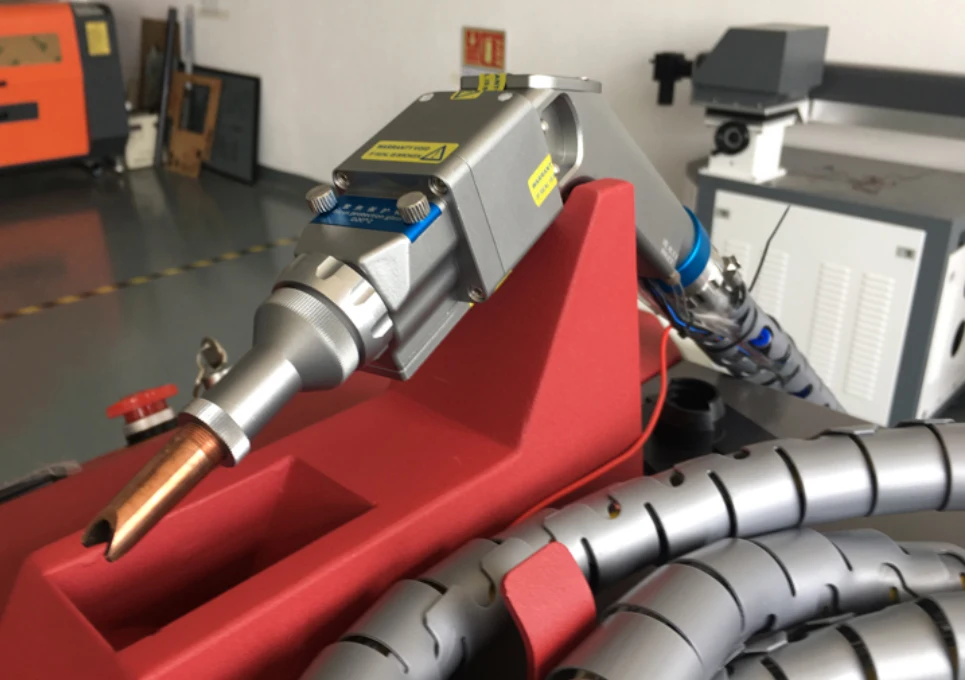

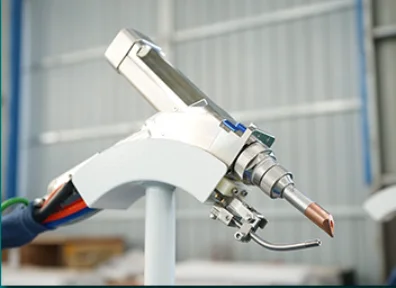

Wobble Welding Head
The portable welding joint is portable, flexible and easy to operate. It can be used. for continuous welding of various angles and
positions
positions

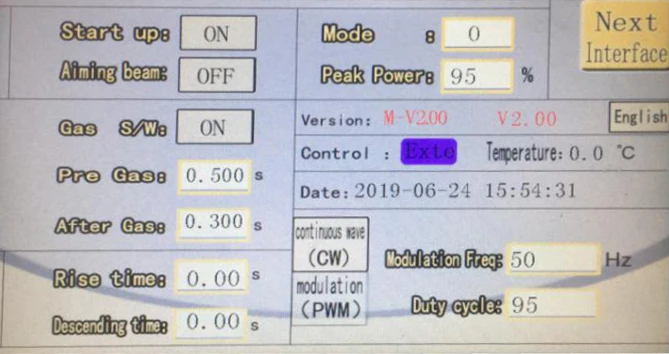

Control System
Precise parameters at a glanceTouch screen design, easy to operate.
Different parameter setting different welding effect.
Different parameter setting different welding effect.

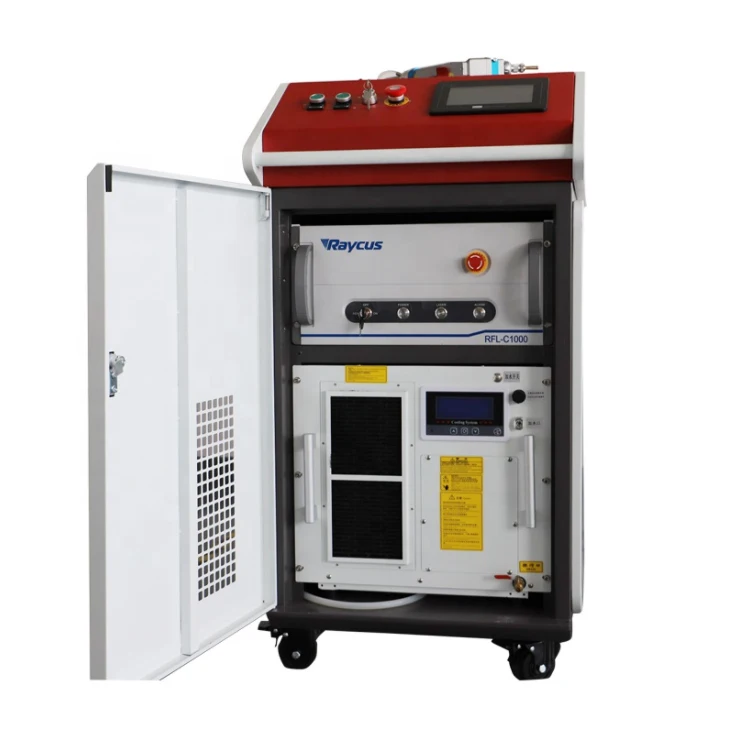

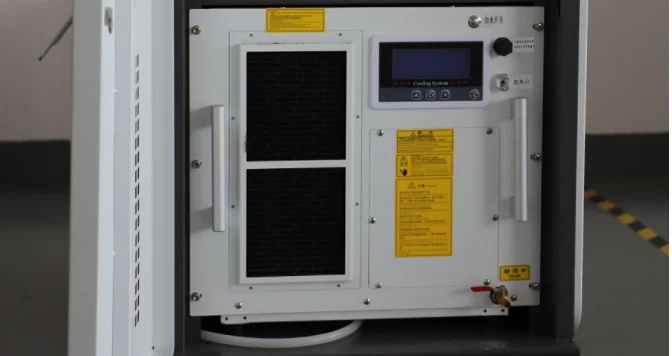

Water Chiller
It is able to provide good cooling effect for laser source and welding head, support continuous working.

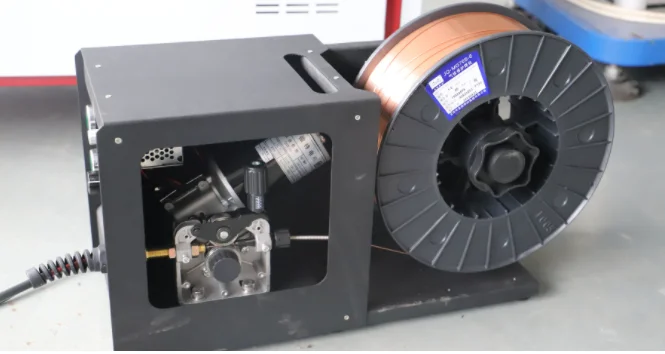

Handheld fiber laser welding machine with wire feeder
Usually, when the welding gap is more than 0.5mm, we should use wire to weld, so wire automatic feeder is welcomed by more and
more customers, when there is no need to use it, just turn off the switch, it is very convenient and achieve the
multifunctionalwelding.
more customers, when there is no need to use it, just turn off the switch, it is very convenient and achieve the
multifunctionalwelding.
Welding Sample
Application:
Application:Widely used in mold repair, cabinets welding, kitchenware, staircase elevator, metal frame, shelf, oven,stainless
steel door, brass door, brass window, steel window, stair railing, distribution box, guardrail, advertising word etc.
Handheld design is flexible, suitable for complex and irregular welding.
Application:Widely used in mold repair, cabinets welding, kitchenware, staircase elevator, metal frame, shelf, oven,stainless
steel door, brass door, brass window, steel window, stair railing, distribution box, guardrail, advertising word etc.
Handheld design is flexible, suitable for complex and irregular welding.
Packaging & Delivery
Standard transport wooden box, internal filling sponge to protect equipment
Packing Size:115*75*130cm
Net Weight: 260KG
Gross Weight: 290KG
All equipment before delivery, after 100% aging test, ensure the function, reliable, security and durability of the product, to
ensure product quality!
Net Weight: 260KG
Gross Weight: 290KG
All equipment before delivery, after 100% aging test, ensure the function, reliable, security and durability of the product, to
ensure product quality!
