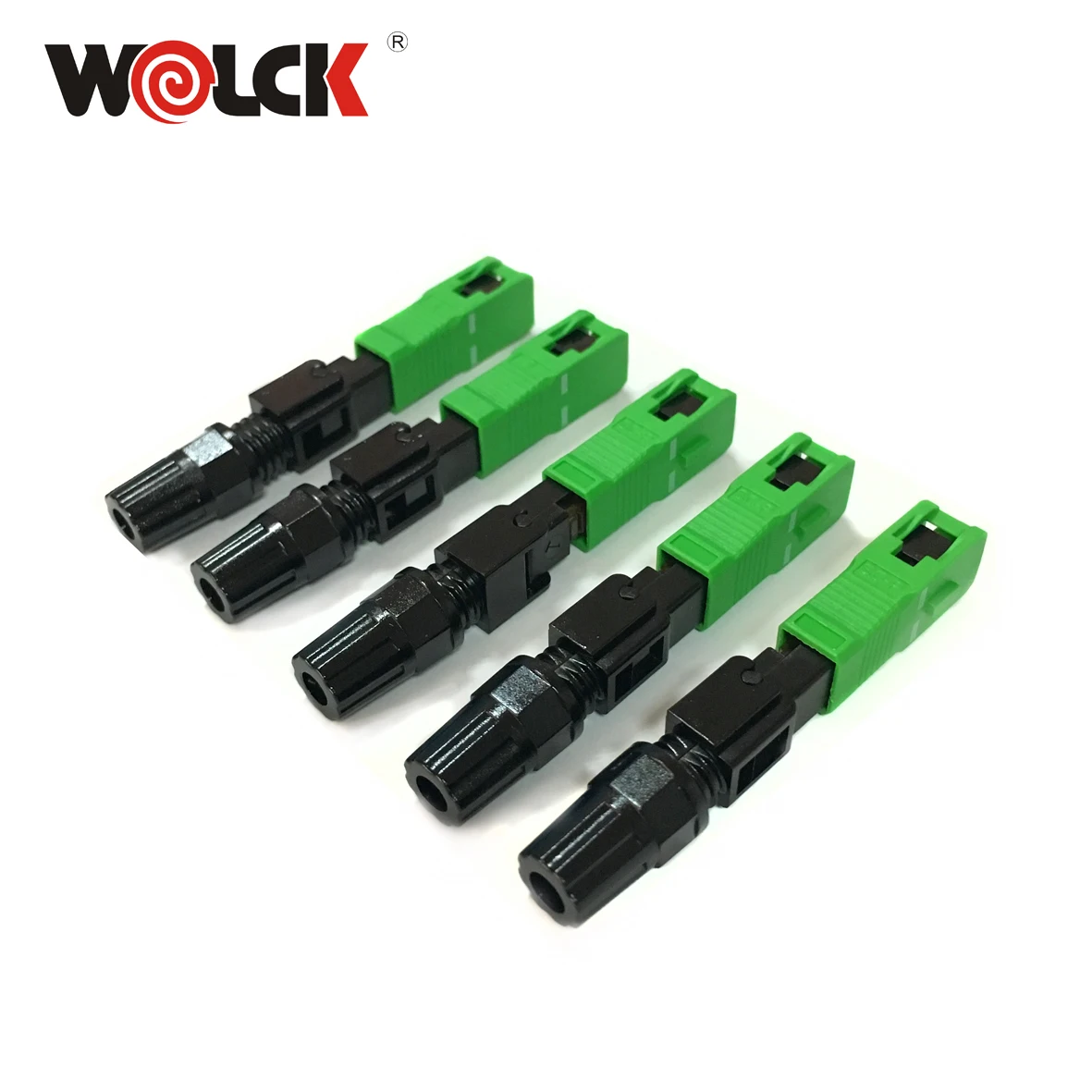

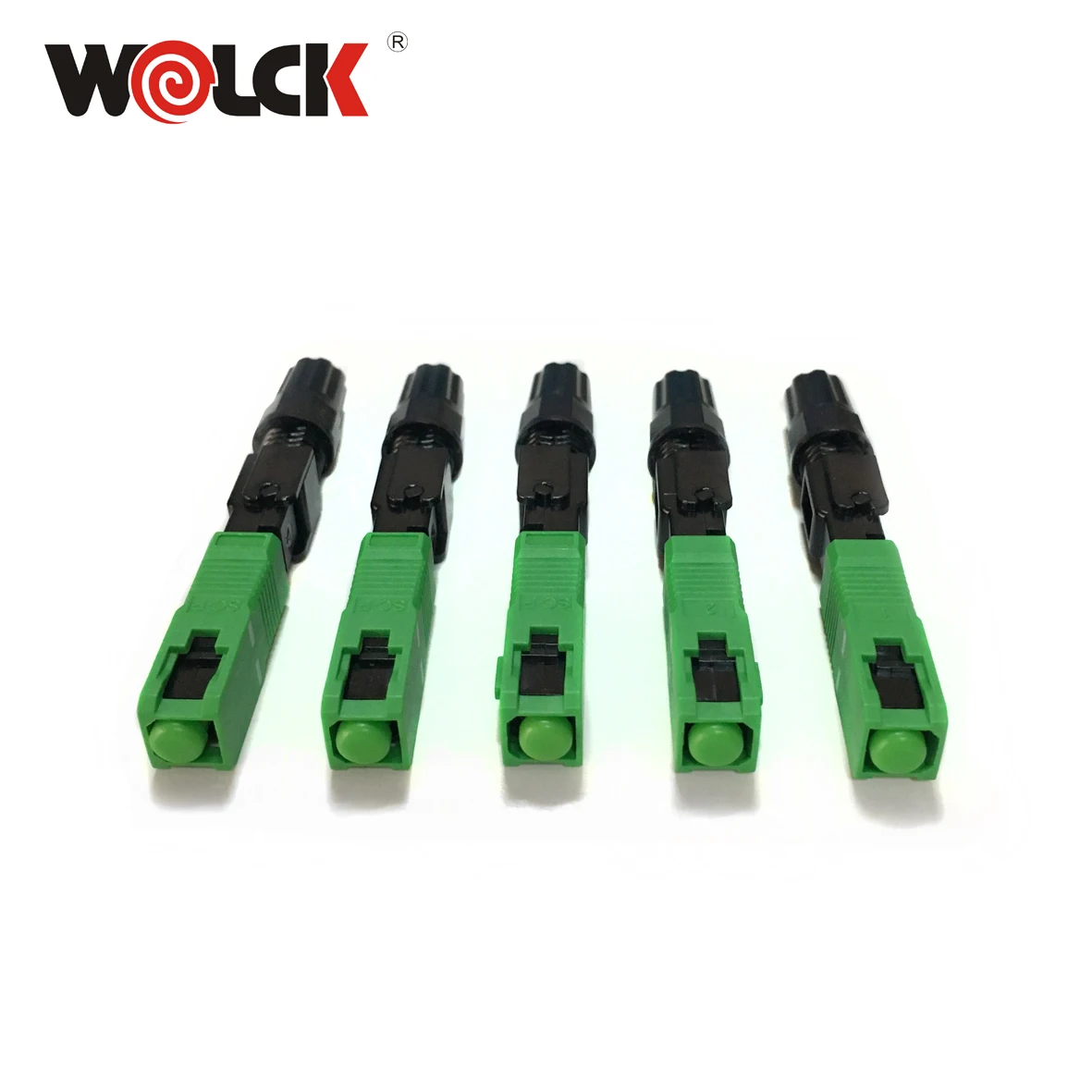

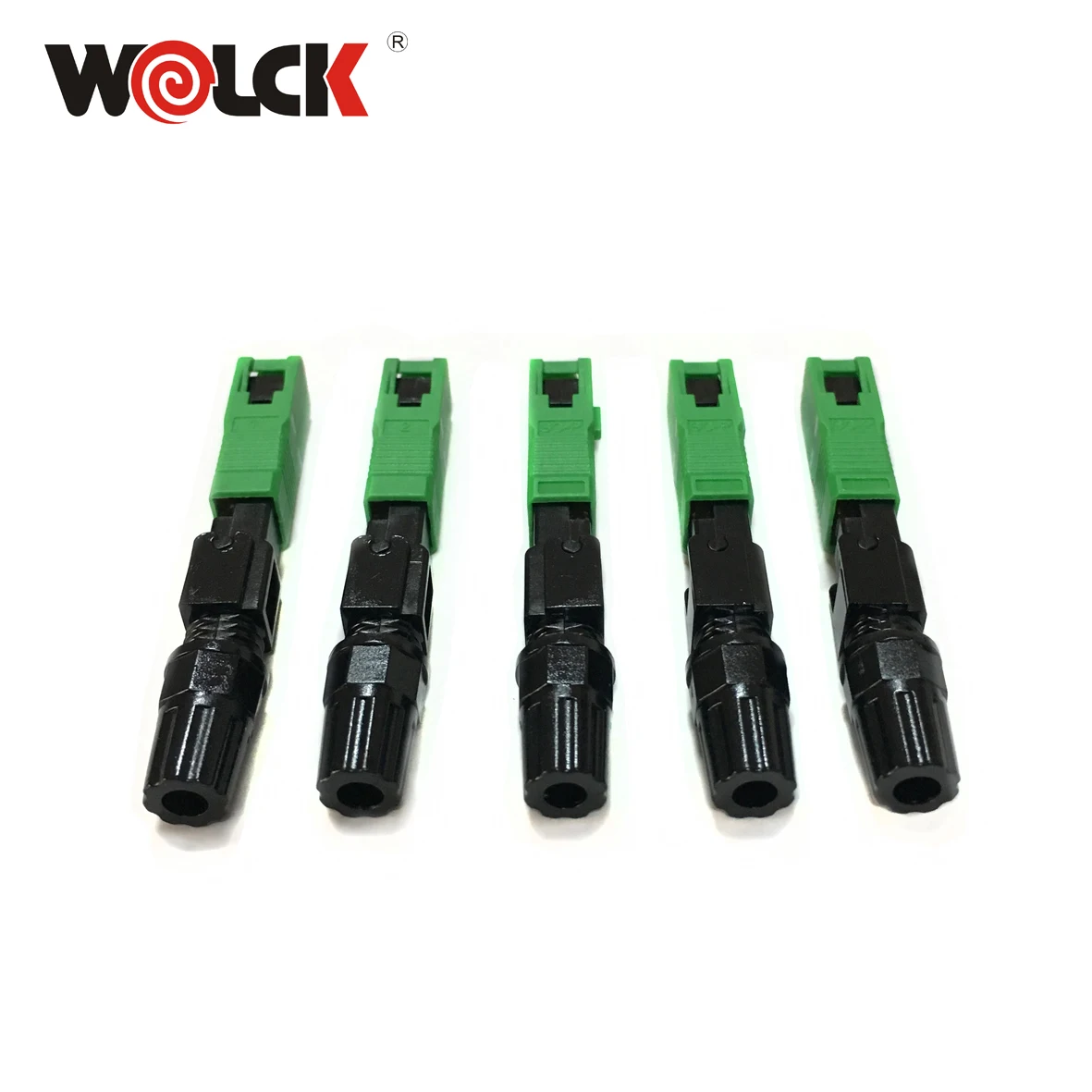

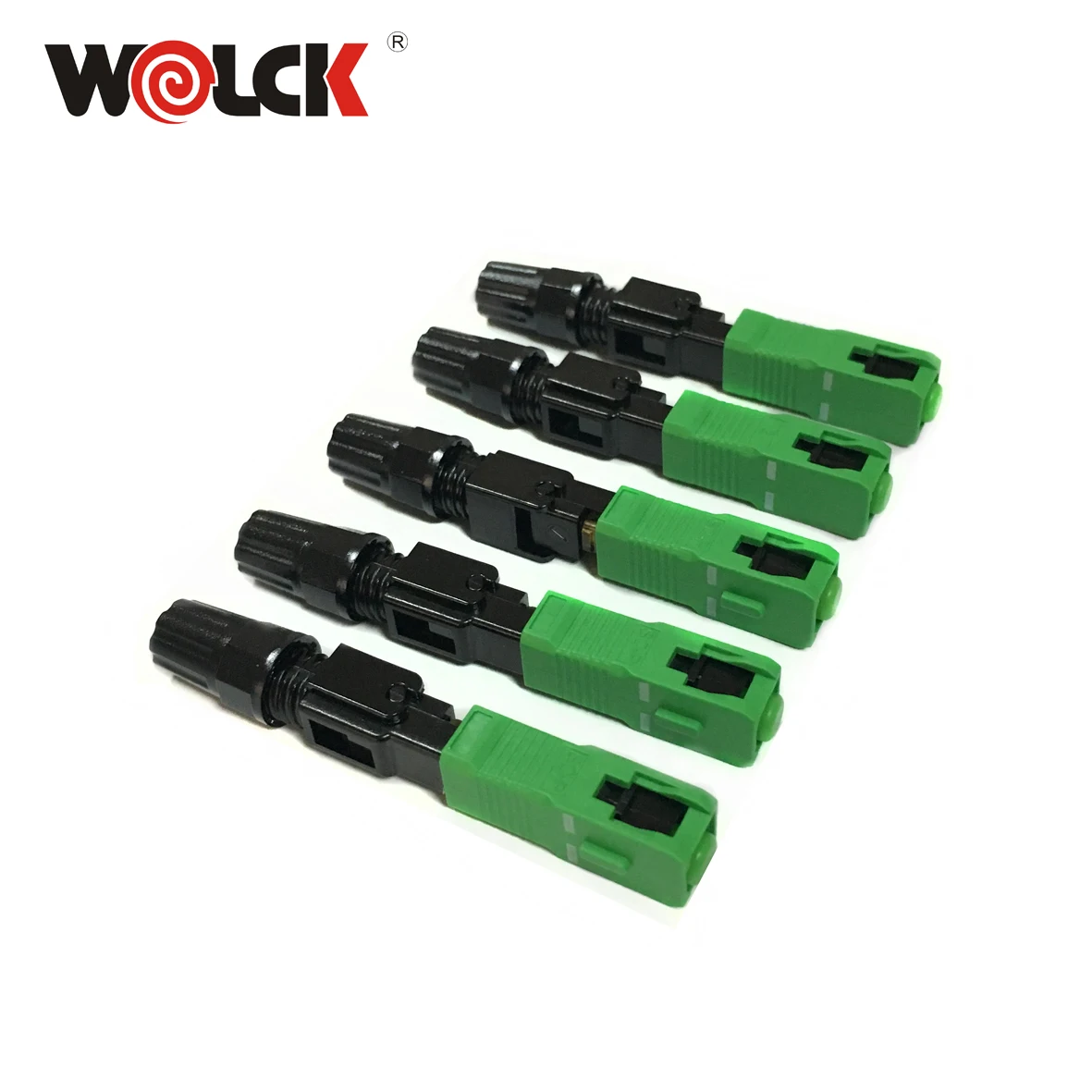

FTTH SC/ APC fast connector fiber optic fast installation connector splice on connector
- Category: >>>
- Supplier: SHENZHEN WOLCK NETWORK PRODUCT CO. LIMITED
Share on (1600455809461):
Product Overview
Description
Products Description
Sc/apc connector Ftth Fiber Optic Fast Connector Sc Upc fast connector
SC Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
TEL/Whats/Wechat: +86 13670059020
Specification
1. SC type fiber optic fast connector |
2. Apply for outdoor or indoor cable of telecommunication, FTTH, computer networks, CATV networks, active device termination, instrumentation |
3. No need fusion, epoxy or heating |
4. Fiber dia. 125 μm, cable outer dia. 0.9/2.0/3.0mm available |
5. Fiber mode: SM / MM |
6. Optical wave length: 1310nm, 1550nm |
7. PC Insertion Loss≤0.2dB, Return Loss≥45dB |
8. Working temperature: -40 °C ~ +85 °C |
9. Fastening strength of naked fiber >5 N |
10. Fastening strength of naked fiber holder >10 N |
11. Tensile strength >50 N |
12. Finish operating in 60'' |
Packaging

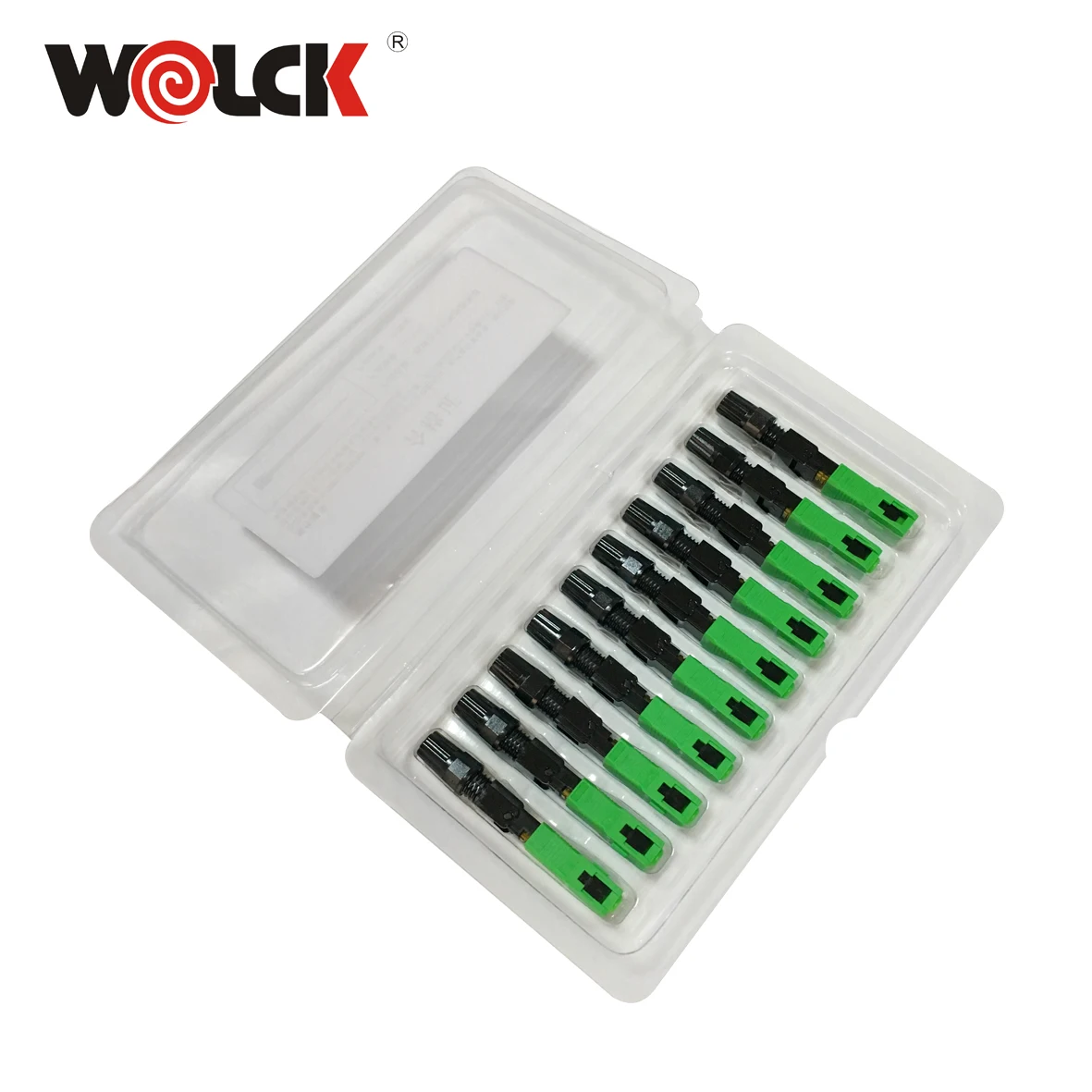

Fast connector:

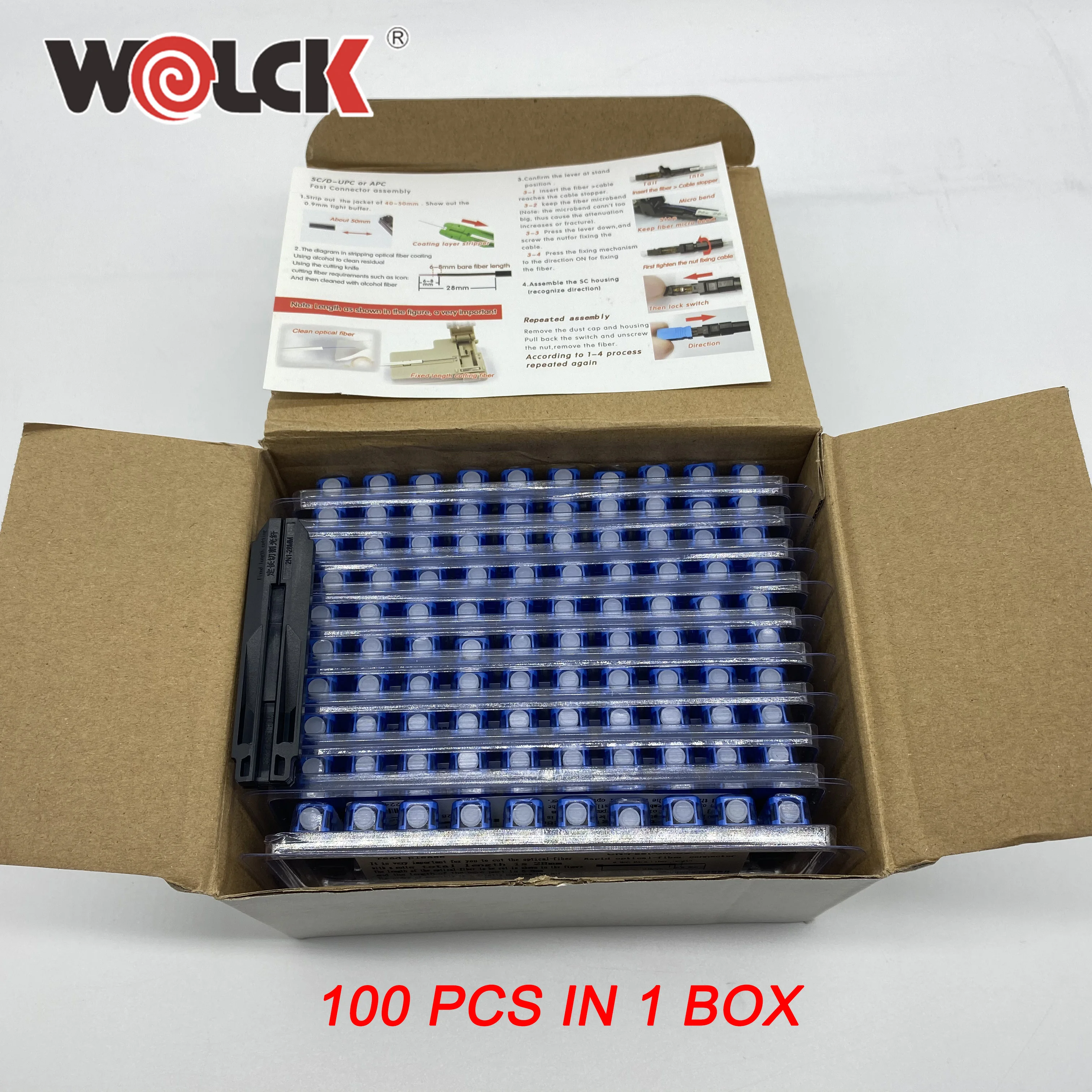

100pcs in one small box
100pcs in one small box
1000pcs in one carton:
32*38*43cm
G.W.: 7.95kg
32*38*43cm
G.W.: 7.95kg
