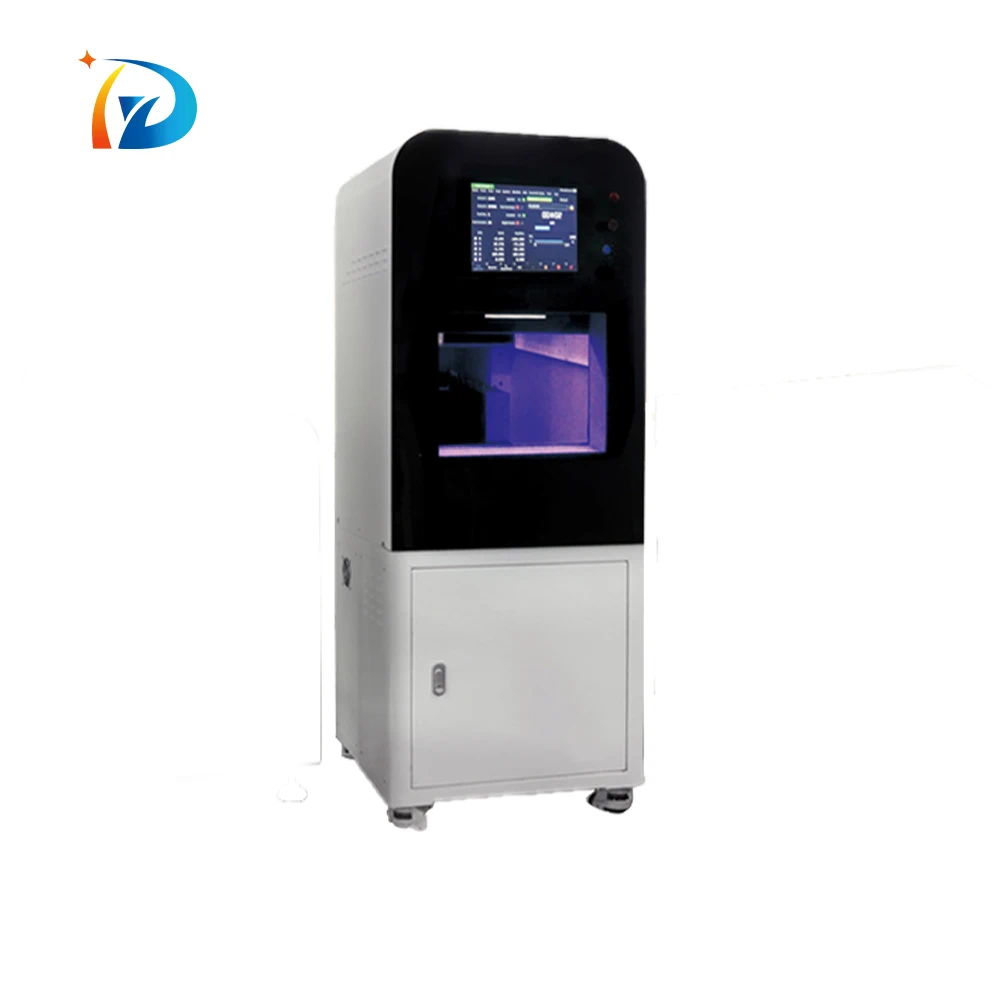

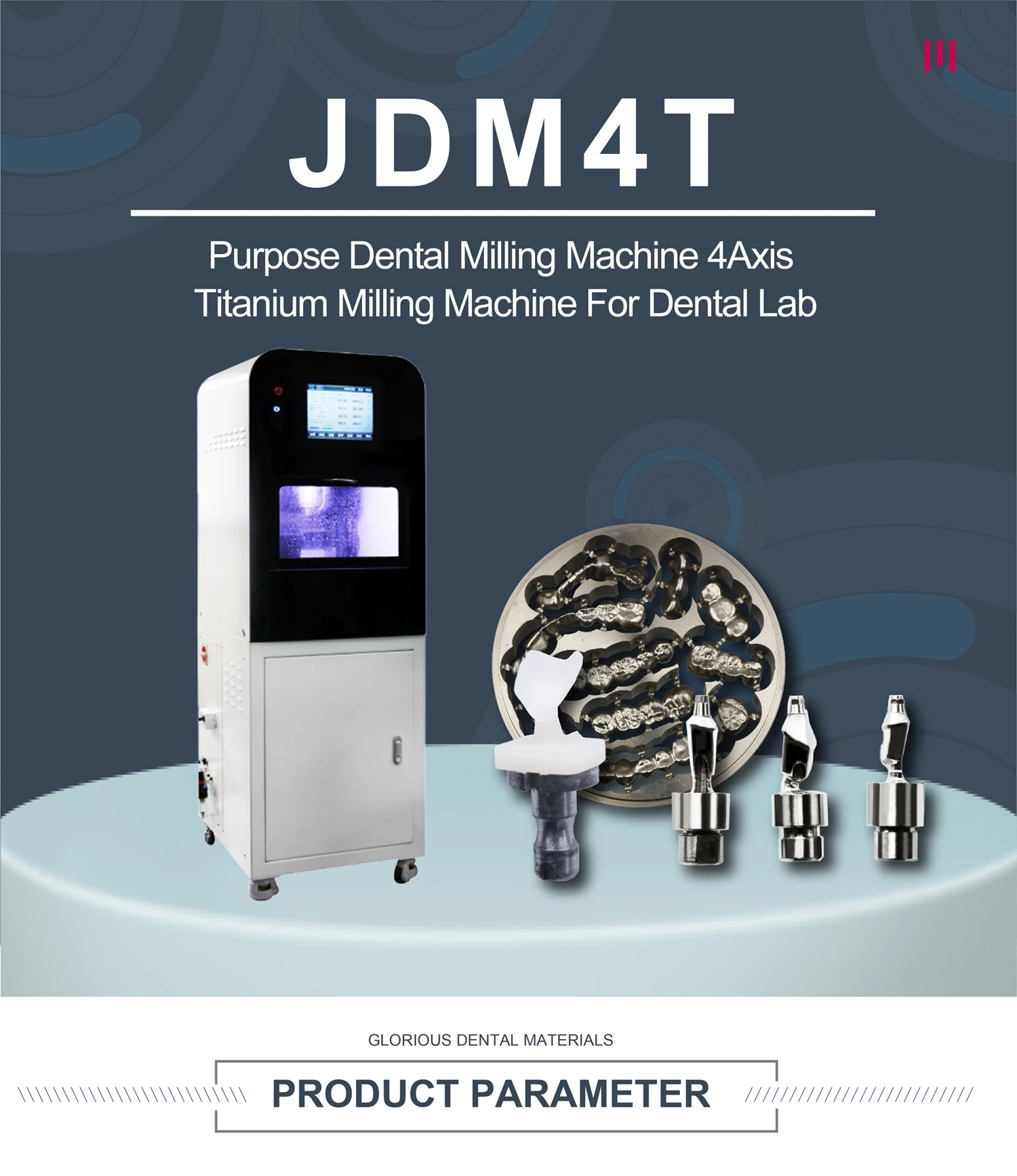

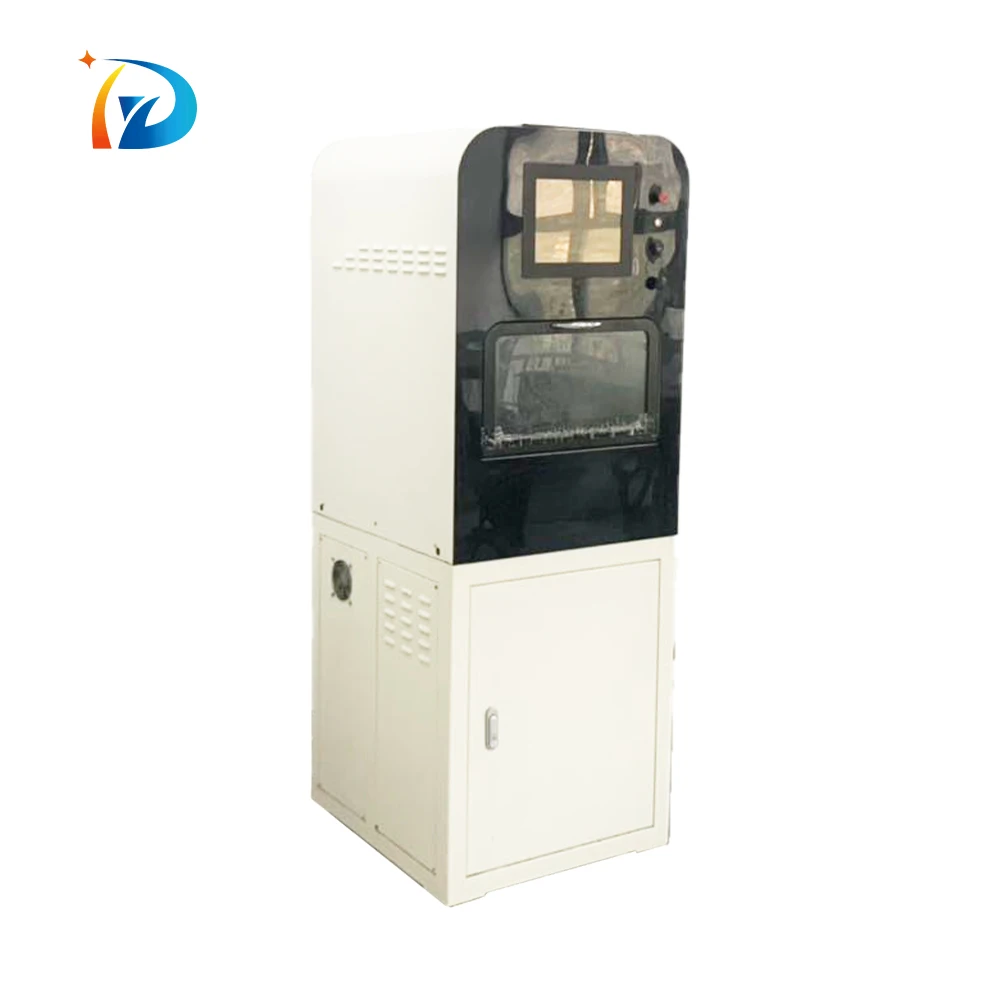

4 Axis Dental Metal Milling Machine With Panasonic Servo And Reducer For Lithium Disilicate And Premill
4 Axis Dental Metal Milling Machine With Panasonic Servo And Reducer For Lithium Disilicate And Premill
4 Axis Dental Metal Milling Machine With Panasonic Servo And Reducer For Lithium Disilicate And Premill
4 Axis Dental Metal Milling Machine With Panasonic Servo And Reducer For Lithium Disilicate And Premill
4 Axis Dental Metal Milling Machine With Panasonic Servo And Reducer For Lithium Disilicate And Premill
4 Axis Dental Metal Milling Machine With Panasonic Servo And Reducer For Lithium Disilicate And Premill
4 Axis Dental Metal Milling Machine With Panasonic Servo And Reducer For Lithium Disilicate And Premill

4 Axis Dental Metal Milling Machine With Panasonic Servo And Reducer For Lithium Disilicate And Premill

Share on (1600455860169):


Price:$12,500.00

Quantity:


Product Overview

Description



Product Description




Model
JDM4T
Axis
4 axis
Milling Mode
Dry/Wet
Product type
Crown, Bridge, Inlay/Onlay, Veneer,
Framework, Glass ceramic,Lithium Disilicate,

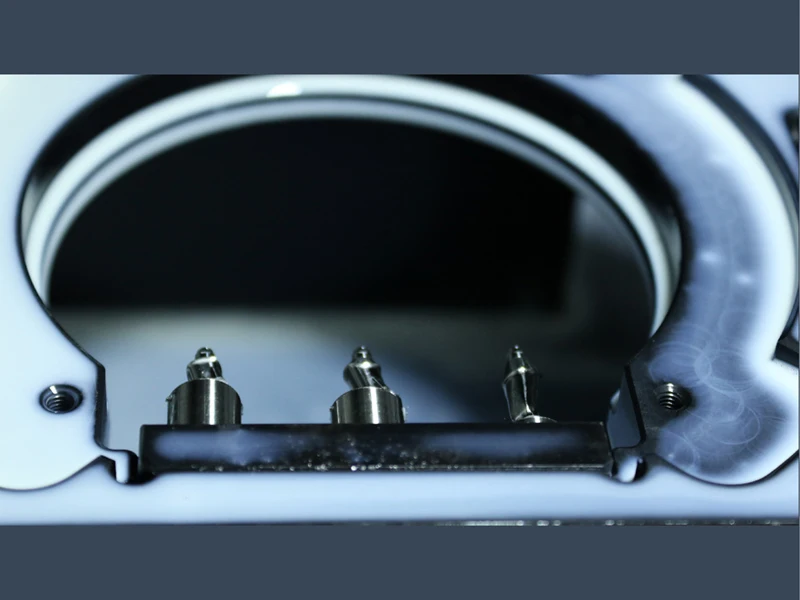

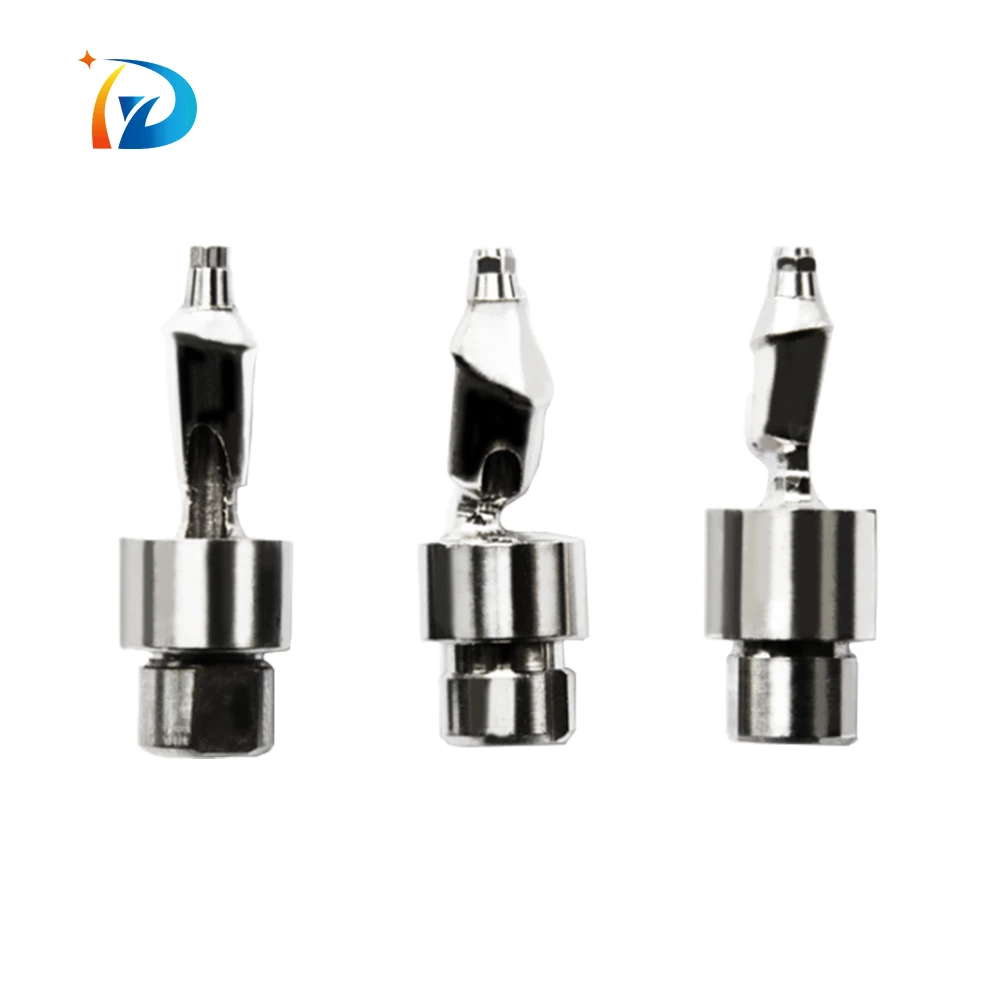

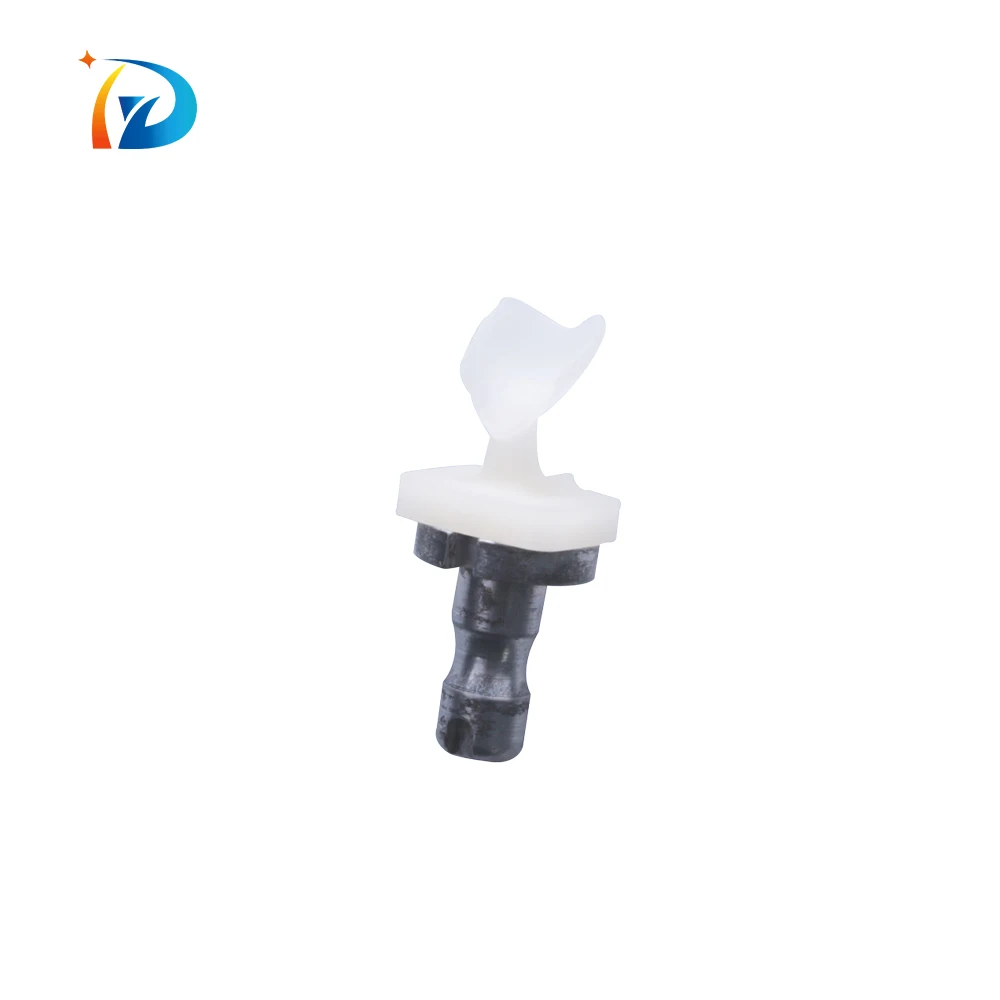

Emax,Premilled abutment
Max spindle speed
40000 RPM/min
Spindle cooling
Water cooling
Rotation range
A: 180°
Number of tool housed
4
Tool change and check
Fully Automatic
Compatible compressed air
0.7 MPa
Loadable workpiece shape
Disk/Fixture
Input voltage
Disk diameter: 98mm
Machine total power
5 KW
Average milling time
Zirconia/PMMA/Wax: 6-8 min Titanium: 8-30 min
External dimensions
570*620*1600 mm
Weight
360 KG


Provides excellent restoration edges and surface details, so you can provide patients with extremely precise aesthetic results. Ultra-fine milling can be used for occlusal cracks on bridges and higher levels of detail in the inter dental area.

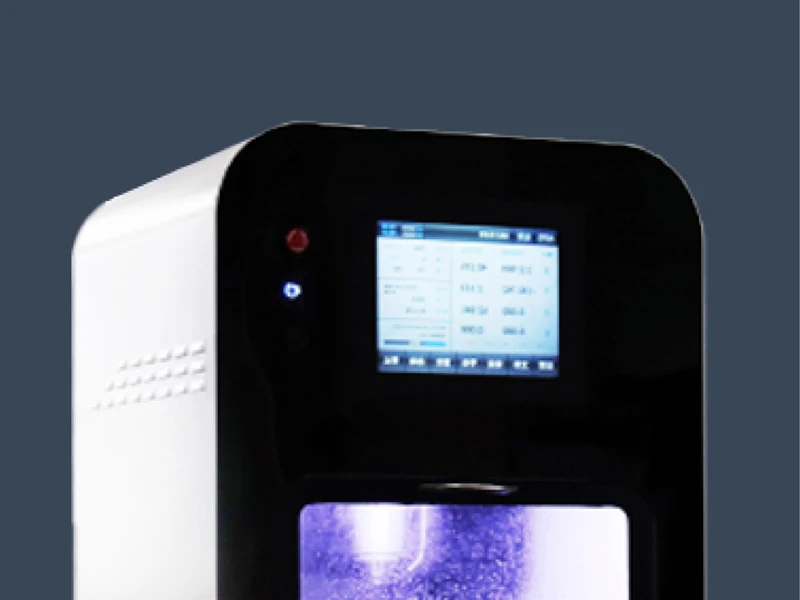

Integrate and delegate dental milling with ease thanks to user-friendly touch interface that guides you through every step of the workflow as well as through key maintenance procedures and other routine tasks.

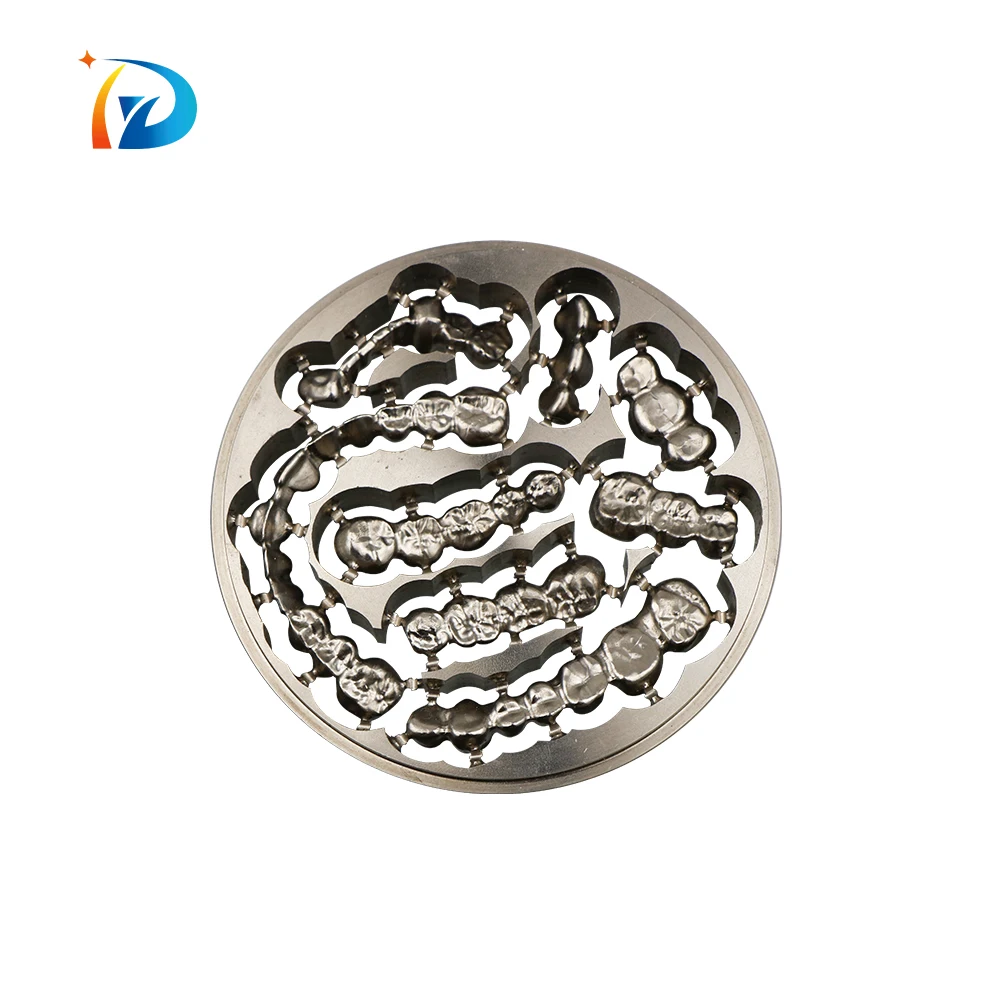

The processing of all relevant blank materials of cobalt chrome, titanium, block materials, and new future materials is thus possible with a single machine system, virtually without restrictions.

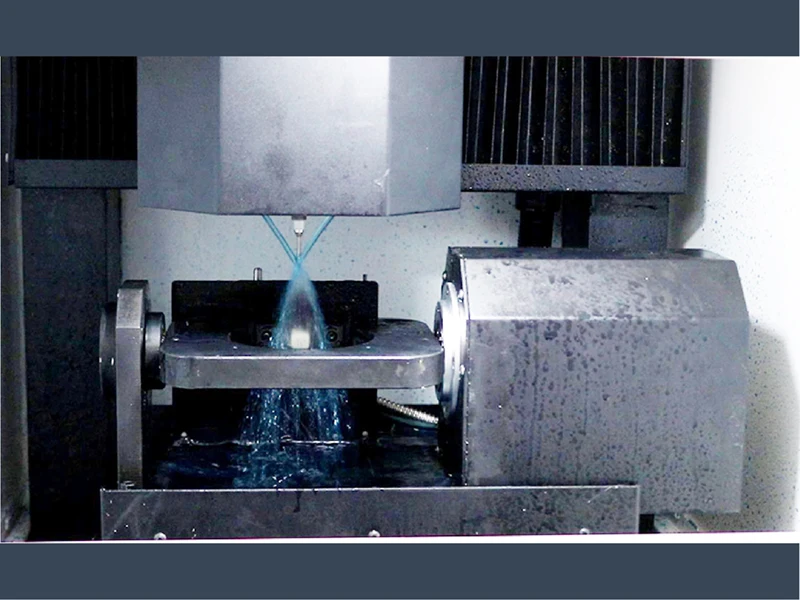

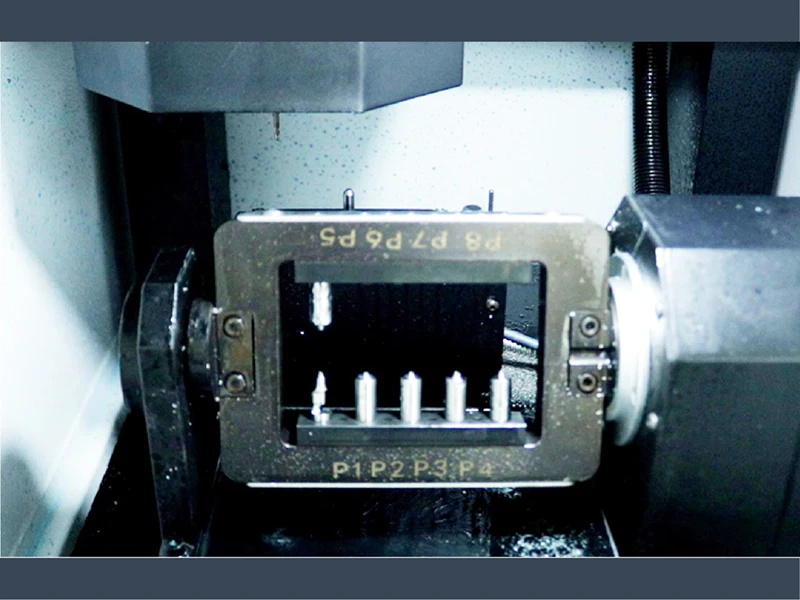

Water-cooled spindle for even moreprecise milling result,stainless steelblank holder for highest stabilityand reduction of vibrations.

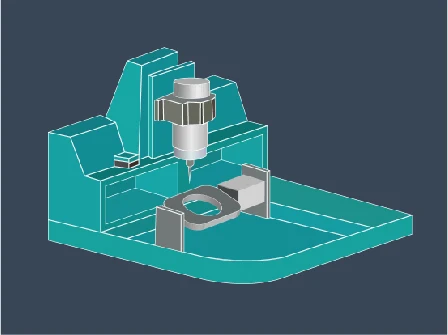

Double support shaft

Double side support at A and B axes, strong rigidity, high strength cutting does not play knife, hair embryo no concessions.


Strong rigidity
The sliding block under the working interval is supported without lever force, strong rigidity, high strength cutting does not play knife, hair embryo no concessions



Integrated structure

Integrated structure, no work table, external water tank, no complicated external water and gas connection.


Oil lubrication system

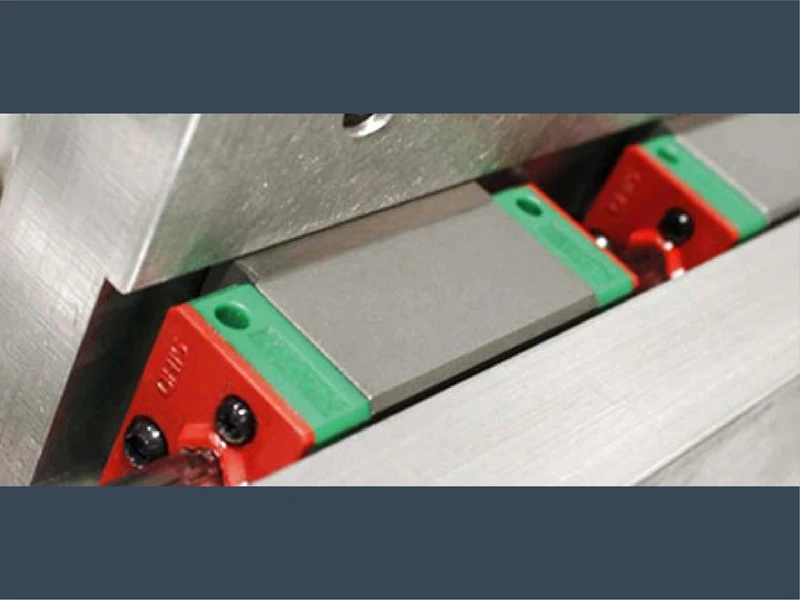

With oil lubrication system, long - term guarantee accuracy, lead screw guide life extension of more than 3 years.



CNC system

Embedded CNC system, not crash, not afraid of viruses



Comprehensive alarms of
the protections

Low pressure of the air cooling; low pressure of the changing knife and can be operated when the pressure is enough high; unsuccessful grasping the knife; unsuccessful returning the knife; breaking the knife when cuts; wrong type of
the knife.
