Neutrik 3pin male XLR connector NC3MD H for neutrik audio microphone D size connectors
- Category: >>>
- Supplier: Shenzhen Pawpaw Electronic Technology Co. Ltd.
Share on (1600455890586):
Product Overview
Description
Products Description

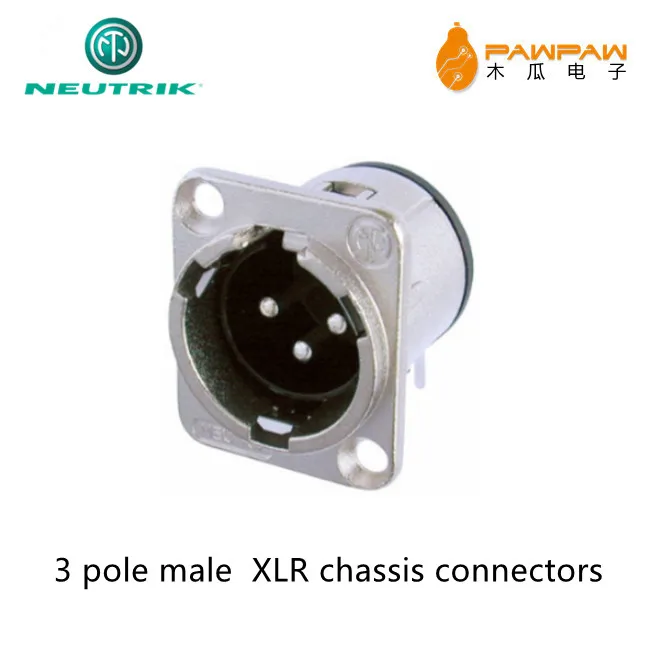

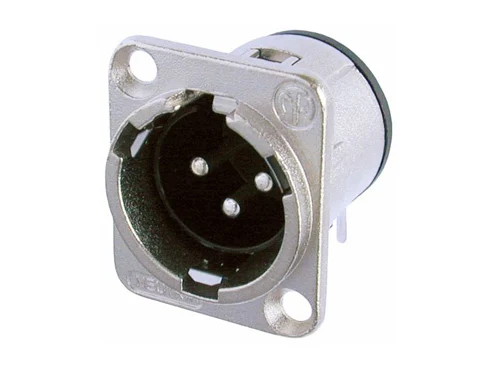

3 pole male XLR Chassis connector NC3MD-H for audio device, horizontal PCB mount
Product parameters | ||
Capacitance between contacts | ≤ 4 pF | |
Contact resistance | ≤ 5 mΩ | |
Dielectric strength | 1,5 kVdc | |
Insulation resistance | > 10 GΩ (initial) | |
Rated current per contact | 6 A | |
Rated voltage | < 50 V | |
Insertion force | ≤ 20 N | |
Withdrawal force | ≤ 20 N | |
Lifetime | > 1000 mating cycles | |
Wiring | Horizontal PCB mount | |
Locking device | Latch lock | |
Mounting direction | Rear mounting | |
Chassis shape | D | |
Contact plating | 2 µm Ag over 2 µm Ni | |
Contacts | Bronze (CuSn6) | |
Insert | PA66 | |
Locking element | Steel Ck67 | |
Ring | Zinc diecast (ZnAl4Cu1) | |
Shell plating | Nickel | |
Environmental | ||
Approvals | UL | |
Flammability | UL 94 V-0 | |
Standard compliance | IEC 61076-2-103 | |
Protection class | IP 40 | |
Solderability | Complies with IEC 68-2-20 | |
Temperature range | -30 °C to +80 °C | |
Application
3 pole female XLR Chassis connector
Features & Benefits
1.D-shape metal shell
2.Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
1. Optimal RF protection using 3 shield contacts
2. Front or rear panel mount
2. Front or rear panel mount
