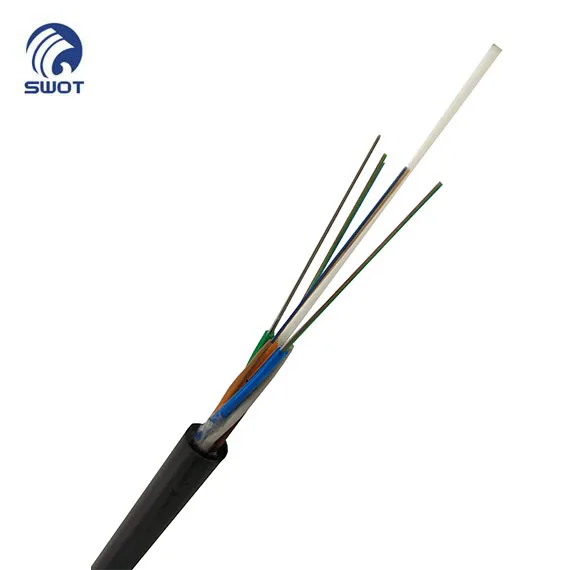

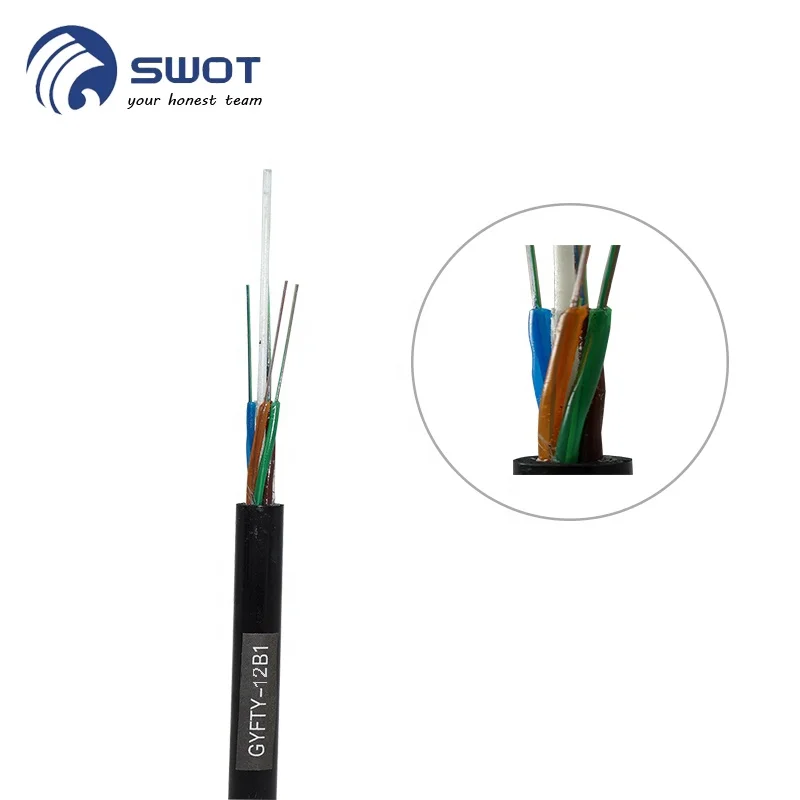

Wanbao Aerial Duct GYFTY g625d 12 24 48 96 Core Fiber Optical Cable 1KM Price with FRP Strength Member
- Category: >>>
- Supplier: Shanghai Wanbao Optical Technologies Co. Ltd.
Share on (1600455901033):
Product Overview
Description
Product Description
Feature
1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:

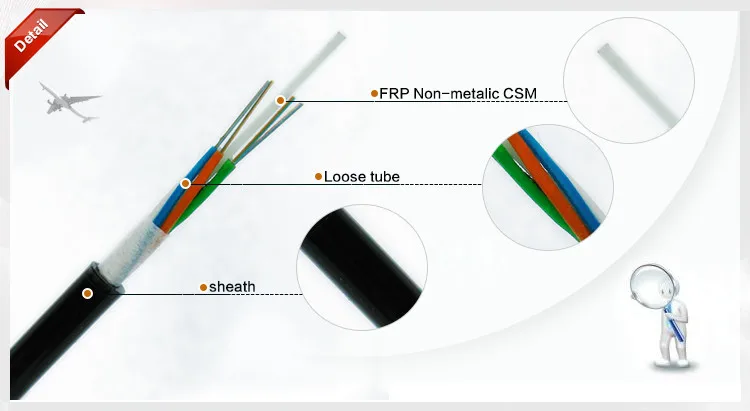

6. Single Fiber Reinforced Plastic as the central strength member
7. Loose tube filling compound
8. 100% cable core filling
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6. Single Fiber Reinforced Plastic as the central strength member
7. Loose tube filling compound
8. 100% cable core filling
Performance
1. Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
2. Fiber : G652D
3. Installation : Suitable for aerial & underground
4. Application : Apply to Long distance communication system, Local area network system and Subscriber network system
5. Lifetime : above 30 years
6. Operating temperature : -40°C~+70°C
7. Permisson bent radius Static : 10 times O.D.
8. Dynamic : 20 times O.D.
2. Fiber : G652D
3. Installation : Suitable for aerial & underground
4. Application : Apply to Long distance communication system, Local area network system and Subscriber network system
5. Lifetime : above 30 years
6. Operating temperature : -40°C~+70°C
7. Permisson bent radius Static : 10 times O.D.
8. Dynamic : 20 times O.D.
Specification
No. of cable | 4 | 8 | 12 | 24 | 48 | 72 | 144 | ||||||||
Fiber Model | G.652D | ||||||||||||||
Design(Strength Member + Tube &Filler) | 1+5 | 1+6 | 1+12 | ||||||||||||
Central Strength Member | Material | FRP | |||||||||||||
Diameter（±0.05）mm | 1.5 | 2.0 | |||||||||||||
Loose Tube | Material | PBT | |||||||||||||
Diameter（±0.06）mm | 1.72 | 2.0 | |||||||||||
Thickness（±0.03）mm | 0.30 | 0.32 | |||||||||||
The Max. Core NO./Tube | 4 | 6 | 12 | ||||||||||
Filler Rope | Material | LDPE | |||||||||||
Color | White | ||||||||||||
Diameter（±0.06）mm | 1.7 | 2.0 | |||||||||||
Water Blocking layer（Material） | Flooding Compound | ||||||||||||
Outer Sheath | Material | MDPE | |||||||||||
Thickness（±0.2）mm | 1.8 | ||||||||||||
Cable Diameter | 8.3 | 8.9 | 9.4 | 13.2 | |||||||||
Cable Weight | 55 | 65 | 75 | 160 | |||||||||
Min. bending radius | Without Tension | 10.0×Cable -φ | |||||||||||
Under Maximum Tension | 20.0×Cable -φ | ||||||||||||
Temperature range （℃） | Installation | -20~+60 | |||||||||||
Transport & Storage | -40~+70 | ||||||||||||
Operation | -40~+70 | ||||||||||||
Packing & Delivery
Packing | 2-5KM/drum |
drum | wooden drum or polly wood drum |
Test report | YES |
Printing | As customer request |
