Горячая Распродажа, хорошая репутация, пневматический поворотный привод серии GT двойного действия и одностороннего действия

Product Overview

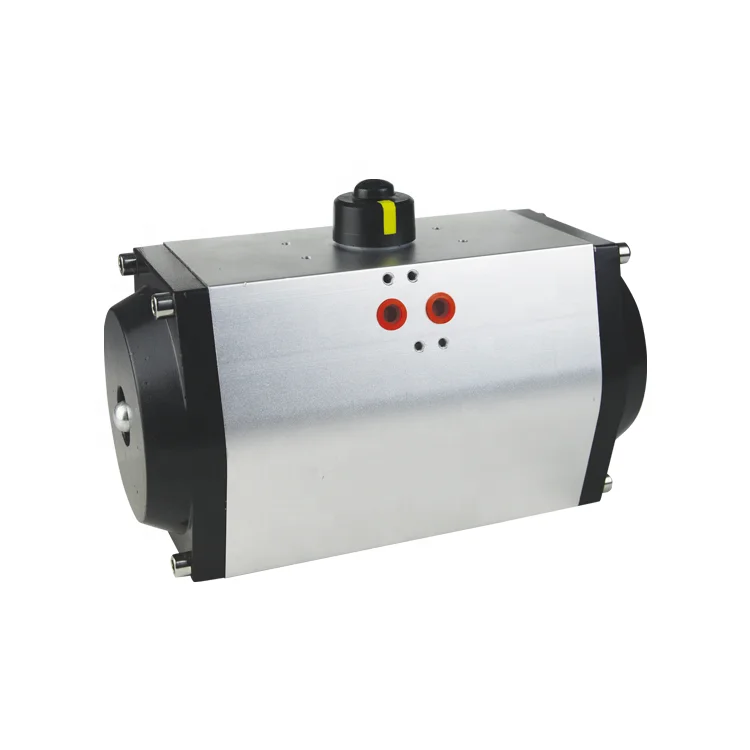

Description





Zhejiang Jimai Auto-Tech Co,.Ltd is experienced in manufacturing rack and pinion rotary actuator. This kind actuator has the compact dual-piston rack and pinion structure to keep the stable output torque and high efficiency. With the bearing made of low-friction materials, it greatly reduce the direct friction between metals to extend the service of life. This rack and pinion rotary actuator has double acting and single acting mode to meet different working situations and are designed for any quarter-turn application. Our company strives to become the valve industry leader in near future and keeps improving our service and product quality to satisfy the world needs.



Item	Rack and pinion rotary actuator
Model	GT
Custom logo	Yes
Ambient Temperature	Standard: -20~80° C , Option: -40~80° C / -20~160° C

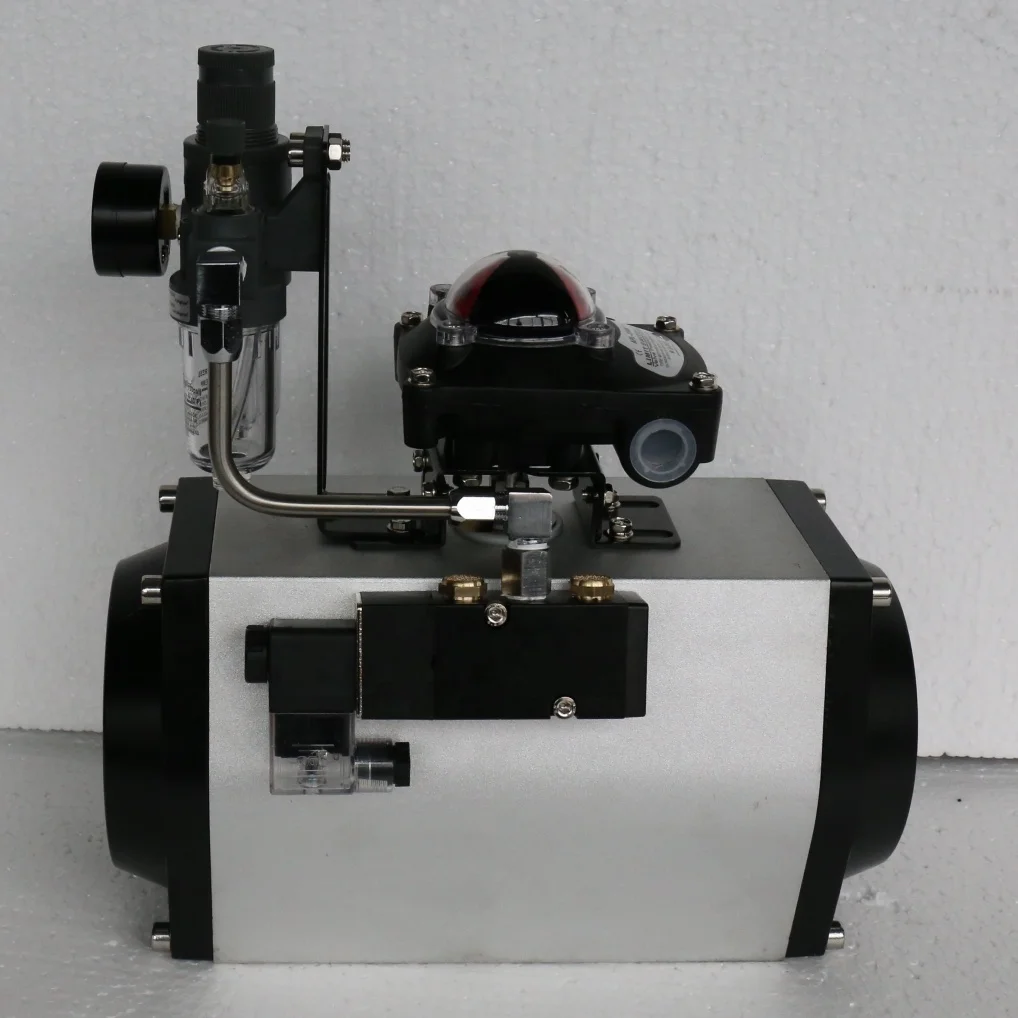

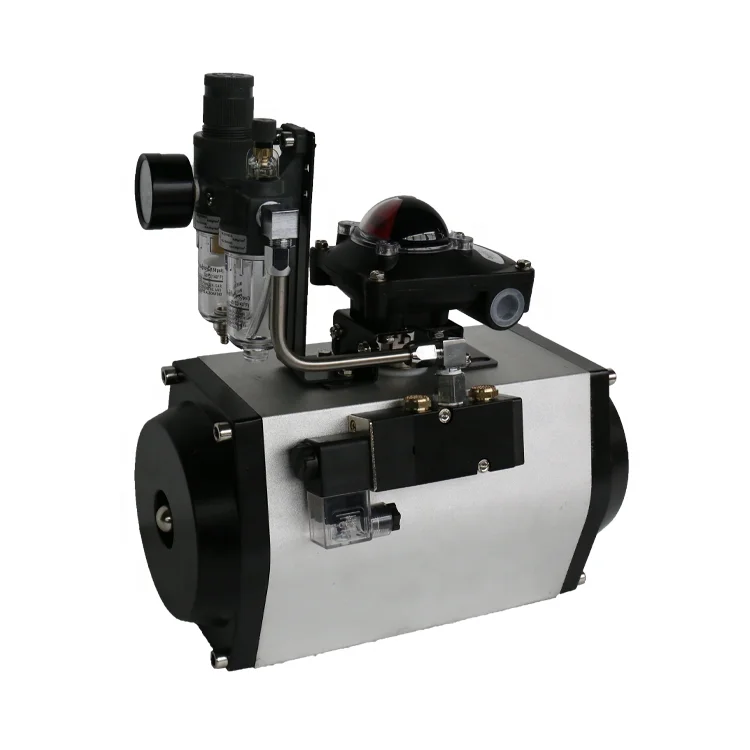

Optional accessories	Solenoid valve, limited switch, electric position, air regulator
Life time	One million time
Body material	Aluminum alloy by oxidation

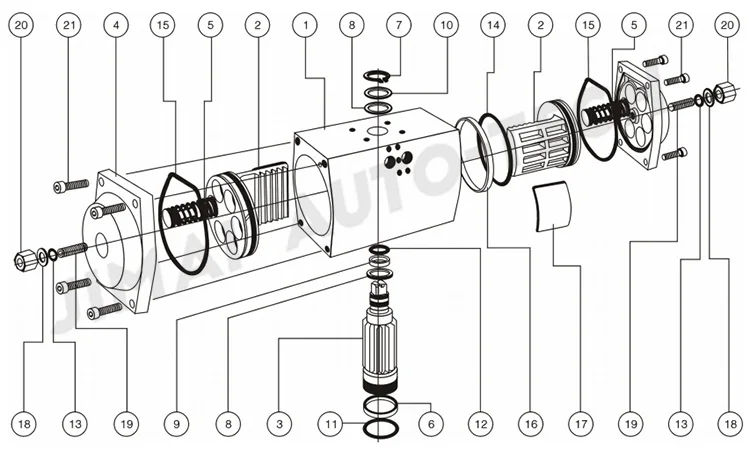

Material Using



No	Parts Name	Qty	No	Parts Name	Qty
1	Shell Body	1	12	Shaft O Ring	1
2	Piston	2	13	Screw Seal O Ring	1
3	Rotating Shaft	1	14	Piston O Ring	1
4	End Cover	2	15	End Cover Seal Ring	2
5	Spring/Spring Seat	8-12	16	Piston Guide Ring	2
6	Lower Bearing	1	17	Piston Bearing	2
7	Elastic Block Circle	1	18	Adjusting Screw Seal Gasket	2
8	Shaft Washer	2	19	Adjusting Bolt	2
9	Upper Bearing	1	20	Hexagon Nut	2
10	Shaft Upper Flat Washer	1	21	Inner Hexagon Bolt	8
11	Shaft Lower O Ring	1

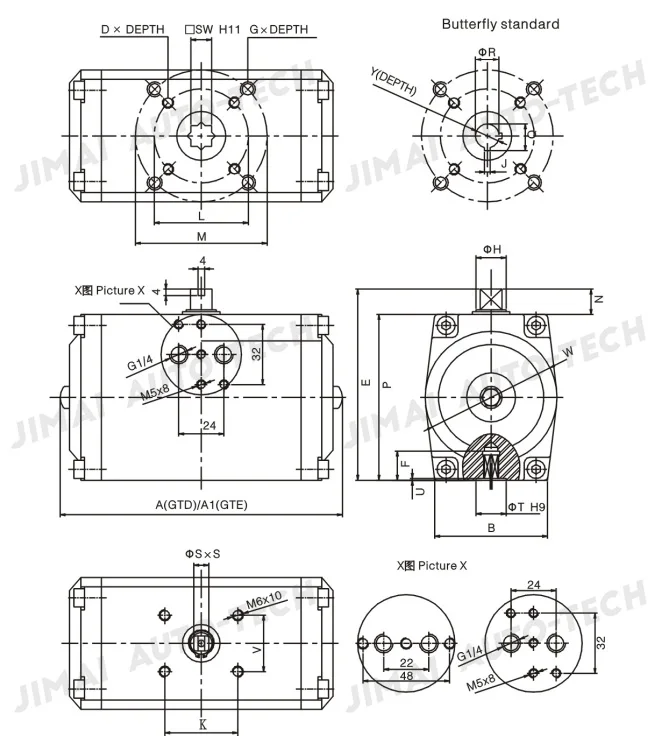

Outline Dimension



MODEL	A	B	D X depth	E	F	G X depth	H	J	K	L
GTD/GTE32	104	45	-	82	14	M5X8	12	-	50	-
GTD/GTE52	130	50	M5X8	94	15	M6X10	12	3	80	F03
GTD/GTE63	140	60	M6X10	108	15	M8X12	12	3	80	F05
GTD/GTE75	178	65	M6X10			M8X12	18	3	80	F05
GTD/GTE83	186	65	M6X10	128	17	M8X12	18	5	80	F05
GTD/GTE92	252	76	M6X10			M8X12	25	5	80	F05
GTD/GTE110	254	90	M8X12	160	25	M10X16	25	5	80	F07
GTD/GTE127	296	103	M8X12	180	25	M10X16	30	5	80	F07
GTD/GTE140	348	107	M10X16			M12X20	40	5	130	F10
GTD/GTE160	384	108	M10X16	228	30	M12X20	45	8	130	F10
GTD/GTE190	498	128	M10X16	257	34	M12X20	50	8	130	-
GTD/GTE210	552	135	-	285	34	M12X20	60	8	130	-
GTD/GTE240	608	155	-			M20X24	60	10	130	-
GTD/GTE270	725	170	-			M20X24	60	10	130	-
GTD/GTE300	777	196	-	380	52	M20X24	60	12	130	-
GTD/GTE350	910	220	-	438	72	M20X24	60	12	130	-

MODEL	M	N	P	Q	R	S X S	S X W	Ø T	U	V	W	Y X Depth
GTD/GTE32	F03	20	45	-	-	10X12	9X9	23	1	30	47	32
GTD/GTE52	F05	20	74	14.2	12.8	10X12	11X11	24	1	30	59	32
GTD/GTE63	F07	20	88	14.2	12.8	10X12	11X11	26	1	30	70	32
GTD/GTE75	F07	20	100	14.2	12.8	10X10	14X14	28	1	30	83	32
GTD/GTE83	F07	20	108	18.4	15.9	13X16	14X14	32	1	30	91	32
GTD/GTE92	F07	20	120	21.6	19.1	14X14	17X17	39	1	30	106	45
GTD/GTE110	F10	20	140	21.6	19.1	16X20	22X22	47	2	30	120	45
GTD/GTE127	F10	20	160	24.8	22.3	16X20	22X22	53	2	30	137	45
GTD/GTE140	F12	30	173	32.3	28.8	22X22	27X27	67	2	30	152	55
GTD/GTE160	F12	30	198	35.3	31.8	28X36	27X27	65	2	30	173	55
GTD/GTE190	F12	30	227	35.3	31.8	28X36	36X36	89	2	30	208	55
GTD/GTE210	F12	30	255	38.4	33.4	32X32	36X36	89	2	30	224	55
GTD/GTE240	F16	30	293	38.4	33.4	32X32	36X36	102	2	30	256	55
GTD/GTE270	F16	30	323	42.3	38.3	32X32	46X46	117	2	30	292	55
GTD/GTE300	F16	30	350	45.3	41.3	32X32	46X46	102	2	30	325	65
GTD/GTE350	F16	30	408	54.8	50.8	32X32	46X46	117	2	30	381	75



Output Torque of Double-acting Actuator(Unit:Nm)

MODEL	Input Air Supply Pressure(Unit : Bar)
	2	3	4	5	6	7	8
GTD32	3.1	4.7	6.2	7.8	9.4	11	12.5
GTD52	8.32	12.48	16.64	20.8	24.96	29.1	33.2
GTD63	12.2	18.3	24.4	30.5	36.3	42.8	48.9
GTD75	20.7	31	41	51	62	72.5	82.9
GTD83	29.6	44.4	59.2	74	88.8	103.6	118.4
GTD92	48	72	96	120	148	172	196
GTD110	74.5	111.7	149	186.2	223.5	260.5	298
GTD127	119	178.5	238	297.9	357	416.5	476.5
GTD140	184.7	277	369.5	461.8	554	646.5	739
GTD160	236	354.6	472	591	709	827	945
GTD190	444	667	889	1111	1334	1556	1778
GTD210	554	831	1108	1384	1662	1939	2216
GTD240	814	1221	1628	2035	2442	2849	3256
GTD270	1240	1860	2480	3100	3720	4340	4960
GTD300	1526	2289	3052	3815	4578	5341	6104
GTD350	2480	3720	4960	6200	7440	8680	9920
