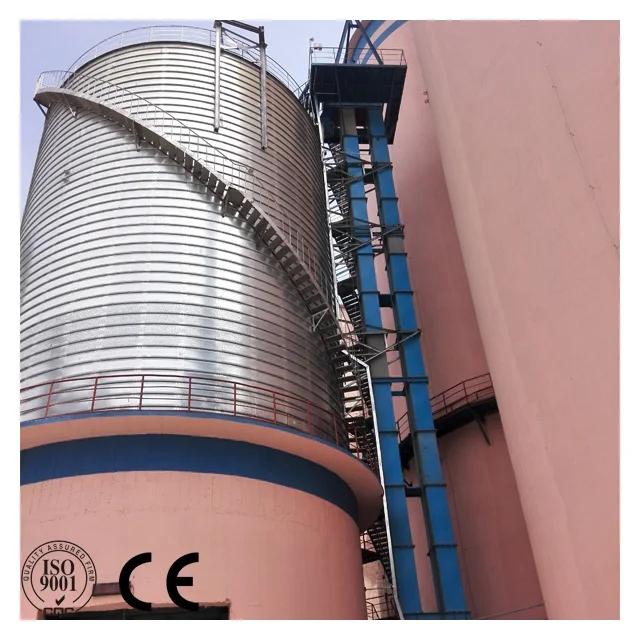

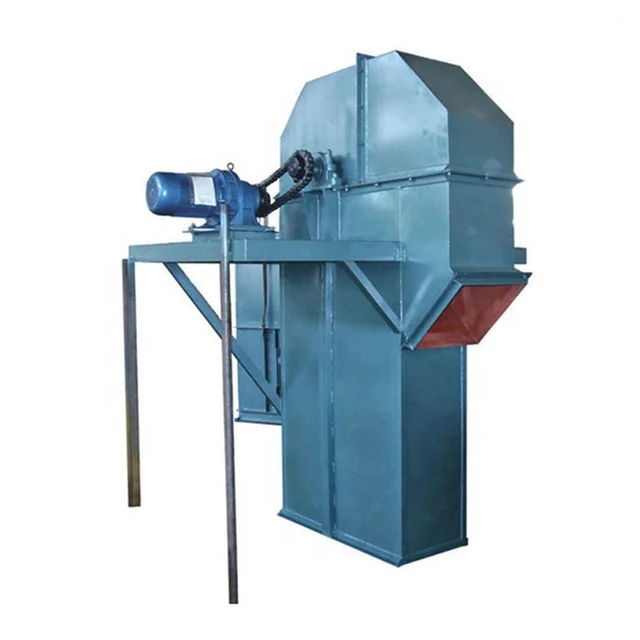

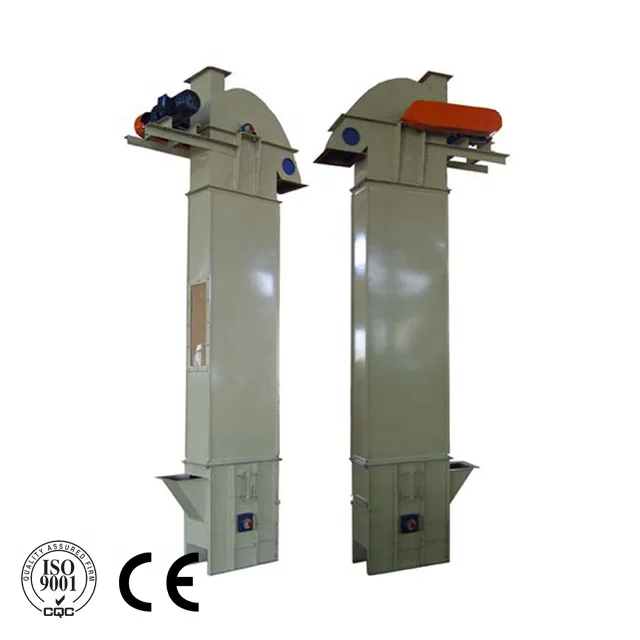

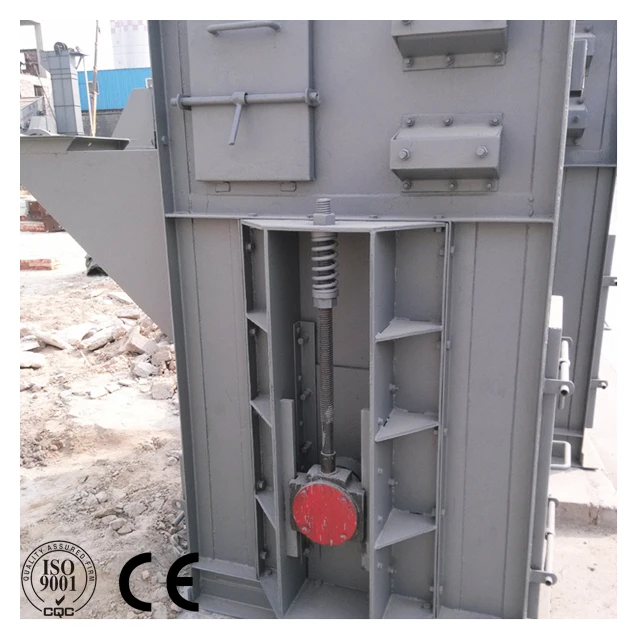

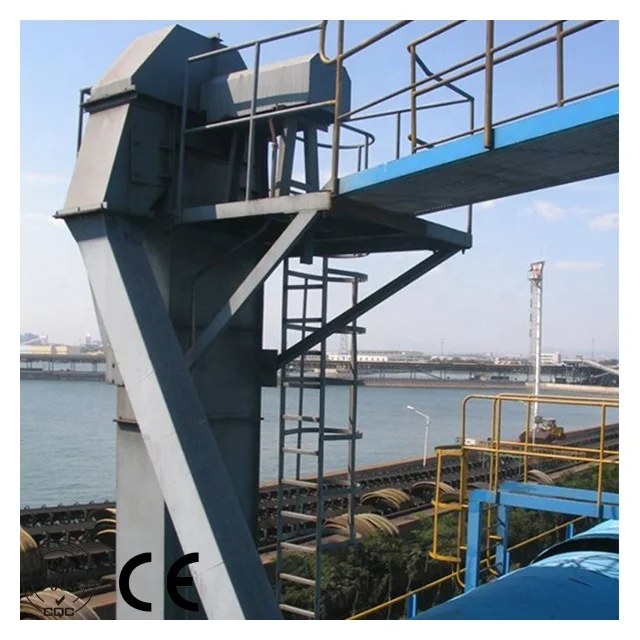

Grain Silo transportation system hoist equipment support customization bucket lift elevator
- Category: >>>
- Supplier: Henan Green Eco-Equipment Co. Ltd.
Share on (1600456012012):
Product Overview
Description
Grain Silo transportation system hoist equipment support customization bucket lift elevator
Technical Parameters
Model | Max. Feed Granularity | Capacity | Scoop bucket | Width of Conveyor Belt | Hoisting Height | |||
| ||||||||
Width | Distance | Capacity | Speed | |||||
(mm) | (m3/h) | (mm) | (mm) | (L) | (m/s) | (mm) | (m) | |
TD160 | 25 | 5.4-16 | 160 | 280, 350 | 0.5-1.9 | 1.4 | 200 | < 40 |
TD250 | 35 | 12-35 | 250 | 360, 450 | 1.3-4.6 | 1.6 | 300 | |
TD315 | 45 | 17-40 | 315 | 400, 500 | 2-5.8 | 1.6 | 400 | |
TD400 | 55 | 24-66 | 400 | 480, 560 | 3.1-9.4 | 1.8 | 500 | |
TD500 | 60 | 38-92 | 500 | 500, 625 | 4.8-15 | 1.8 | 600 | |
TD630 | 70 | 85-142 | 630 | 710 | 14-23.5 | 2 | 700 | |
Product Description
Belt bucket elevator conveyor is a kind of conveying equipment used for conveying bulk materials vertically. Its maximum transport height is 60 m. It is widely used in the cement industry, chemical industry, power plant, grain storage and other industry etc.The bucket elevator is widely used for conveying cement, cement clinker, crushed lime, sand, compound fertilizer, coal, grain and other bulk material etc. Our company manufacture different type bucket elevator to meet different demand of customers.
Customer Case

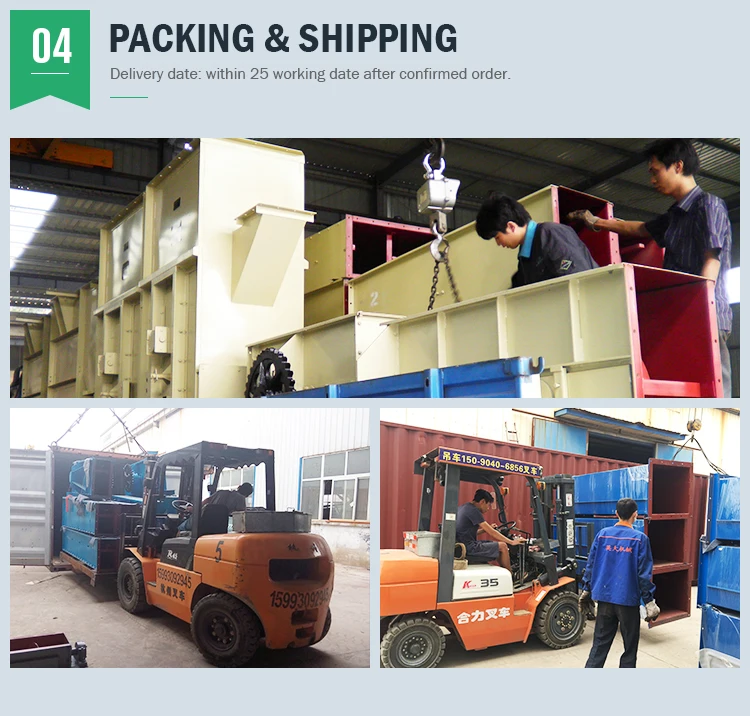

Packaging & Shipping
Our Services

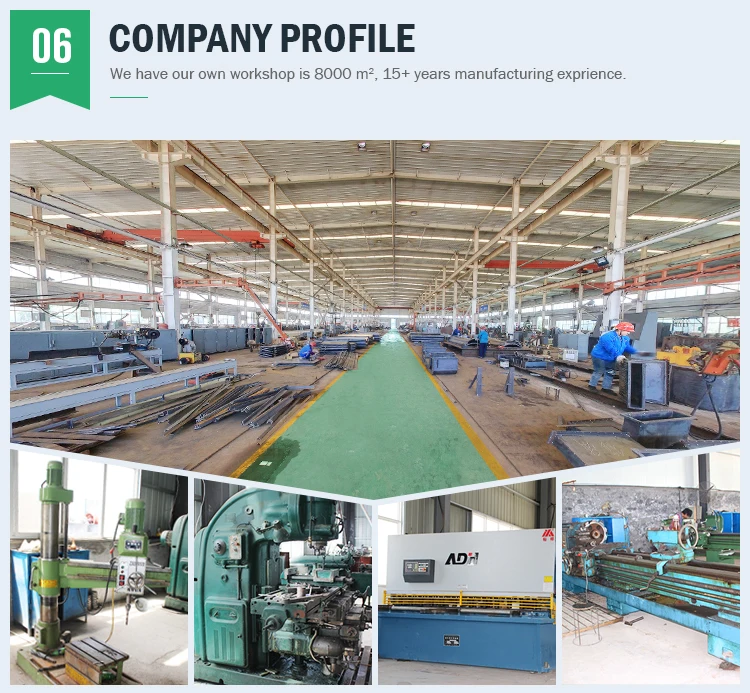

Company Information
We have a group of professional research, engineering, production, sales and after-sales service team serve all around the world clients. Companies to provide a full range of screening, crushing and conveying equipment, which involves vibrating screen, belt conveyor, bucket elevator, screw conveyor, scraper conveyor and related spare parts. What's more, We always work with world-class suppliers to ensure the quality of our products, including ABB, SEW, SIEMENS, etc.
Certifications
1. What's material will be transported by bucket elevator?
Cement, sand, limestone and grain etc.
2. What's capacity of bucket elevator that you want?
20t/h, 50t/h and 100t/h etc.
3. How high is the bucket elevator?
10m, 30m and 50m etc.
4. Other speical require?
Like hot material, SEW gearbox and Siemens motor etc.
5. It's better if you have layout drawing or sketch.
