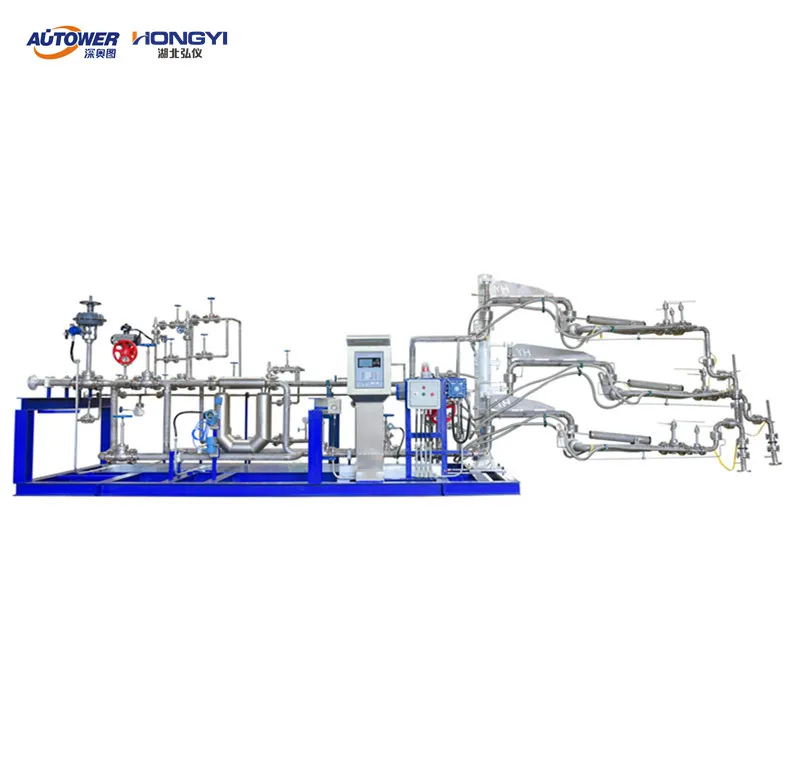

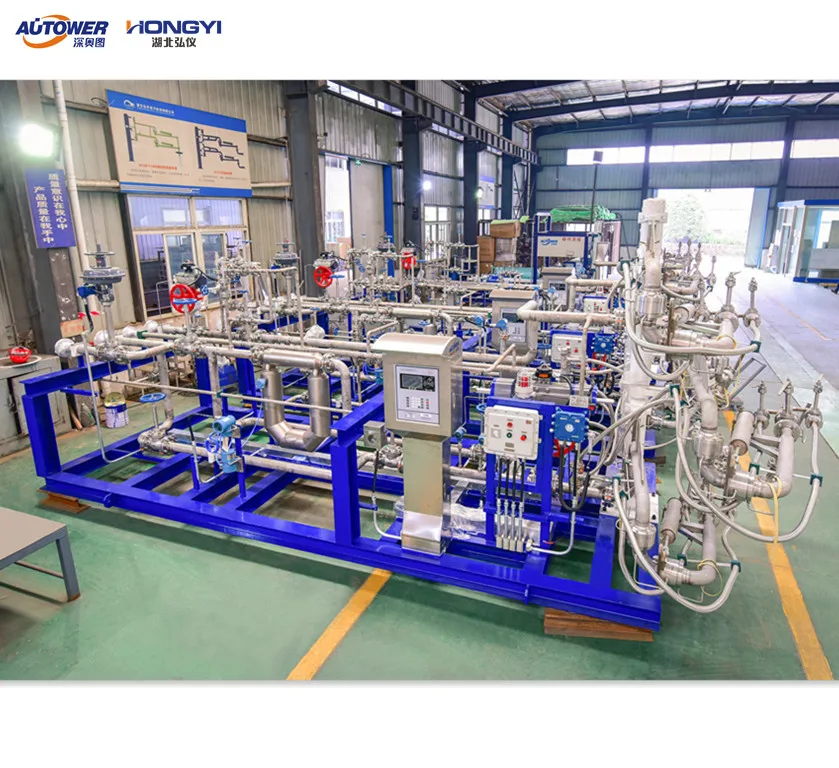

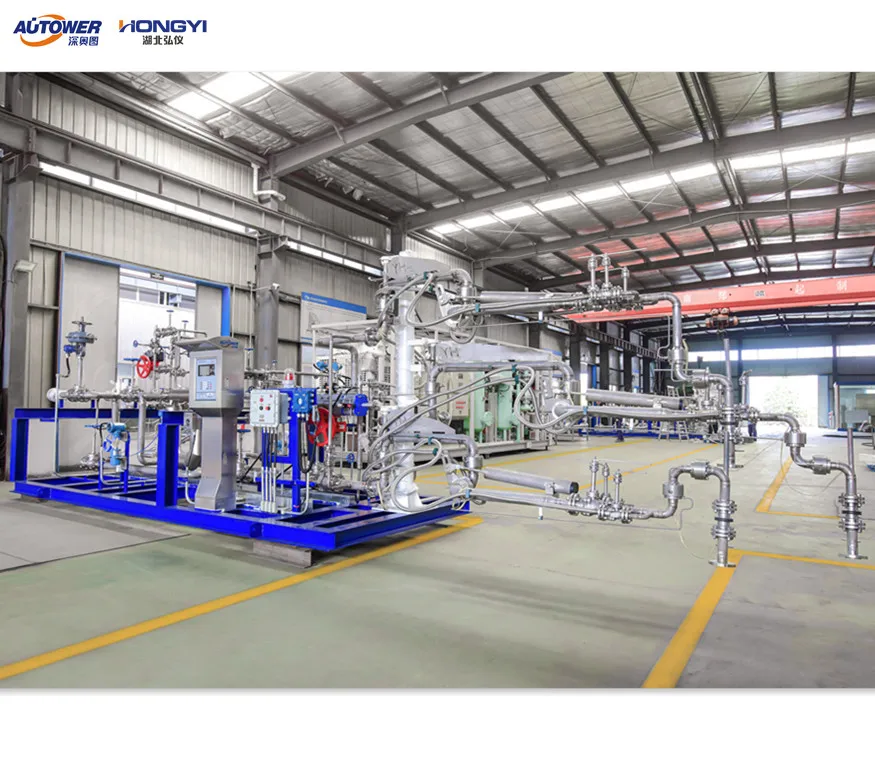

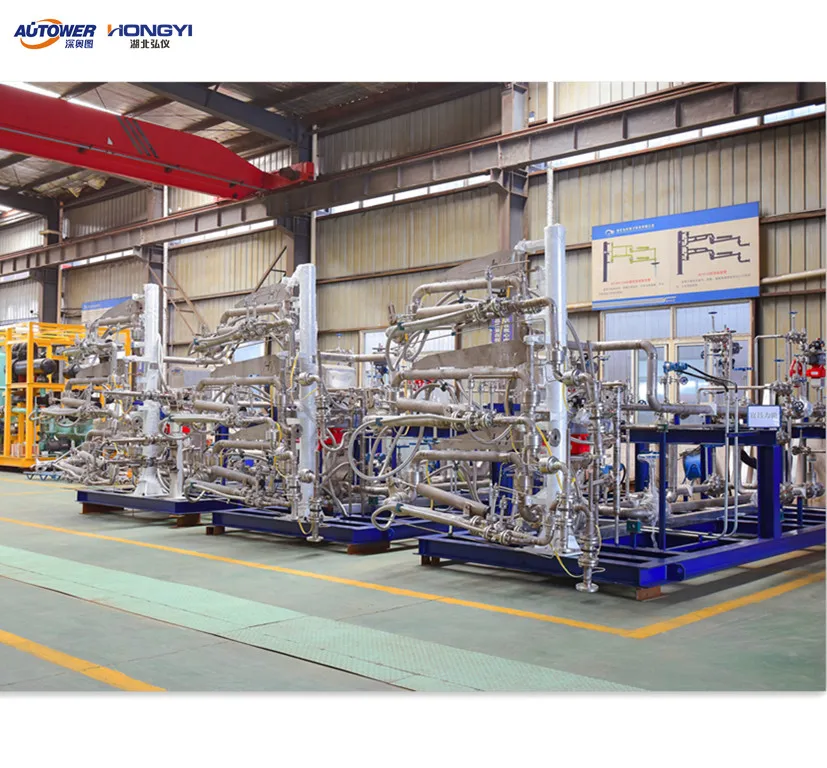

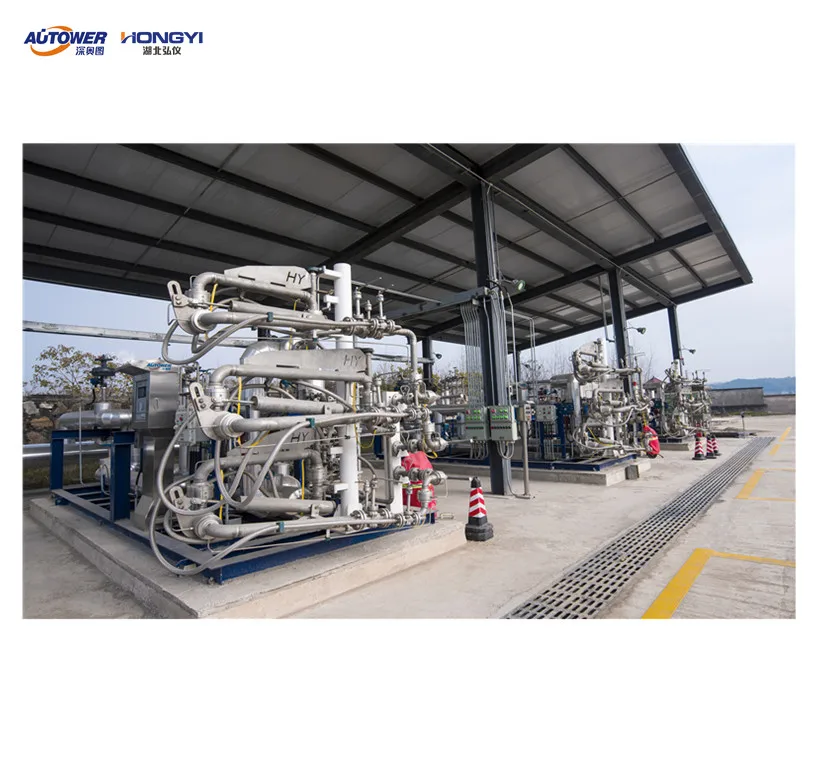

LNG low complexity and installation LPG Top and Bottom Loading Packages with loading arm flowmeter batch controller

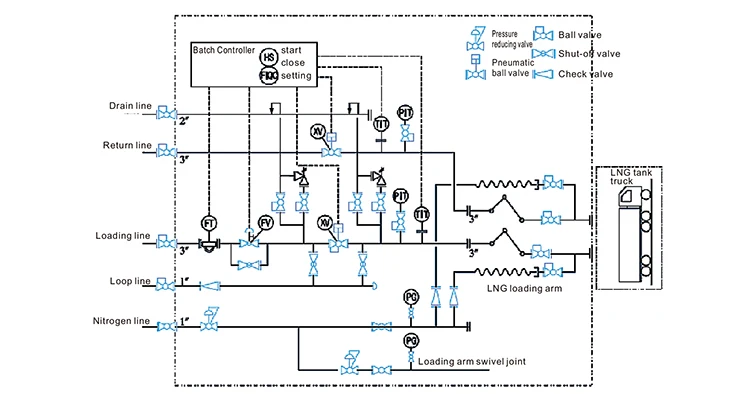

There are many process pipelines for LNG loading and the process flow is relatively complicated. The main pipelines are: loading line, return line, cold circulation line, bleed line, nitrogen line and so on. The flow chart is as follows:

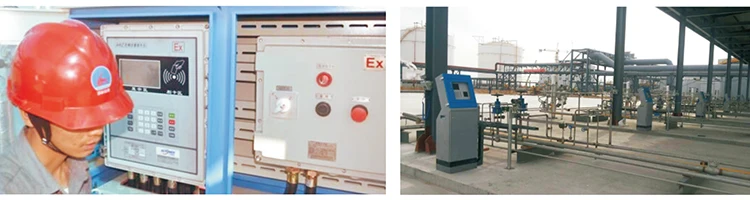

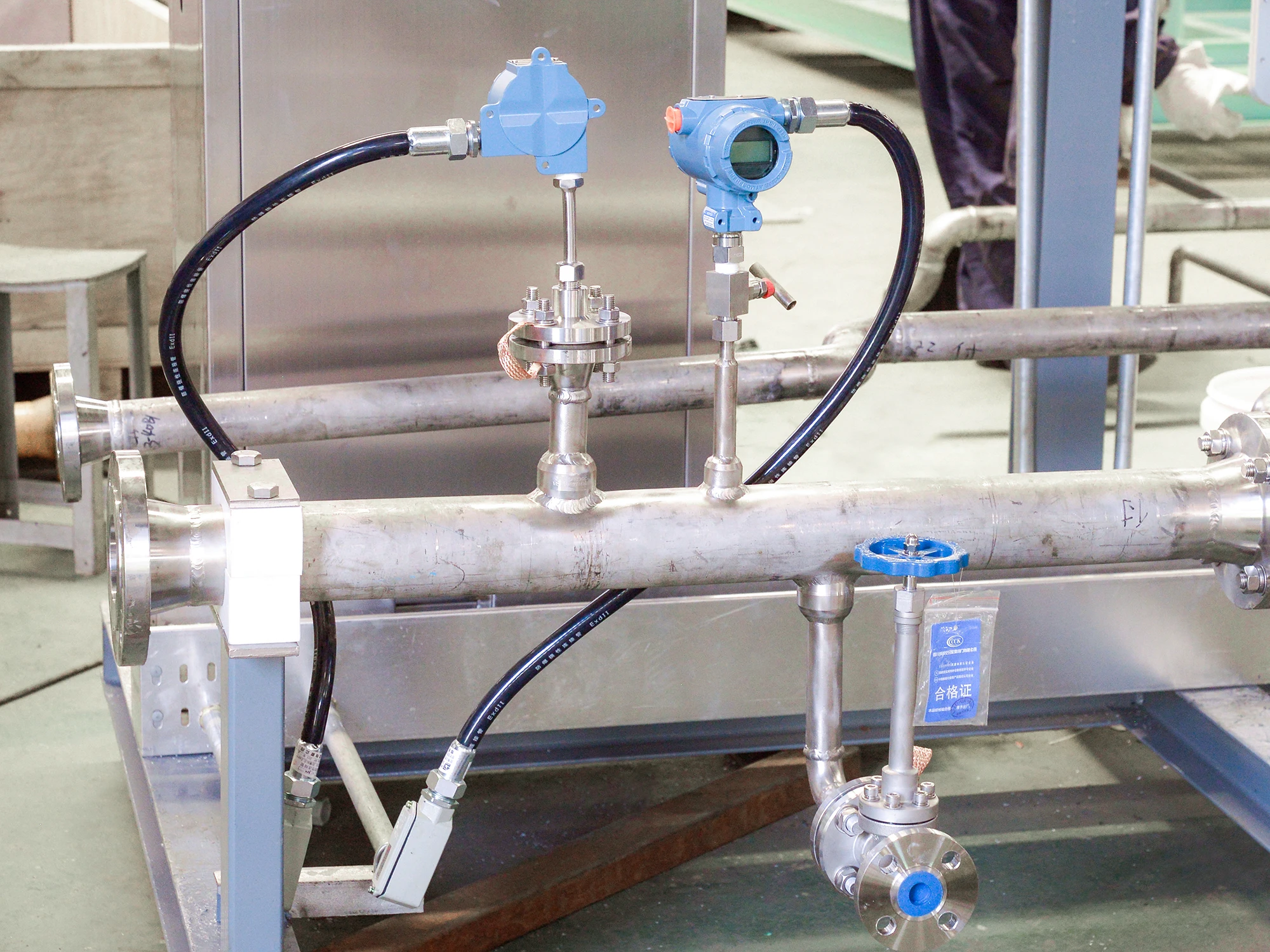

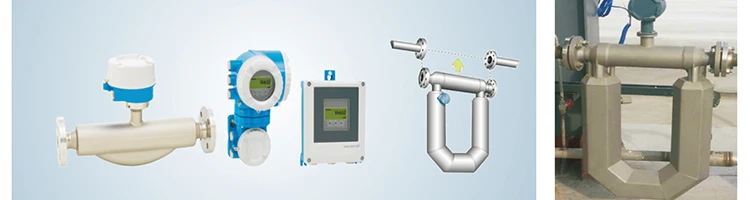

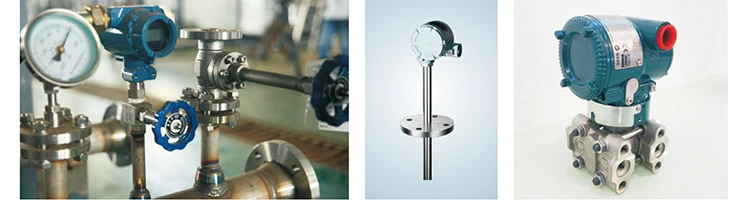

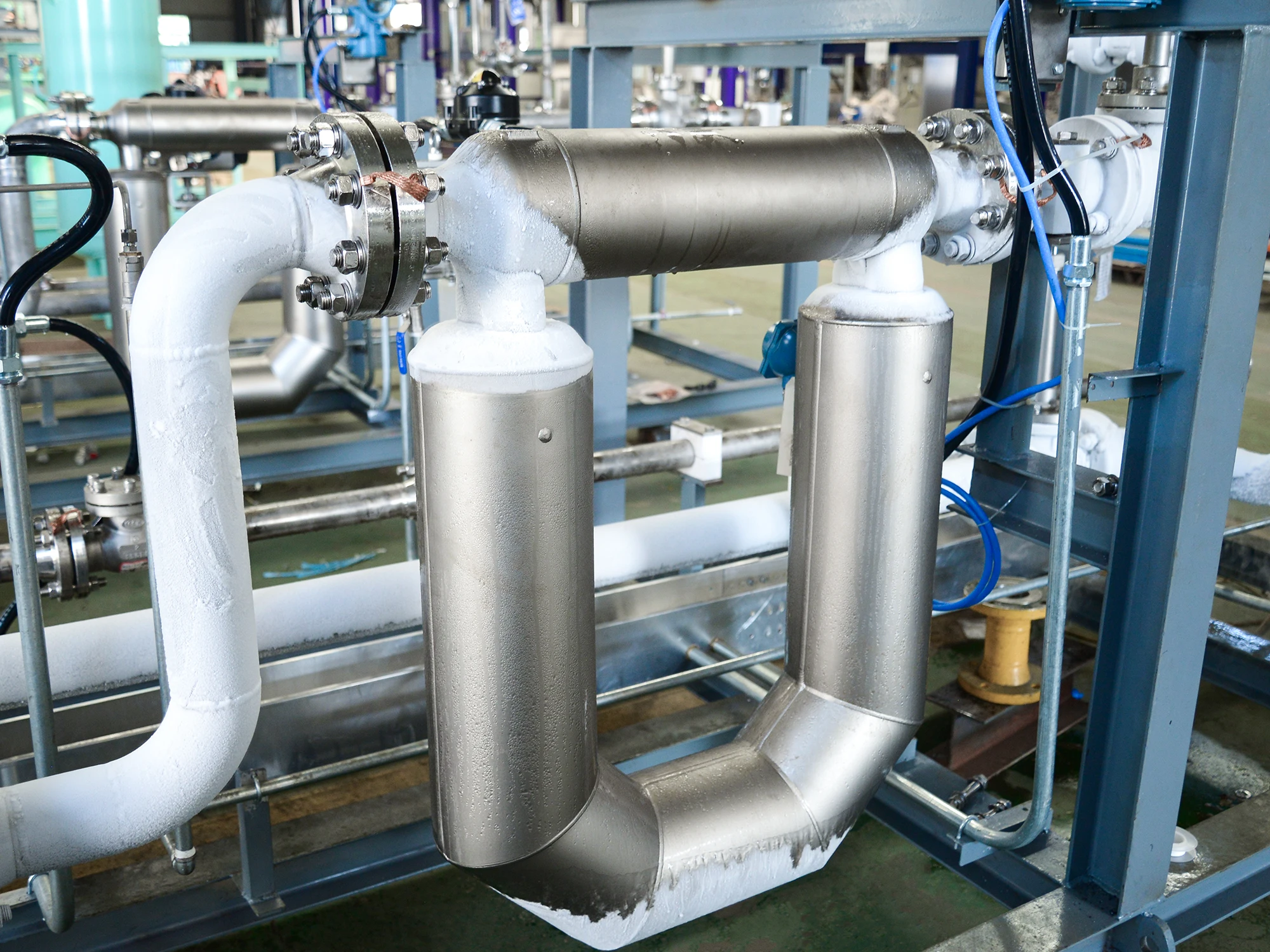

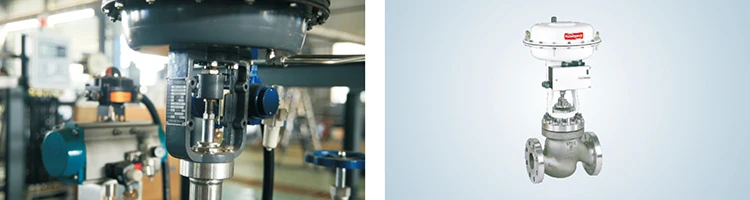

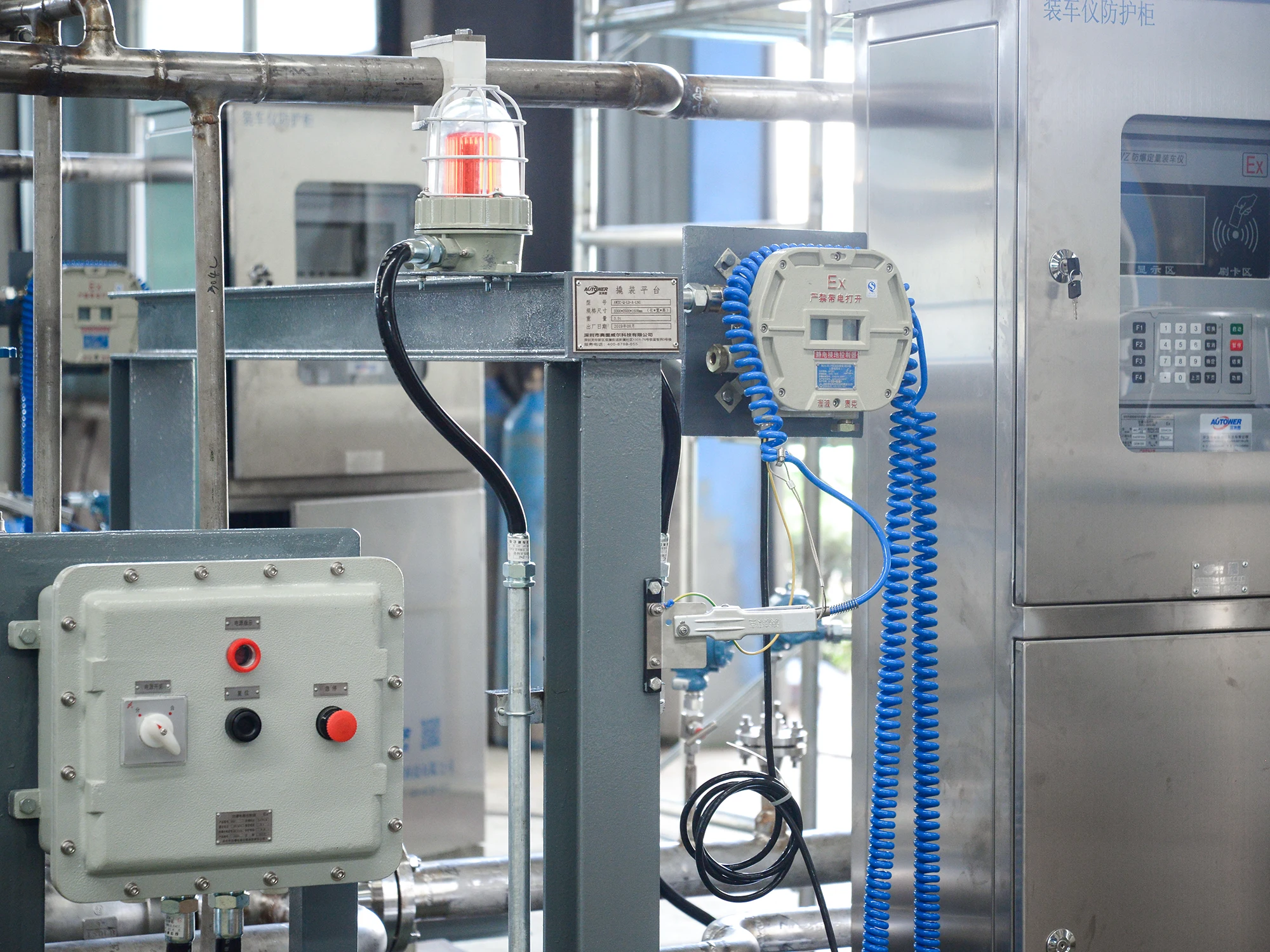

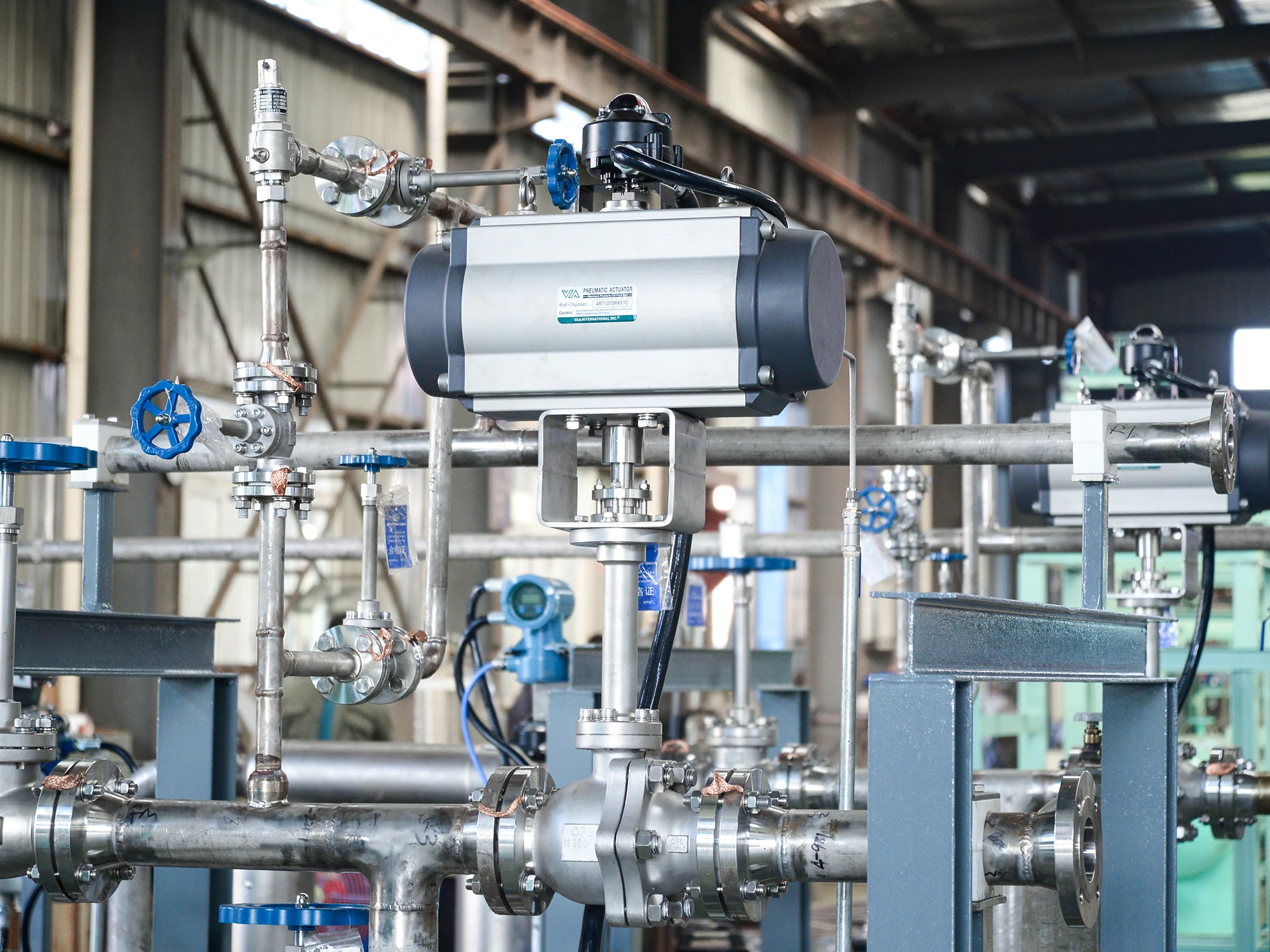

Due to the complexity of the process, LNG loading has more automatic control instruments in its armor. It consist of loading arm with recovery pipe, flow meters, static grounding protector, pressure transmitters， Flow control valve, emergency shut-off valve, related piping and batch controller.

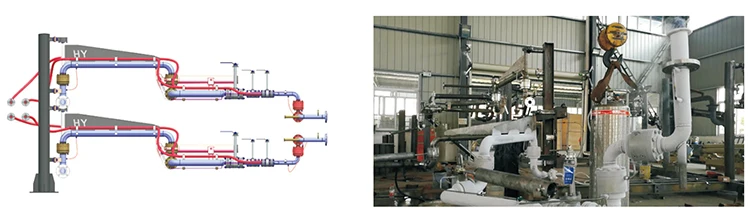

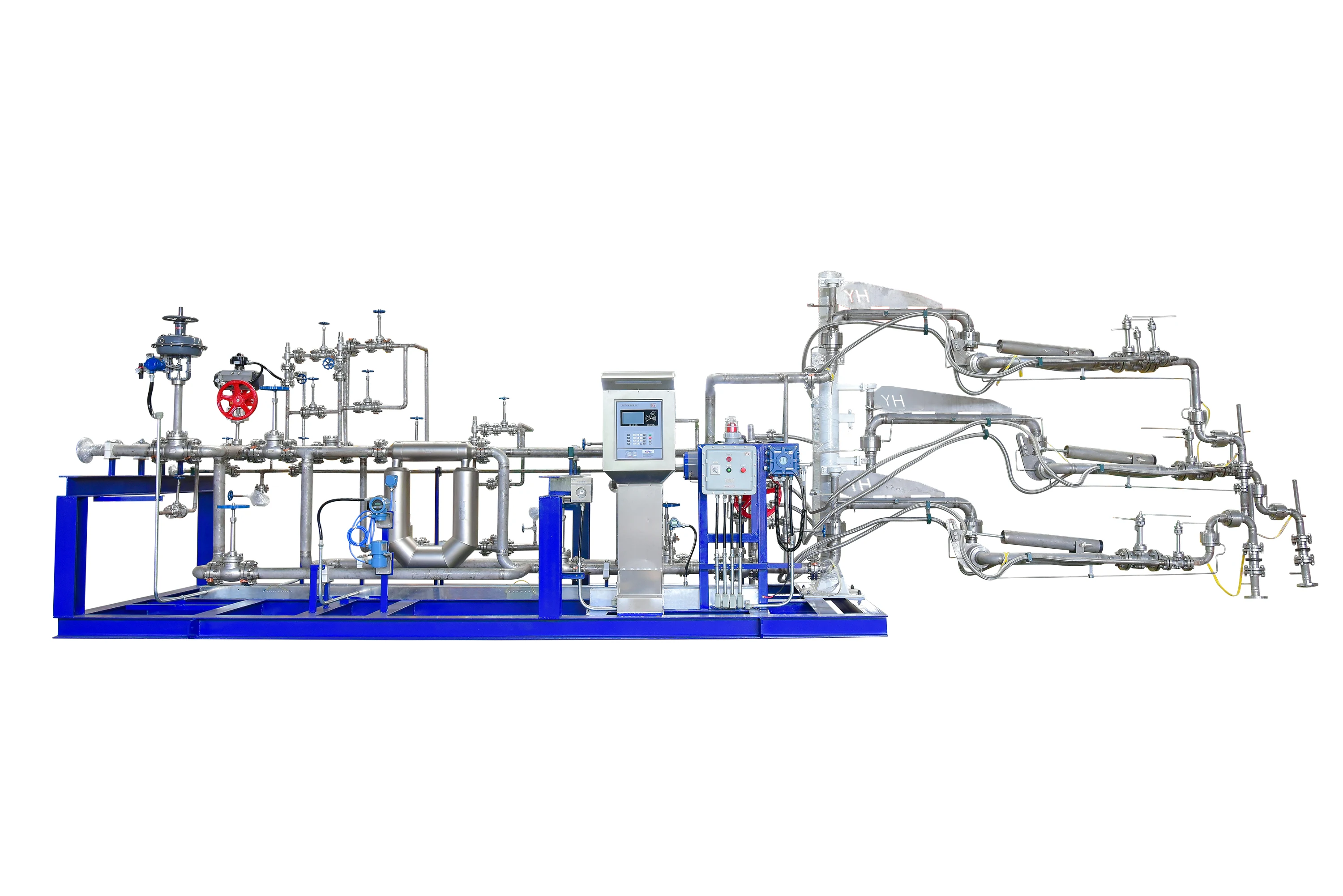

The loading arm is the main equipment in the loading skid. The LNG loading arm adopts the double-armed column structure, and the two arms are installed up and down, respectively connected to the liquid and gas ports of the tank truck for LNG loading and BOG returning. The column support structure is beneficial for reducing the force of the rotating joint on the inner side of the arm, reducing wear and prolonging the life of the seal. Loading arm material 304/304 L (316 L in coastal areas), the material of the rotary joint must be sent to cryogenic processing to ensure its strength and wear resistance.

Shenzhen Autoware Science & Technology Co., Ltd is a comprehensive automated instrument and control engineering company.With a strong technical force, our company is the China's first-class professional manufacturer engaged in the development,design, manufacturing, sale and engineering service of storage and transportation facilitys. our major products include loading control system,duplex rotor meter, explosion-proof large LED screen,tuning fork and ultrasonic anti-spill switch, intelligent turning fork and ultrasonic level switch, fluid loading arm, ladder, storage tank inner floating roof, oil tank accessories,etc. the company established a production base in Yichang,HUBEI-HUBEI HONGYI ELECTRONIC& TECHNOLOGY CO.LTD, in 2009,which covers an area of more than 35000 m2, has 4 standard plants of over 6000m2 in area, in which, the building area of the office , R&D center, etc. is about 4500m2 has more than 100 sets of nc press,nc bending machine,pretreatment system and spraying equipment that are the most advanced in China.a complete set of advanced online flow calibration system as well as a number of instrument and excellent industrial control manufacturers, and have established cooperation relationship with the design institutes of the ministry of chemical industry as well as the electronic control institutes of a number of universities. Through these cooperators, by combining our core products, we provide the users with the best system solutions.

We are based in Guangdong, China, start from 2003,sell to Africa(25.00%),South America(20.00%),Central America (20.00%) ,Mid East(15.00%),Southeast Asia(10.00%),South Asia(5.00%),Eastern Asia(5.00%). There are total about 101-200 people in our office.
