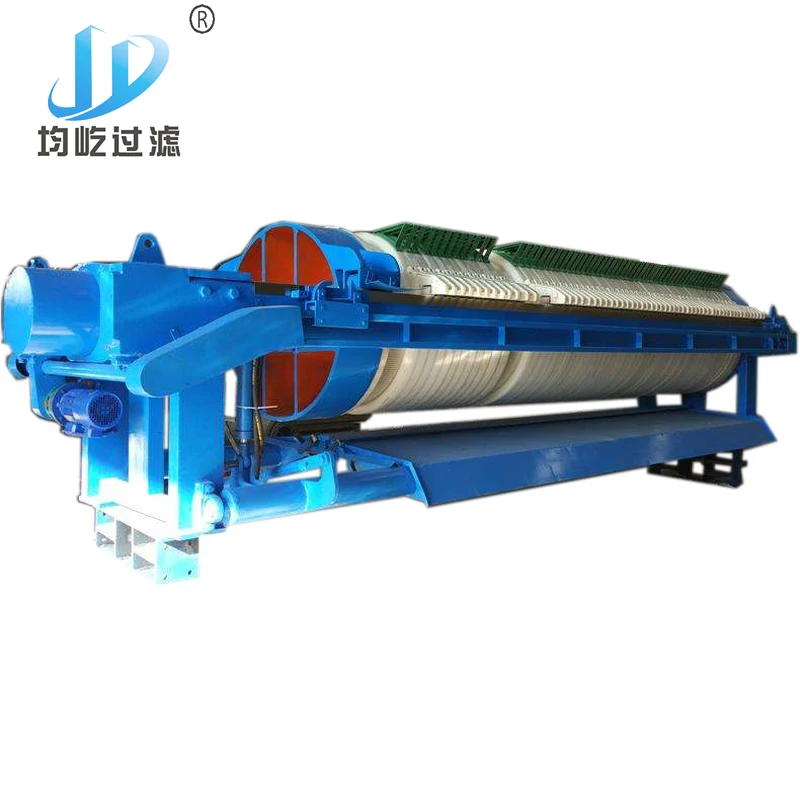

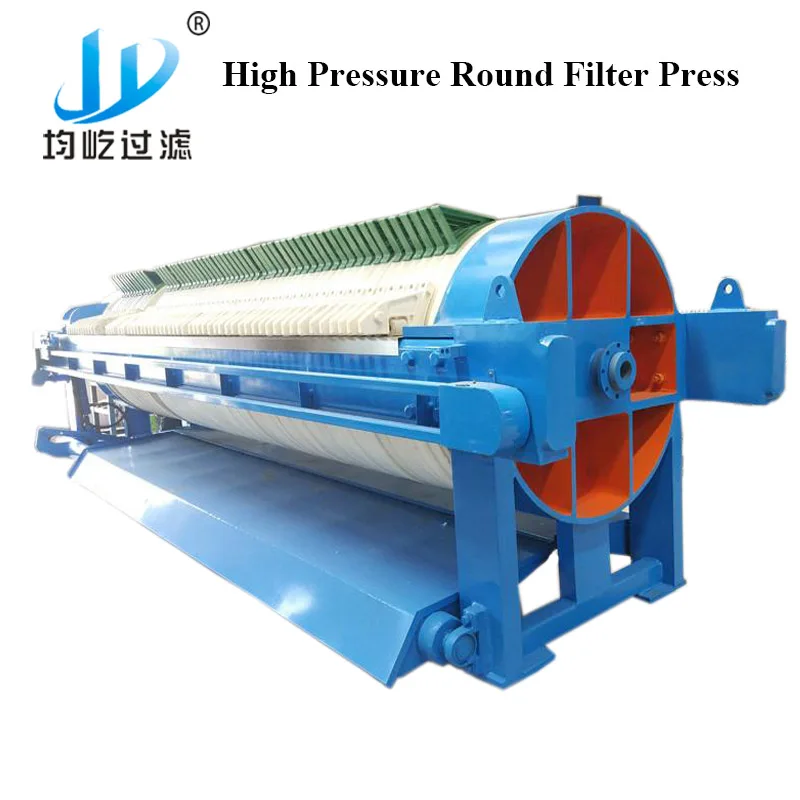

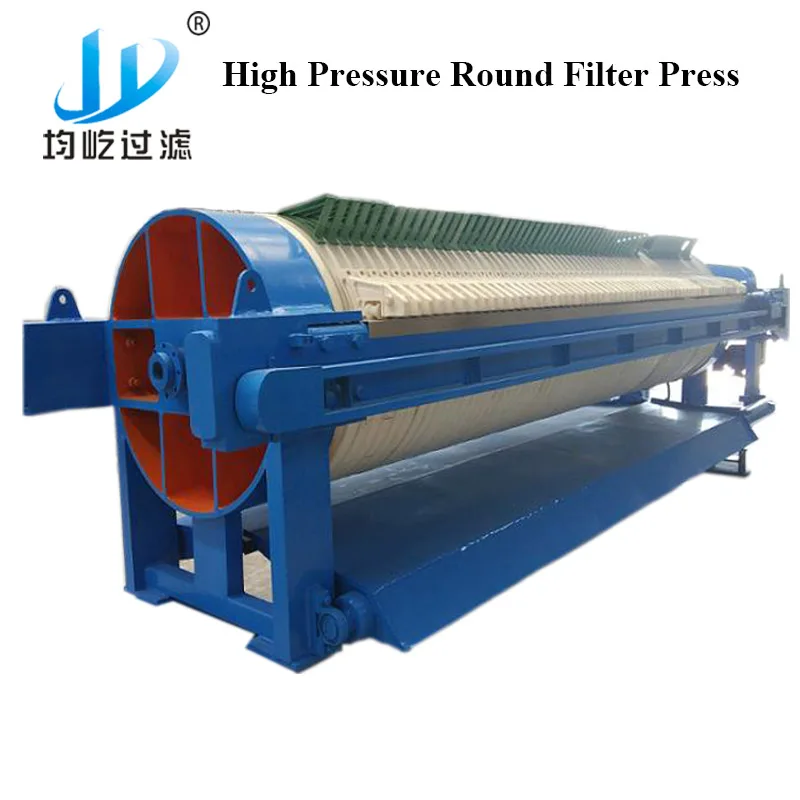

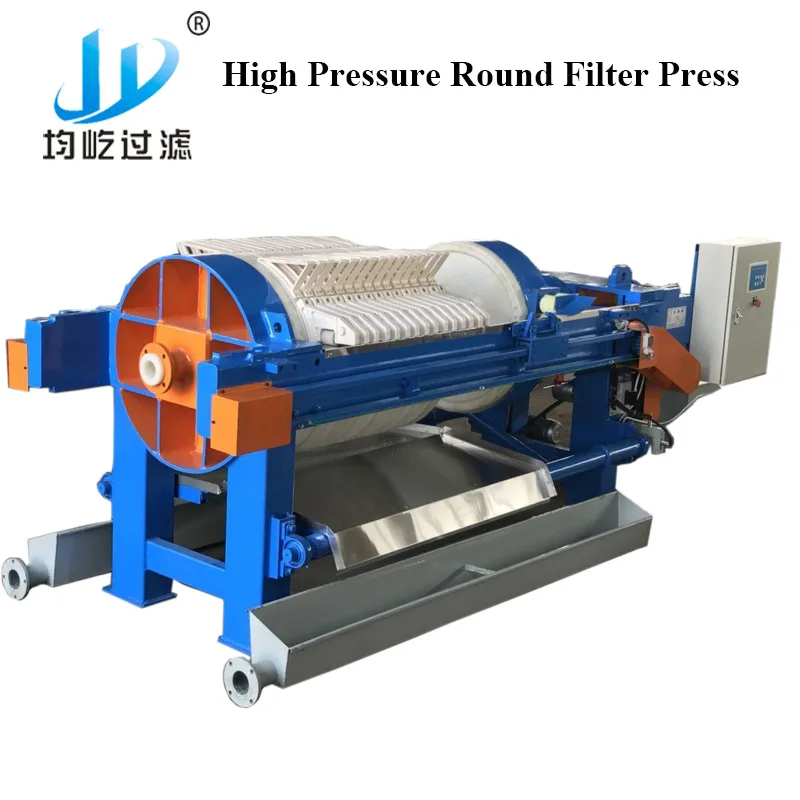

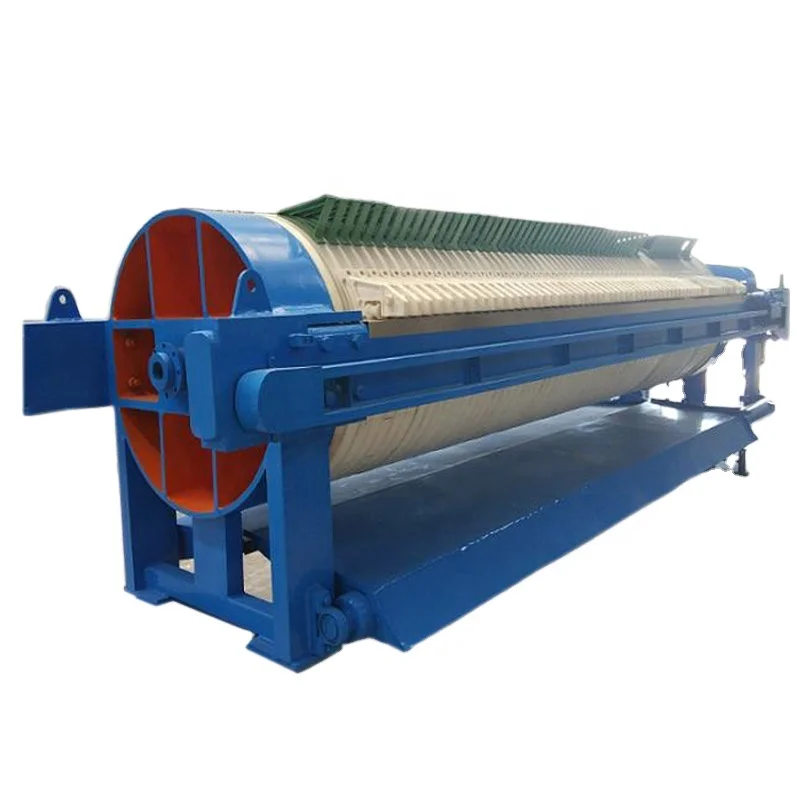

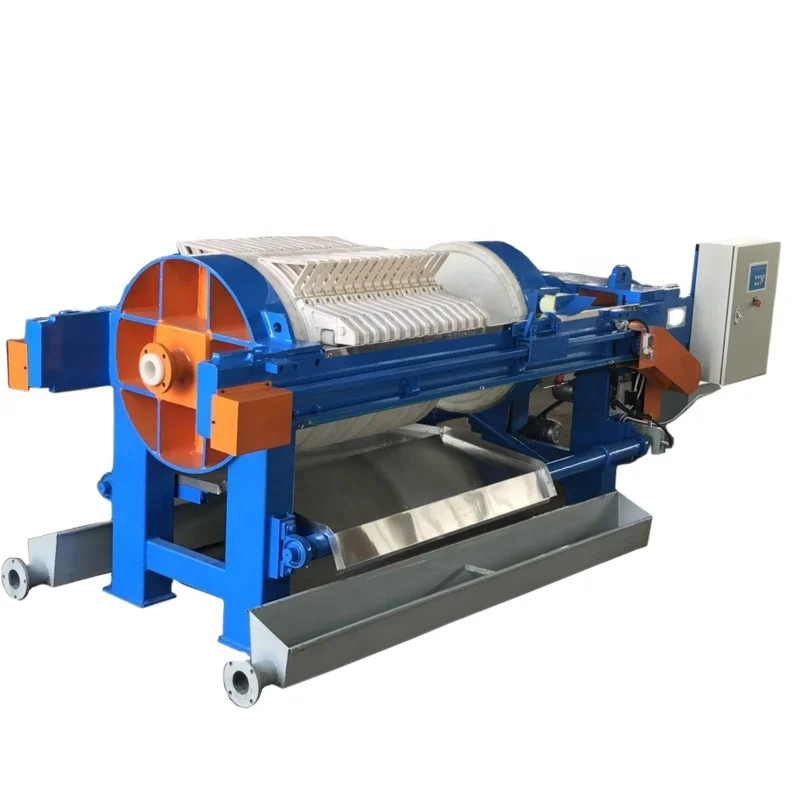

High Pressure Efficient Circular Filter Press for Pottery Clay Kaolin
Its high pressure is at 1.0---2.5Mpa. It has the feature of higher filtration pressure and lower moisture content in the cake.
It is widely used in the yellow wine filtration, rice wine filtration, stone wastewater, ceramic clay, kaolin and the construction
material industry.
It is widely used in the yellow wine filtration, rice wine filtration, stone wastewater, ceramic clay, kaolin and the construction
material industry.
Specification
Model | Filtration Area (m2) | Size of Filter Plate (mm) | Volume of Chamber (L) | Q‘ty of Plate (PCS) | Weight (Kg) | Thickness of Filter Cake (mm) | Filter Pressure (Mpa) | Power of Motor (KW) |
XAMY30/φ800-25 | 30 | Φ800 | 377 | 30 | 3590 | 25 | 1.0/2.0 | |
XAMY40/φ800-25 | 40 | 499 | 40 | 4554 | ||||
XAMY50/φ800-25 | 50 | 621 | 50 | 5150 | ||||
XAMY60/φ800-25 | 60 | 750 | 60 | 5600 | ||||
XAMY80/φ800-25 | 80 | 1200 | 64 | 6860 |

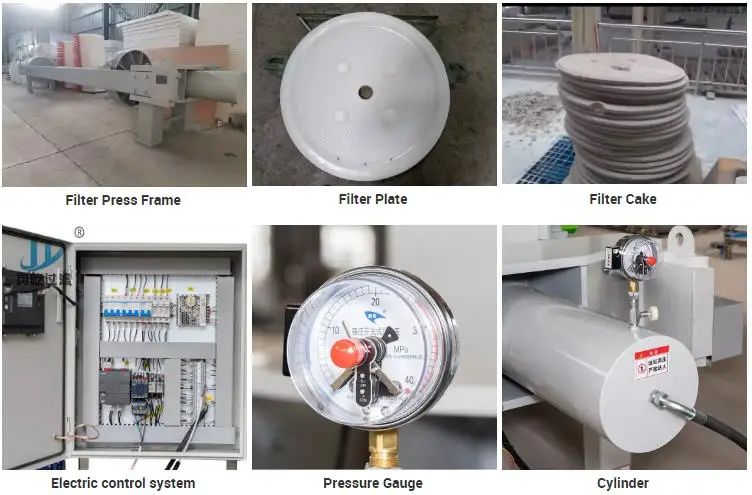

Product details
Feature | ||
1. All functions from feeding to cake unloading are controlled by PLC. | ||
2. High filtering pressure. | ||
3. Save labor cost and greatly improve work efficiency. | ||
4. The main control components are international first-line brands, such as Siemens. | ||
