diesel power tiller two wheel hand walking tractor
- Category: Tractors >>>
- Supplier: Wuhan,Acme,Agro-Tech,Co.,Ltd.
Share on:
Product Overview
Description

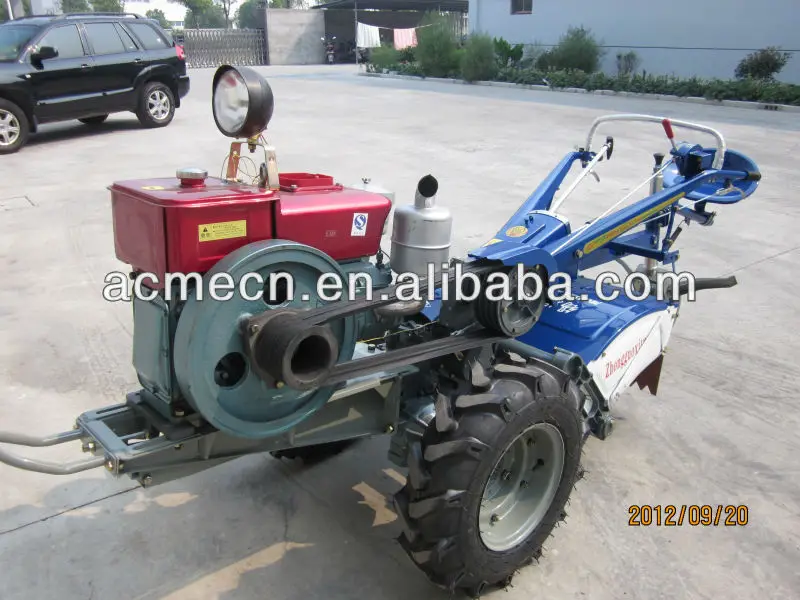

diesel power tiller two wheel hand walking tractor
Introduction
This machine features compact, agile, light, reliable, convenient for maintenance and high quality, suitable for tasks in paddy field in plain, mountain and hill, and for plough, rotary tillage, sow, threshing and suction etc equipped with relating farm machinery; towing trailer for short-distance transportation, and equipped with lightings for driving at night.
Specification
DF121
Engine |
Pattern | horizontal , One Cylinder, Four Stroke, diesels powered, Water-cooled |
Model | ZS195N | |
Displacement(L) | 0.815 | |
Oil Consumption (G/ Kilometer. h) | less than250 | |
Engine Oil Consumption (G/ Kilometer. h) | less than2.00 | |
Rated Power(kw) | 8.82 | |
Rated Speed(rpm) | 2000 | |
Type |
| DF |
Machine Parameters | Starting Type | Hand start |
Overall Size(mm) | 2680*960*1250(without seat) | |
Wheel Tread(mm) | 800 | |
Minimum Ground Clearance(mm) | 185 | |
Minimum Turning Radius(m) | 0.9 | |
Structural Weight(kg) | 360 (with connecting frame), 470(with rotary tiller) | |
Tyre | 6.00-12 | |
Theoretical Speed(Kilometer/h) | Forward:1.4,2.5,4.1,5.3,9.4,15.3 Reverse:1.1,3.8 | |
Rated Traction(N) | 2000 | |
Gearbox | (3+1)×2 | |
Oil Type | 0# in summer,-10# or 20# in winter | |
Cooling type | Evaporation | |
Rear-Wheel Diameter(mm) | 340 | |
Rotavator | Number of blades | 18pcs |
Rotary tilling width | 600mm |
DF151
Engine |
Pattern | Vertical, One Cylinder, Four Stroke, diesels powered, Water-cooled |
Model | 1100 | |
Displacement(L) | 0.913 | |
Oil Consumption (G/ Kilometer. h) | 320 | |
Engine Oil Consumption (G/ Kilometer. h) | 2.72 | |
Rated Power(kw) | 10.3 | |
Rated Speed(rpm) | 2000 | |
Machine Parameters | Type | Pull and Drive |
Overall Size(mm) | 2680*960*1250(without seat) | |
Wheel Tread(mm) | 800 | |
Minimum Ground Clearance(mm) | 185 | |
Minimum Turning Radius(m) | 0.9 | |
Structural Weight(kg) | 360 (with connecting frame), 480(with rotary tiller) | |
Tyre | 6.00-12 | |
Theoretical Speed(Kilometer/h) | Forward:1.4,2.5,4.1,5.3,9.4,15.3 Reverse:1.0,3.8 | |
Rated Traction(N) | 2400 | |
Gearbox | (3+1)×2 | |
Oil Type | 0# in summer,-10# or 20# in winter | |
Cooling Type | Evaporation | |
Rear-Wheel Diameter(mm) | 340 |
DF181
Engine |
Pattern | Vertical, One Cylinder, Four Stroke, diesels powered, Water-cooled |
Model | 1105 | |
Displacement(L) | 1.194 | |
Oil Consumption (G/ Kilometer. h) | 320 | |
Engine Oil Consumption (G/ Kilometer. h) | 2.72 | |
Rated Power(kw) | 13.23 | |
Rated Speed(rpm) | 2000 | |
Machine Parameters | Type | Pull and Drive |
Overall Size(mm) | 2680*960*1250(without seat) | |
Wheel Tread(mm) | 800 | |
Minimum Ground Clearance(mm) | 185 | |
Minimum Turning Radius(m) | 0.9 | |
Structural Weight(kg) | 360 (with connecting frame), 480(with rotary tiller) | |
Tyre | 6.00-12 | |
Theoretical Speed(Kilometer/h) | Forward:1.4,2.5,4.1,5.3,9.4,15.3 Reverse:1.0,3.8 | |
Rated Traction(N) | 2400 | |
Gearbox | (3+1)×2 | |
Oil Type | 0# in summer,-10 or 20 in winter | |
Cooling Type | Evaporation | |
Rear-Wheel Diameter(mm) | 340 |
WHY Choose ACME?
(1) 10 years Agro Machines Manufacturing Experiences.
(2) Quick and Sate Delivery.
(3) Experienced Service Team.
(4) 24 hours On Line Customer Service.
(5) Provide OEM and ODM Services.
(6) High reputation in More Than 60 Countries.
(7) Full range products for choice.
(8) Competitive Price Attractive designed, good performance High Good Quality.
Product After sales service
1: 12 months warranty policy;
2: We will send Free of Charge spare parts replace the detective or broken parts in the next order;
3: Choose the cheap and safest shipping company to save the cost;
4: Track the order until you get the goods;
5 : protections Of your sales area , ideas Of designed and all your private information.
