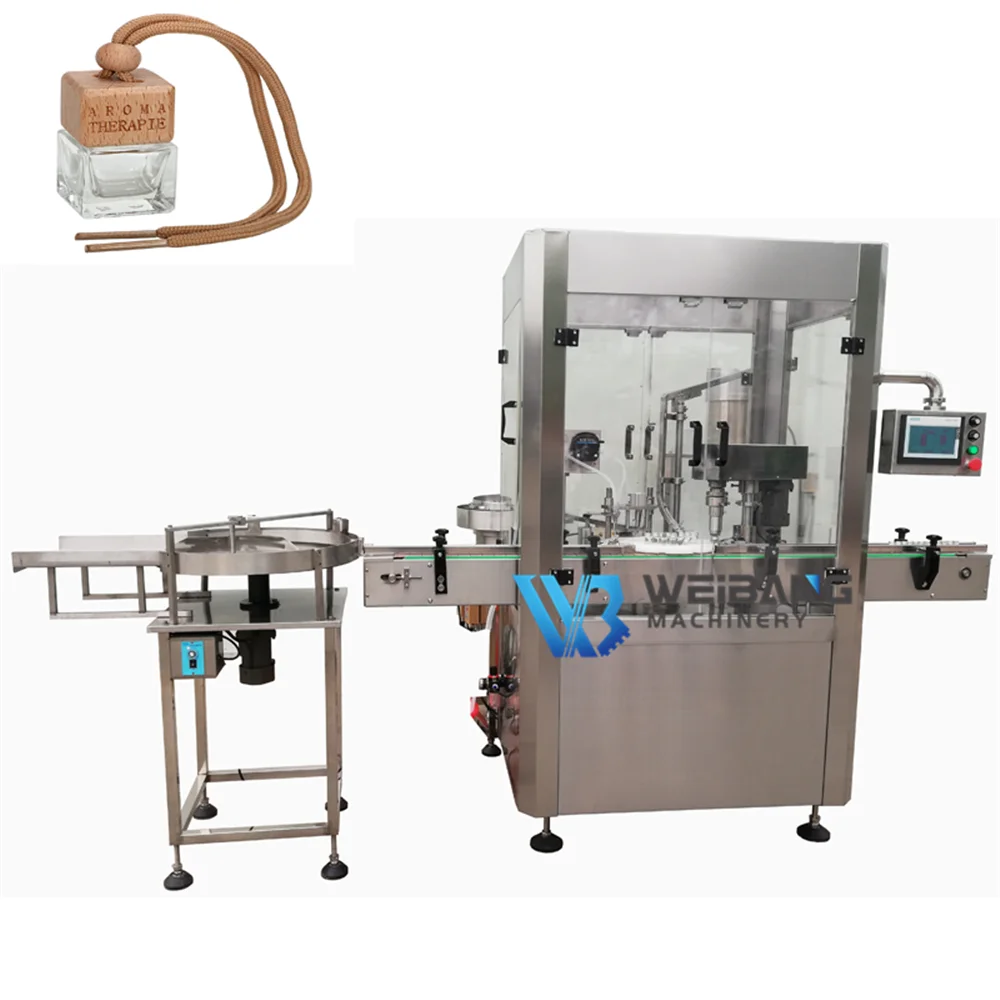

WB YX2 Automatic liquid bottling machine for hang up car diffuser perfume filling machine 100ml
- Category: >>>
- Supplier: Shanghai Weibang Machinery Co. Ltd.
Share on (1600457286283):
Product Overview
Description
Details Images
Automatic Bottle filling capping machine for 5ml 10ml Roll On Roller Essential Oil Bottles Refillable Perfume Makeup Containers
Model no . WB-Y2
Model no . WB-Y2
2 nozzle filling ,1add roller ball ,1 add over cover,1 tighten cover
2 nozzle filling
2 Strong filling peristaltic pumps, easy to adjust volume and change tube for different flavor,
1 add inner plug ,
1Add outer cap

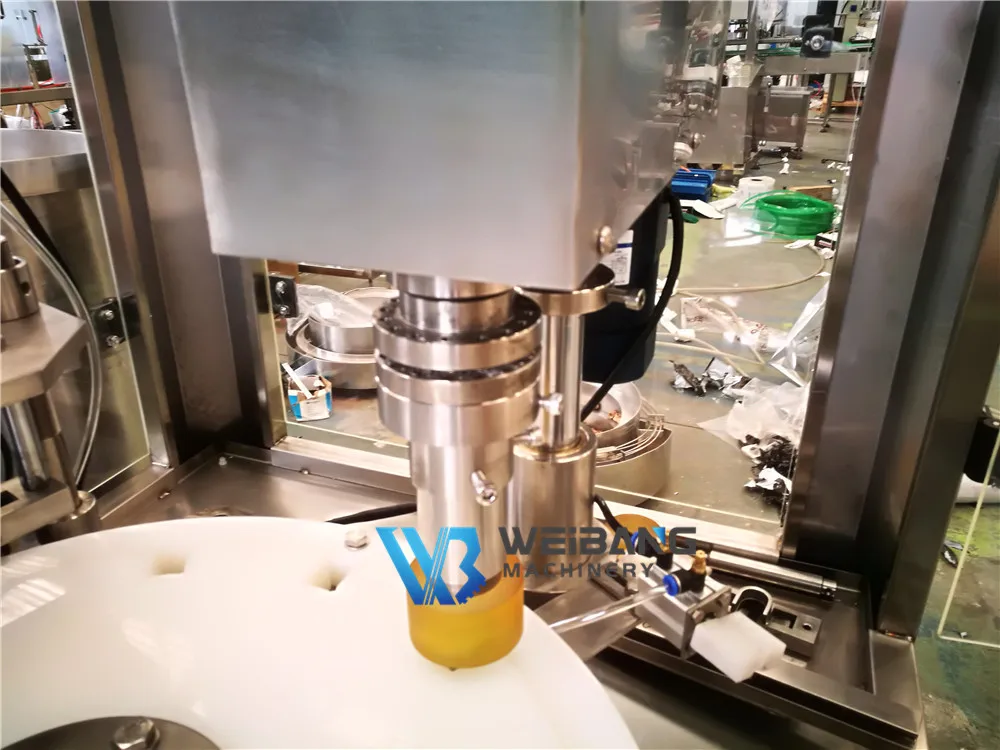

1 tighten capping

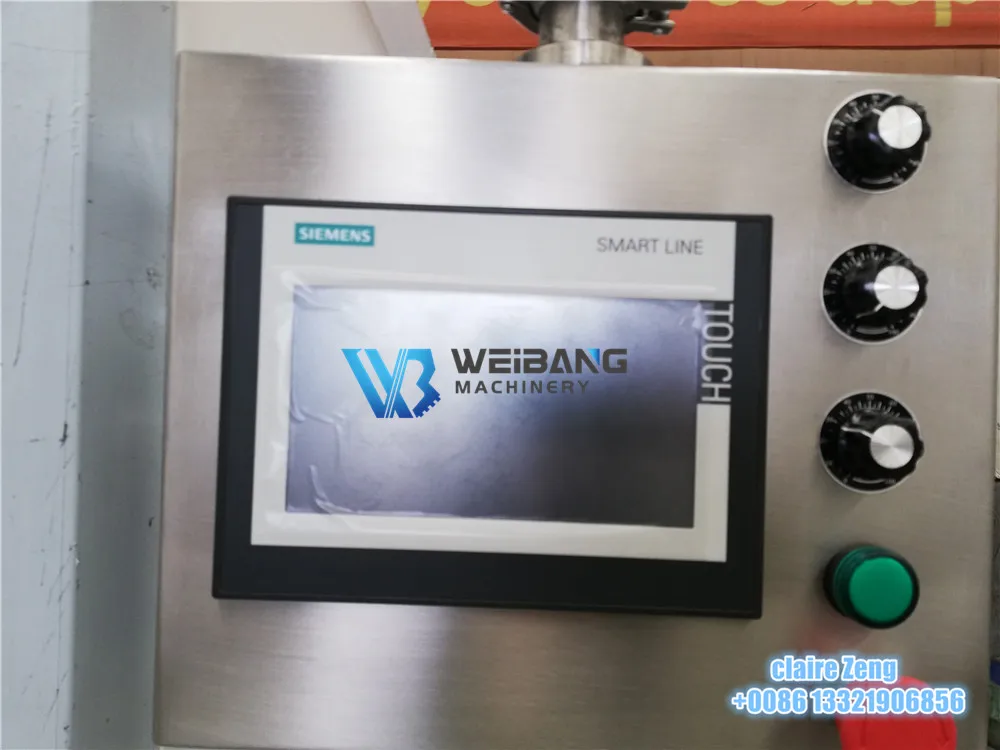

Siemens PLC and Touch screen

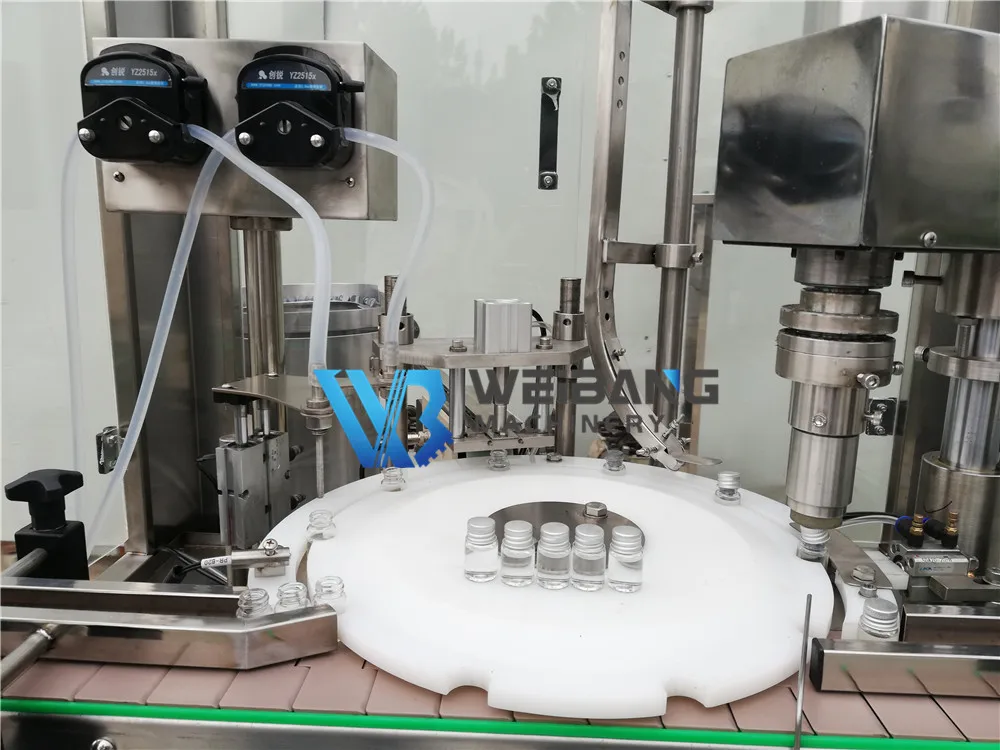

Peristaltic pump Measuring system ,easy to adjust filling volumes

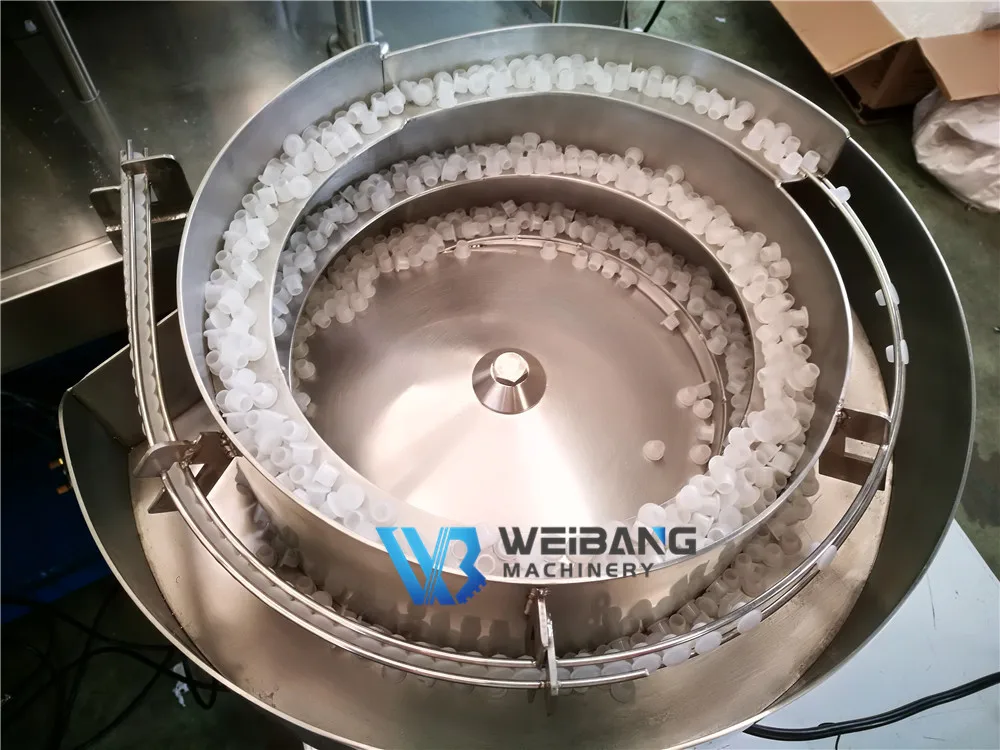

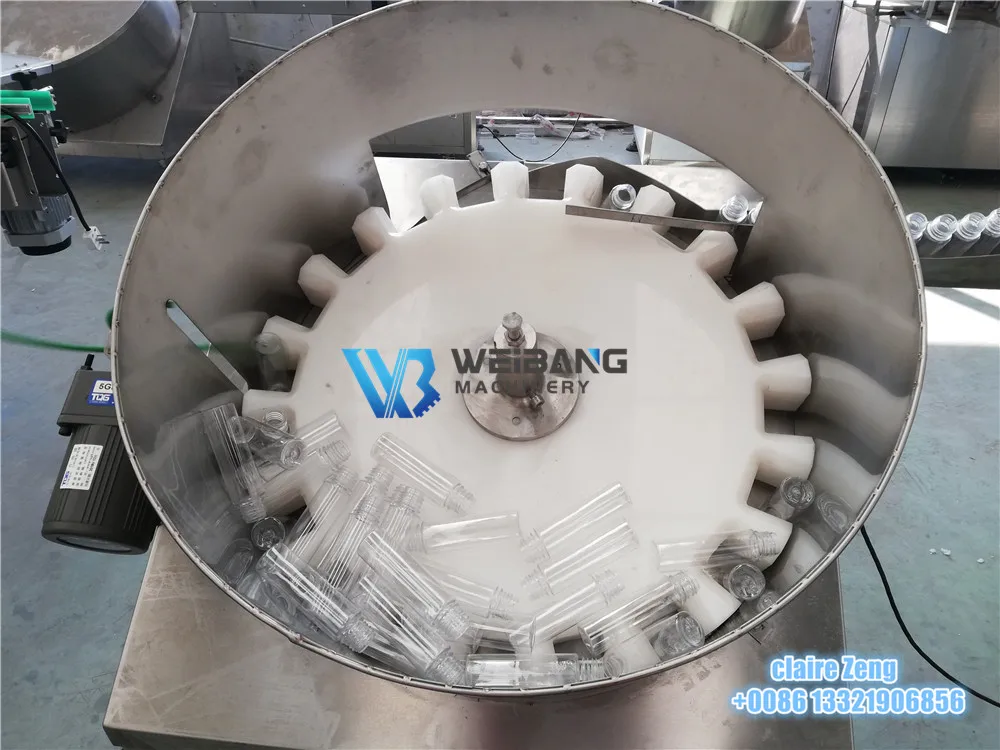

inner plug feeder vibrate bowl

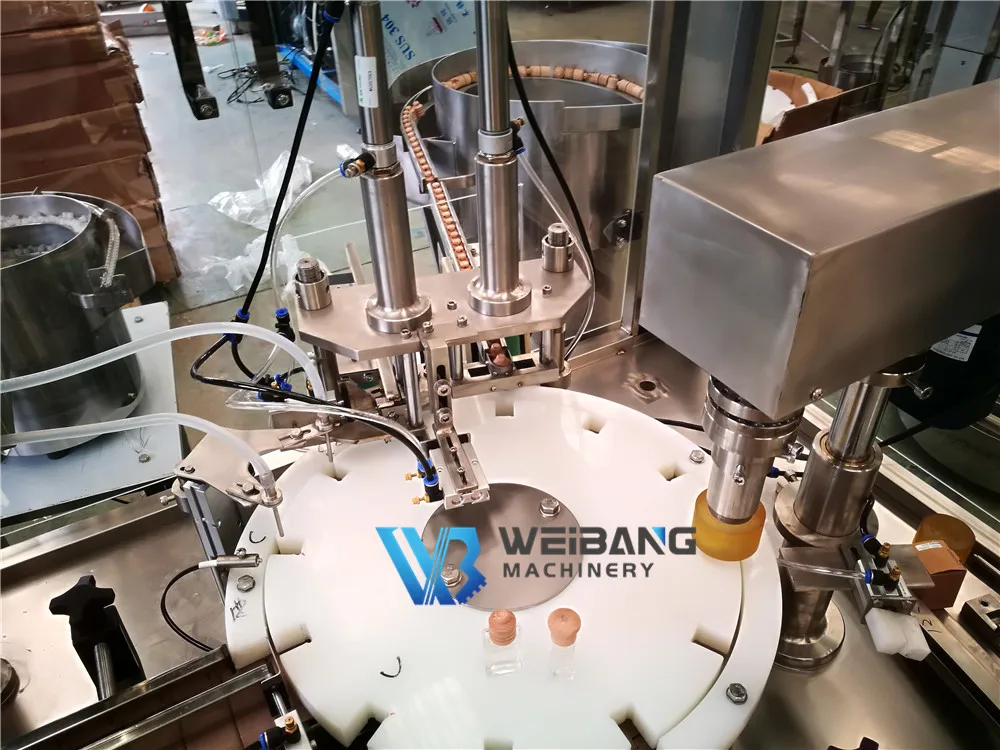

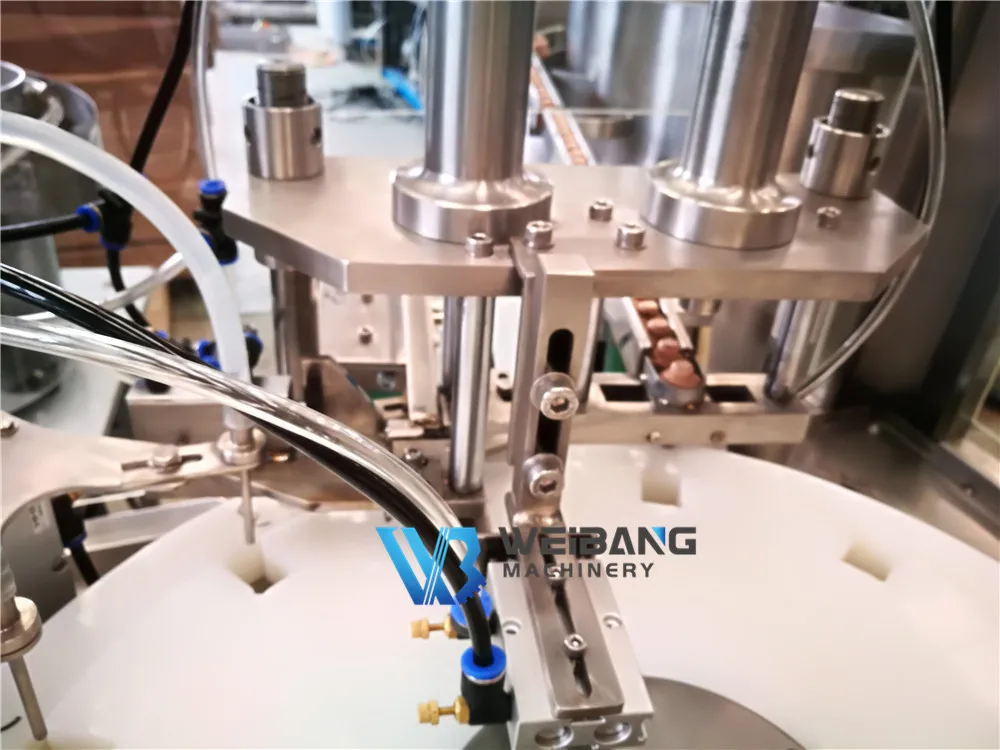

insert inner plug

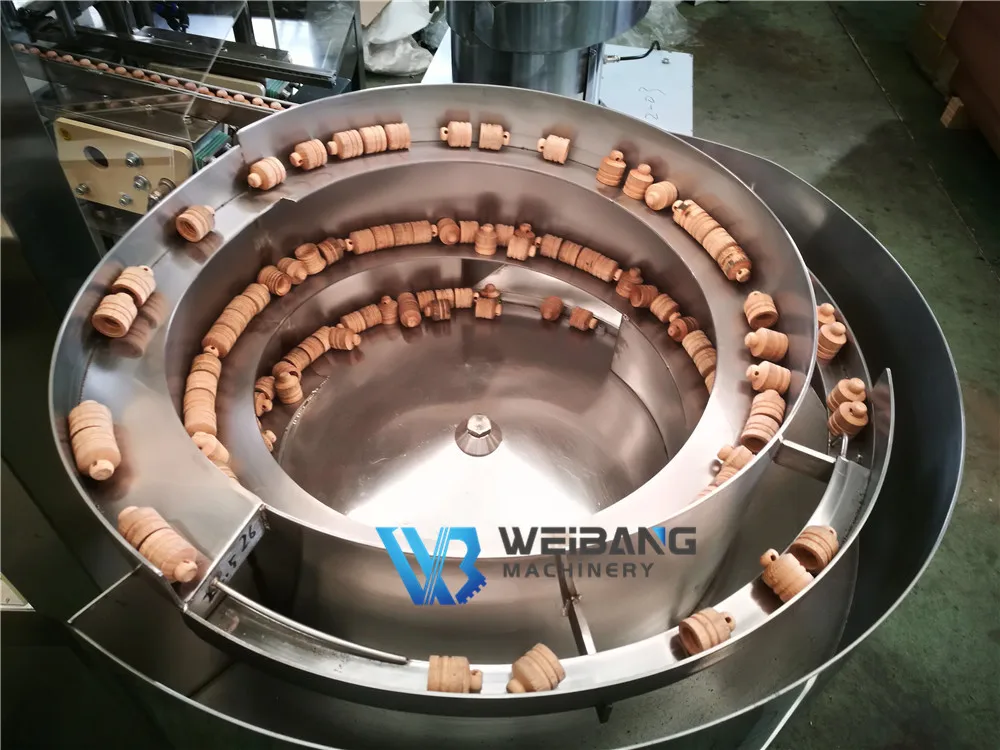

wooden caps sorting bowl
1 station add cap
1 tighten cap

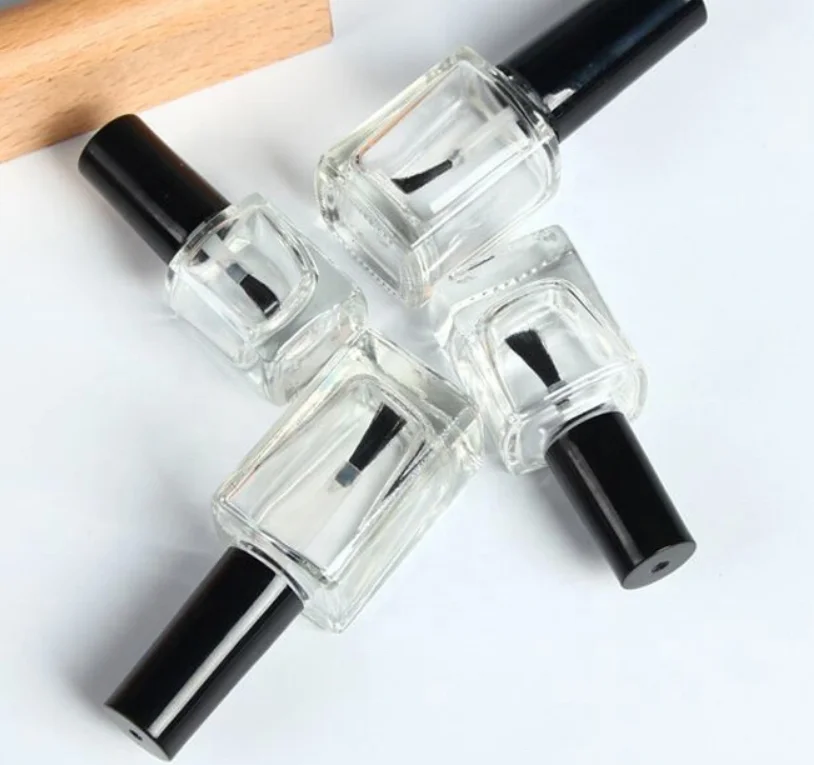

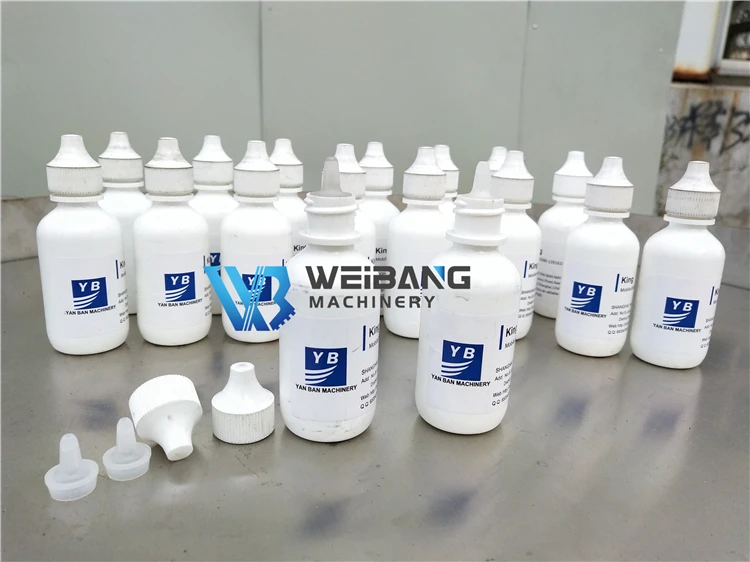

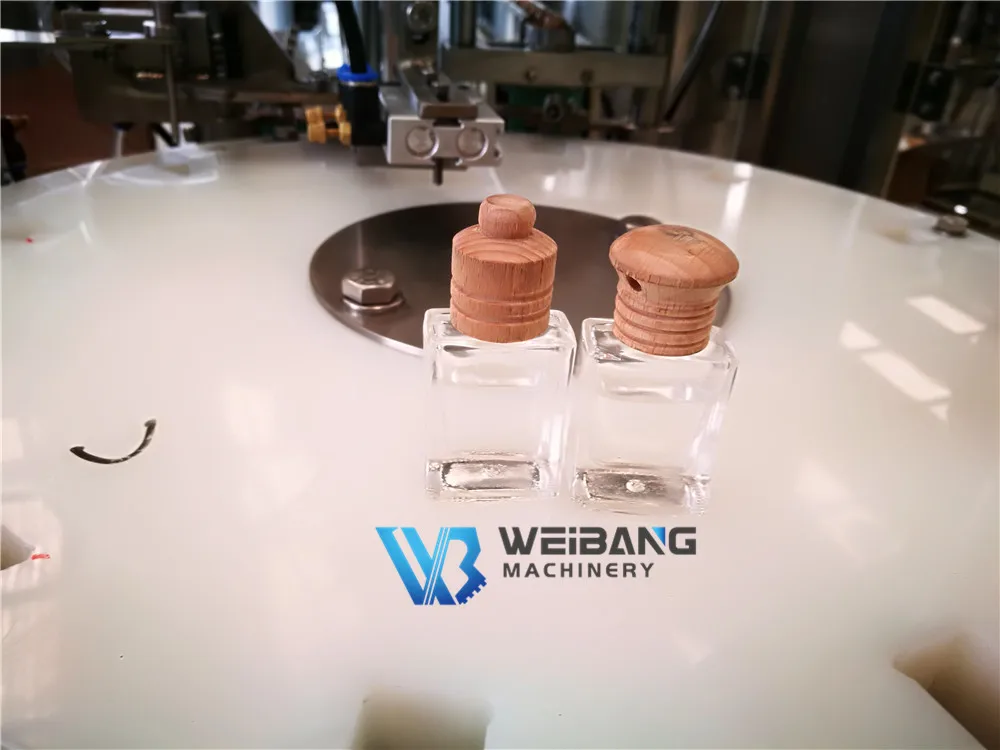

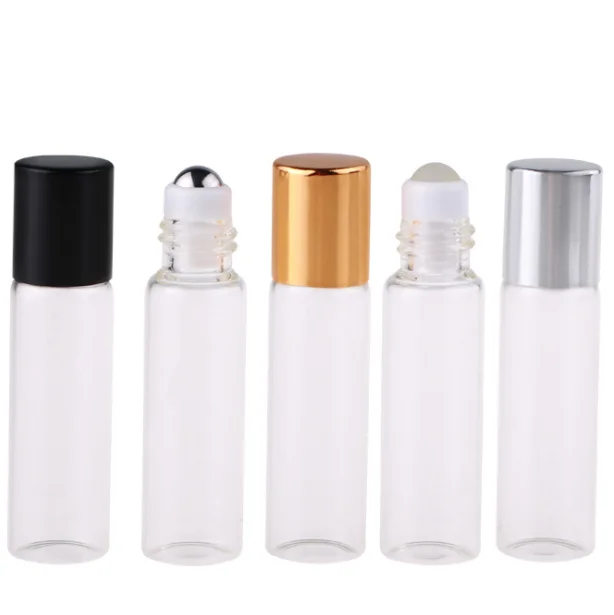

Finished bottle samples

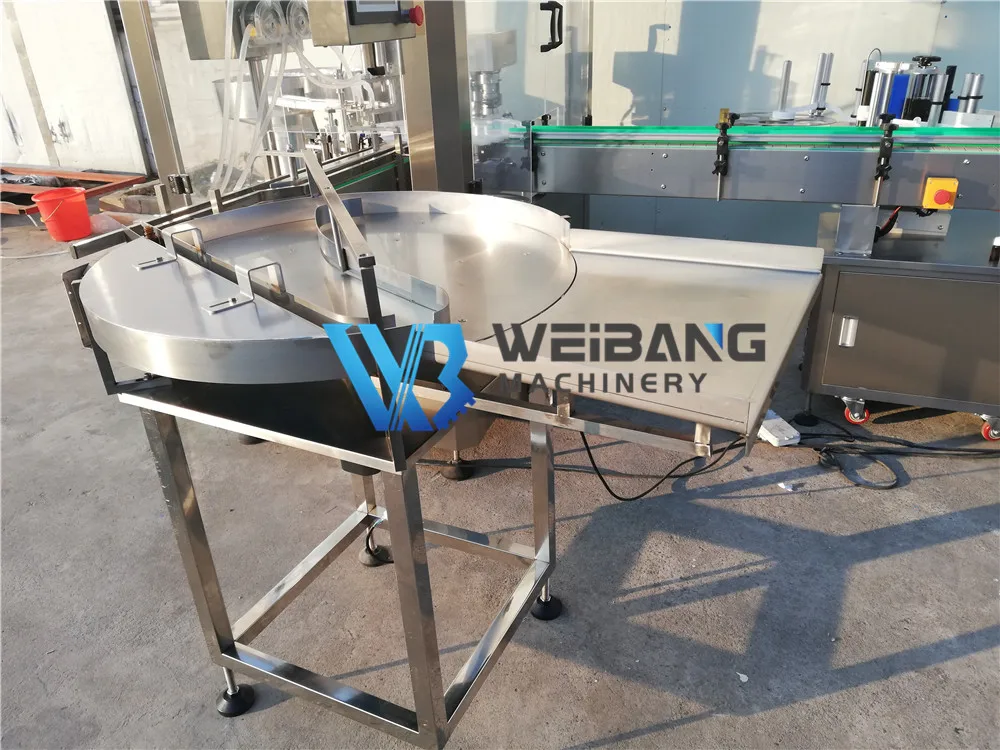

WB-GP800, Bottle unscrambler /feeder table ,diameter 800mm
（use for glass bottle)
WB-LP1, Automatic bottle feeder use for plastic round bottles
WB-GP800 or WB-LP1 can chose one of them

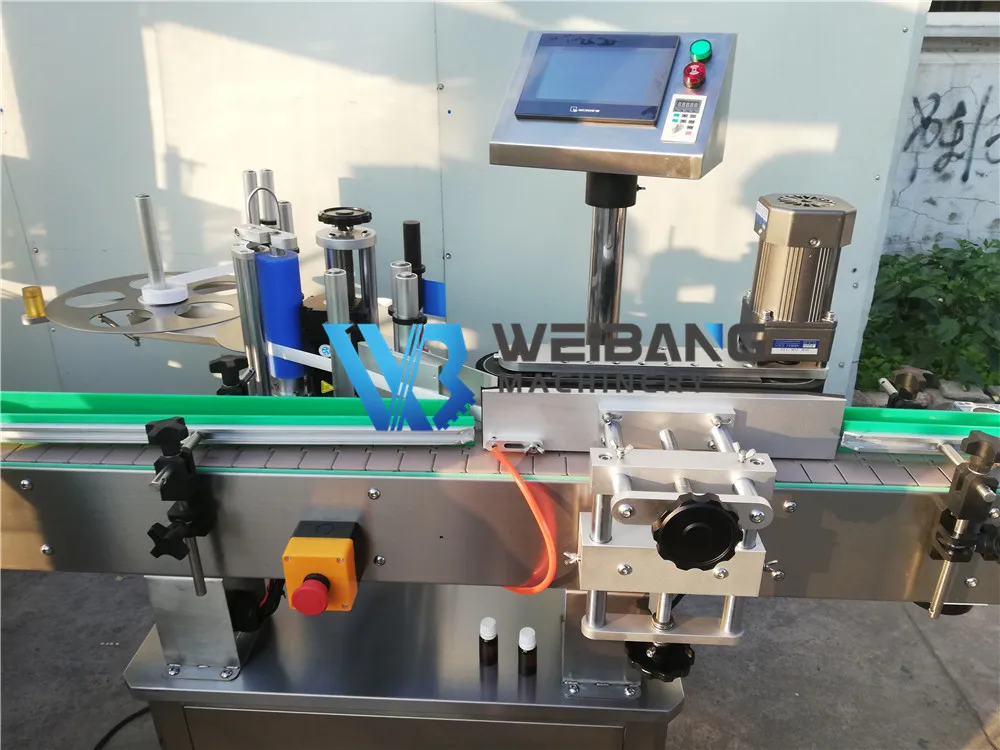

WB-LT100, Vertical sinlge side sticker labeling machine

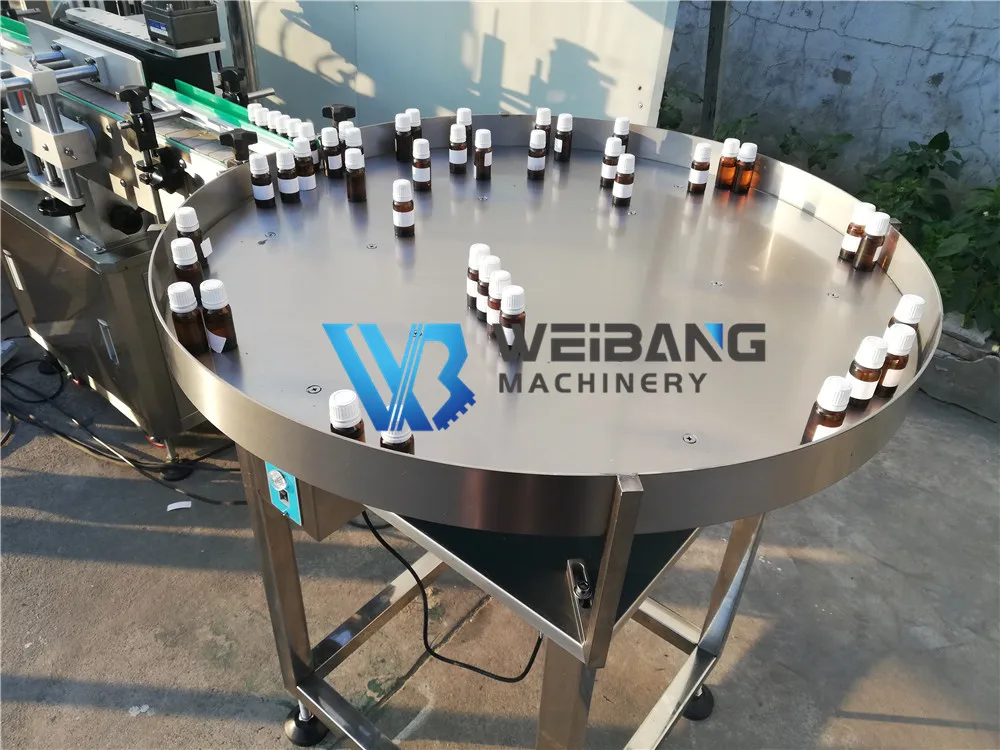

WB-TP1, Bottle Collection table ,diameter 800mm
There are similar filling lines we made for other clients
WB-Y2 ,2nozzles filling ,1add plug /dropper ,1screw capper
Automatic filling capping labeling line for chubby bottles
Automatic filling capping labeling line for chubby bottles
WB-k16 ,High speed 16 nozzles filling ,1add plug /dropper ,12screw cap
Automatic filling capping labeling line
Automatic filling capping labeling line
PRODUCT SPECIFICATIONS
Model | WB-Y2 | WB-Y4 | WB-Y8 |
Filling head number | 2 | 4 | 8 |
Add plug /dropper head | 1 | 2 | 2 |
Capping head number | 1 | 2 | 2 |
Filling volume | 2-200ml | 2-200ml | 2-200ml |
Capacity | 5-35 bottles/min | 10-70 bottles/min | 20-80bottles/min |
Filling accuracy | ≤ ±1% | ≤ ±1% | ≤ ±1% |
Pass rate | ≥ 98% | ≥ 98% | ≥ 98% |
Power supply | 1ph 220V, 50/60Hz | 1ph 220V, 50/60Hz | 1ph 220V, 50/60Hz |
Power | 1.5 KW | 1.7 KW | 2.1 KW |
Net weight | 450kg | 600kg | 700kg |
Overall dimension | L2200 × W1600 × H1600mm | L2200 × W2000 × H1600mm | L2600 × W2000 × H1600mm |
More similar filling line we made before
click picture to check more details information
Sample
Contact
Company introduction
Certifications
FAQ
1: Q:Are you a factory or trading company ?
A: We are a professional manufacturer of Vertical packing machine,horizontal packing and bottle filling machines . At the same time , we are also a trustworthy supplier of other packing equipment ,including tea bag packing machine , wet wipes fold and packing machine , yogurt cup filling and sealing machine , Labeling machine, shrink sleeve labeling machine , box cartooning machine , metal detector, inkjet printing machine , mixing tank and hard candy packing machine and so on .
2, Q: Trade assurance order is OK?
A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.
3, Q: What is the MOQ ?
A: 1 set .
4, Q: How long is the lead time ?
A : All machine takes around 10-25 days after deposit payment .
5, Q: What is your warranty and after-sale service
A: One year warranty and Lifelong after-sale service via skype/whatsapp/mobile/etc .Also Technical service is available.
6,Q:Can I Visit factory and send team for Learning and inspect?
A:Yes, sure, Welcome your visit and no problem for your team come and learning, we will do our best to teaching they how to use the machine .
7, Q: Which is the nearest sea port for you ?
A : Our company located at Shanghai city ,so Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .
8, Q: What advantages we have?
A: Rich experience: We have over 15 years experience in exporting packing machine and bottle filling line , all of our sales have been in packing and filling industry over 8 years , some over 15 years . We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers’ different requirement . We have our own factory , so that , no matter the packing machine and filling machines which manufactured by ourselves , but also other related machine we get from our partners . All will be re-tested again in our factory .
A: We are a professional manufacturer of Vertical packing machine,horizontal packing and bottle filling machines . At the same time , we are also a trustworthy supplier of other packing equipment ,including tea bag packing machine , wet wipes fold and packing machine , yogurt cup filling and sealing machine , Labeling machine, shrink sleeve labeling machine , box cartooning machine , metal detector, inkjet printing machine , mixing tank and hard candy packing machine and so on .
2, Q: Trade assurance order is OK?
A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.
3, Q: What is the MOQ ?
A: 1 set .
4, Q: How long is the lead time ?
A : All machine takes around 10-25 days after deposit payment .
5, Q: What is your warranty and after-sale service
A: One year warranty and Lifelong after-sale service via skype/whatsapp/mobile/etc .Also Technical service is available.
6,Q:Can I Visit factory and send team for Learning and inspect?
A:Yes, sure, Welcome your visit and no problem for your team come and learning, we will do our best to teaching they how to use the machine .
7, Q: Which is the nearest sea port for you ?
A : Our company located at Shanghai city ,so Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .
8, Q: What advantages we have?
A: Rich experience: We have over 15 years experience in exporting packing machine and bottle filling line , all of our sales have been in packing and filling industry over 8 years , some over 15 years . We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers’ different requirement . We have our own factory , so that , no matter the packing machine and filling machines which manufactured by ourselves , but also other related machine we get from our partners . All will be re-tested again in our factory .
