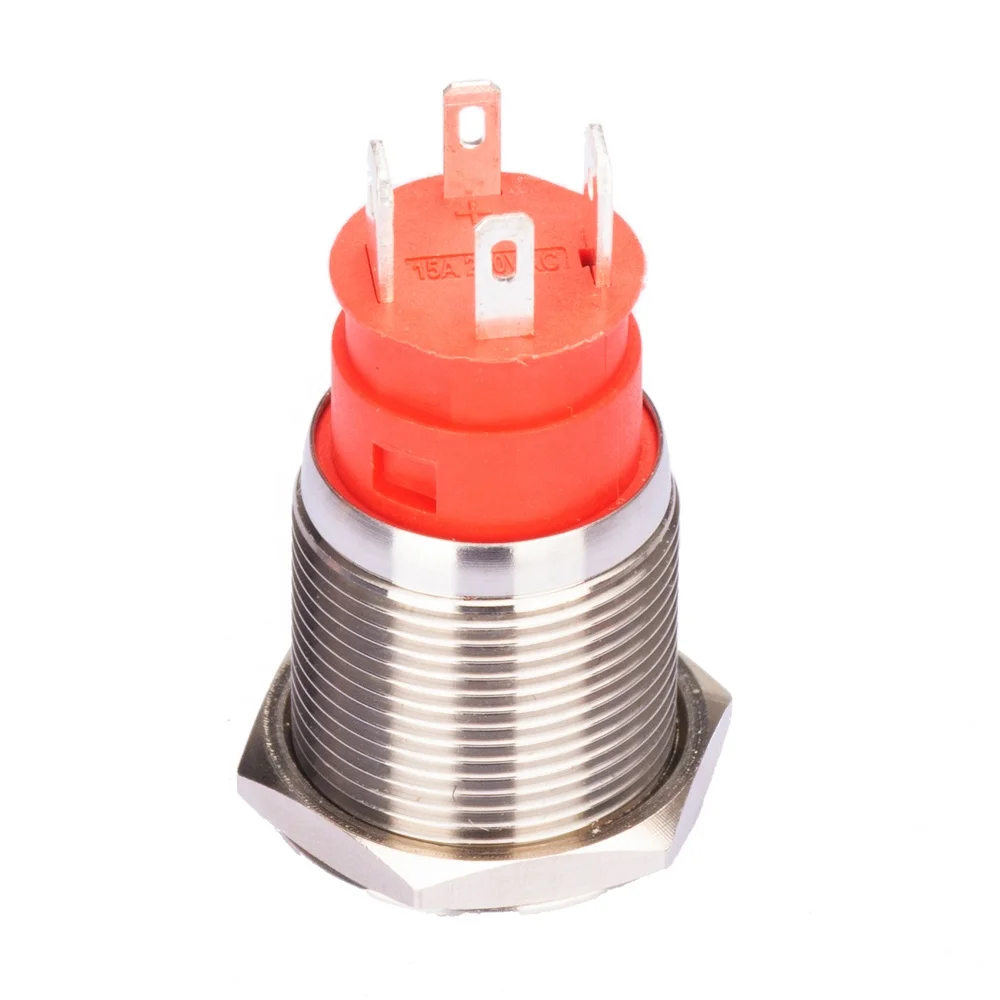

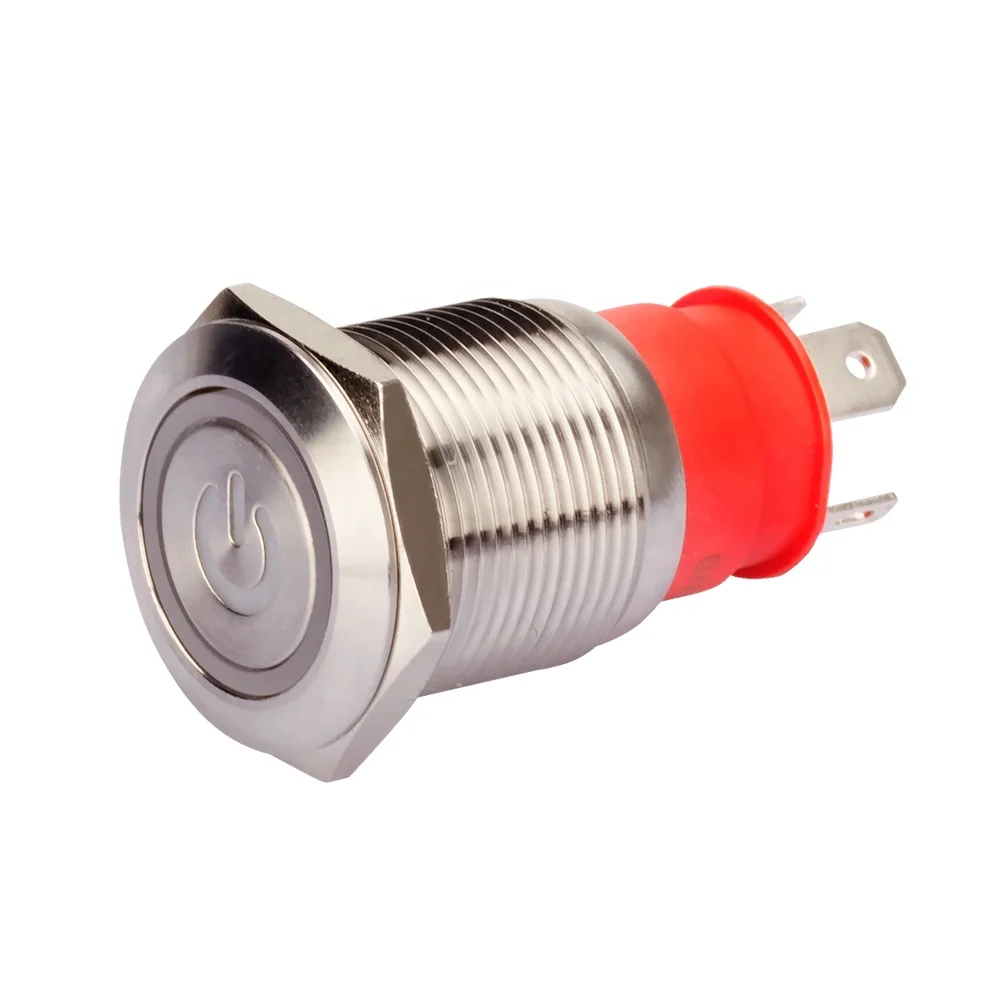

IP67 Metal High Current 15A 20A Power Logo Latch Type Led Light Push Button Switch 10a
- Category: >>>
- Supplier: Yueqing Yueshun Electric Co. Ltd.
Share on (1600457400924):
Product Overview
Description
YUESHUN PUSH BUTTON SWITCH
-Professional manufacturer of custom high quality metal push buttons.
-All our products have passed the CE, CCC, ROHS etc. certifications.
-Our push buttons use 95% silver contacts,with good contact performance.

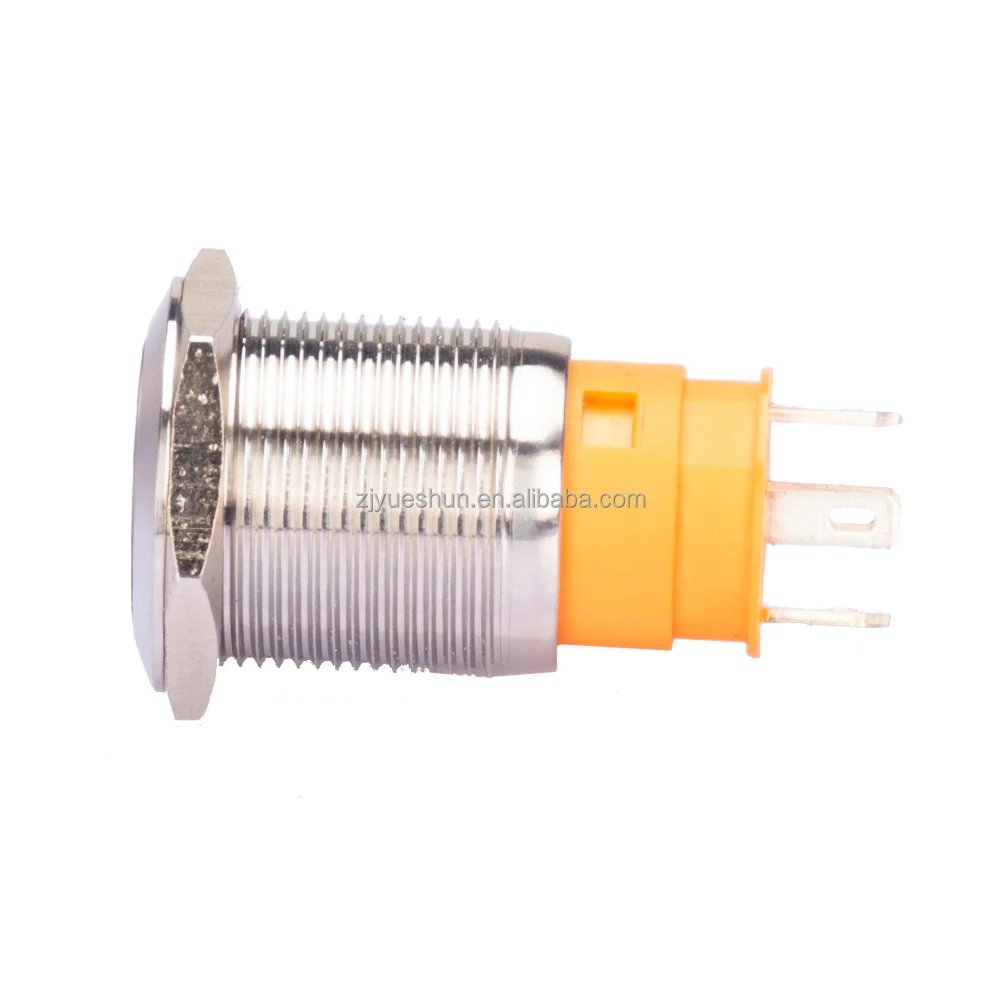

IP67 Metal High Current 15A 20A Power Logo Latch Type Led Light Push Button Switch 10a
Quick Description
power logo Push Button Switch
Mounting Size : 19mm 22mm;
Switch Rating : 20A , 250VAC/DC
IP Class : IP67
Function : Normal Open
Material ：304 / 316 Stainless Steel / Aluminium oxide
Operating Type : Momentary / Latching
Switch Rating : 20A , 250VAC/DC
IP Class : IP67
Function : Normal Open
Material ：304 / 316 Stainless Steel / Aluminium oxide
Operating Type : Momentary / Latching
PRODUCT FEATURES | ||

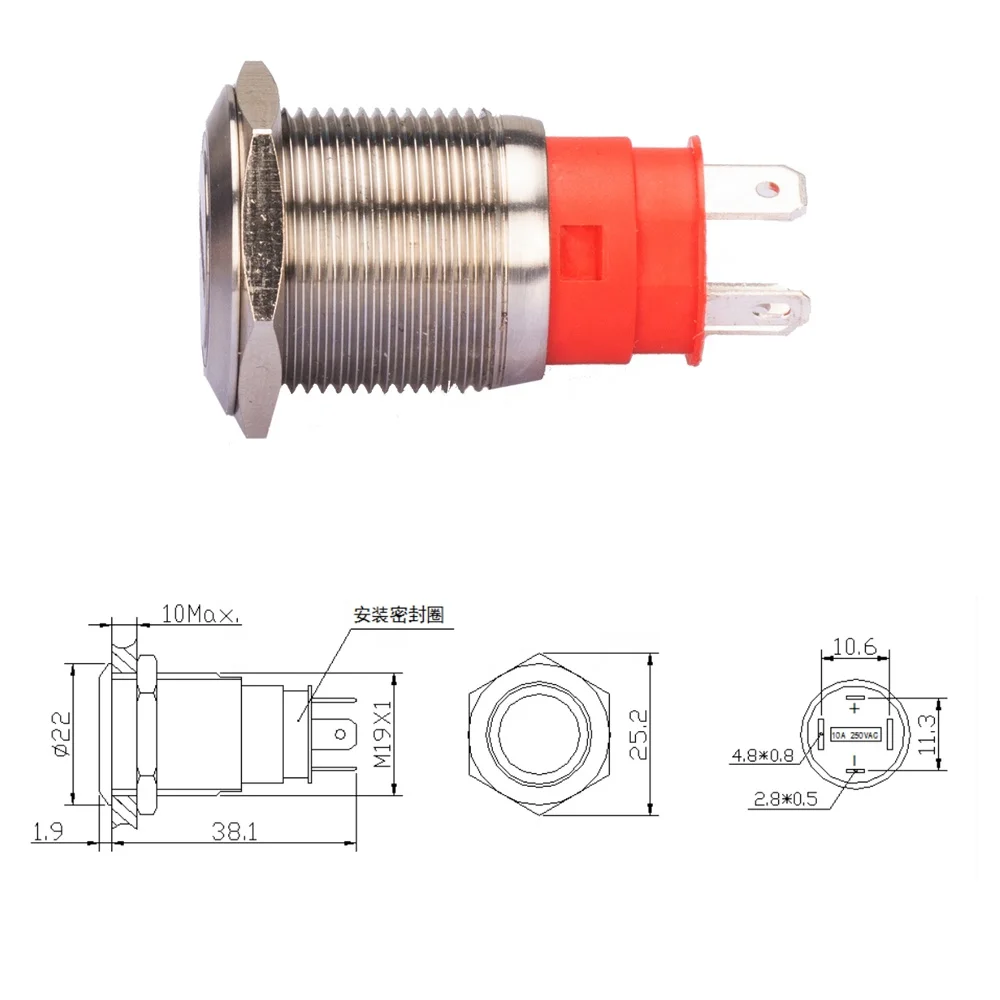

Install Diameter | 19mm 22mm | |
Operation Type | Momentary or Latching | |
Switch Combination | 1NO | |

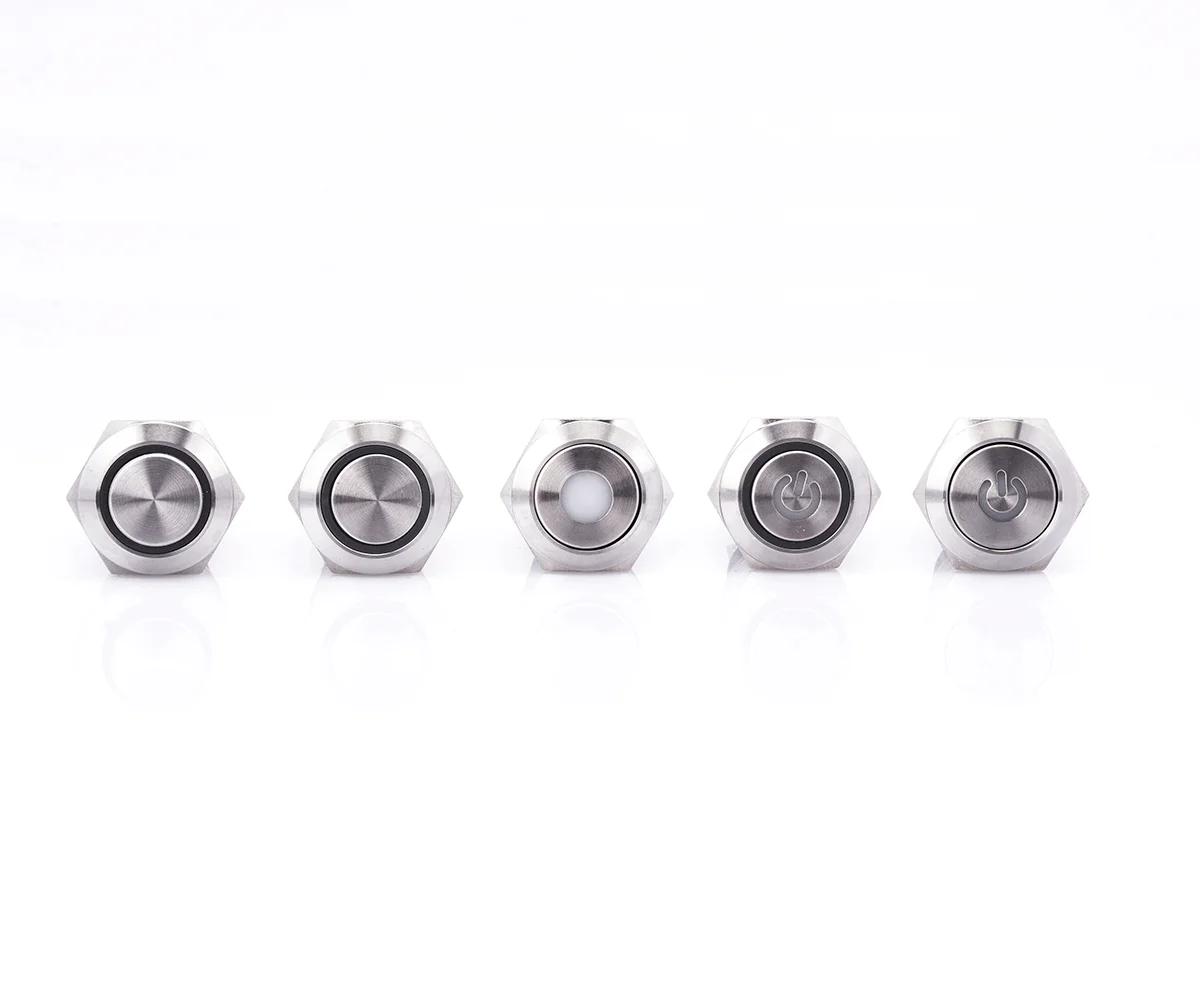

Head Shape | Flat Round Head | |

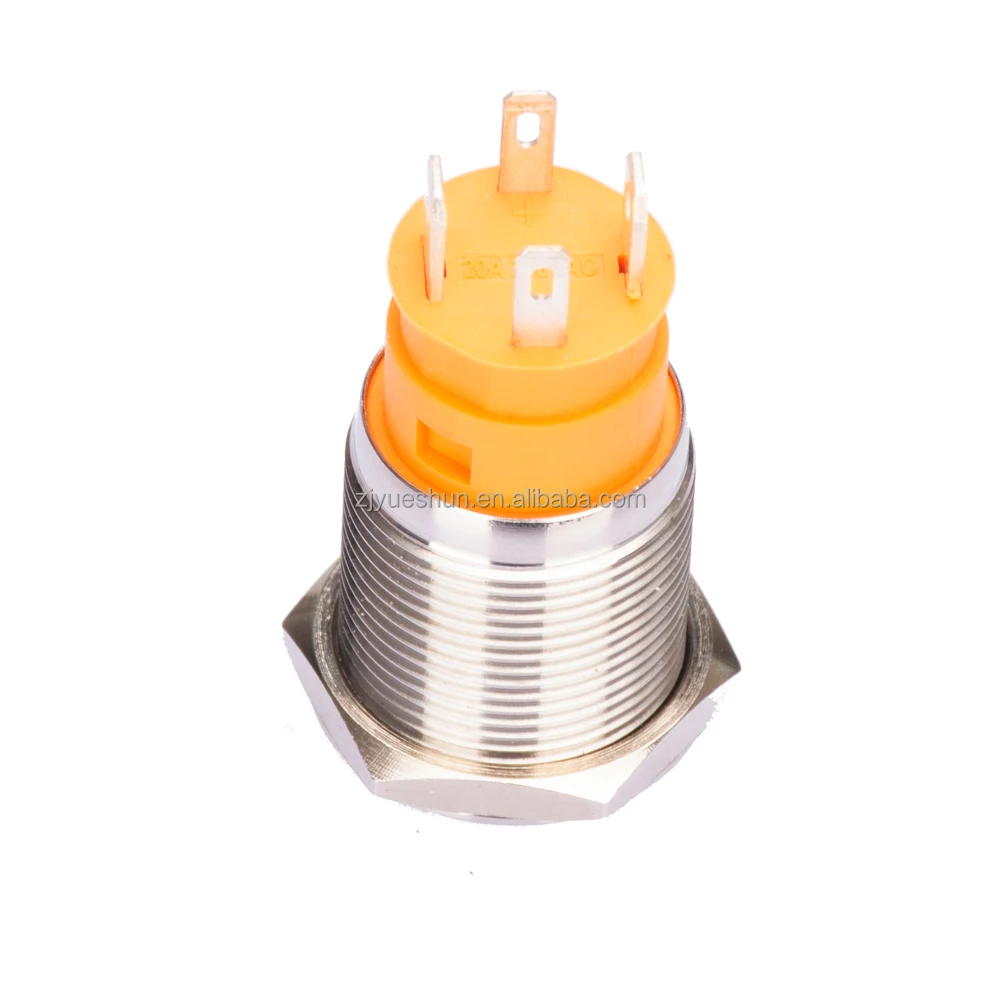

Terminal Type | 4 PIN TERNINAL | |
Panel Thickness | 1-10mm | |
Operating Distance | About 2.5mm | |
PRODUCT MATERIALS | ||
Body Material | 304 Stainless Steel / 316 Stainless Steel / aluminum oxidation | |
Button Material | 304 Stainless Steel / 316 Stainless Steel / aluminum oxidation | |
Base Material | PBT | |
Contact Material | Silver Alloy | |
LED SPECIFICATIONS | ||
LED Type | Power LED | |

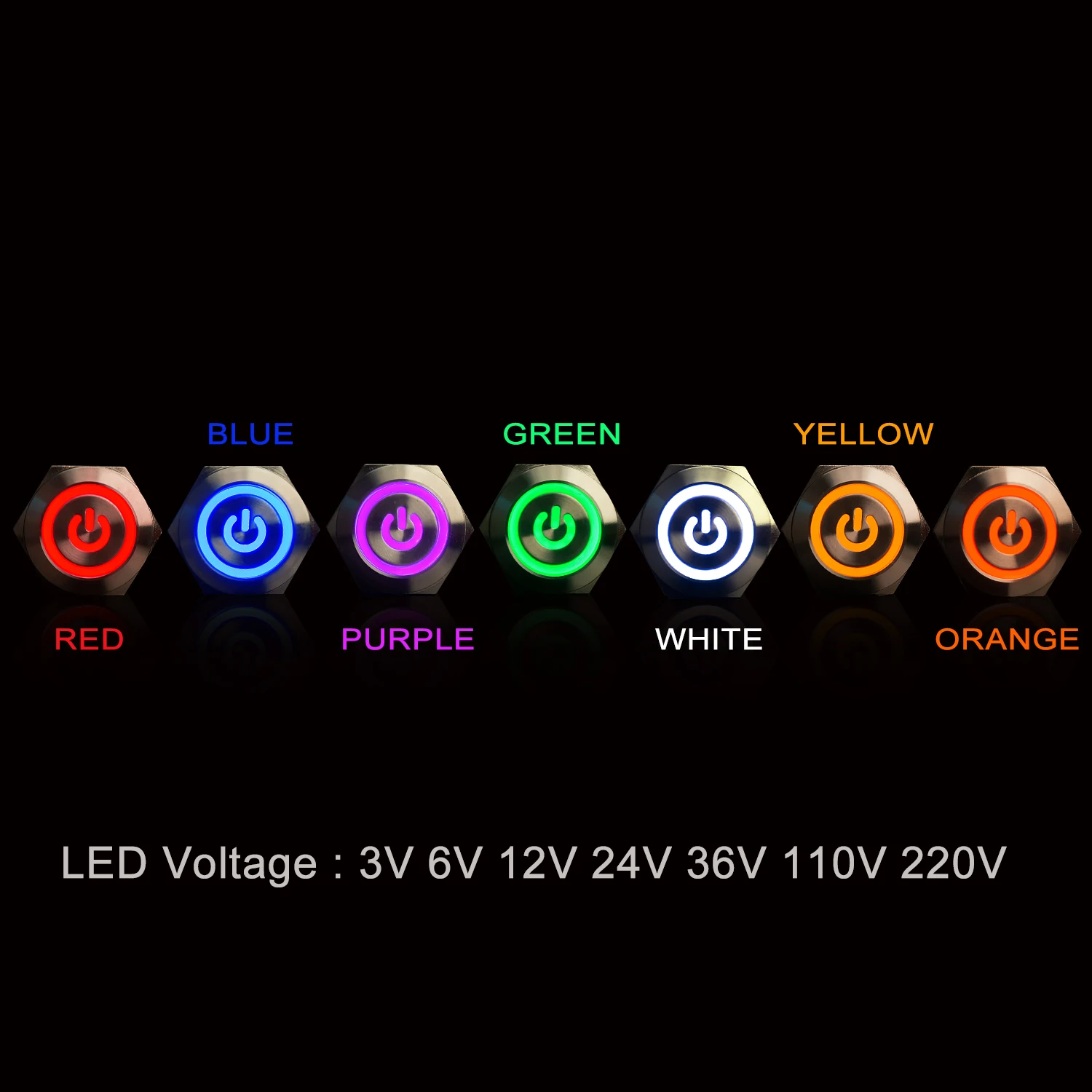

LED Color | Red / Green / Yellow / Blue/ White / Orange / Purple / Bi-color / Tri-color | |
LED Voltage | 3V / 6V / 12V / 24V / 36V / 110V / 220V | |
LED Life | More Than 40,000 hours | |
ELECTRICAL SPECIFICATIONS | ||
Max Switch Rating | 10A 15A 20A / 250V AC DC | |
Contact Resistance | ≤ 50mΩ | |
Insulation Resistance | ≥ 10000mΩ | |
Dielectric Strength | 2000VAC | |
Mechanical Life | More than 1000,000 cycles | |
Electrical Life | More than 100,000 cycles | |
ENVIRONMENTAL SPECIFICATIONS | ||
IP Degree | IP 67 | |
Operation Temperature | 20℃～+55℃ | |
Operating Pressure | About 3-5N | |
Torque | 5-14Nm | |

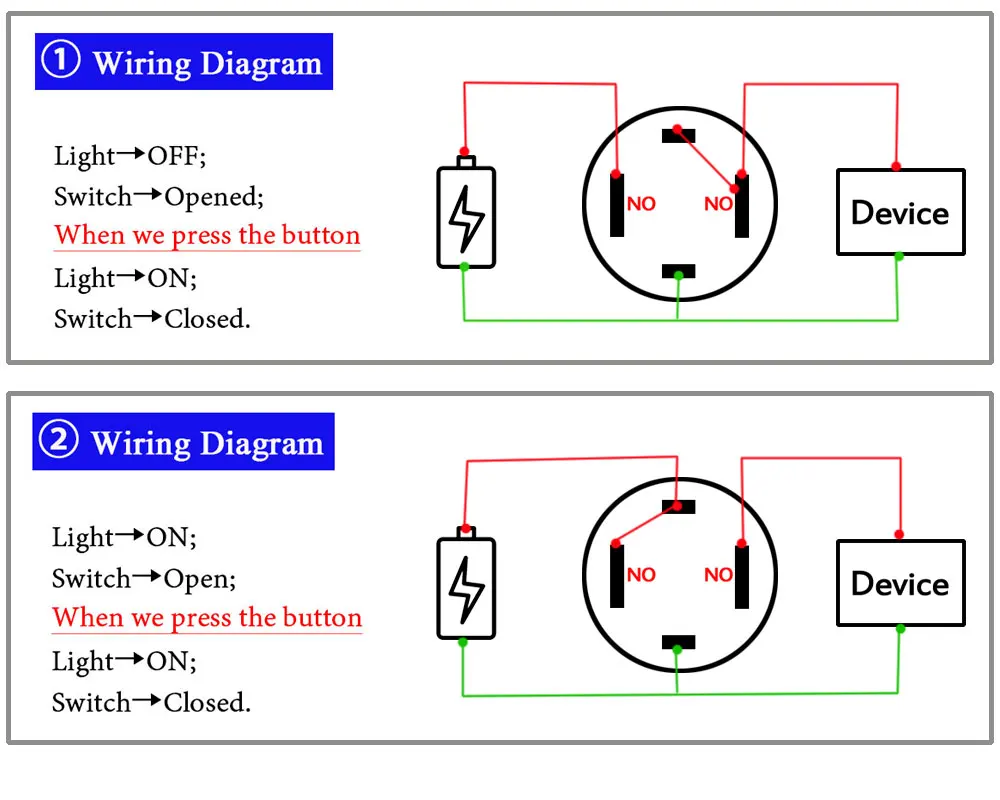

Wire Connection Reference
Why Choose Us

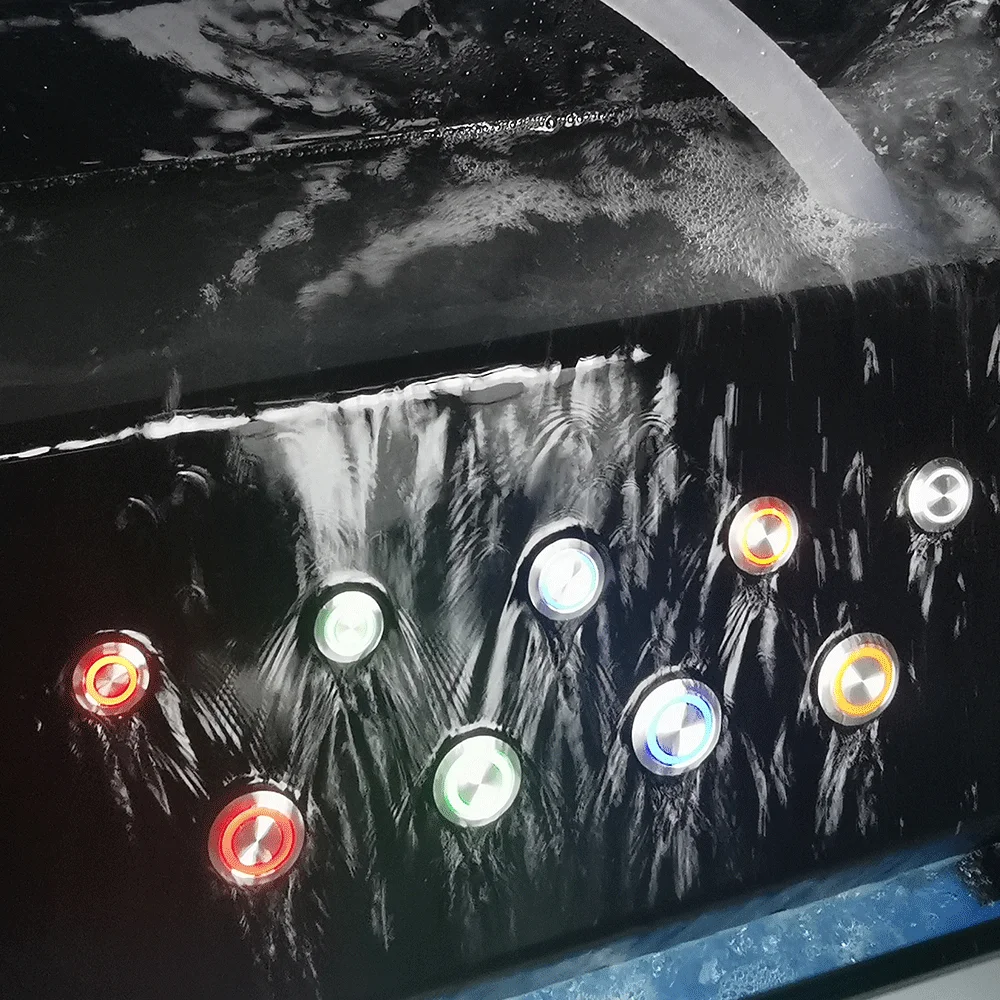

Waterproof ,Dustproof ,Vandal Resistant
It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.Mechanical Life more than 100,0000 times,with long service life.
All our products have passed the CE, CCC, ROHS etc. certifications
Exquisite Workmanship
Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.The push buttons use 95% silver contacts,with good contactperformance.
High Quality Shell Material
High quality metal shell, durable and strong corrosion resistance, not easy to fade, excellent performance, IP67 protection level are great for all kinds of first level equipments.

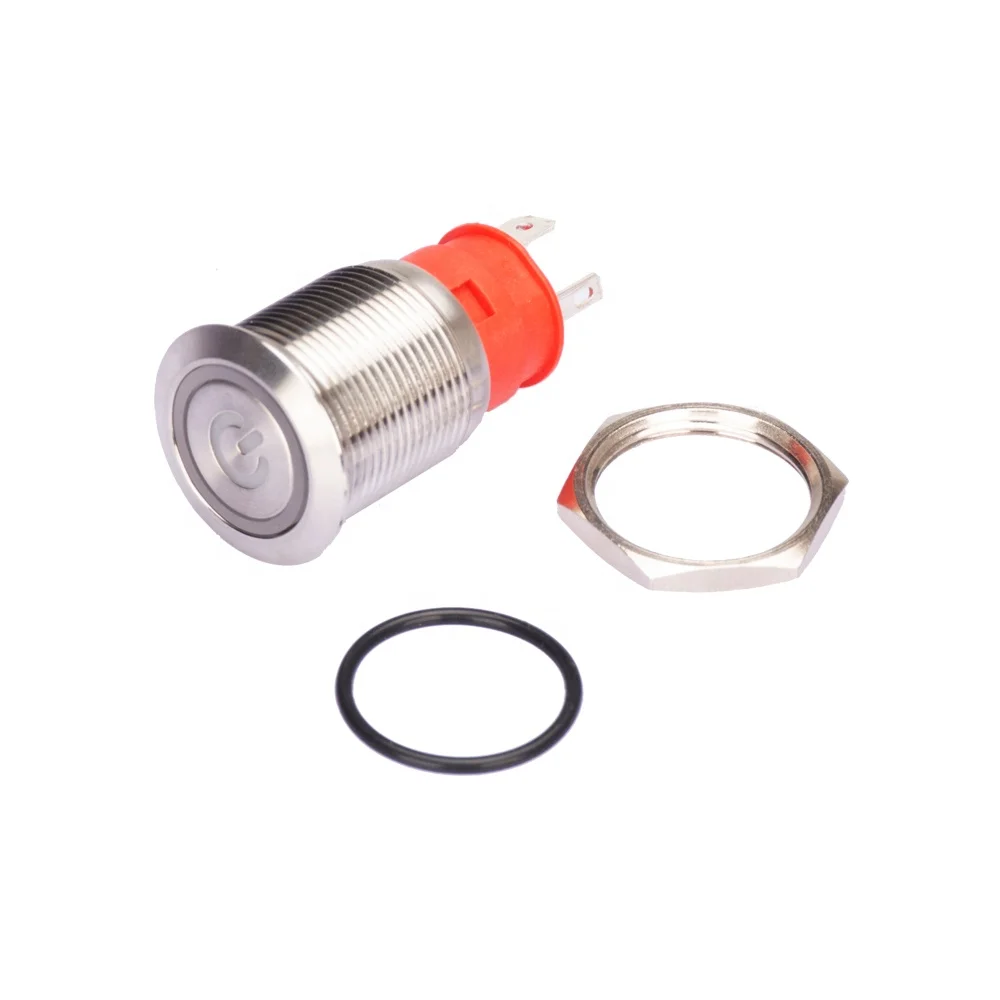

Easy To Install
Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use

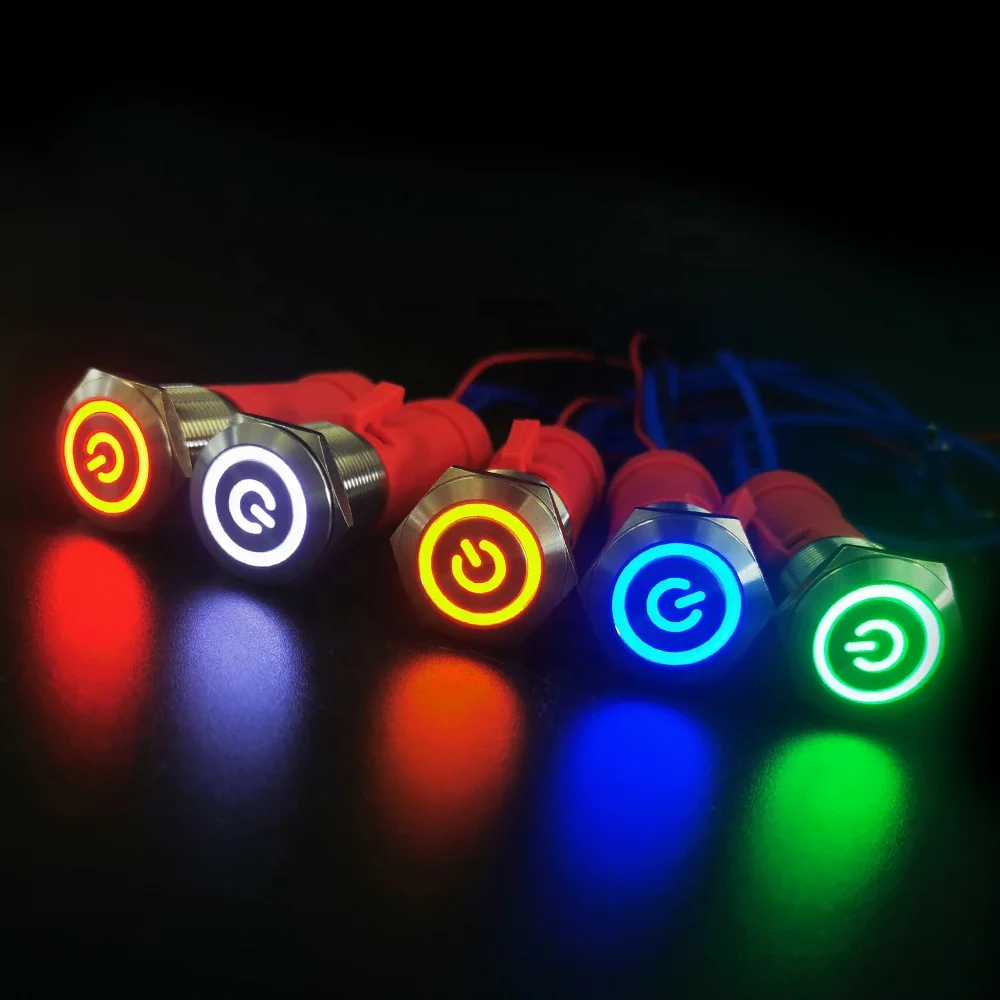

ILLUNINATED
High bright solid color LED light, beautiful not dazzling.
Built-in buck resistor. Customized LED light sign.
Built-in buck resistor. Customized LED light sign.
7 colors optional, can be customized Bi-colors, Tri-colors.

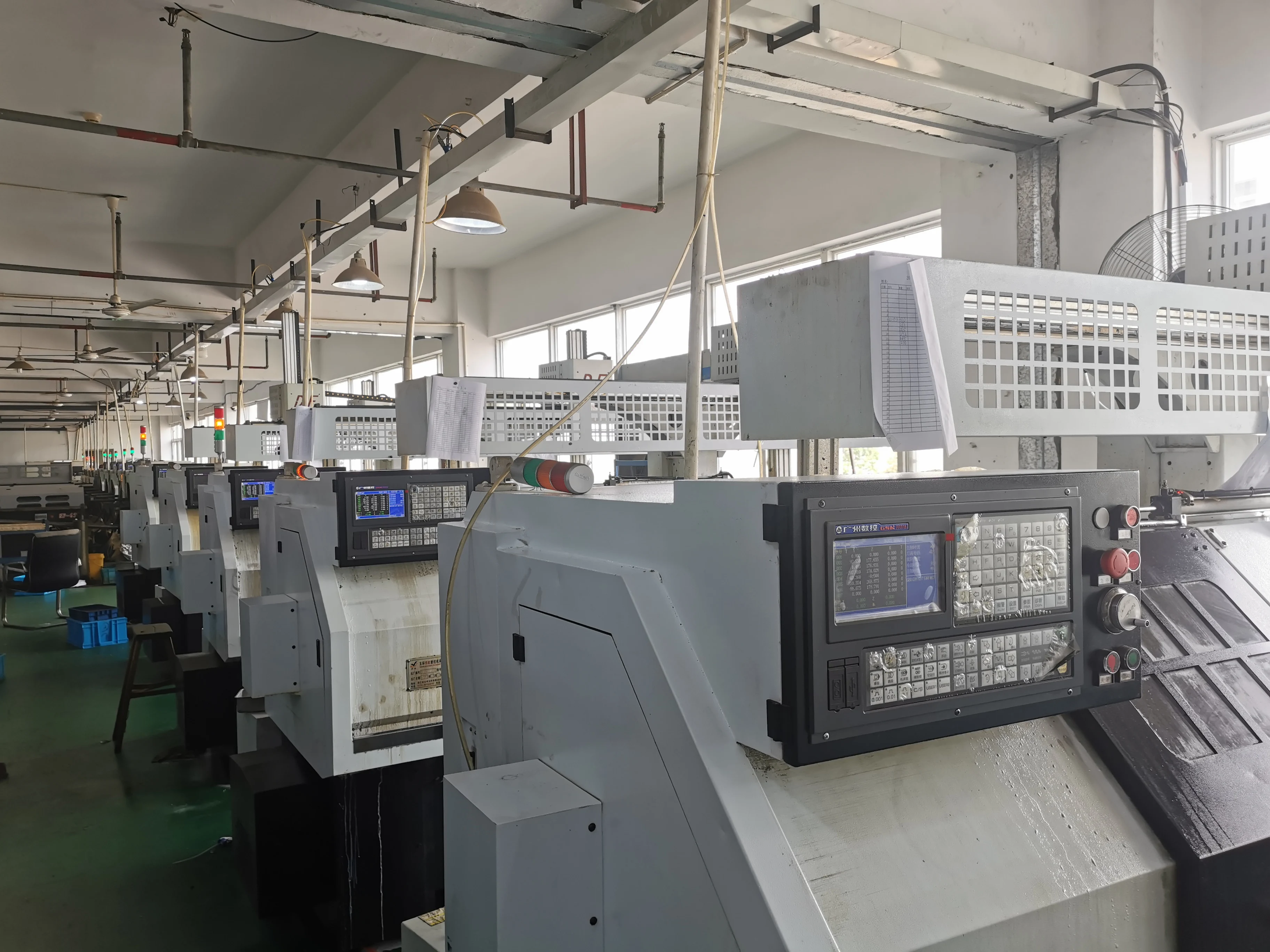

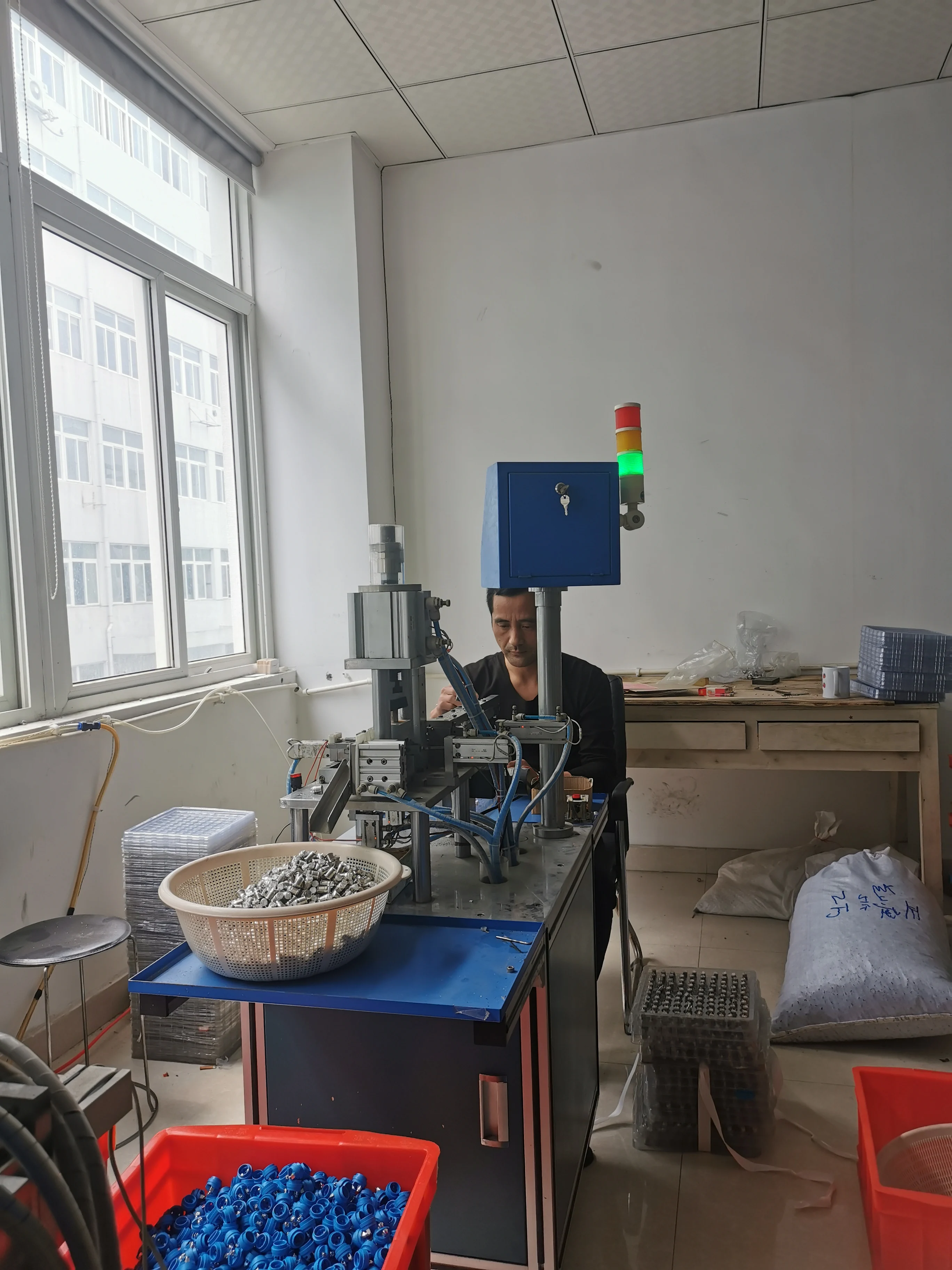

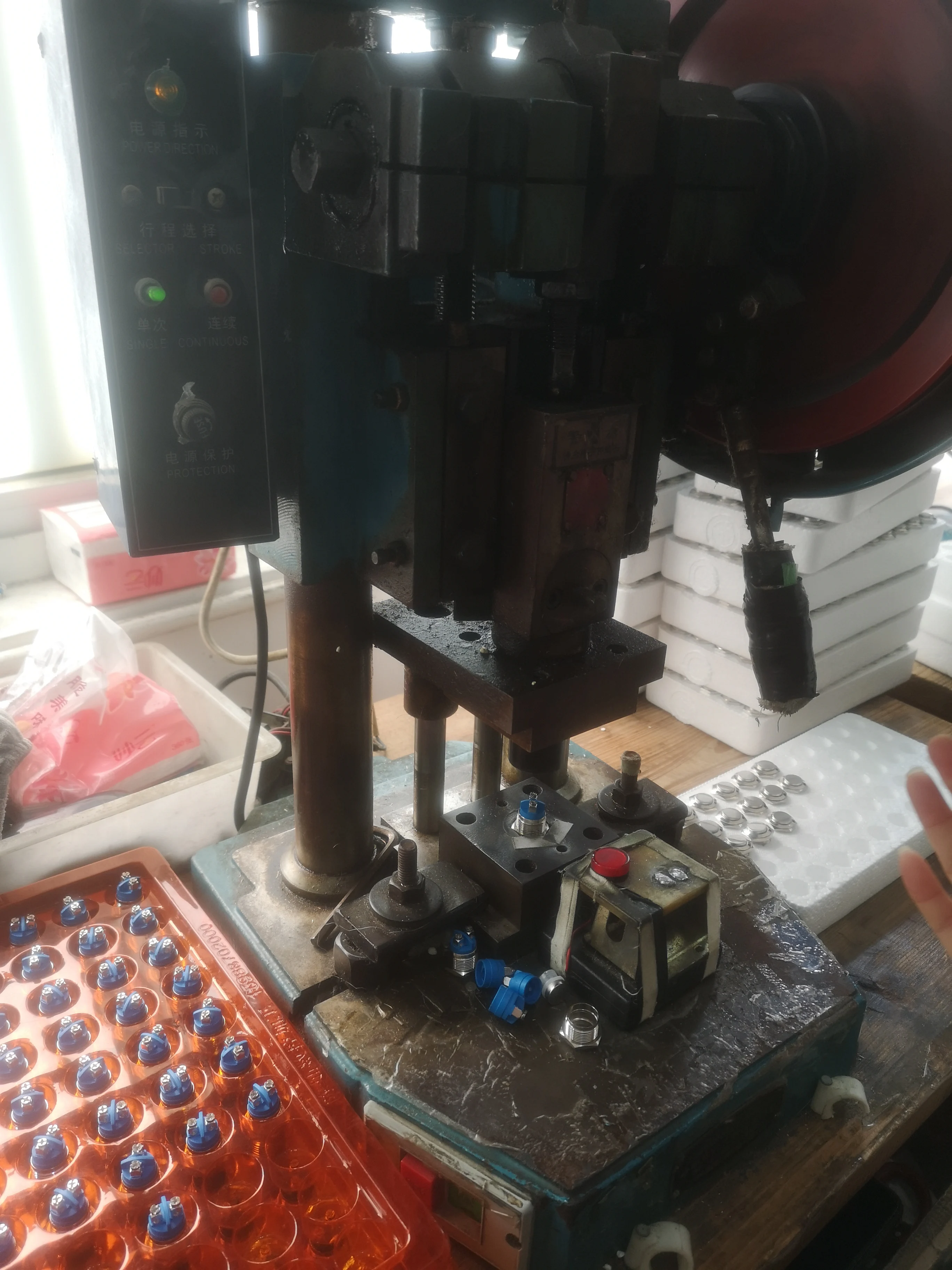

Company Profile
Yueqing YueShun Electric Co., Ltd
Established in 2005, we focus on manufacturing high quality metal push button switches for more than 15years. We are one of thefamous domestic manufacturer in this area, and we have many stable customers overseas too, with cooperation for more than 10years.
We have professional engineers, workers, sales and service team to supply you with variety push button switches which are either
industry and market focused, as well as excellent quality and professional service.
industry and market focused, as well as excellent quality and professional service.

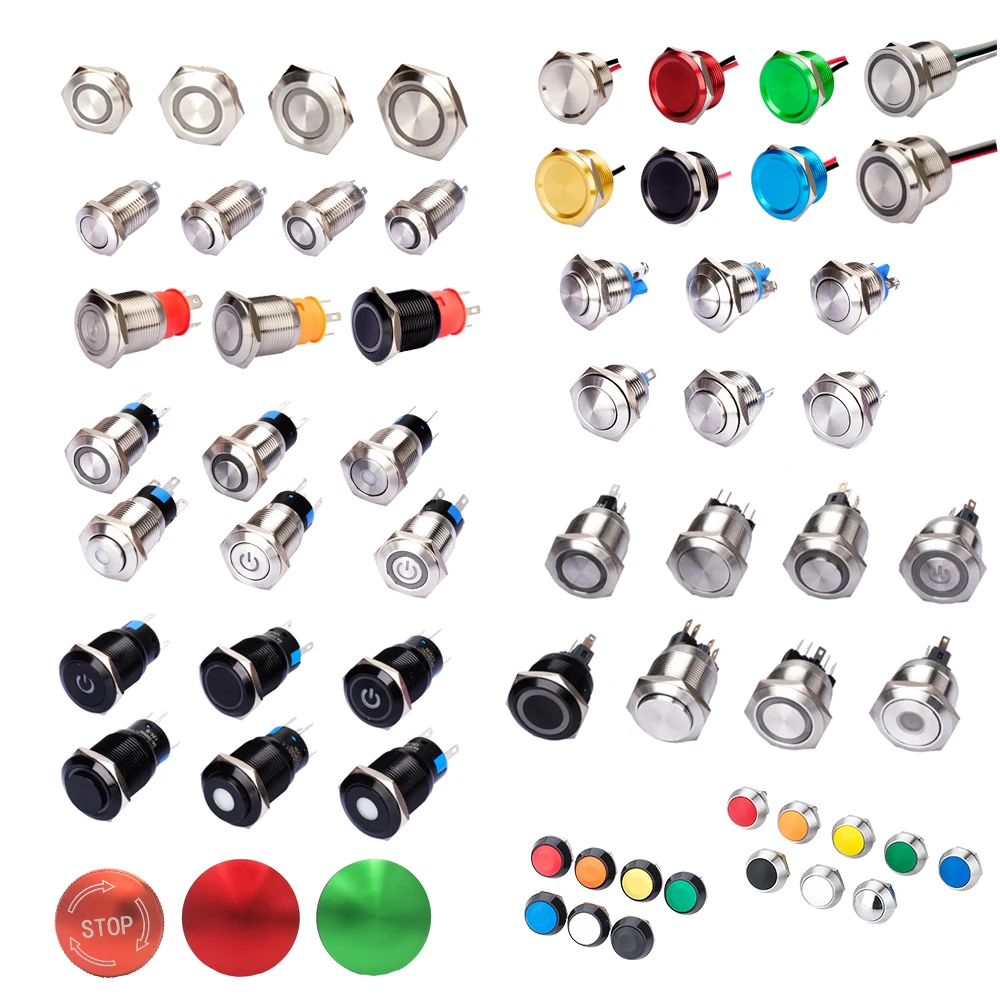

We enjoy a complete line of 8mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm 35mm 40mm push button switches and indicator.
In this 15 years, we helped many customers produce according to their requirements. So we are experienced in ODM and OEM . We will make more efforts to develop and innovate, to produce products more in line with market demand, and to provide dedicated services.
FAQ
Q: Where and when was your company founded?Are you a trading company or a factory?
A：Our company is located in Yueqing City,Zhejiang Province, China. Our company was established in 2005. We are a professional manufacturer of metal push button switches.
Q: What are your company's leading products?
A： Our leading products are waterproof metal push button,piezo switches,indicators etc.8mm, 10mm, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 30mm, 40mm push button switches are all available.
Q: How do you guarantee the quality of your products?
A:We have more than ten years of experience in the field of metal button production. Our professional technical team keeps developing and innovating while strictly controlling the product quality.
Q: Can you develop and customize products according to customer needs?
A:Of course.In this 15 years, we helped many customers produce according to their requirements. So we are experienced in ODM and OEM .
Q: What certificates have you obtained for your products?
A:Most of the products have passed CCC, CQC, CE RoHS and other authoritative certification.
Q: Can you provide samples ?
We can provide 1-3 free samples for customers to test and quality testing.But you have to pay for the shipping cost.
Q: What is your delivery time?
We have our own stock. Normal, 3-5 working days can be shipped.If our stock is not enough, we will communicate with you about the delivery time.
Q: What kind of logistics do you use for delivery?
We mainly deliver goods by DHL, UPS,FEDEX,EMS and other express delivery.Different countries have different logistics, we will choose the most cost-effective logistics for customers.
Q: Whatwill you do if the product is damaged in transit?
A:We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
