4 stroke 15HP YAMABISI outboard Motor boat engine
- Category: Boat Engines >>>
- Supplier: Hefei Ang Yue Technology Co. Ltd.
Share on (1600457464882):
Product Overview
Description
Product Description
4 stroke 15HP YAMABISI outboard Motor boat engine
Name | 4 stroke 15HP YAMABISI outboard Motor boat engine | |
Type | gasoline water cooled outboard motor | |
Model | AYF15 | |
Transom height | S: 440mm L: 567mm | |
Net Weight: | S: 50KG L: 52KG | |
Full throttle operating range: | 4000~5500r/min | |
Maximum output: | 11KW (15HP)@5500r/min | |
Idling speed: | 900~1000 r/min | |
2 Cylinders | ||
Displacement: | 323CC | |
Bore×Stroke: | 59 X 59mm (2.32x 2.32in) | |
Control system: | Tiller or Remote control | |
Starting System: | Manual | |
Gear positions: | Forward-neutral-Reverse | |
Gear ratio: | 2.08(27/13) | |
Trim and tilt system: | Manual tilt | |
Fuel tank capacity | 24L | |
Engine oil | 1L | |
Gear oil | 250ml | |
Propeller spec | 3-9 1/4" x 11” or 3-9 1/4" x 8” | |
Size | 1001 X 427 X 1080mm / 1001X 420 X 1207mm | |

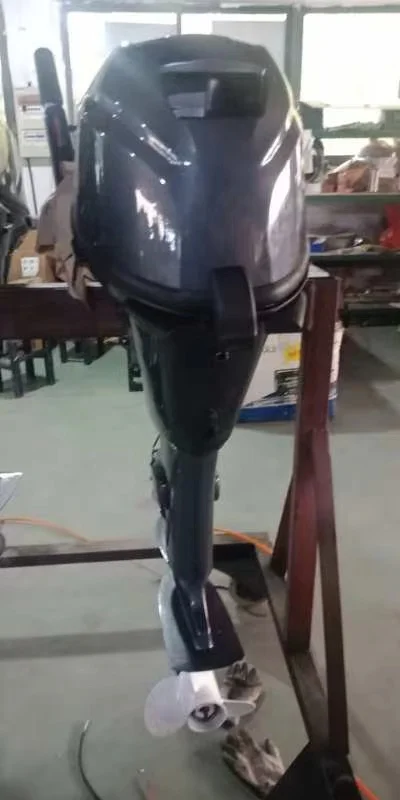

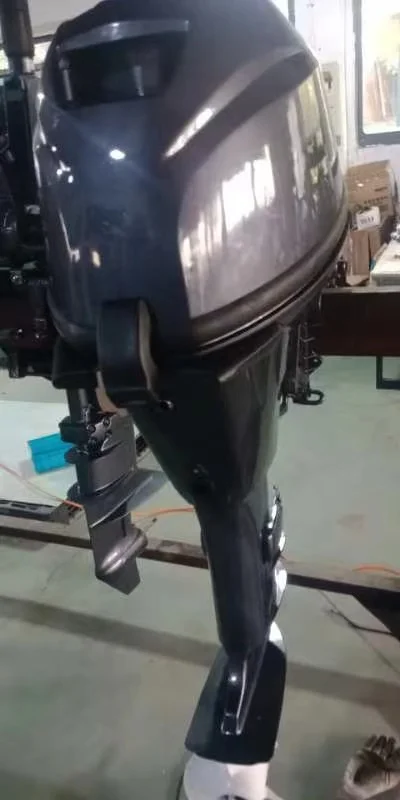

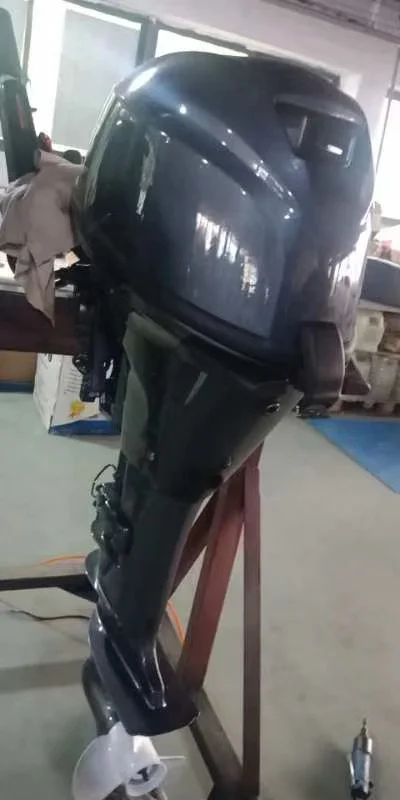

Detailed Images
Professional Testing
Packing & Delivery
Why Choose US
FAQ
Q: How long is your lead time?
Mass production: 30-35 days
Sample: 7-10 days
Q: What is your terms of payment ?
Payment<=2500USD, 100% in advance.
Payment>=2500USD, 30% T/T in advance, balance before shippment.
Q:Do you have CE approval?
Yes
Q:What's warranty period?
2 years .
Q:Can you supply spare parts?
Yes
Q:What's your supply capability for outboard motor?
100pcs per day.
Q: What is your advantage?
15 years machine production experience.
8 years service for exporting to all of the world
9 persons team for design, research and development.
95% parts are developed and produced by ourselves.
12-18 tests for each seperate parts
5-8 program Match testing
Packing and Delivery
