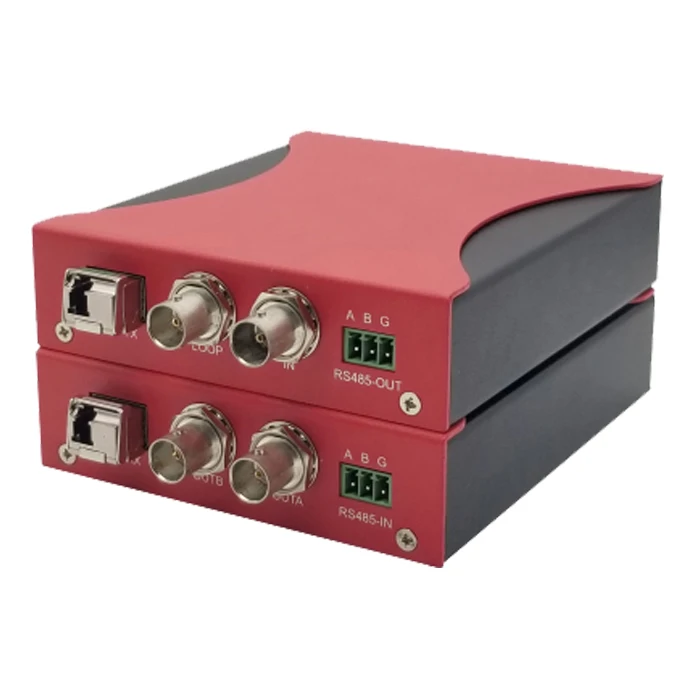

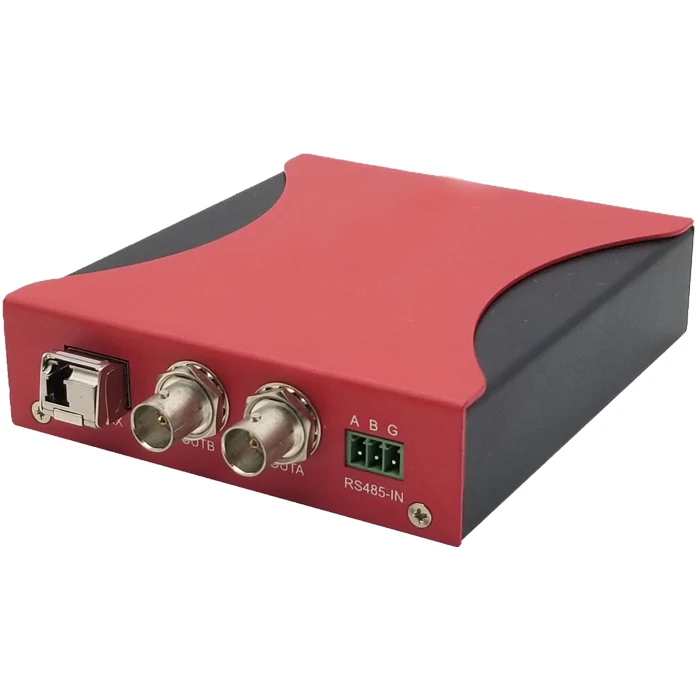

1310nm or 1550nm 2-Channel 12G-SDI/FC/SC Single-Mode Fiber Transceiver and Receiver with RS485
Product Description

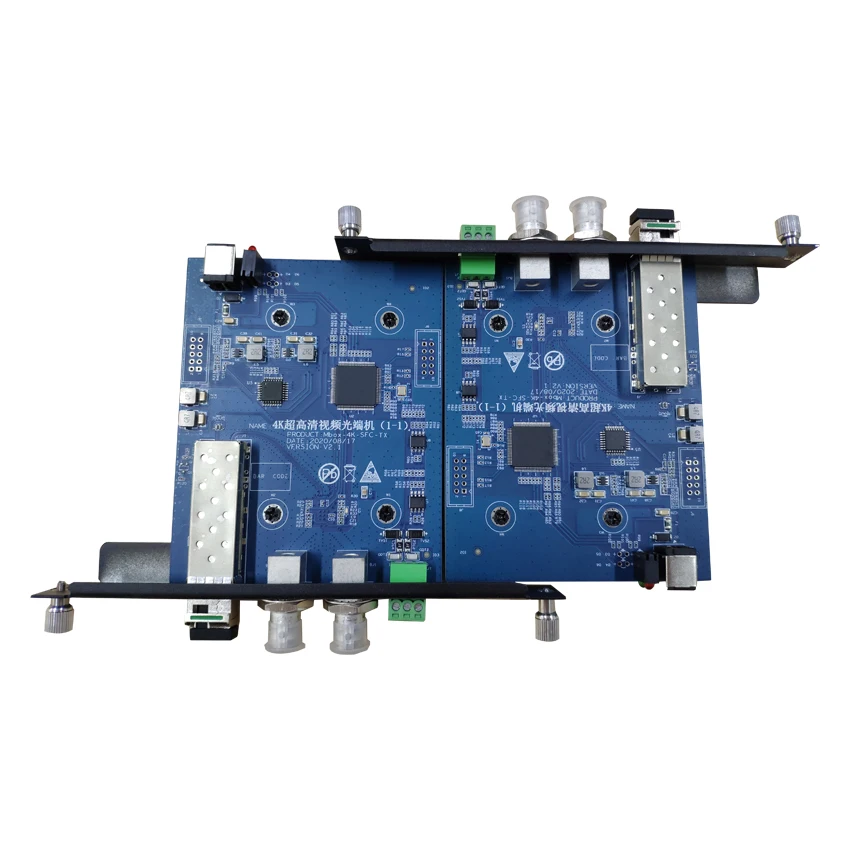

1.Features
S-OS0101-12G can perform two-way conversion between SDI and optical fifiber at the same time, and difffferent
video formats can be used in each transmission direction! The multi-rate 12G-SDI interface is compatible with all
ASI, SD, HD and Ultra HD formats and devices, up to 2160p60, including Class A and Class B devices. The
converter is equipped with an optical fifiber expansion slot, which can install any standard 12G-SDI SFP optical
fifiber module, and uses the low-cost optical cable widely used in computer networks to transmit SDI.
In addition, TRC 2160 can also support RS485 two-way transmission of control protocol signals!

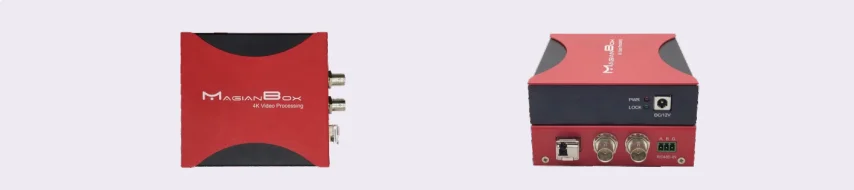

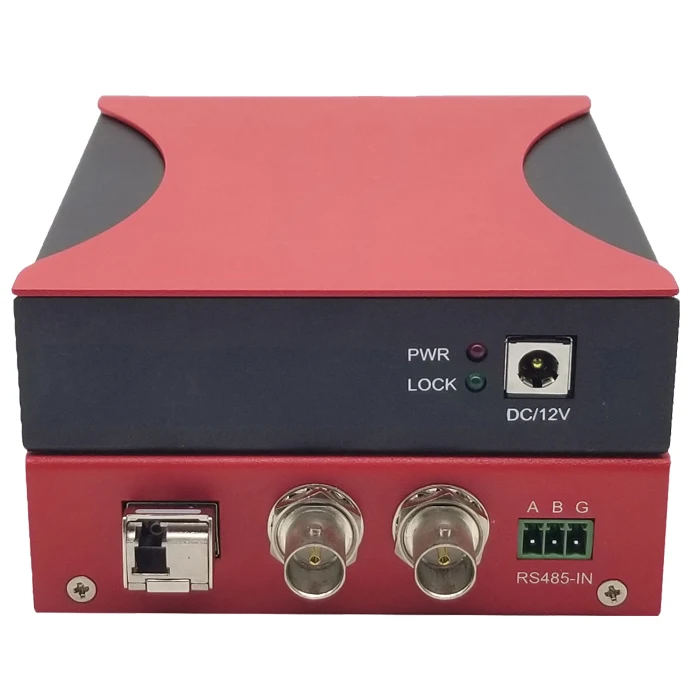

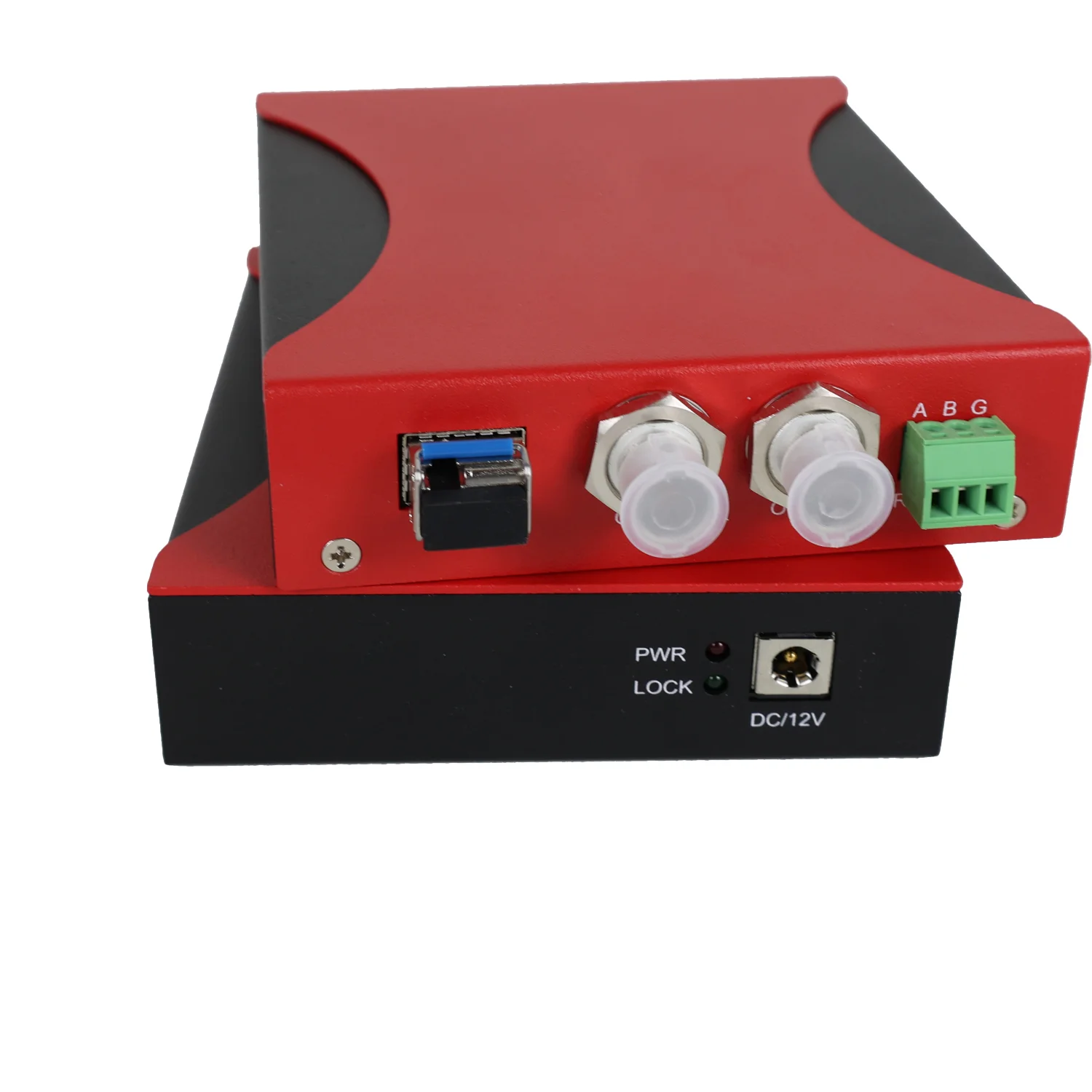

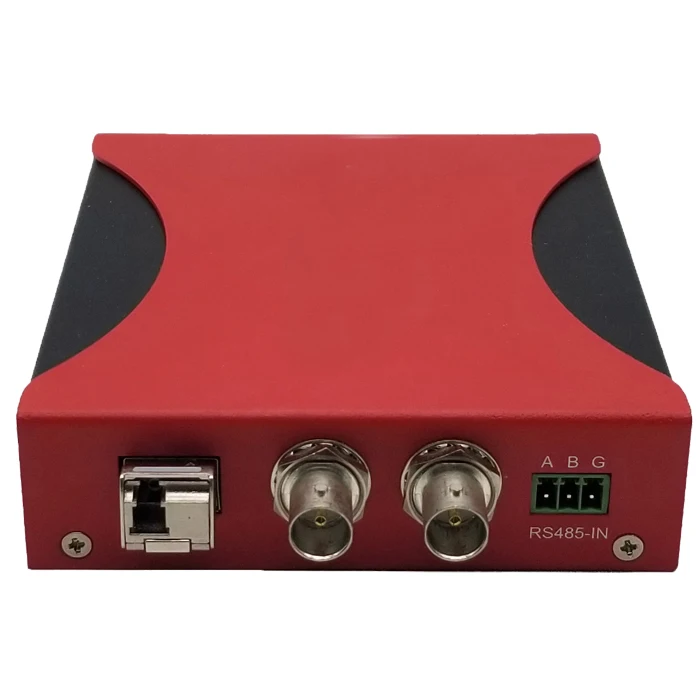

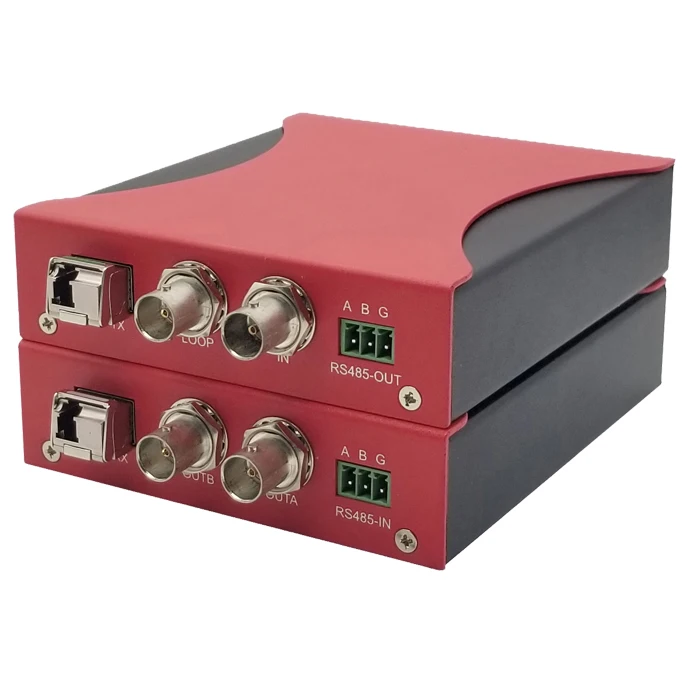

2.Interface
3.Parameter
SDI video input | 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SDI/ASI x 11 optical fiber x 1, 1 RS485 x 1 | |
SDI video output | Automatically match SD, HD and 12G-SDI video inputs on the light | |
HD video format | 720p50,720p59.94,720p60,1080p23.98,1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p60,1080PsF23.98,1080PsF24,1080PsF25,1080PsF29.97, 1080PsF30, 1080i50,1080i59.94,1080i60 | |
UHD video format | 2160p23.98,2160p24,2160p25,2160p29.97,2160p30, 2160p50,2160p59.94,2160p60 | |
SDI spec | SMPTE 259M,SMPTE 292M,SMPTE 296M,SMPTE 424M-B,SMPTE 425M,SMPTE 424M-B, SMPTE ST-2081,ITU-R BT.656,ITU-R BT.601,SMPTE 297M,Optical Fiber SDI | |
Audio input | Embedded audio | |
|
| |
SDI video sampling | 4:2:2 and 4:4:4 | |
SDI audio sampling | The standard TV sampling rate is 48kHz, 24bit. | |
SDI color accuracy | 4:2:2 and 4:4:4 | |
SDI color space | YUV and RGB | |
The transmitting end | Level | > 380mVp-p |
Return Loss | > 10dB(11.88Gbps) | |
Automatic cabl equalization | > 30m(11.88Gbps)(Belden1694A cable) > 50m(5940Mbps)(Belden1694A cable) > 100m(2970Mbps)(Belden1694A cable) > 200m(1485Mbps)(Belden1694A cable) > 350m(270Mbps)(Belden1694A cable) | |
Receiving end
| Level | 800mVp-p±10% |
Return Loss | > 10dB(11.88Gbps) | |
Video characteristics | 12G-SDI Rise/fall time:< 40ps(11.88Gbps) 6G-SDI Rise/fall time:< 66ps(5940Mbps) 3G-SDI Rise/fall time:< 135ps(2970Mbps) HD-SDI Rise/fall time:< 270ps(1485Mbps) SDI Rise/fall time:< 0.6ns(270Mbps) 12G-SDI Maximum jitter:<0.5UI 6G-SDI Maximum jitter:< 0.4UI 3G-SDI Maximum jitter:< 0.3UI HD-SDI Maximum jitter:< 0.2UI(134ps)@100KHz <1.0UI(673ps)@10Hz SDI Maximum jitter:< 0.2UI(740ps)@10Hz <0.2UI(740ps)@1KHz
| |
Light pattern | Single mode | |
Fiber interface | FC/PC or SC/PC | |
Wavelength | 1310nm or 1550nm | |
Transmission distance | 0~20km (standard) 0~40km (optional) | |
Software control | Upgrade the software through the RJ45 interface of Mac OS and Windows computers. | |
Operating system | Mac 10.14 Mojave, Mac 10.15 Catalina or higher. Windows 7 and 10 operating systems. | |
Packing confifiguration | 12V 2A universal power adapter | |
