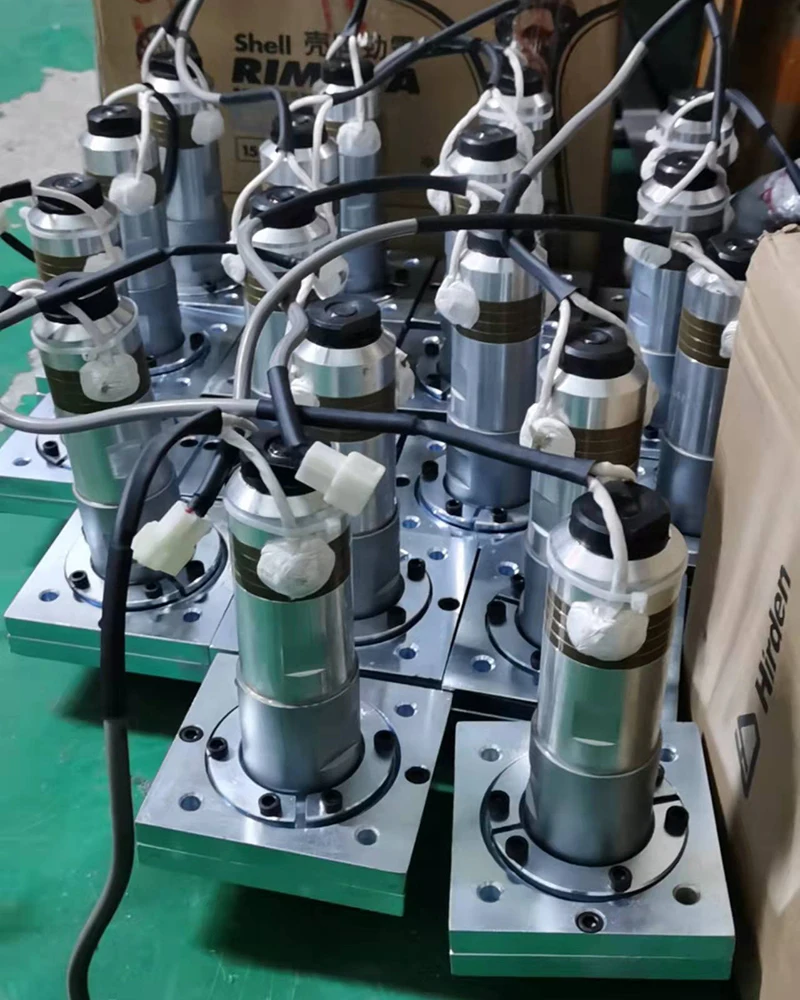

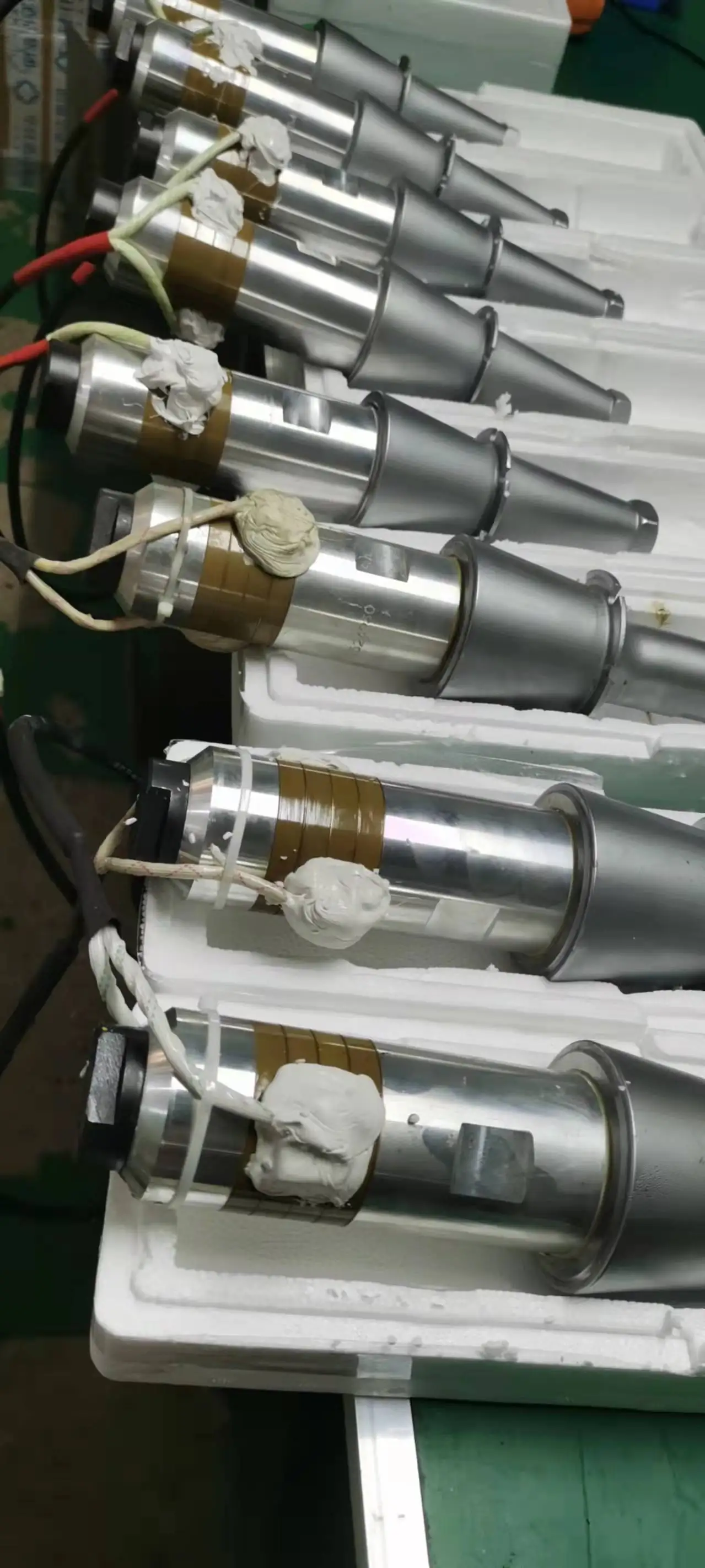

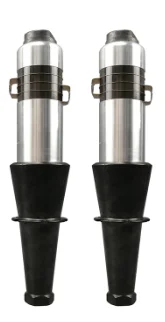

High power Ultrasonic Welding Transducer with Titanium Booster

Product Overview

Description



Production Introduction :

   The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks.

   Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

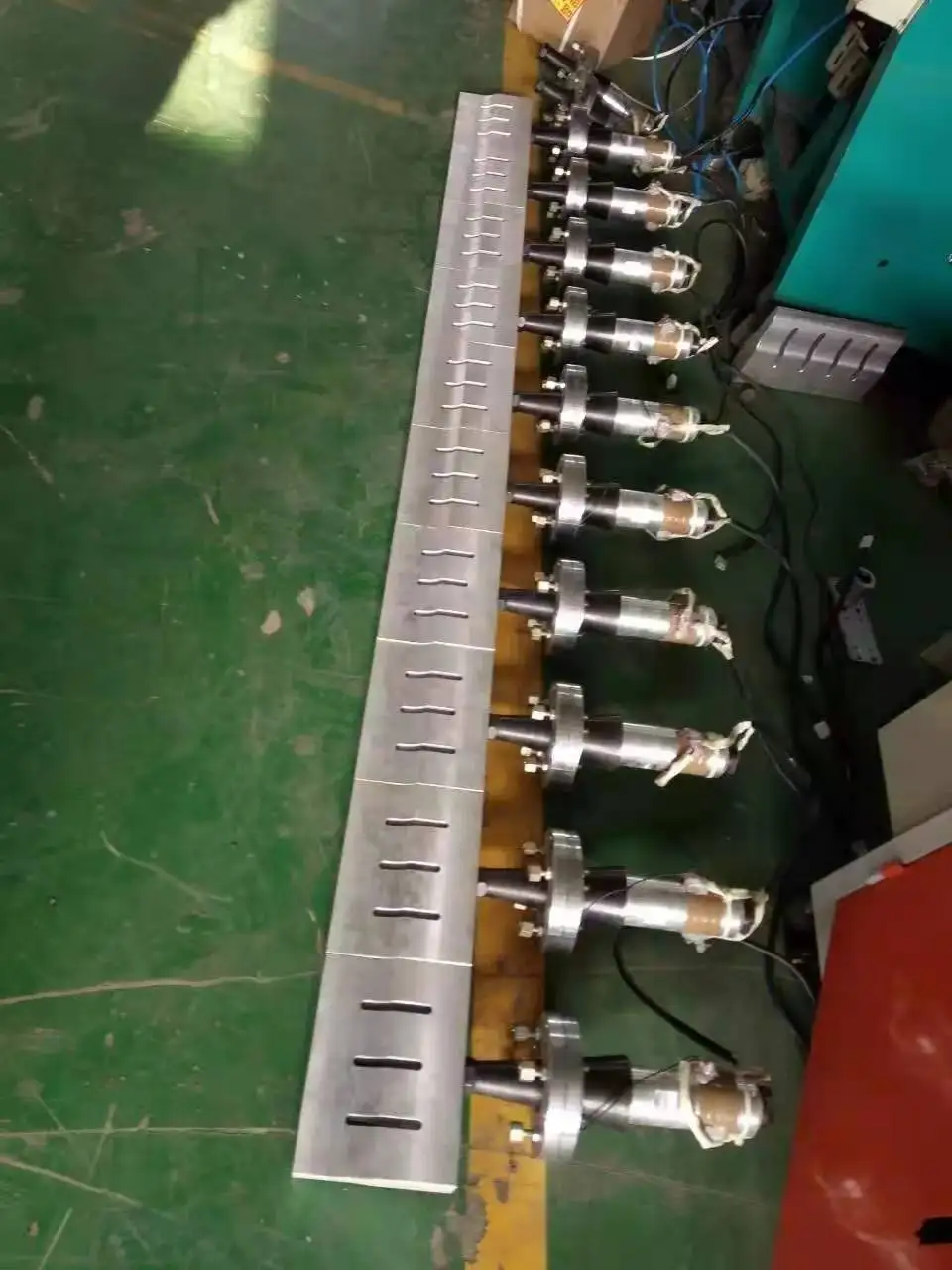

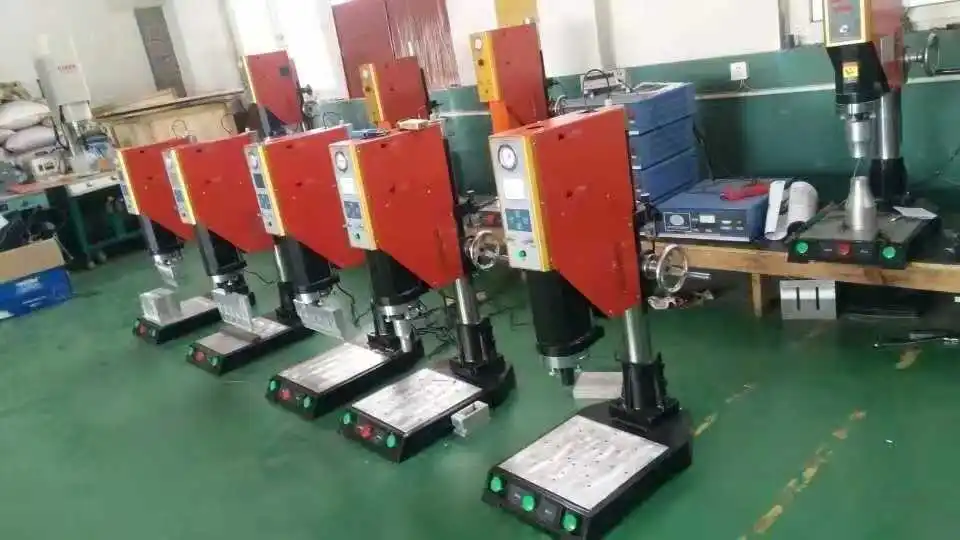

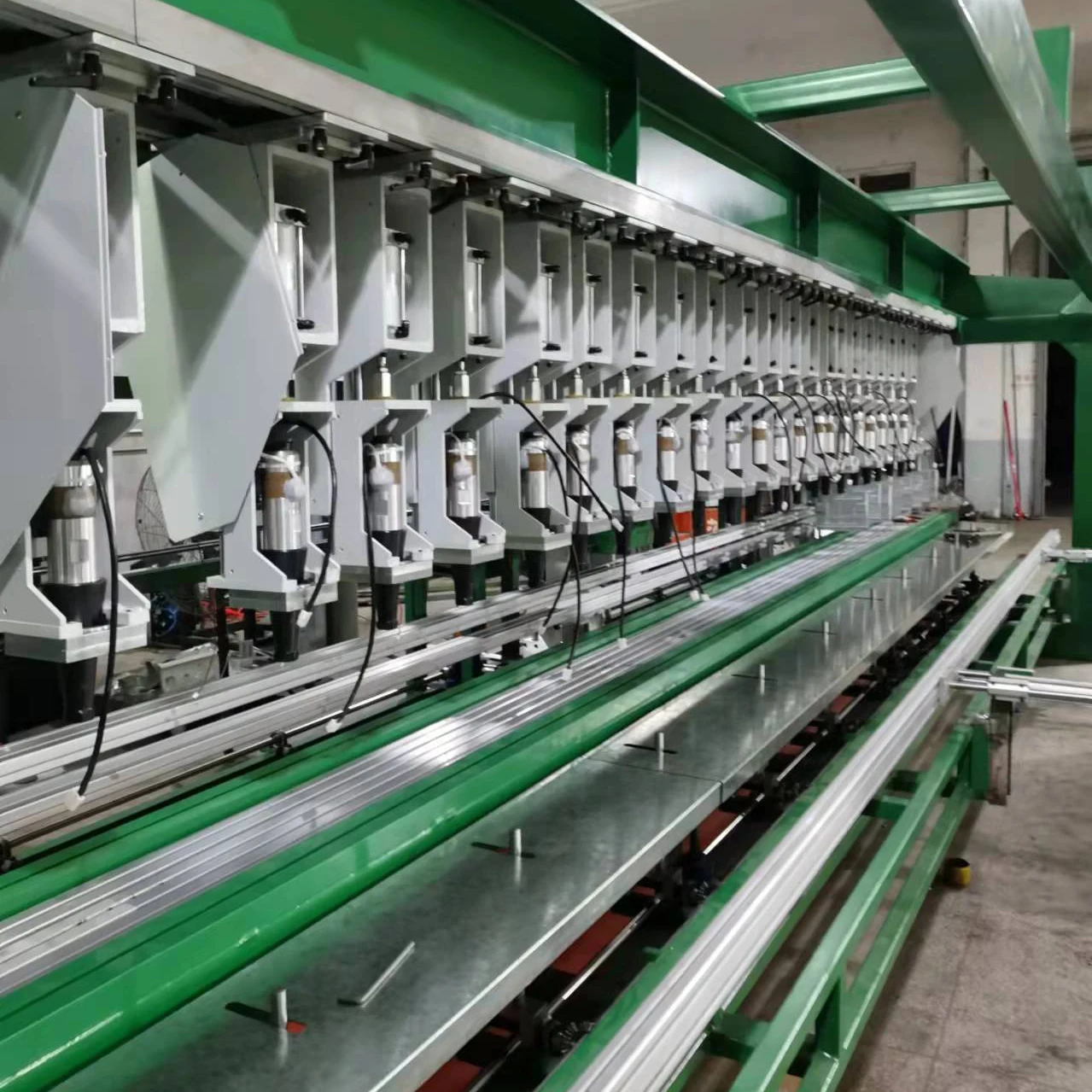

we often use it on ultrsonic welding machine . geocell and georid welding machine .









Model	RM-15
Frequency	15khz
26Output Power	2600watt
Joint Bolt	M16*1
Ceramic Disc Diameter	60mm
Quantity of Ceramic Discs	4pcs
Capacitance	8-10nf
Amplitude	16um
Application	Welding
