30 100boxes/min Automatic Cotton Tissue Box in Wrapping And Packing Machine With Intelligent
- Category: >>>
- Supplier: Zhejiang Onepaper Smart Equipment Co. Ltd.
Share on (1600457599780):
Product Overview
Description

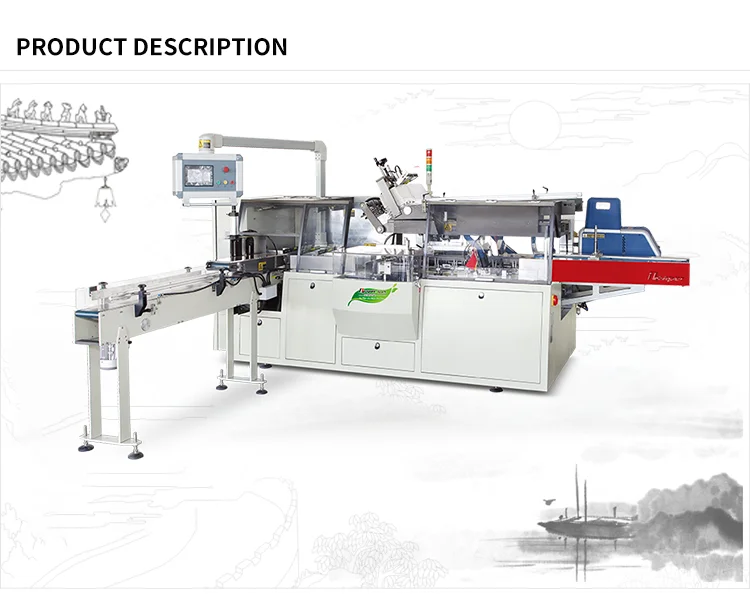

Product Description
- Packing forms such as automatic feeding, box opening, boxing, batch no. Printing, glue spreading, box sealing, etc. Are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
- Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
- The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line,which can greatly reduce labor cost.
- The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
- With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
- Change of specifications does not need change of molds, but can be realized through adjustment.
- Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used,so that the machine is safer and more reliable.
- According to customer requirements, the upturning type safety protective cover is adopted,which is featured by simple operation and beautiful appearance.
| Item/model | OPH-100C/B-120 | OPH-100C/B-190 | |
| Paper quality of carton | 350-400g/m3 | 350-400g/m3 | |
| Maximum packing specification | L240mm×W120mm×H90mm
| L300mm×W190mm×H60mm
| |
| Packing speed | 30-100 boxes/minute | 30-80 boxes/minute | |
| Hot melt machine power | 2.5KW | 2.5KW | |
| Motor power | 3.5KW | 4.2KW | |
| Total power | 6KW | 6.7KW | |
| Power supply type | (3phase 4wire) 380V 50Hz | ||
| Machine noise | ≤80dB | ||
| Air supply | 0.5-0.8 Mpa | ||
| Air consumption | 120-160L/min | ||
| Outline dimensions | Main machine | L3250×W1650×H1800mm | L3450×W1650×H1900mm |
| Conveying mechanism | L4000×W660×H1200mm | L4000×W700×H1200mm | |
| Machine weight | 1500Kg | 1800Kg | |
Related products
Company Information
Exhibition
Packaging & Shipping
FAQ
Q: How about the after sales service?
A: We have a strong team for after sales services. We have 1 year warranty for all the machines
Q: Are you a factory or a trading company?
A: We're a manufacturer specializing in tissue equipments and packaging machines.
Q: Where's your factory? How can I visit it?
A: We're in Wenzhou city, Zhejiang province,China .You can fly to Wenzhou, and we'll pick you up at the airport.
Q: How does your factory do regarding quality control?
A: Quality is our main topic, it's the basement of a company's development. We've passed the GMP certification, CE certification, ISO9001 International Quality Control System Certification.
Q: What information should,provide in order to get a quotation?
A: -Dimension of your products(Lengths Width"Height)
-The requirements of speed
-Dimension of your package(Length*Width*Height)
