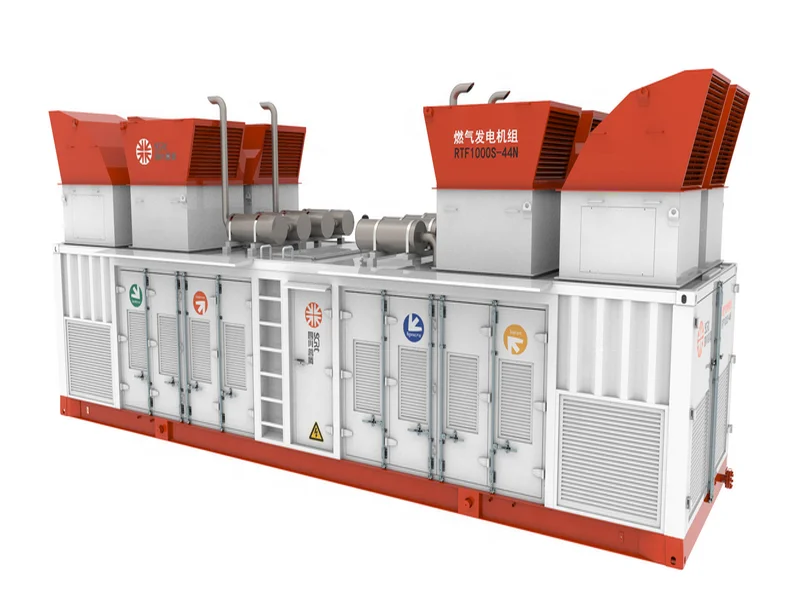

Containerized 1MW gas generator Biomass generator gas generation equipment
- Category: >>>
- Supplier: Sichuan Rongteng Automation Equipment Co. Ltd.
Share on (1600457627136):
Product Overview
Description
Product Description
We specialize in the R&D, design and production of gas generating units for multi power section and multi industry applications. The power of single unit ranges from 250KW to 1500kW, and the power generation of 1.5MW ~ 8mW and above can be realized. Any combination of parallel modes can meet different power generation requirements.
Product features
Unit features
(1) The gas generator set is suitable for operation in a range of multiple environmental conditions, and its economic performance is better than that of the existing diesel engine; The unit can quickly respond to load changes and deal with more complex conditions.

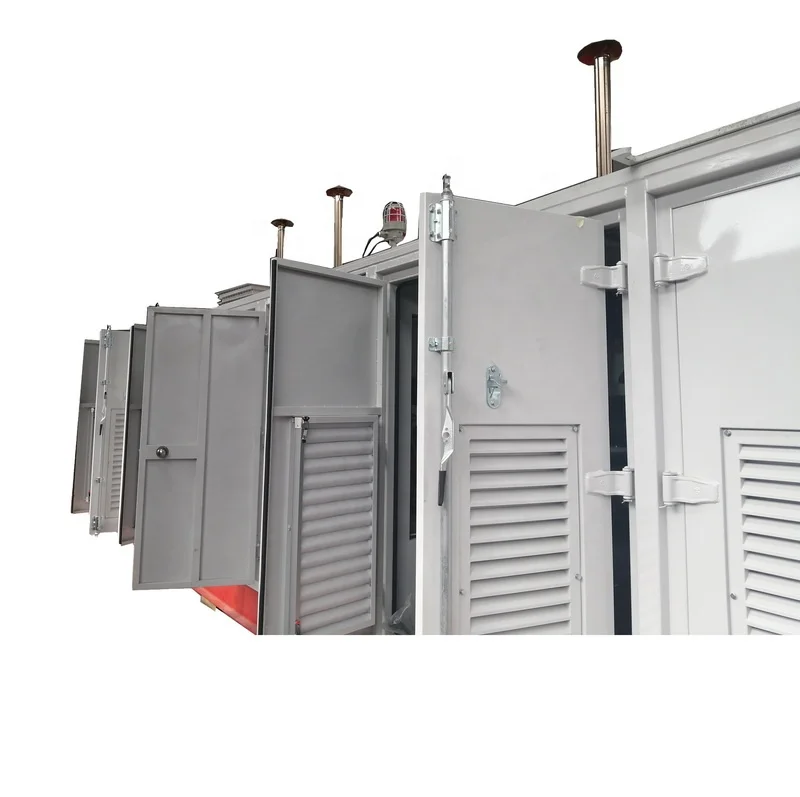

(2) The gas generator unit adopts the integrated partition box design, the box can meet the operation of multiple environmental conditions, and has the functions of rain proof, sand dust proof, mosquito proof, noise reduction, etc. The box body is designed and produced with special structure and materials of high strength container.
(3) The shape of gas generator box meets the national transportation standard.

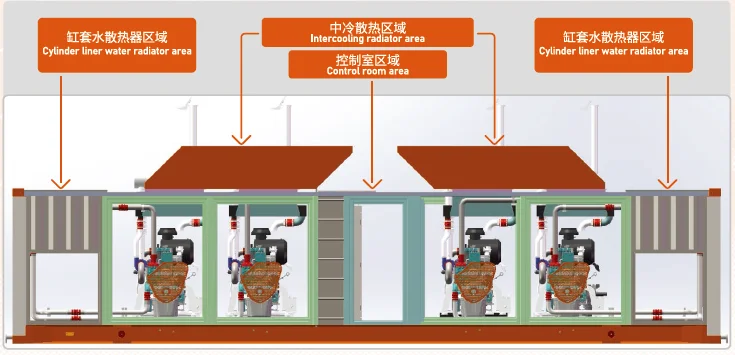

Unit composition and partition

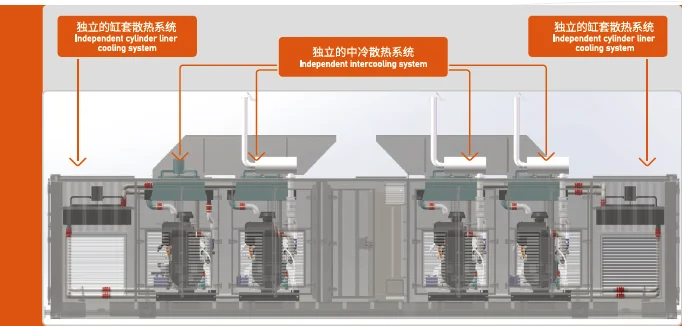

Unit cooling
(1) The cooling system of the gas generator set adopts the fully independent heat dissipation design, that is, the single intercooling heat dissipation system and the cylinder liner heat dissipation system operate independently, so as to meet the unit's single repair and maintenance without affecting the operation of other units, which greatly meets the unit's maintenance and practicability.
(2) The hot air of the cooling system is discharged upward in a unified way to avoid hot air backflow and ensure the normal operation of the
cooling system of the unit.
(3) The cooling system increases the heat dissipation area and heat dissipation under normal heat dissipation conditions, and the cooling effect can better meet the normal operation of the unit under various extreme environmental conditions.
Power generation efficiency
(Take 250KW as an example for the following data)
l The full load gas consumption of the generator set is 70-80nm³/h
l The power of generating set is 250kw/h
l 1kW/h=3.6MJ
l 1Nm³/H natural gas calorific value 36MJ
l 31.25% ≤Power generation efficiency ≤35.71%
l 1Nm ³ The natural gas power generation is 3.1-3.5kw/h
Technical parameters
Genset Model | Fuel type | Natural gas | Natural gas | Natural gas | Natural gas | Natural gas | |
Genset Model | RTF250C-41N | RTF300C-41N | RTF500C-42N | RTF750C-43N | RTF1000C-44N | ||
Rated power | kw | 250 | 300 | 500 | 750 | 1000 | |
kVA | 312.5 | 375 | 625 | 937.5 | 1250 | ||
Reserve power | kw | 275 | 330 | 550 | 825 | 1100 | |
kVA | 343.75 | 412.5 | 687.5 | 1031.25 | 1375 | ||
Gas consumption | 3.2NkW/Nm³ | 3.5NkW/Nm³ | 3.2NkW/Nm³ | 3.2NkW/Nm³ | 3.2NkW/Nm³ | ||
| Engine Model | 1-T12 | MANE 2676 | 2-T12 | 3-T12 | 4-T12 | |
Number of cylinders * engineering * stroke (mm) | 6-126X155 | 6-126X166 | 6-126X155 | 6-126X155 | 6-126X155 | ||
Engine displacement (L) | 11.596 | 12.42 | 2*11.596 | 3*11.596 | 4*11.596 | ||
Starting Method | 24VDC Electric Start | ||||||
Intake Method | Booster intercooler | ||||||
Fuel Control | Lean burn, closed loop control | ||||||
ignition Control | Electronic control single cylinder independent high energy ignition | ||||||
Speed control | Electronic speed regulation | ||||||
Rated Speed | 1500 or 1800 | ||||||
Cooling Method | Closed-Loop water cooling | ||||||
Generator | Rated Voltage (V) | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | |
Rated Current (A) | 451 | 541.2 | 902 | 1353 | 1804 | ||
Rated Frequency (Hz) | 50 or 60 | 50 or 60 | 50 or 60 | 50 or 60 | 50 or 60 | ||
Supply Connection | 3 Phases 4 Lines | ||||||
Rated Power Factor | 0.8(Delay) | 0.8(Delay) | 0.8(Delay) | 0.8(Delay) | 0.8(Delay) | ||
Dimension | Net weight (kg) | 3200 | 3600 | 9800 | 15200 | 18600 | |
(L*W*H) mm | 4200X1500X2450 | 4200X1500X2450 | 6400X3000X3000 | 10600X3000X3000 | 10600X3000X3000 | ||
