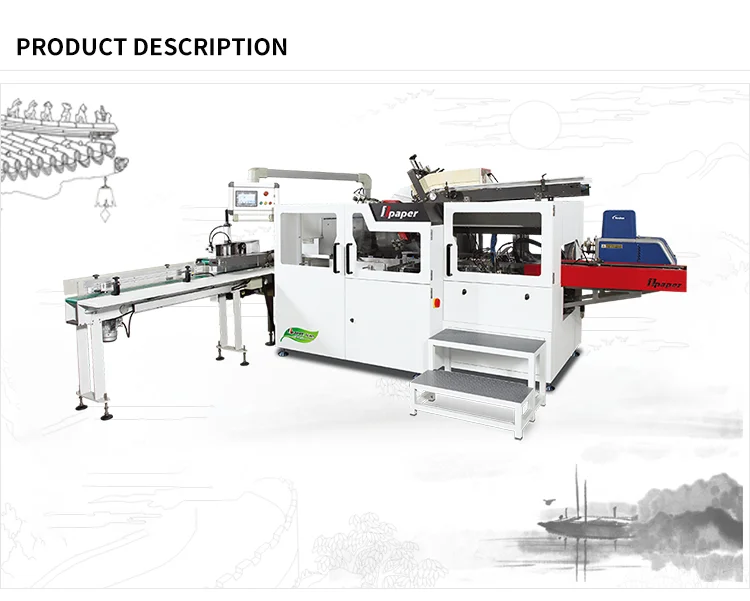

120boxes/min Box in And Sealing Machine Cotton Tissue Pocket Tissue With High Speed

Product Overview

Description

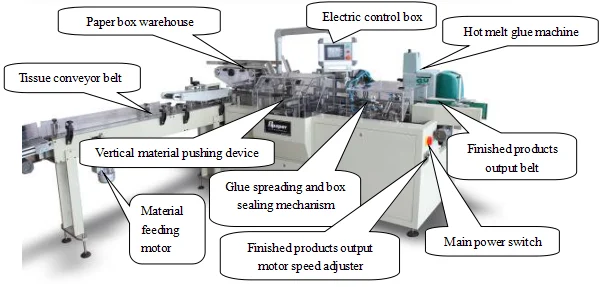

1. Packing forms such as automatic feeding, box opening, boxing, batch no. Printing, glue spreading, box sealing, etc. Are adopted. Featured by compact and reasonable structure, simple operation and adjustment.


2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.


3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line,which can greatly reduce labor cost.


4. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.


5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.


6. Change of specifications does not need change of molds, but can be realized through adjustment.


7. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used,so that the machine is safer and more reliable.


8. According to customer requirements, the upturning type safety protective cover is adopted,which is featured by simple operation and beautiful appearance.



Item/model		OPH-120B
Paper quality of carton		300-400g/m³
maximum packing dimensions		L100-230mm×W80-140mm×H40-100mm
packing speed		≤120 boxes/minute
Hot melt machine power		4KW
motor power		4.87KW
total power		8.87KW
power supply type		3phase 4wire  380V 50Hz
Machine noise		≤80dB
air supply		0.5-0.8 Mpa
air consumption		160-200L/min
Outline dimensions	main machine	L4550×W1650×H1950mm
	conveying mechanism	L4000×W660×H1200mm
machine weight		≈2150Kg

If you are interested in our products, you can contact with us at any time, we will reply to you in time !
