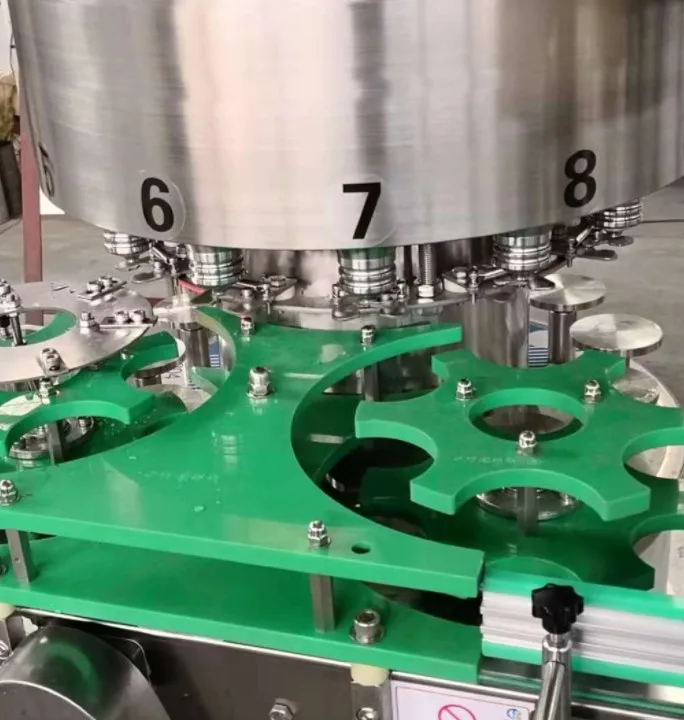

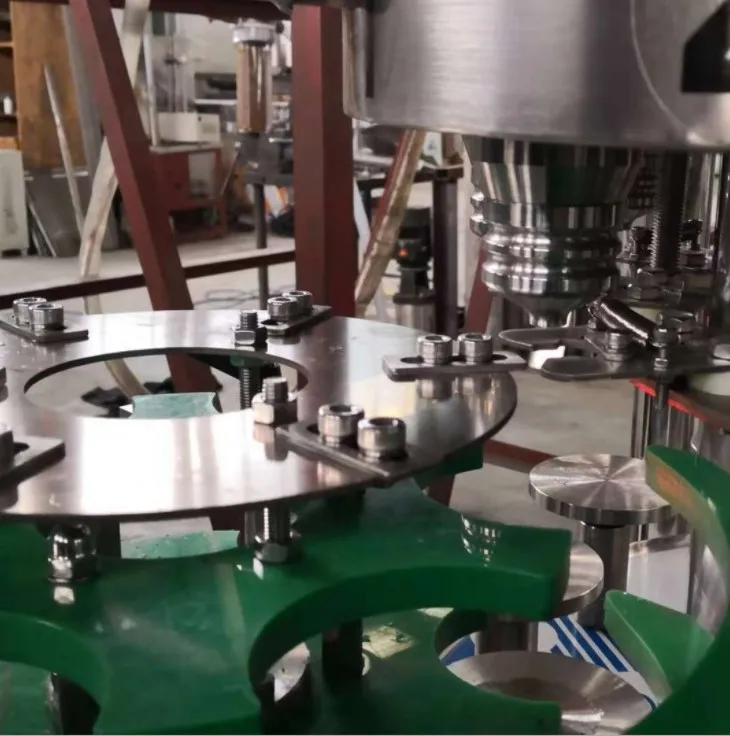

24 heads automatic equal liquid level filling machine low vacuum filling machine

Product Overview

Description

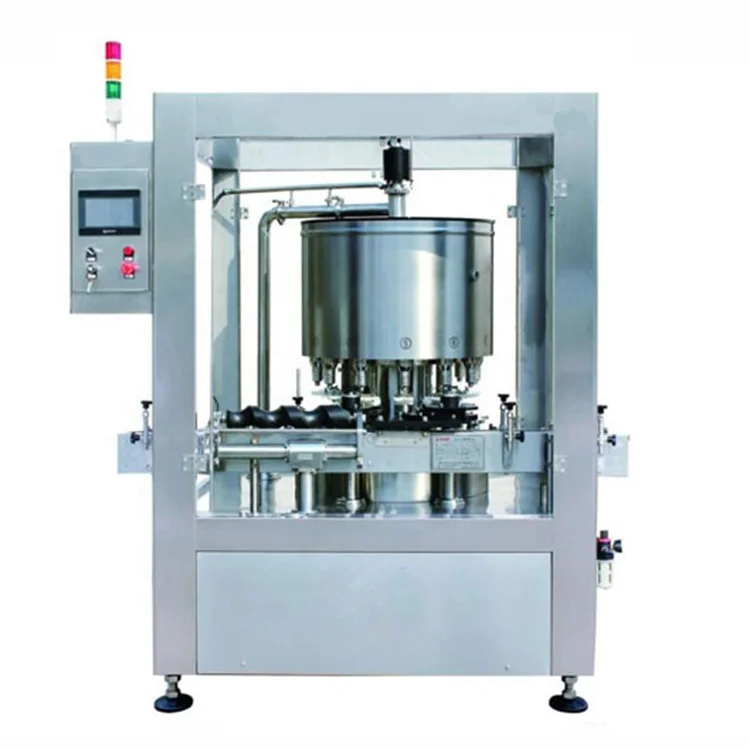

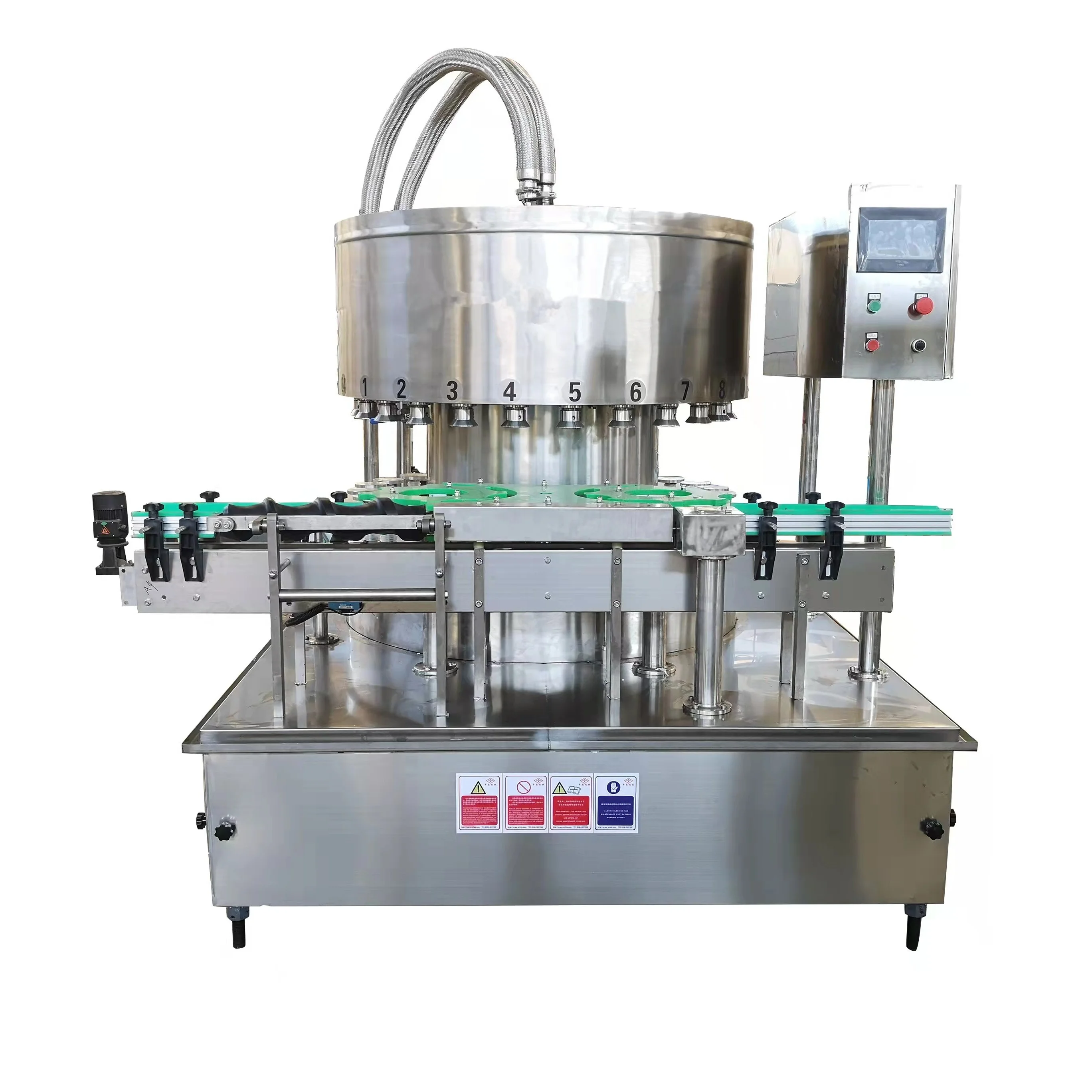

24 heads automatic equal liquid level filling machine low vacuum filling machine





Device Configuration

This machine adopts programmable logic controller (PLC) intelligent automation control, man-machine interface touch operation, the whole machine is simple to operate, high degree of automation, stable and safe operation.

The main electrical and pneumatic components adopt or American imported technology products, and the cylinder adopts products to ensure the stable operation of the equipment and prolong the service life of the equipment.

main feature

1. The electronic valve controlled by light, electricity and gas can realize high precision, high speed and high stability filling. To

2. The high-speed linear liquid column formed by special streamline guidance and special sealing structure ensures no foaming and dripping during the filling process.

3. Digital screen display, intelligent storage 4. Automatic fault diagnosis and real-time display, which can accurately understand the fault point and quickly resolve it, saving maintenance time.

4. High precision, fast speed, fast and accurate filling of high-speed liquid column, stable and reliable work.





Technical parameter

parameter          model	GDP-24
Capacity	About 5500BPH
Filling heads	24
Suitable bottle height	120-300mm
Bottle diameter	Φ50-Φ100
Error	±1.5mm level
Power	1.5kw
Machine weight	2000kg
