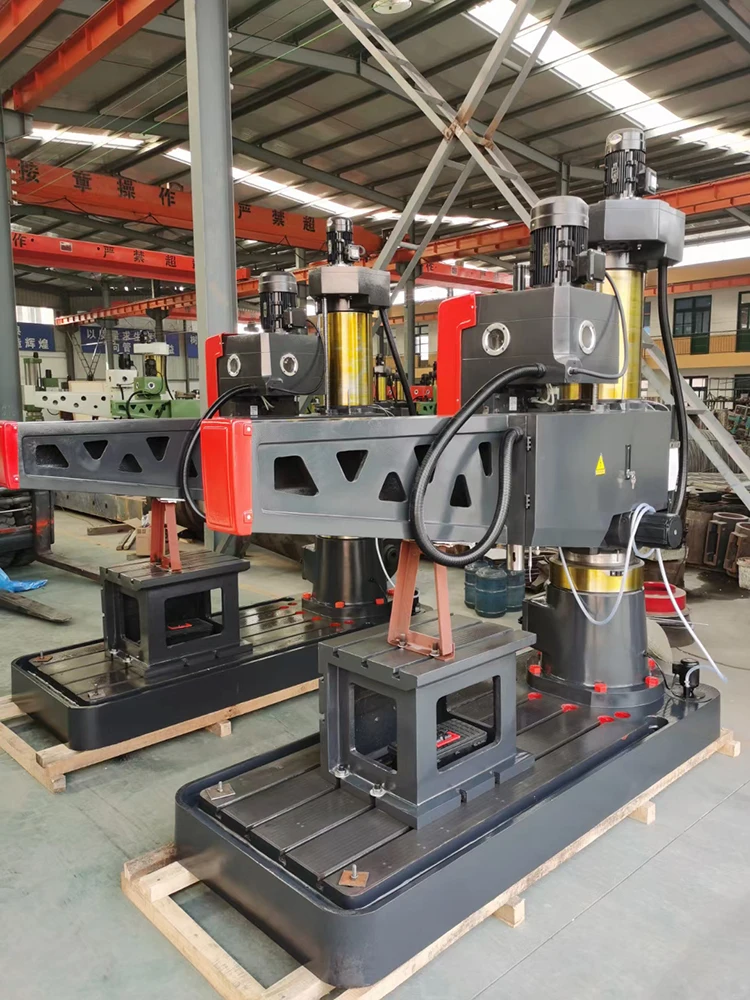

manual for radial drilling machine z3050x16 radial drilling machine manufacturers
- Category: >>>
- Supplier: Xuzhou Elsen Machine Tool Co. Ltd.
Share on (1600457699779):
Product Overview
Description
Products Description
1. With wide range of speed and feed, with manual、power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
2. With safe and reliable feed safety machine, all parts easy operation and change.
3. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle by hydraulic power.
4. Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.
5. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
6. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Model | Unit | Z3040X16/1 | Z3050X16/1 | ZQ3050X20/1 |
Max drilling capacity | mm | 40 | 50 | 50 |
Distance spindle axis to column | mm | 350-1600 | 350-1600 | 350-2000 |
Diameter of column | mm | 350 | 350 | 350 |
Spindle taper | MT4 | MT5 | MT5 | |
Spindle travel | mm | 315 | 315 | 315 |
Spindle speed range | r/min | 25-2000 | 25-2000 | 25-2000 |
Spindle speed series | 16 | 16 | 16 | |
Range of spindle feeds | mm/r | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 |
Main spindle feeds | 16 | 16 | 16 | |
Distance spindle nose to work base | mm | 350-1250 | 320-1220 | 320-1220 |
Dimension of worktable | mm | 630x500x500 | 630x500x500 | 630x500x500 |
Dimension of base | mm | 2400x1000x200 | 2400x1000x200 | 2400x1000x200 |
Overall of size | mm | 2500x1060x2650 | 2500x1060x2650 | 2900x1060x2650 |
Power of main motor | kw | 3 | 4 | 4 |
G.W/N.W | kg | 3650/3400 | 3650/3400 | 3850/3550 |
Packing dimension | mm | 2600x1120x2600 | 2600x1120x2600 | 3000x1120x2600 |

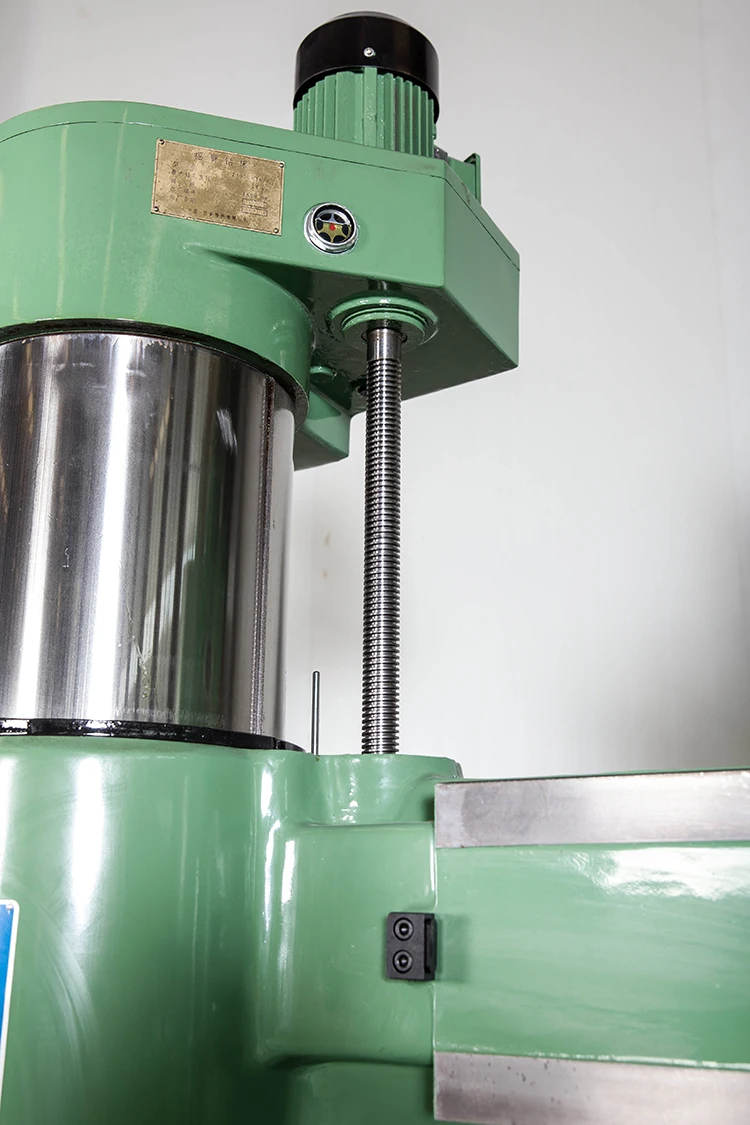

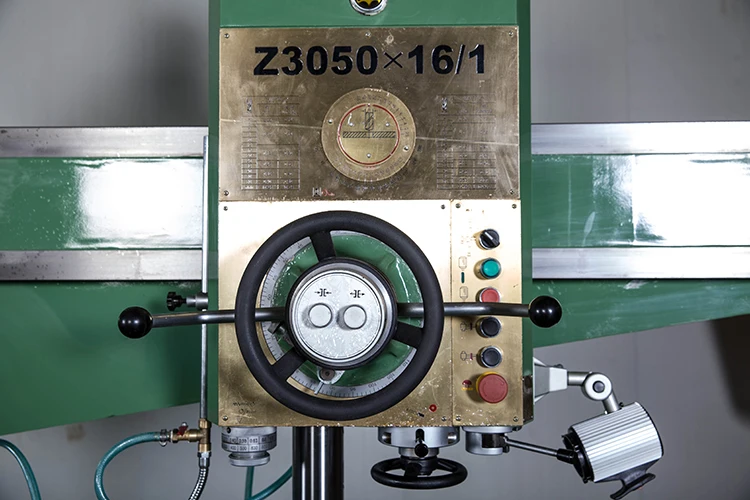

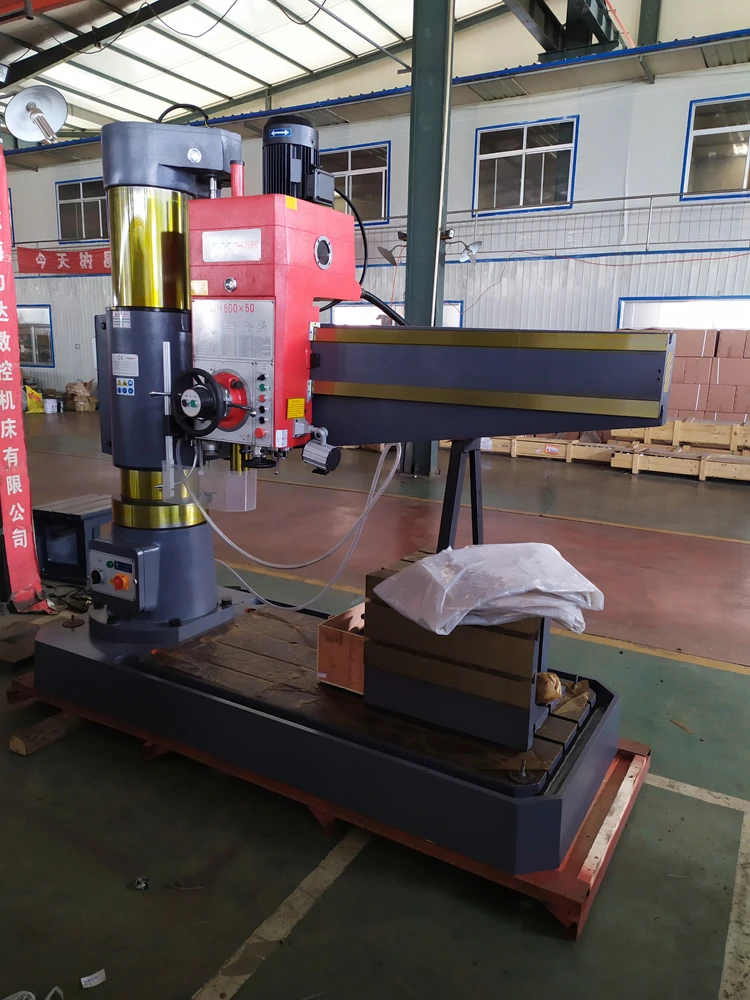

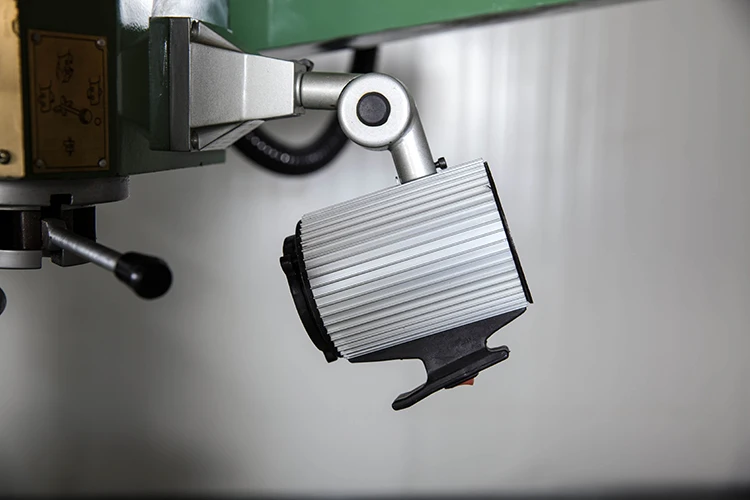

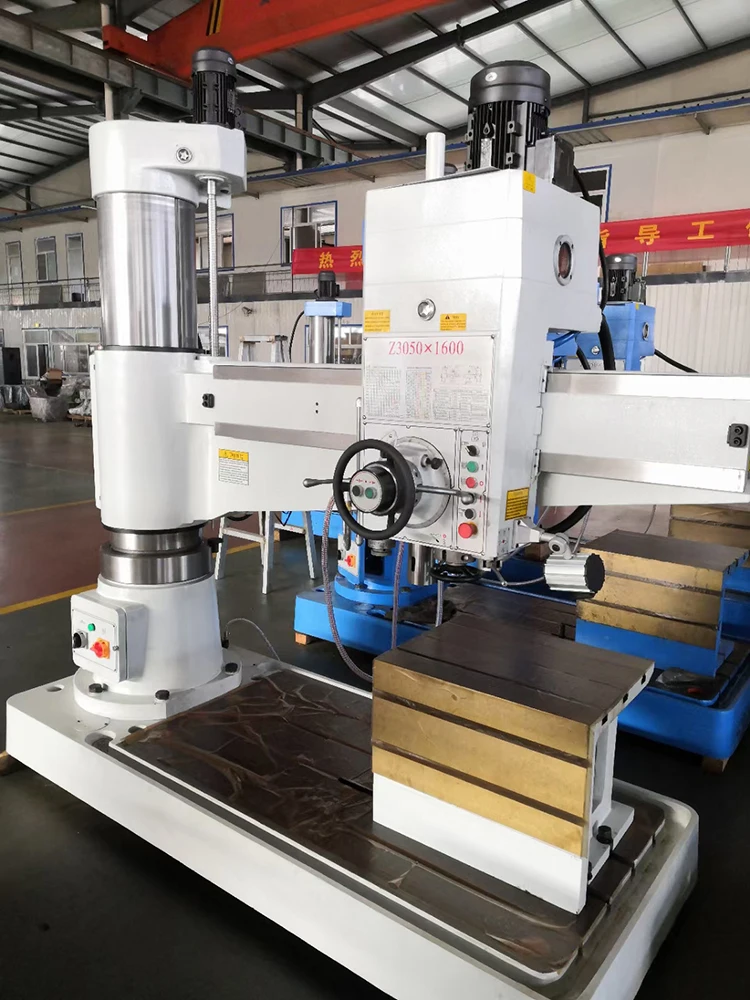

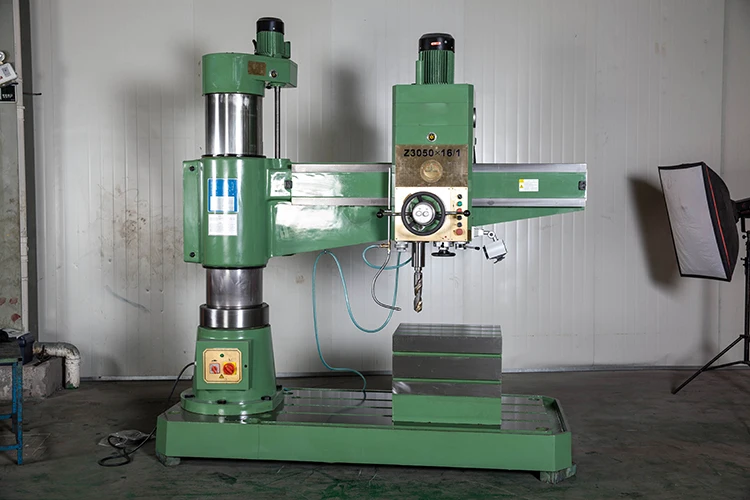

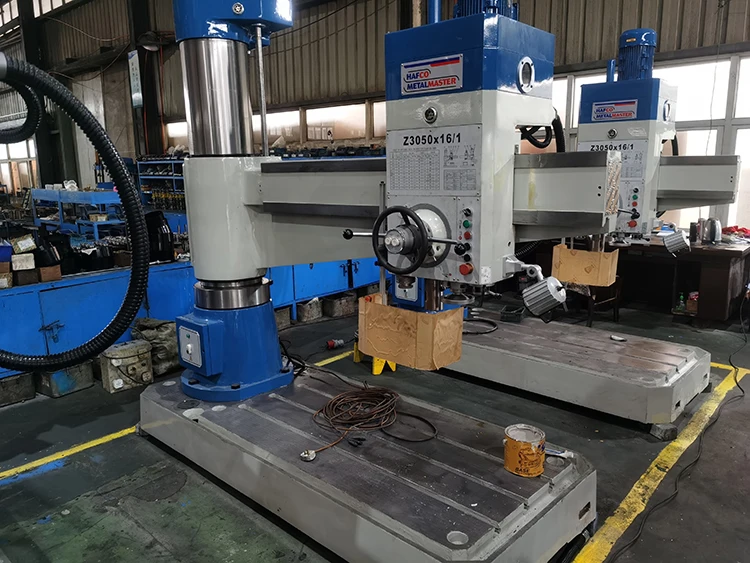

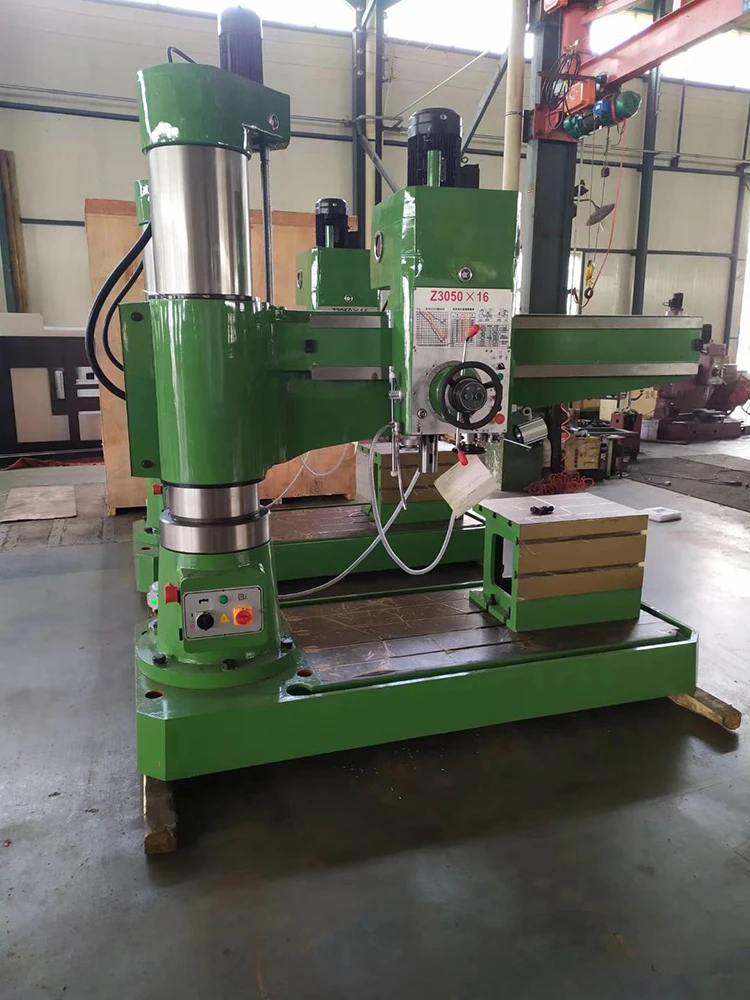

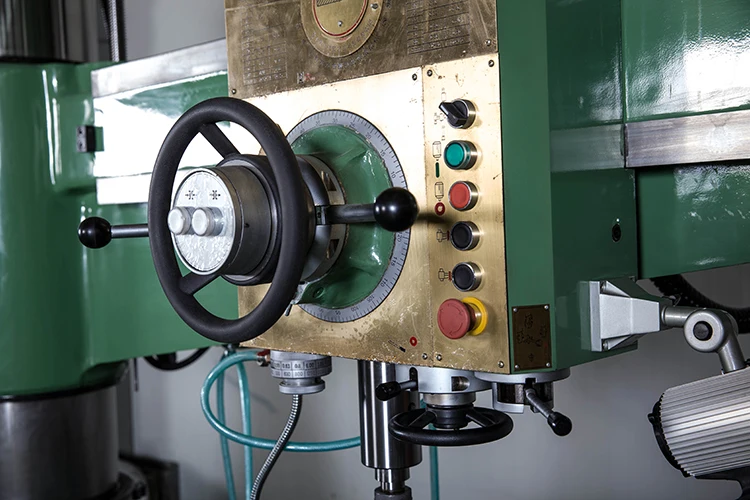

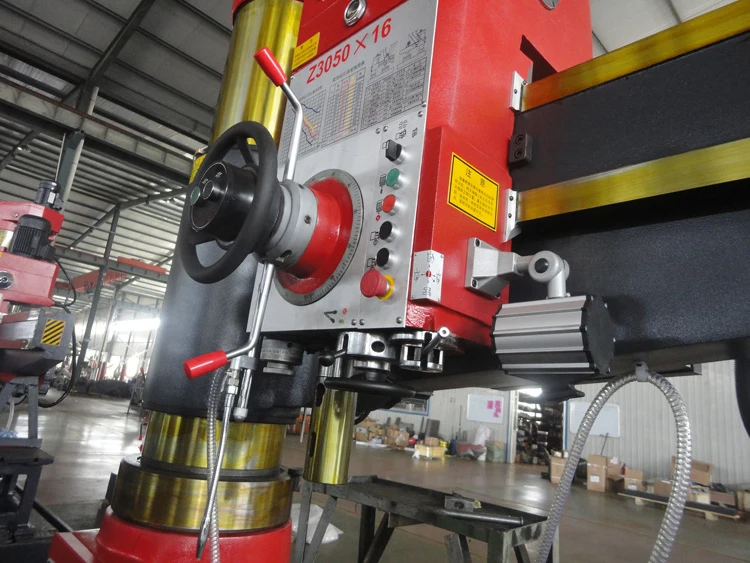

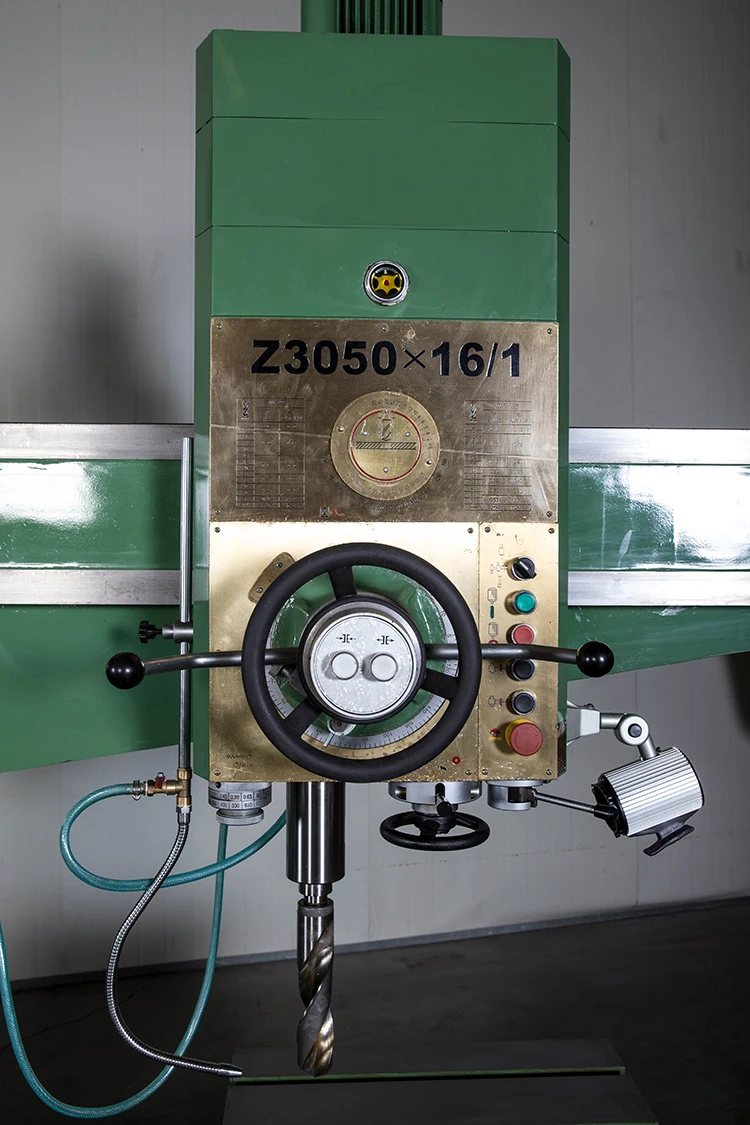

Machine Details
Recommend Products

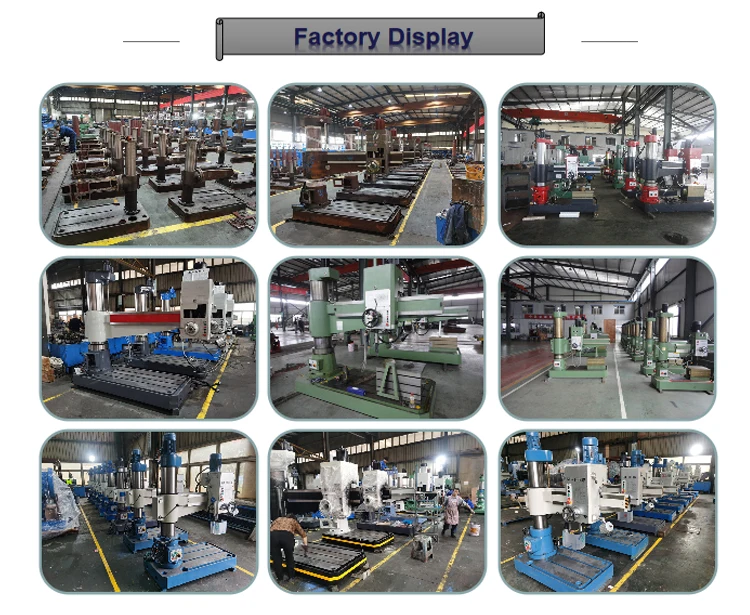

Company Information
Package and Shipping
FAQ
1: Are you a manufacture?
A: Yes,we are a real manufacture.Welcome to visit our factory!
2: What is your payment terms?
A: Our payment terms is 30% T/T in advance,70% balance T/T before shipment.
3: Can you offer customized service ?
A: Machines listed on our website are just part of our conventional models, we can also provide customized service according to your requirements.
4: How can I choose the most suitable machines ?
A: Please tell me your need specifications ,we can introduce the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will introduce the most suitable machines for you .
5: Can you offer the training ?
A: Yes, we can provide a cost-free training,Teach you how to operate our machine, some common problems, and how maintain the machine etc. It would be great honor to us.
6: How about your after-sales service ?
A: Machines overall warranty is two years.During the normal using,we can send you the machine's components for free,not damaged on purpose.Our engineers are available to service overseas, we will offer lifetime service for machine.
2: What is your payment terms?
A: Our payment terms is 30% T/T in advance,70% balance T/T before shipment.
3: Can you offer customized service ?
A: Machines listed on our website are just part of our conventional models, we can also provide customized service according to your requirements.
4: How can I choose the most suitable machines ?
A: Please tell me your need specifications ,we can introduce the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will introduce the most suitable machines for you .
5: Can you offer the training ?
A: Yes, we can provide a cost-free training,Teach you how to operate our machine, some common problems, and how maintain the machine etc. It would be great honor to us.
6: How about your after-sales service ?
A: Machines overall warranty is two years.During the normal using,we can send you the machine's components for free,not damaged on purpose.Our engineers are available to service overseas, we will offer lifetime service for machine.
