Strenght Testing Machine Strength Paper Tensile Tester
- Category: >>>
- Supplier: Hualong Test Co. Ltd.
Share on (1600457715329):
Product Overview
Description
Product Description
Application

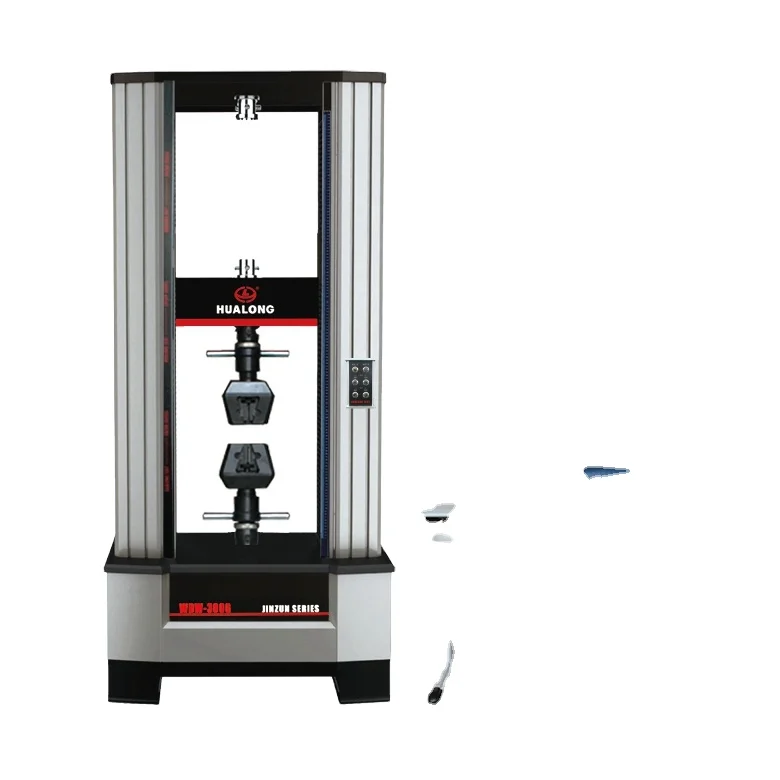

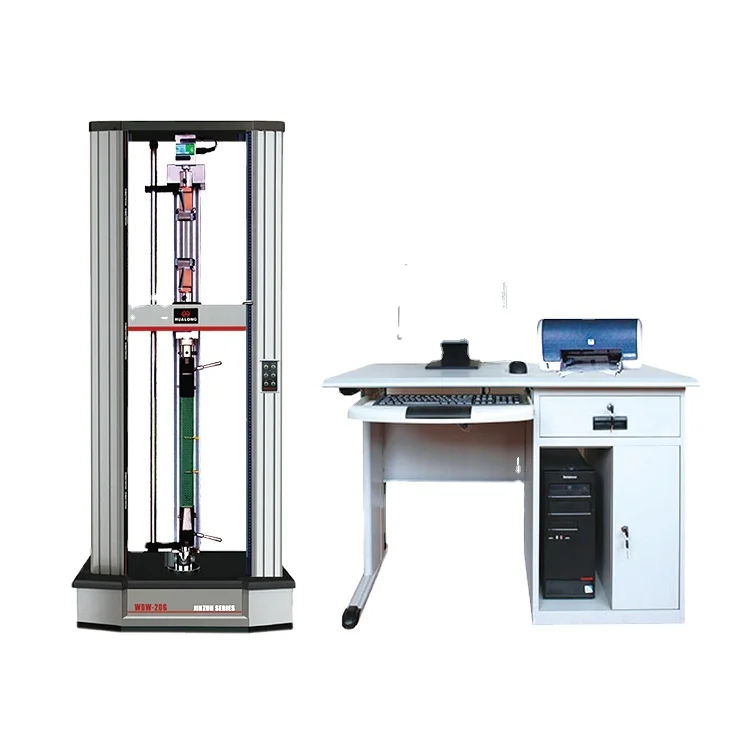

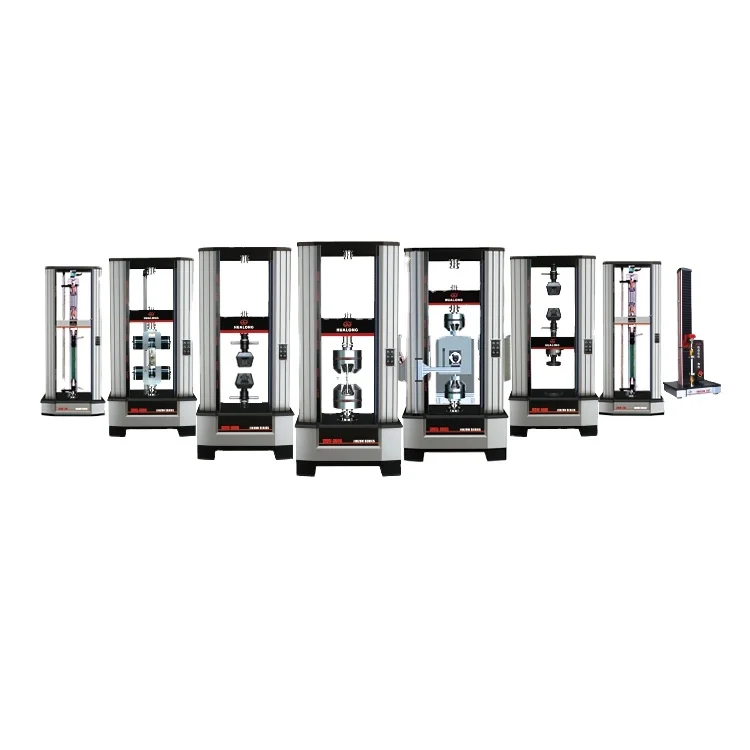

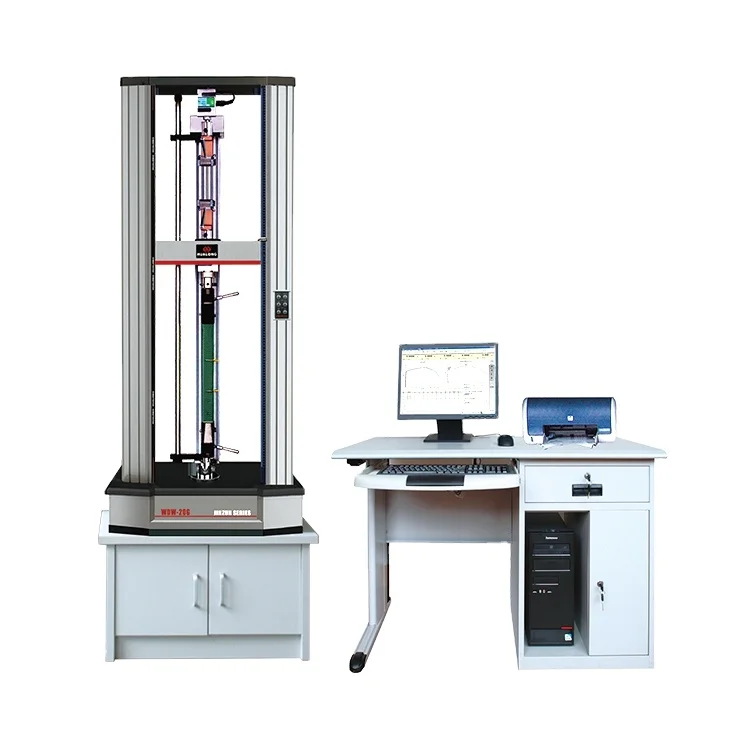

HUALONG WDW series (Dual Space) electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Technical Parameters | ||||||||||||||

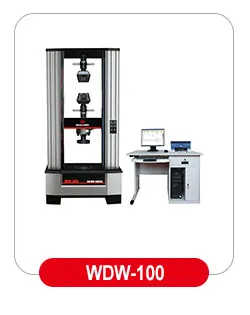

Model | WDW-5C | WDW-10C WDW-20C | WDW-30C | WDW-50C | WDW-100C | WDW-200C | WDW-300C | WDW-500C | WDW-600C | |||||
Load frame | ||||||||||||||
Capacity | 5kN / 1,125 lbf | 10kN / 2,250 lbf | 30kN / 6,750 lbf | 50kN / 11,250 lbf | 100kN / 22,500 lbf | 200kN / 45,000 lbf | 300kN / 67,500 lbf | 500kN / 112,500 lbf | 600kN / 135,000 lbf | |||||
Load Resolution | Capacity / 500, 000 (fully auto scaling of single measurement range) | Capacity / 500, 000 (fully auto scaling of single measurement range) | Capacity / 500, 000 (fully auto scaling of single measurement range) | Capacity / 500, 000 (fully auto scaling of single measurement range) | Capacity / 500, 000 (fully auto scaling of single measurement range) | |||||||||
Test area width | 400mm / 16 inch | 500mm / 20 inch | 550mm / 22 inch | 600mm / 24 inch | 620mm / 24 inch | |||||||||
Maximum Crosshead Travel | 1150 mm / 45 inch (excluding grips) | 1100 mm / 43 inch (excluding grips) | 1200 mm / 47 inch (excluding grips) | 1250 mm / 49 inch (excluding grips) | 1220 mm / 48 inch (excluding grips) | |||||||||
Maximum tensile space | 1050 mm / 41 inch | 1000 mm / 39 inch | 900 mm / 35 inch | 700 mm / 28 inch | 600 mm / 24 inch | |||||||||
Height | 1670 mm / 66 inch | 1880 mm / 74 inch | 2400 mm / 94 inch | 2515 mm / 99 inch | 2460 mm / 97 inch | |||||||||
Width | 510 mm / 20 inch | 530 mm / 21 inch | 600 mm / 24 inch | 715 mm / 28 inch | 920 mm / 36 inch | |||||||||
Length | 760 mm / 30 inch | 970 mm / 38 inch | 1100 mm / 43 inch | 1290 mm / 51 inch | 1280 mm / 50 inch | |||||||||
Weight | 350 kg | 500 kg | 800 kg | 1500 kg | 2000 kg | |||||||||
Noise level | 58 dB(A) | 58 dB(A) | 58 dB(A) | 58 dB(A) | 58 dB(A) | |||||||||
