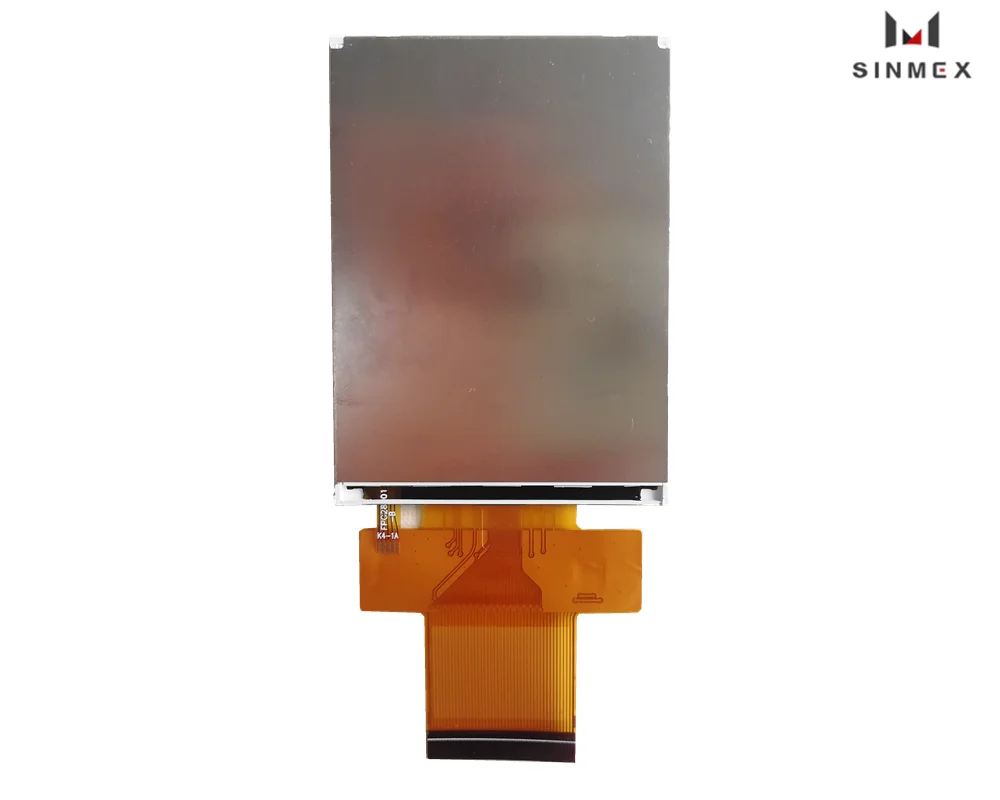

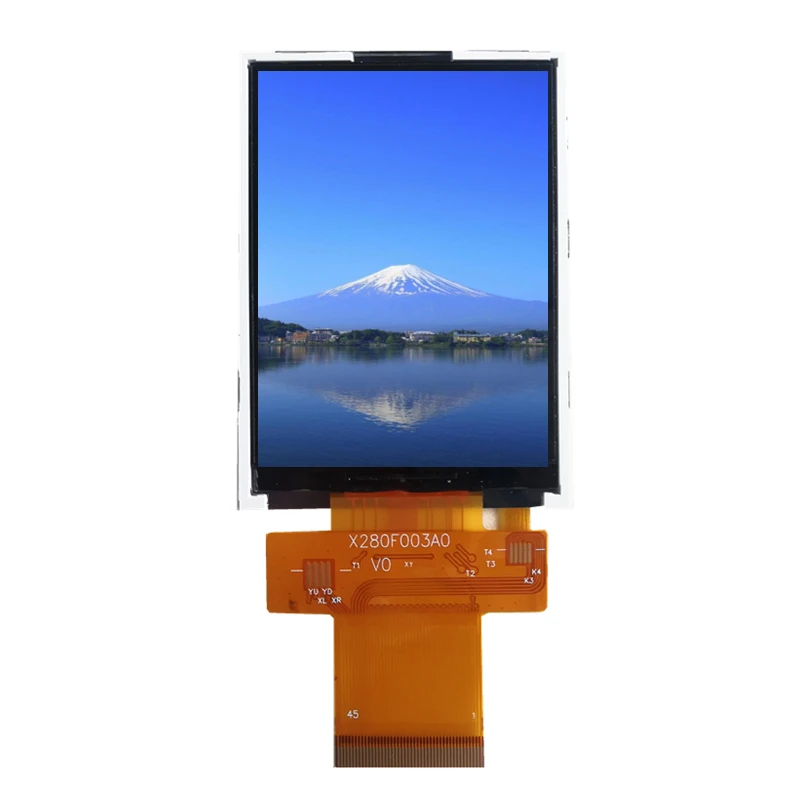

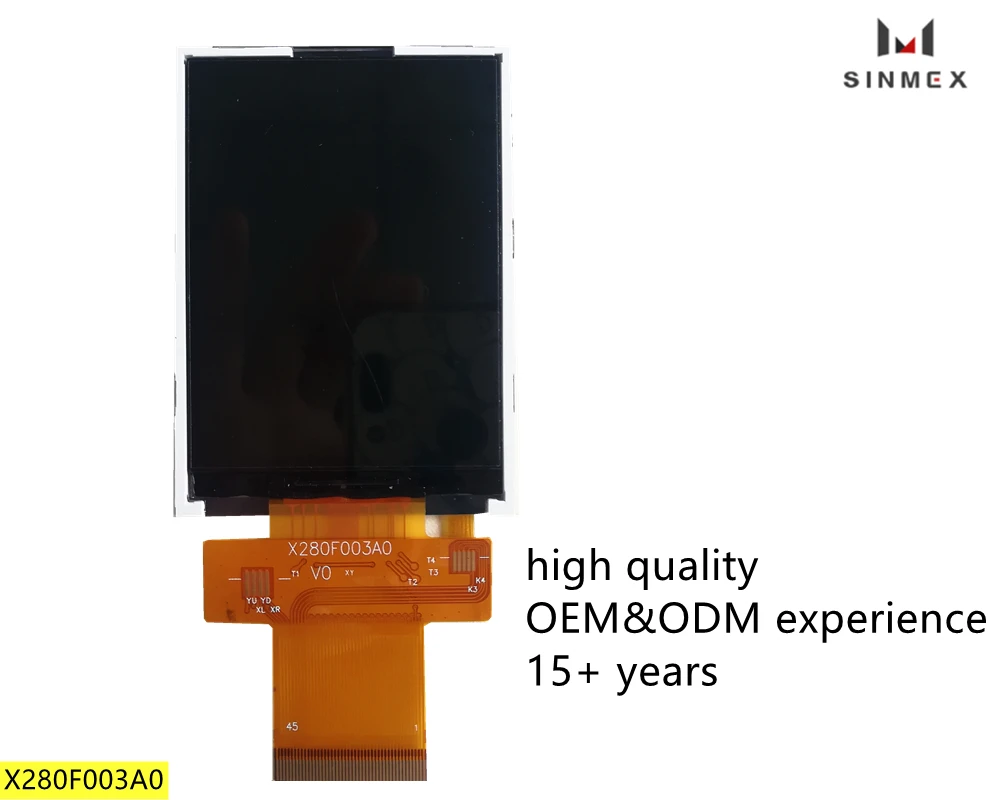

2.8 inch wholesale TN 240*320 MCU/SPI/SPI RGB interface 45 pin tft lcd display panel
2.8 inch wholesale TN 240*320 MCU/SPI/SPI+RGB interface 45 pin tft lcd display panel
2.8 inch wholesale TN 240*320 MCU/SPI/SPI+RGB interface 45 pin tft lcd display panel
2.8 inch wholesale TN 240*320 MCU/SPI/SPI+RGB interface 45 pin tft lcd display panel
2.8 inch wholesale TN 240*320 MCU/SPI/SPI+RGB interface 45 pin tft lcd display panel
2.8 inch wholesale TN 240*320 MCU/SPI/SPI+RGB interface 45 pin tft lcd display panel
2.8 inch wholesale TN 240*320 MCU/SPI/SPI+RGB interface 45 pin tft lcd display panel

2.8 inch wholesale TN 240*320 MCU/SPI/SPI RGB interface 45 pin tft lcd display panel

Share on (1600457937899):


Price:$0.10

Quantity:


Product Overview

Description









Product Discription


name
2.8  inch LCD display
model
X280F003A0
size
2.8 inch
resolution
240*320
display type
TFT
display color
65K /262K
pixel pitch
0.180(H) x 0.180(V)
viewing direction
6 o'clock
controller IC
ST7789V
diasplay mode
Transmissive /Normally White
overall size
50.00*69.20*2.5 mm
active area
43.20*57.60mm
luminance
240 cd/m2
contrast
500:1
interface type
MCU/SPI/SPI+RGB
pin No.
45
backlight type and color
LED backlight / White
backlight
4LED Vled=3.3V Iled=60-80 mA
life span
50,000 hours
operating temperature
-20℃~70℃
storating temperature
-30℃~80℃
compliant
RoHs
certification
ISO:9001:2008
input voltage
3.0 v
