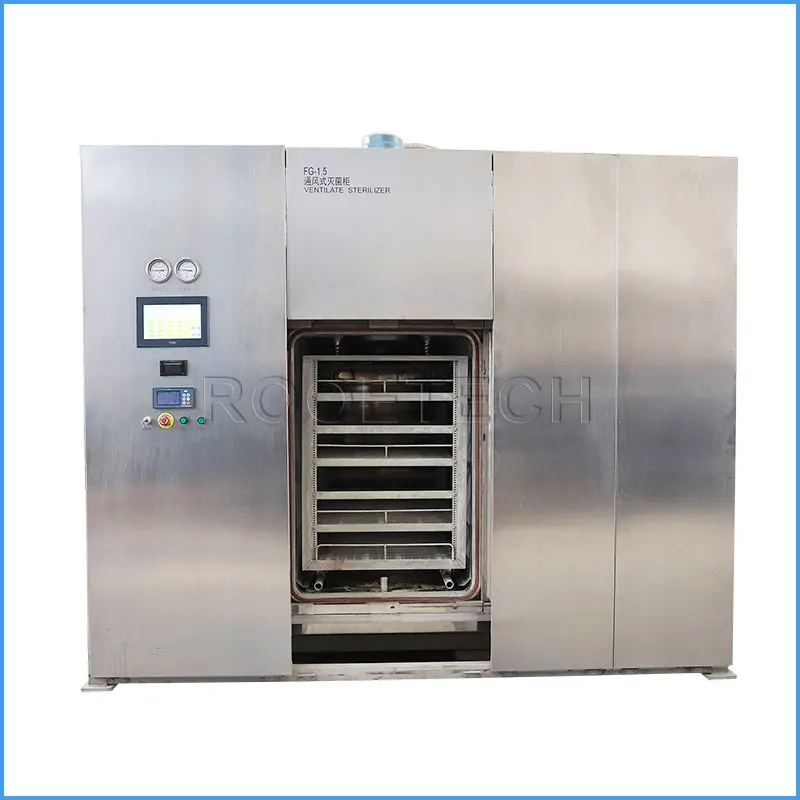

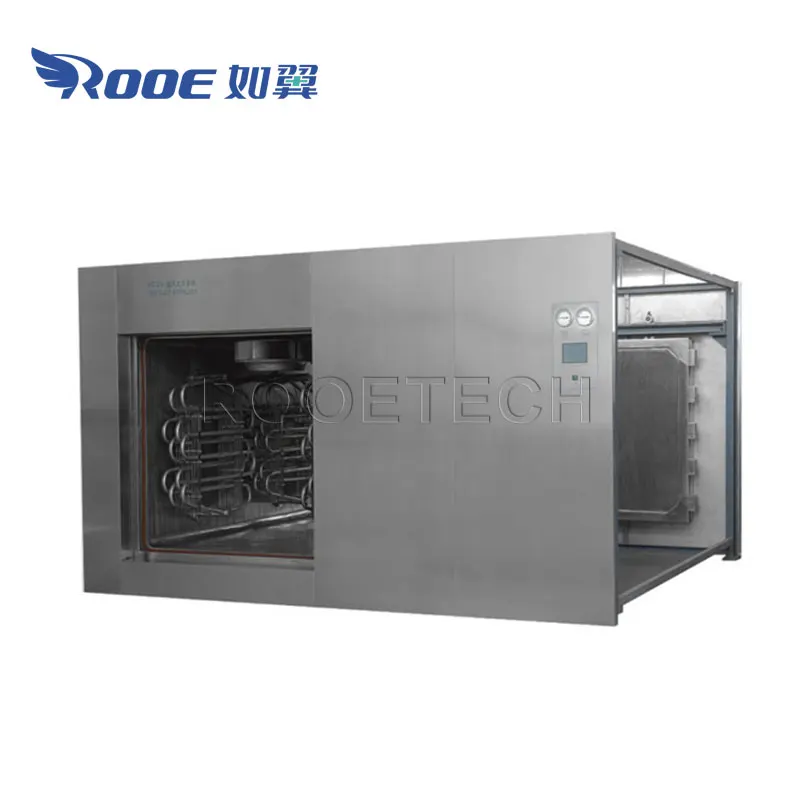

Hot Sale Medical Ventilate Super Water Sterilizers Autoclaves for Pharma Gel Beauty, Wet Tissue Package Pouches

Hot Sale Medical Ventilate Super Water Sterilizers Autoclaves for Pharma Gel Beauty, Wet Tissue Package Pouches

Description:

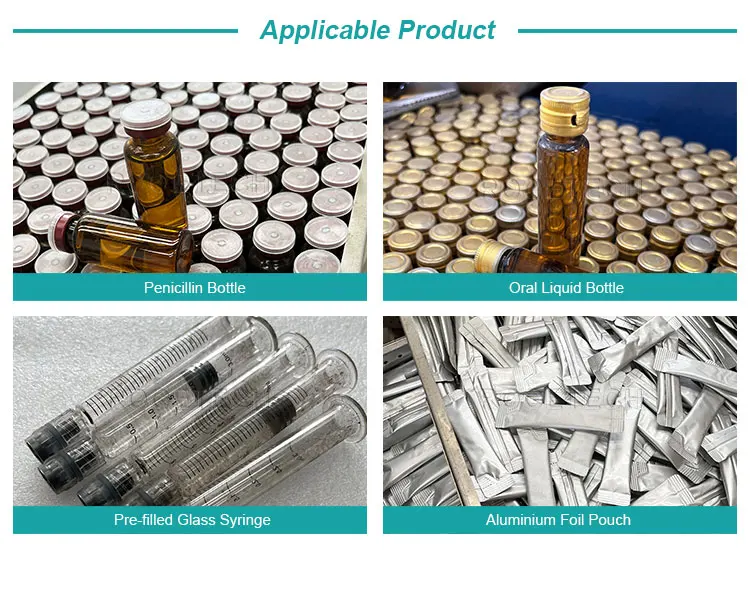

Our superheated water spray autoclave is an advanced intelligent equipment, which has been widely used in sterilizing infusion of glass bottles, plastic bottles and bags of pharmaceutical companies and medical institutions. Industrial sterilizer adopts superheated water as sterilizing medium, heating, sterilizing and cooling the filling bottle/bag, avoiding dead Angle in steam sterilization and re-pollution of impurity water in cooling stage. Industrial autoclave does not explode bottles and bags in the sterilization process, which can achieve uniform sterilization effect at lower temperatures. These large autoclave are designed, manufactured and inspected in full compliance with ISO9001 quality standards and GMP regulations. We are the professional Autoclave manufacturers in China.

Features:

Sterilization principle:

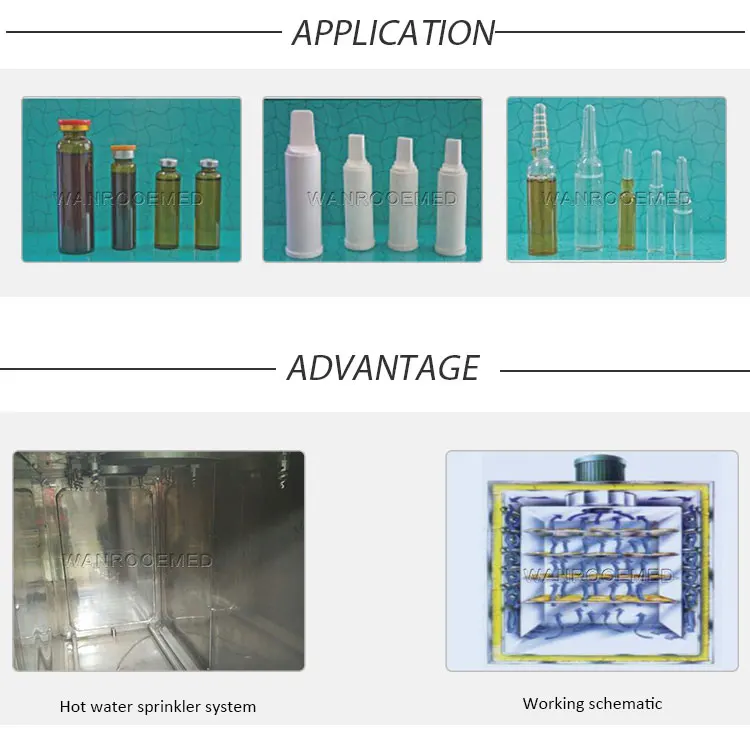

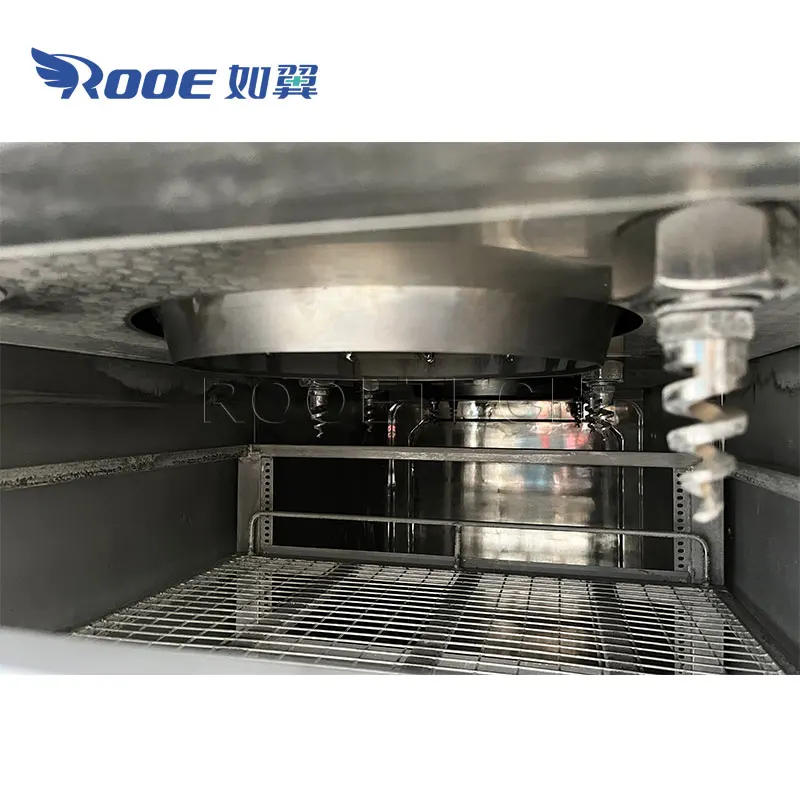

This series of ventilation sterilizers uses superheated water  as sterilizing media. In this way, the pressure balance and back pressure protection of equipment and products can be well controlled. Therefore, the equipment is widely used for items that need to be kept in shape and marketed. Sterilization time. Forced convection fan and air guide plate structure make the unsaturated steam in the chamber fully mixed, to ensure uniform sterilization temperature. The equipment is equipped with cooling coils. Product cooling and drying are accomplished by sending cooling water into coils to condense the mixture of gases in the chamber. The product evaporates at the same time, and finally reaches the purpose of cooling and drying.

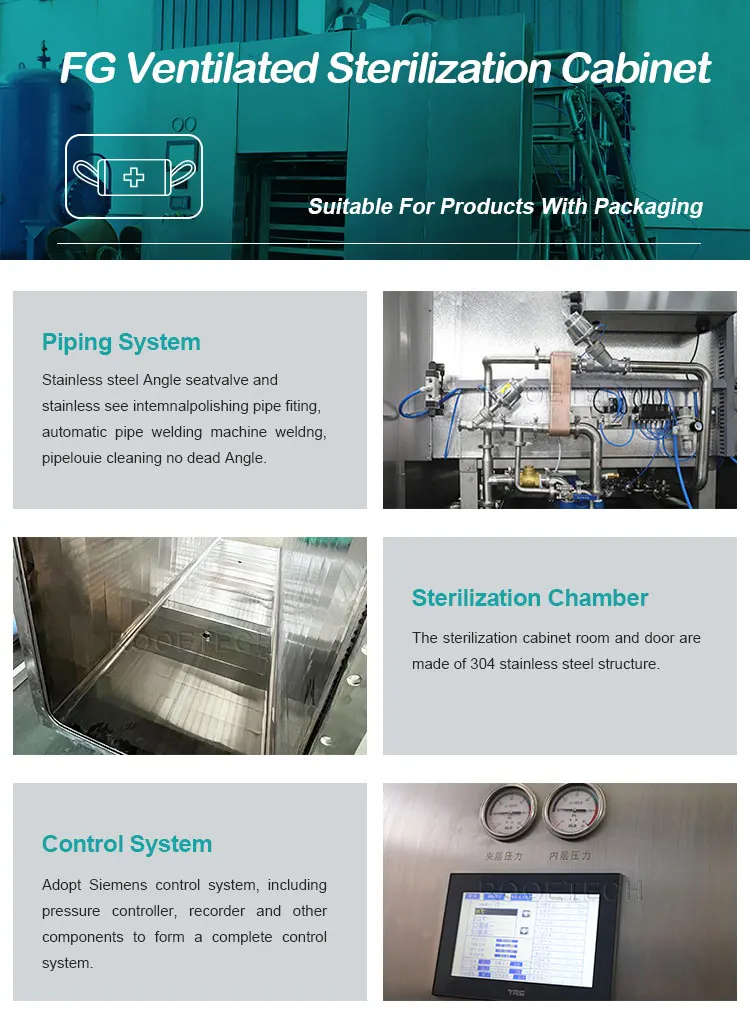

1. The main body is round or rectangular, manufactured in accordance with strict quality and safety standards. All chambers are made of 304 or 316L stainless steel.

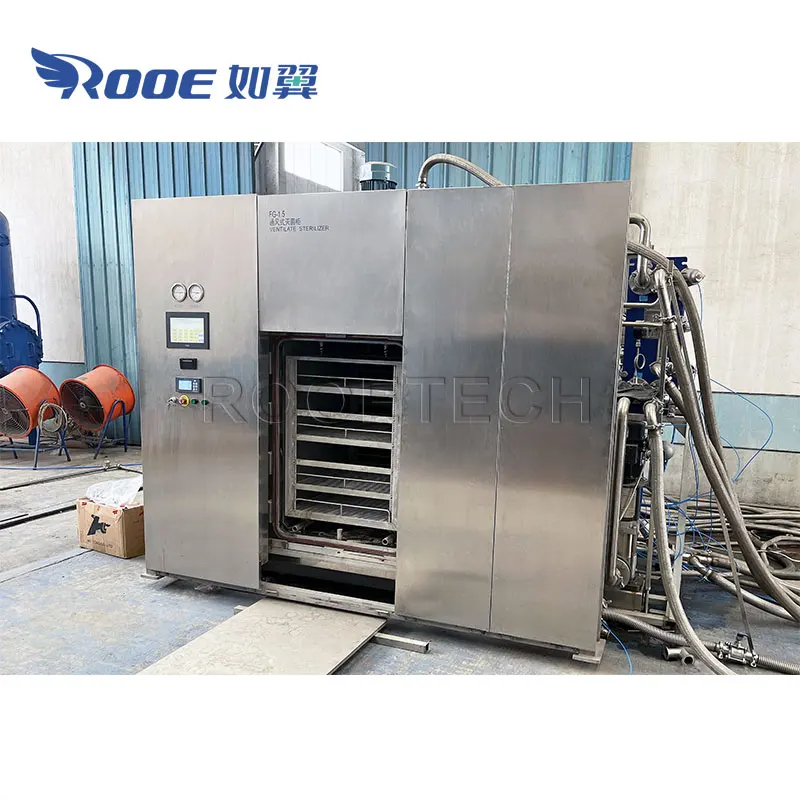

2. Adopt double door automatic moving door or mechanical door. Doors have manual doors, automatic doors and other forms.
3. Flexible design of loading vehicle for ergonomic handling, space utilization and temperature uniformity.

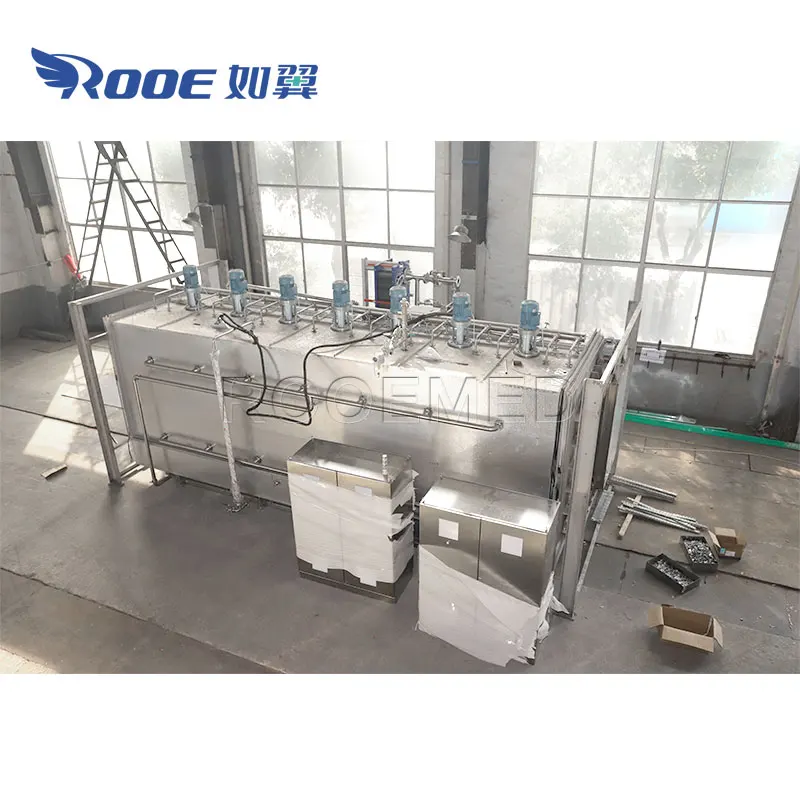

4. Large flow, low pressure stainless steel centrifugal pump, can achieve rapid heat transfer and short heating and cooling time. Valves, heat exchangers, pumps, filters, all parts and piping working parts, fittings, gaskets, etc. are certified for quality according to current standards and are designed and installed for proper maintenance and long life cycle.
5. Adopt computer control or PLC+ touch screen system. F0 value, temperature and pressure curve together to ensure sterilization effect. The system detects the correct temperature and runs stably. Maintain complete disinfection records.
6. Flexible operating temperature range, can handle a variety of packaging materials from plastic to glass.

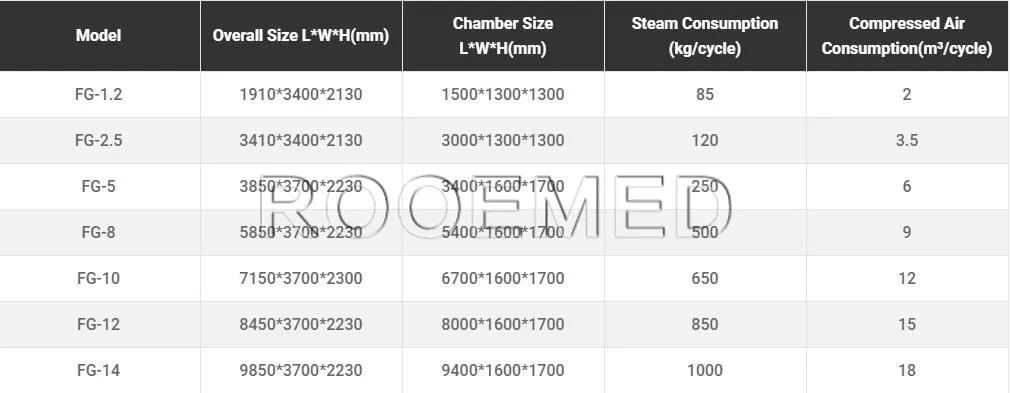

7. A variety of chamber models can meet the small production requirements of large infusion system of high speed IV infusion line.

Design:

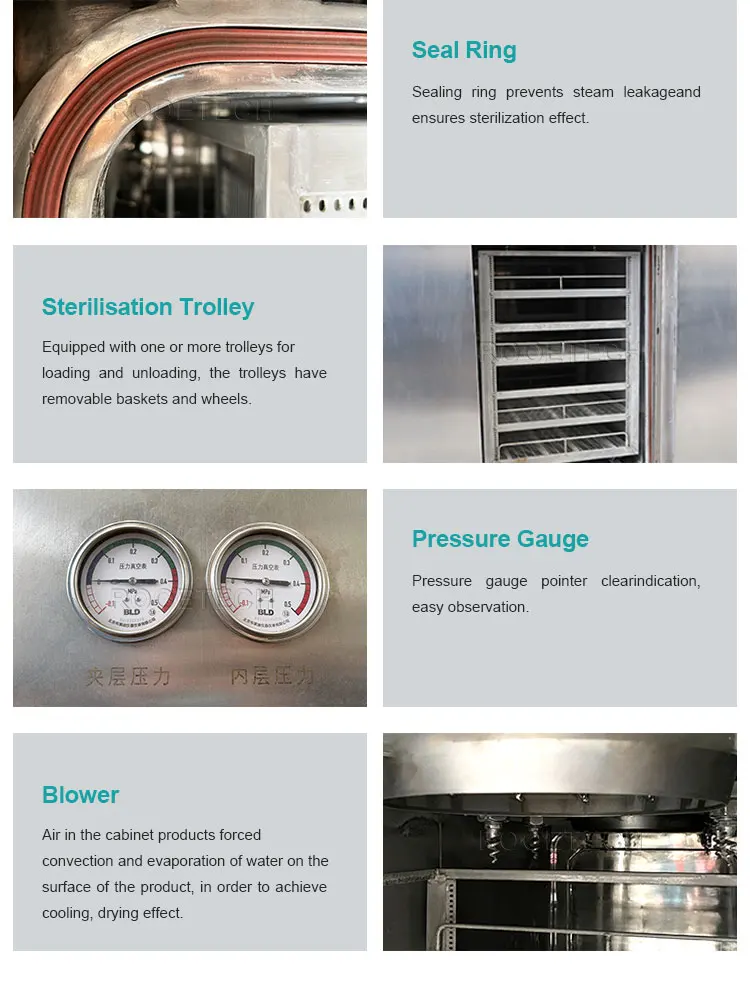

1. The double door chamber contains the necessary interlocking devices and each door has a preventive mechanism to ensure maximum operator safety.

2. The technical area is designed for ergonomic maintenance, making easy access to components and easy replacement of spare parts almost without the use of tools. The potential hot piping is insulated with chlorine-free mineral wool within the external stainless steel AISI 304 sheet.

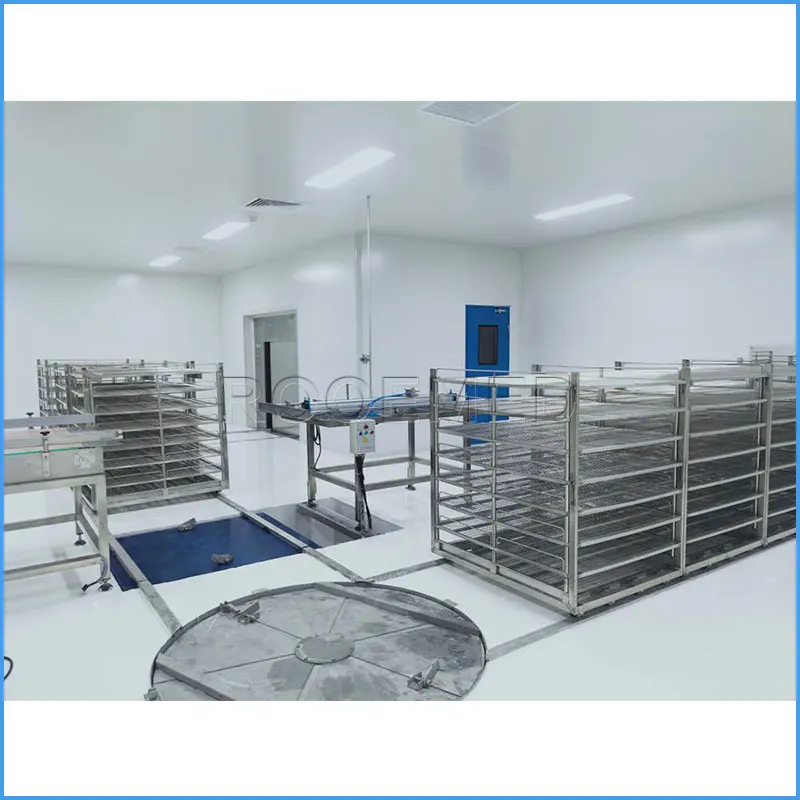

3. Loading and unloading handling operations can be done manually or, when large and heavy loads must be moved, can be done using automatic mechanisms. The automatic loading/unloading system includes a worktable located in front of the door for pallets. The tray is then introduced by a mechanical system under the workbench

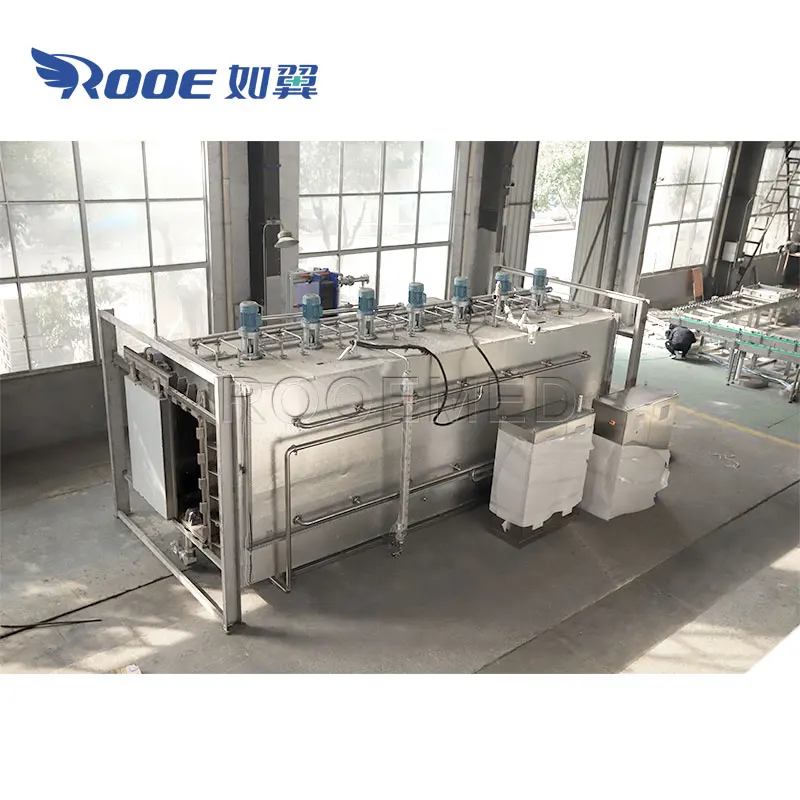

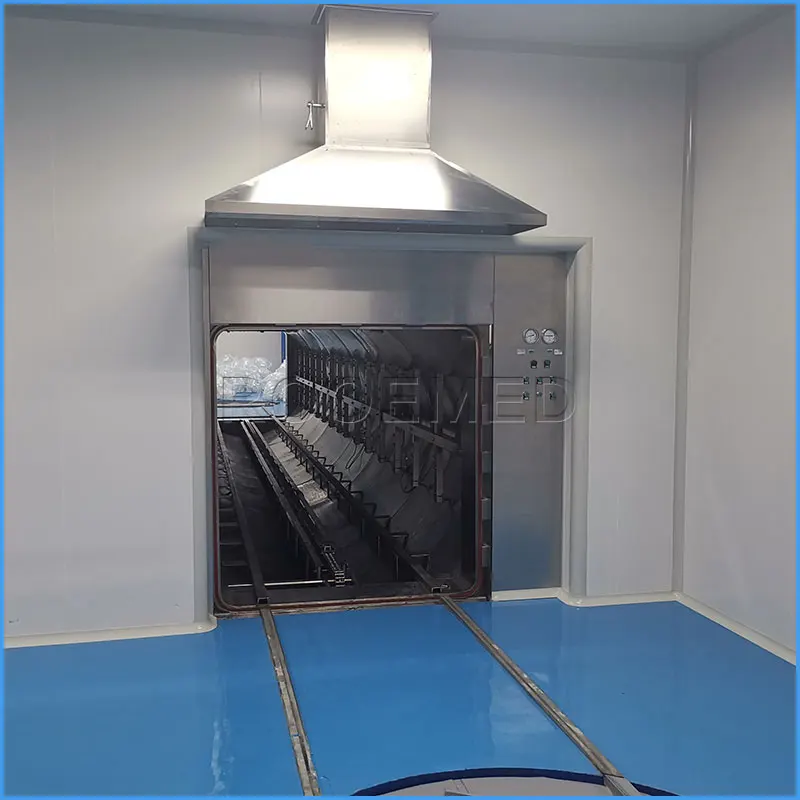

4. Another option for heavy load is to mount the device in a pit and thus load at ground level.

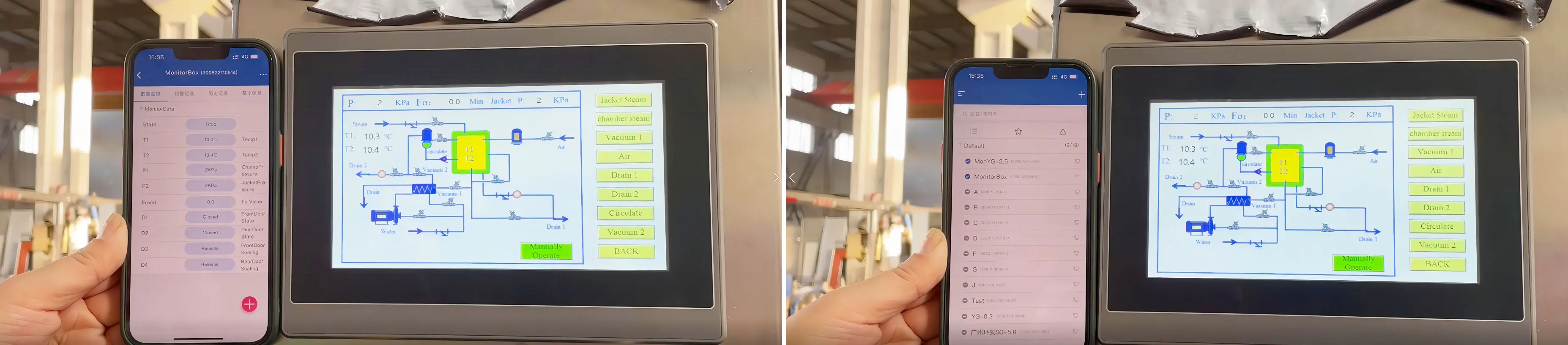

5. Optional remote monitoring system

FAQ

Q: Where is your company located?

A: Our company is located in zhangjiagang city,near shanghai

Q1: Are you trading company or manufacturer?
A: We are factory which has over 20 years' manufacturing experience.
Q2: What's the MOQ?
A: 1 set.
Q3: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
Q4: Can you send samples?
A: Yes, samples can be sent for your evaluation.
Q5: What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
Payment terms: Trade assurance, T/T, L/C, Western Union...
Trade terms: EXW, FOB, CIF, DDU...
Q6: Where's your general loading port?
A: Shanghai port for LCL and Zhangjiagang Port for FCL, or as your demand.
Q7: Can you do OEM?
A: Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.
Q8: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9. For tenders, whether you can provide all necessary documents.
A. Yes. We win a lot of tenders by providing complete documents and helped our customers.
Q10: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in 1 warranty year.
Secondly, our after-sales department will periodically follow up customers.
Q11: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check the Sea Freight or Air Freight for you based on your requirement.
