Clip-on genset for used reefer container for sale in dubai
US $5.00-$15.00

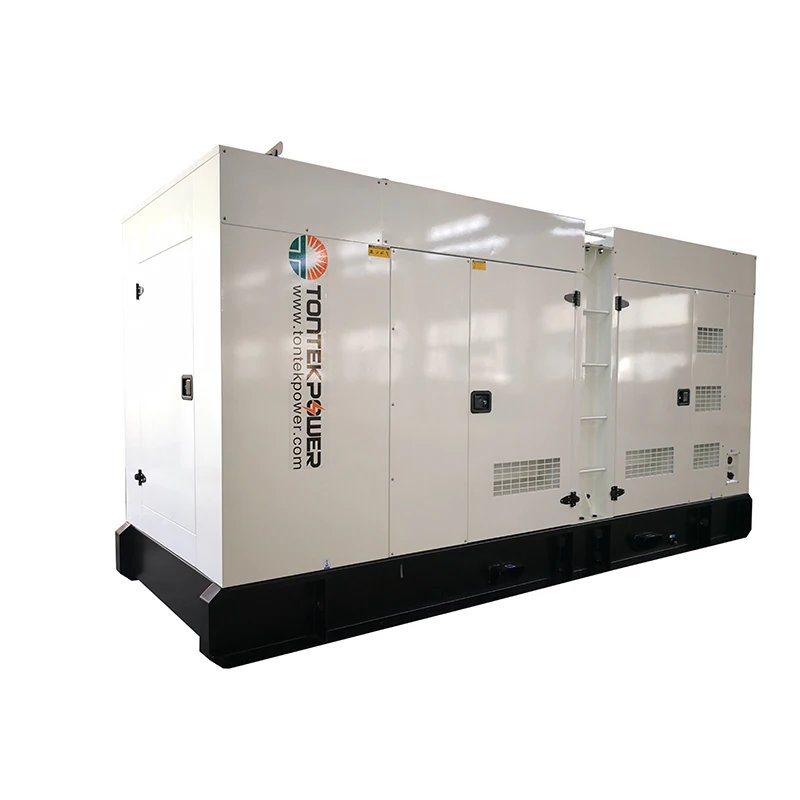

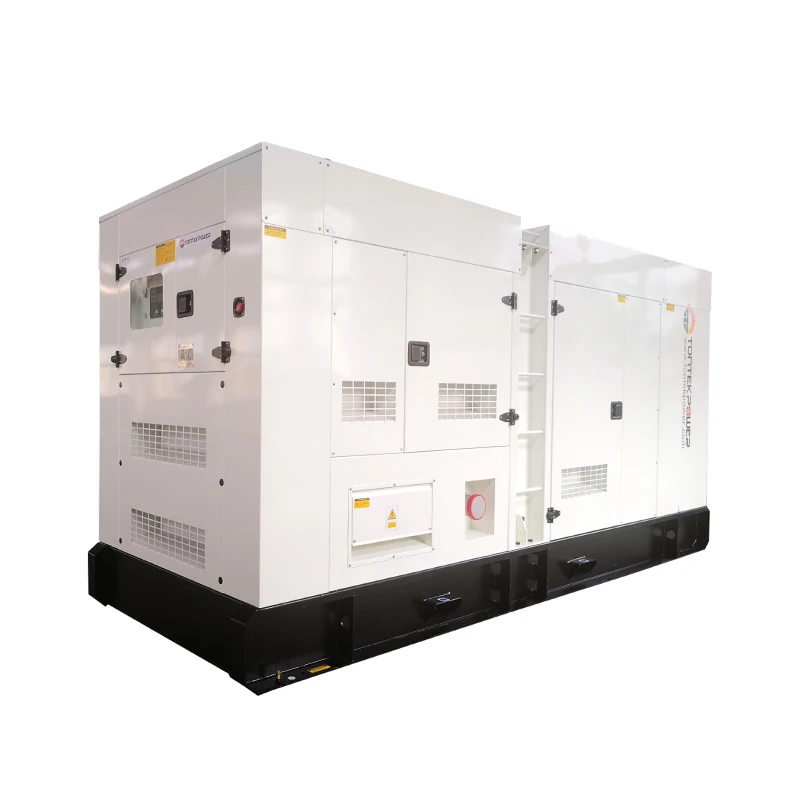

200KW/250KVA TPD250C5 2 Бесшумная генераторная установка
- Category: Generators >>>
- Supplier: Taizhou,Tontek,Power,Technology,Co.,Ltd.
Share on:
Product Overview
Description
DIESEL GENERATOR DATA: | |||||||
Generator set model | : TPD250C5-2 | ||||||
Generator rated power | : 200KW/250KVA | ||||||
Generator standby power | : 220KW /275KVA | ||||||
Rated frequency | : 50HZ | ||||||
Rated voltage | : 400/230V (Can be adjusted) | ||||||
Rated speed | : 1500RPM | ||||||
Fuel consumption | : 43.18L/h | ||||||
Open type size | : 2930x1010x1710 MM | ||||||
Silent type size | : 4000x1800x2150 MM | ||||||
Open type weight | : 2200 Kg | ||||||
ENGINE DATA: | |||||||
Engine model: | : NT855-GA | ||||||
Engine brand | : CUMMINS | ||||||
Engine rated power | : 231KW/289KVA | ||||||
Engine standby power | : 254KW/318KVA | ||||||
Engine speed | : 1500RPM | ||||||
Bore & Stroke | : 140 × 152 mm | ||||||
Displacement | : 14 L | ||||||
Type | : In line,6 cylinders,4 stroke | ||||||
Aspiration | : Turbocharged | ||||||
Governor | : Electronic | ||||||
ALTERNATOR DATA: | |||||||
Alternator model | : UCDI 274K | MP-200-4A | TP-200-4 | ||||
Alternator brand | : STAMFORD | MARATHON | TONTEK | ||||
Rated power | : 200kW | 200kW | 200kW | ||||
Frequency | : 50HZ | ||||||
Speed | : 1500RPM | ||||||
Voltage | : 400/230V (Can be adjusted) | ||||||
Power factor | : 0.8 (lagging) | ||||||
Phase and wire | : 3 phase 4 wires | ||||||
Excite type | : Single Bearing, Close coupled. Brushless, self-exciting,AVR | ||||||
Protection class | : IP23 | ||||||
Insulation class | : H | ||||||
Q: What is the power range of your generator sets?
A: We can provide 10 KVA to 4000KVA, with a voltage range of 110V~15000V and frequencies of 50Hz and 60Hz.
Q: What is the lead time?
A: 7 working days against the 30%T/T deposit
Q:What is your MOQ?
A: Our MOQ is 1 unit
Q:What about your warranty?
A:13 months or 1000 working hours,whichever comes first.
Q: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment or Irrevocable LC at sight.
Q: What is your company's production capacity?
A:150 Sets per month
Q: Can you supply OEM service
A: YES
