Ailipu Mertering Pump High Pressure Process Diaphragm Pump with Industry Leading High Quality Dosing Pump Electric 50 1 Years
Ailipu Mertering Pump High Pressure Process Diaphragm Pump with Industry Leading High Quality Dosing Pump Electric 50 1 Years
Ailipu Mertering Pump High Pressure Process Diaphragm Pump with Industry Leading High Quality Dosing Pump Electric 50 1 Years
Ailipu Mertering Pump High Pressure Process Diaphragm Pump with Industry Leading High Quality Dosing Pump Electric 50 1 Years
Ailipu Mertering Pump High Pressure Process Diaphragm Pump with Industry Leading High Quality Dosing Pump Electric 50 1 Years
Ailipu Mertering Pump High Pressure Process Diaphragm Pump with Industry Leading High Quality Dosing Pump Electric 50 1 Years
Ailipu Mertering Pump High Pressure Process Diaphragm Pump with Industry Leading High Quality Dosing Pump Electric 50 1 Years

Ailipu Mertering Pump High Pressure Process Diaphragm Pump with Industry Leading High Quality Dosing Pump Electric 50 1 Years

Share on (1600457989707):


Price:$45,000.00 - $50,000.00

Quantity:


Product Overview

Description

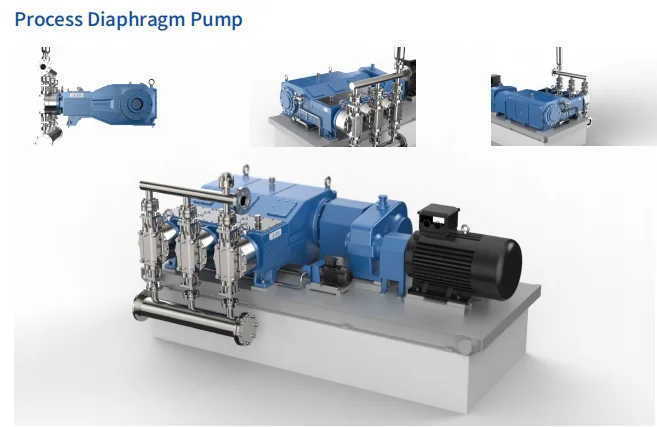

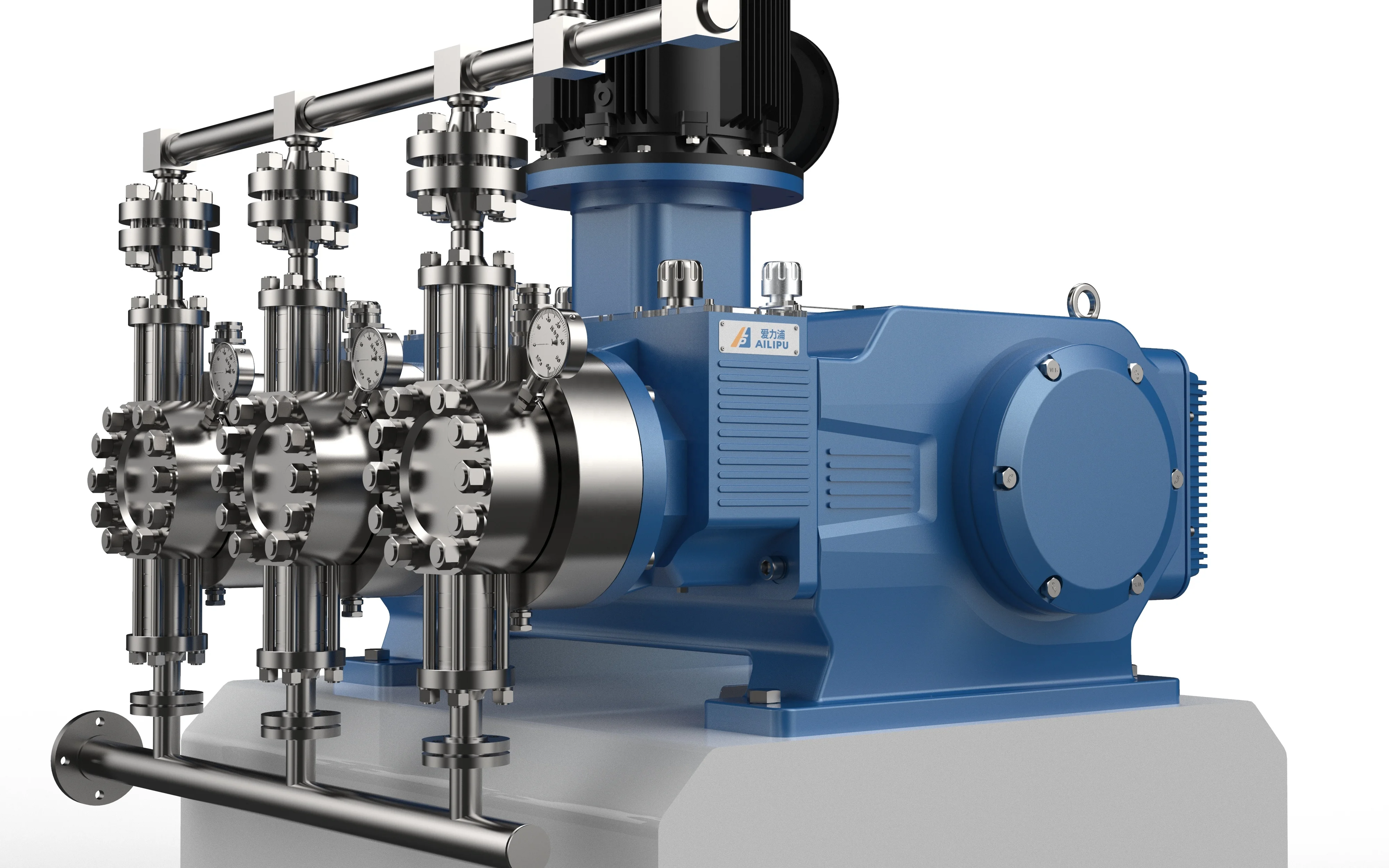

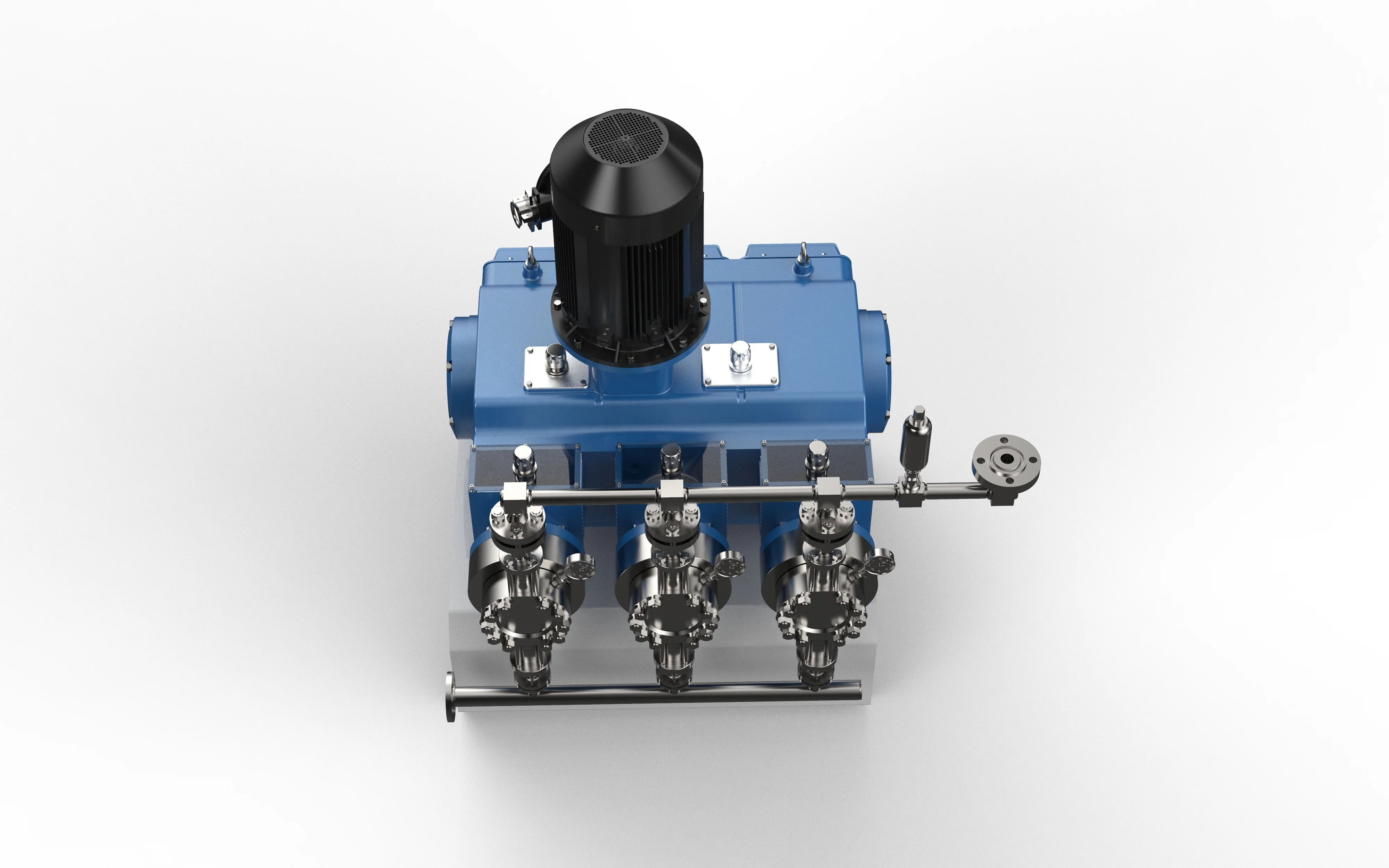

Product Show

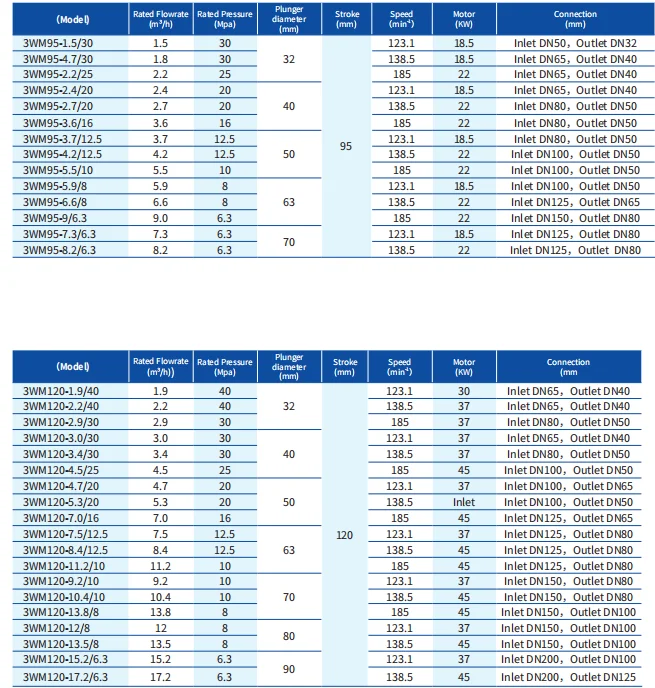

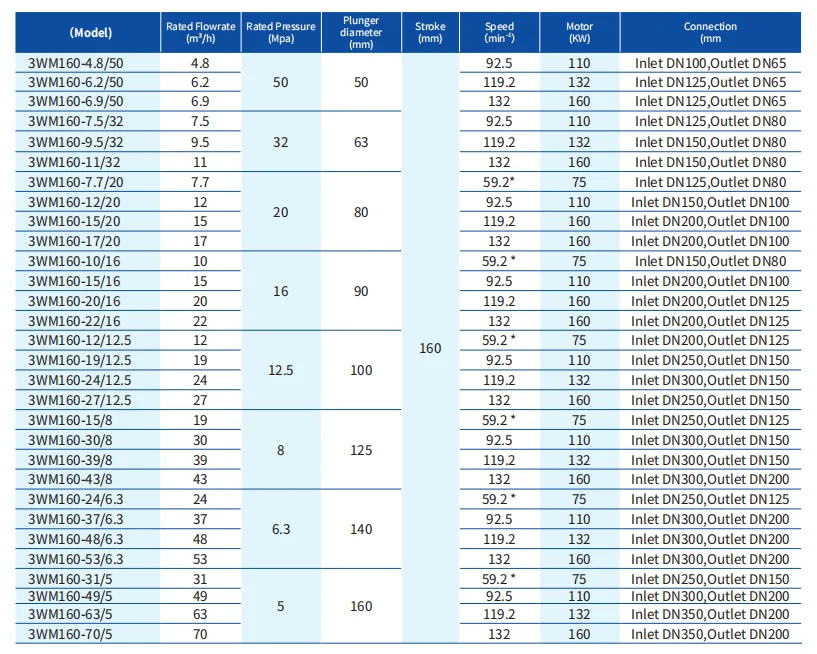

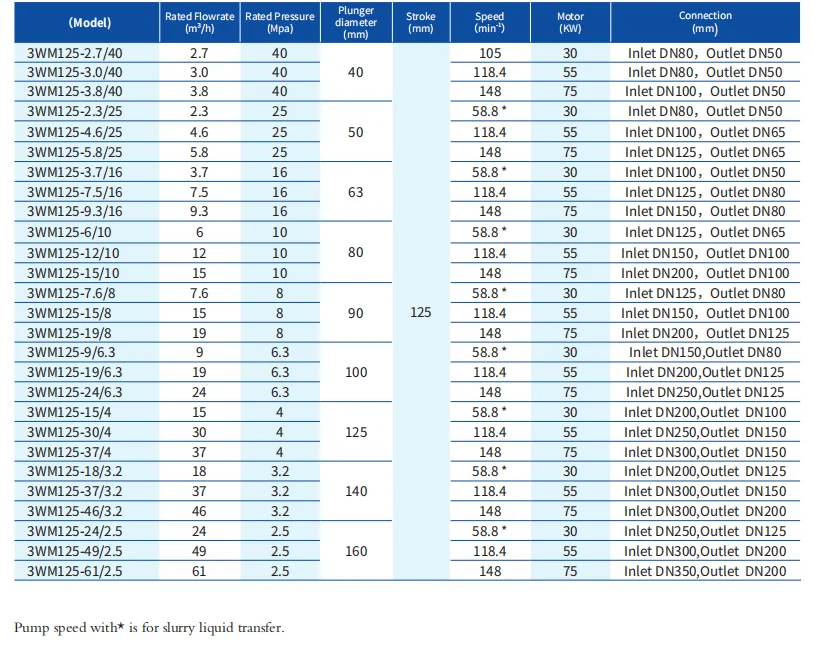

Technical Date










（Model)

Rated Flowrate (m³/h)

Rated Pressure (Mpa)
Plunger diameter (mm)

Stroke (mm)
Speed
（min-1）

Motor (KW)

Connection (mm)
3WM190-9/50
9
50
63
190
92.5
200
Inlet DN125,Outlet DN80
3WM190-12/50
12
119.2
250
Inlet DN150,Outlet DN100
3WM190-13/50
13
132
280
Inlet DN150,Outlet DN100
3WM190-14/32
14
32
80
92.5
200
Inlet DN200,Outlet DN100
3WM190-18/32
18
119.2
250
Inlet DN150,Outlet DN80
3WM190-20/32
20
132
280
Inlet DN150,Outlet DN80
3WM190-12/25
12
25
90
59.2*
132
Inlet DN150,Outlet DN100
3WM190-18/25
18
92.5
200
Inlet DN200,Outlet DN125
3WM190-23/25
23
119.2
250
Inlet DN250,Outlet DN125
3WM190-26/25
26
132
280
Inlet DN250,Outlet DN125
3WM190-14/20
14
20
100
59.2 *
132
Inlet DN200,Outlet DN100
3WM190-22/20
22
92.5
200
Inlet DN200,Outlet DN100
3WM190-29/20
29
119.2
250
Inlet DN200,Outlet DN100
3WM190-32/20
32
132
280
Inlet DN250,Outlet DN150
3WM190-22/12,5
22
12.5
125
59.2 *
132
Inlet DN200,Outlet DN125
3WM190-35/12,5
35
92.5
200
Inlet DN250,Outlet DN150
3WM190-45/12,5
45
119.2
250
Inlet DN300,Outlet DN150
3WM190-50/12,5
50
132
280
Inlet DN250,Outlet DN150
3WM190-28/10
28
10
140
59.2 *
132
Inlet DN250,Outlet DN150
3WM190-44/10
44
92.5
200
Inlet DN300,Outlet DN200
3WM190-57/10
57
119.2
250
Inlet DN350,Outlet DN200
3WM190-63/10
63
132
280
Inlet DN350,Outlet DN200
3WM190-37/8
37
8
160
59.2 *
132
Inlet DN300,Outlet DN150
3WM190-58/8
58
92.5
200
Inlet DN350,Outlet DN200
3WM190-75/8
75
119.2
250
Inlet DN400,Outlet DN250
3WM190-83/8
83
132
280
Inlet DN400,Outlet DN250
3WM190-46/6.3
46
6.3
180
59.2 *
132
Inlet DN250,Outlet DN150
3WM190-72/6.3
72
92.5
200
Inlet DN350,Outlet DN200
3WM190-93/6.3
93
119.2
250
Inlet DN400,Outlet DN250
3WM190-103/6,3
103
132
280
Inlet DN450,Outlet DN250
3WM190-58/5
58
5
200
59.2 *
132
Inlet DN300,Outlet DN200
3WM190-90/5
90
92.5
200
Inlet DN400,Outlet DN250
3WM190-115/5
115
119.2
250
Inlet DN500,Outlet DN300
3WM190-128/5
128
132
280
Inlet DN500,Outlet DN300

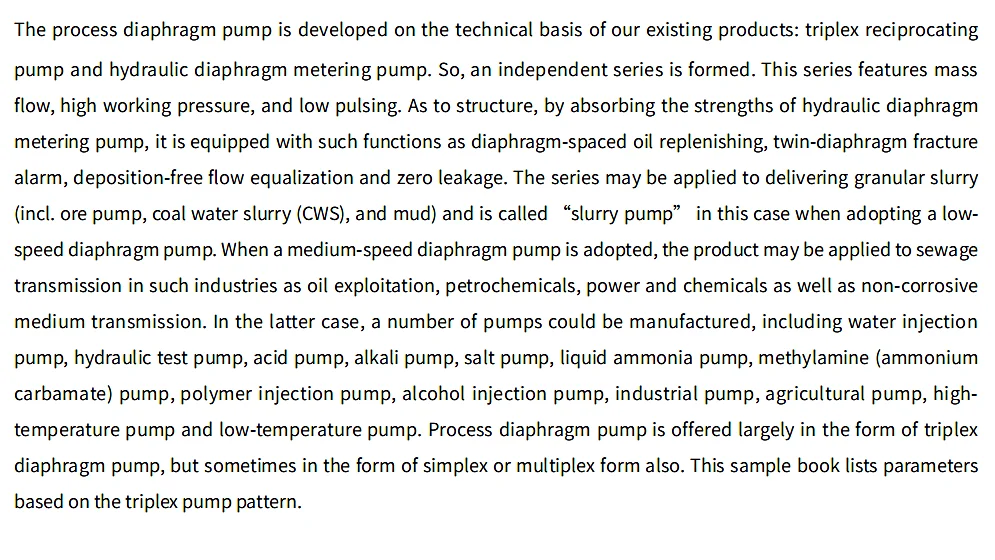

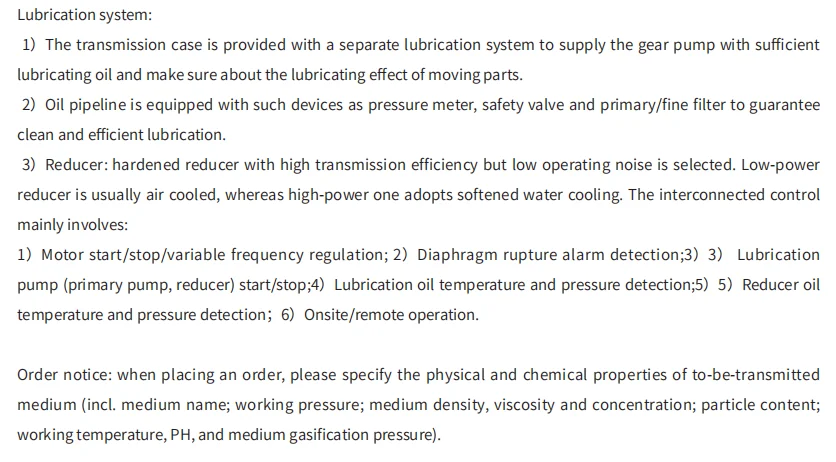

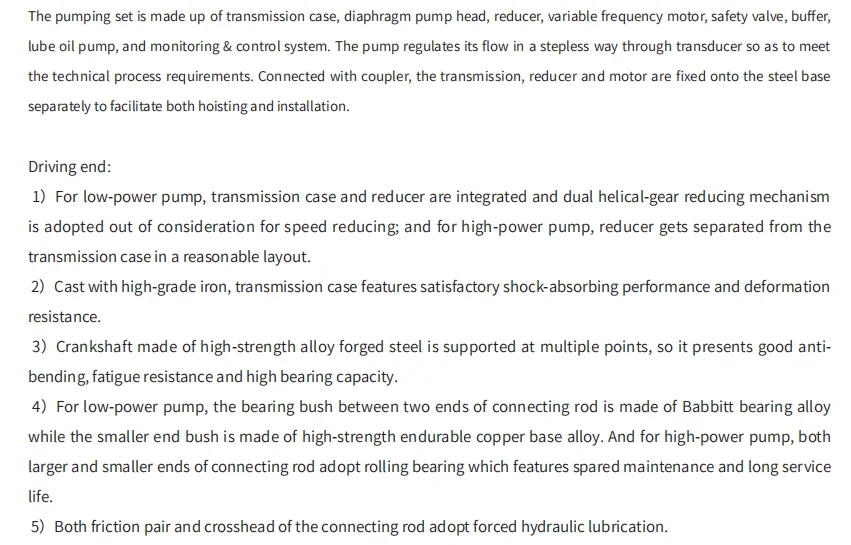

Products Description

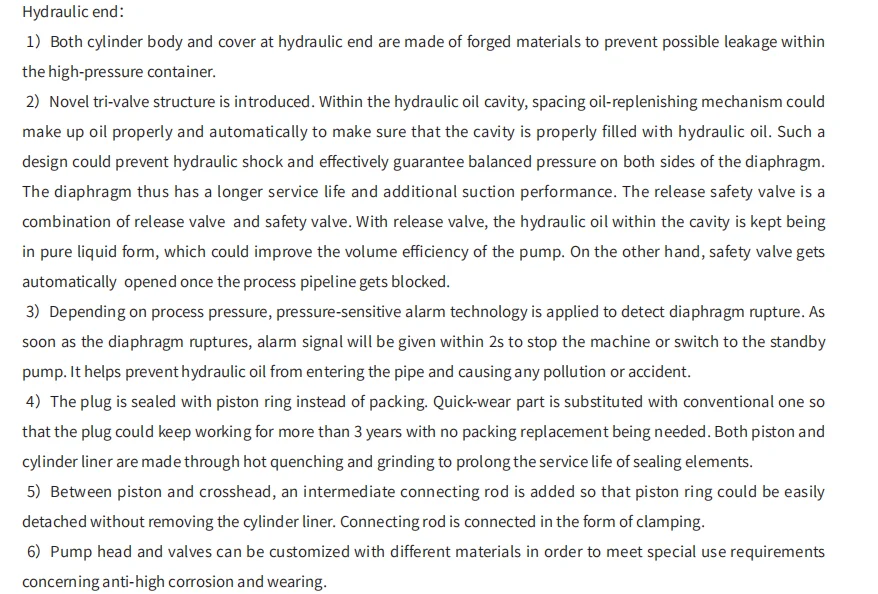

Innovation
1.In order to make the measurement accuracy higher, a variable frequency motor is used to provide the driving force. The variable frequency motor has the characteristics of short response time and convenient adjustment. It can detect various sensor signals and quickly change the rotation speed of the motor.
2.The application of the 125 fixed stroke limit oil replenishment mechanism not only ensures the fullness of the hydraulic oil in the hydraulic chamber, but also avoids excessive oil replenishment and prevents hydraulic shock, so that the force on both sides of the diaphragm is balanced,which improves the service life of the diaphragm and has dust-absorbing properties.
3.Reduce flow pulsation and prevent shock caused by medium backflow by choosing a triple plunger pump
4.The crankshaft is the core transmission component of the three-cylinder process diaphragm pump. Due to the wide box body, the crankshaft adds two support journals in the middle of the ordinary three-crank crankshaft, which is the three-crank crankshaft and four-support crankshaft.












More Products Show




About Us






Certificate




Packaging&Transportation




FAQ




Q: Are you trading company or manufacturer ?
A: We are factory, and our factory has the independent research and development capacity

Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer sample but it must be paid

Q: What is your terms of payment ?
A:TT, LC. etc.....
