Kamoer KPHM400 400ml/min Flow Rate 12V 24V DC Motor Brush/Brushless Motor water treatment Peristaltic Pump
- Category: >>>
- Supplier: Kamoer Fluid Tech (shanghai) Co. Ltd.
Share on (1600457997319):
Product Overview
Description
Product Description
High-tech, stable and controllable
Small size, low noise, easy maintenance, support forward and reverse rotation, wide application, high precision.
Product parameter

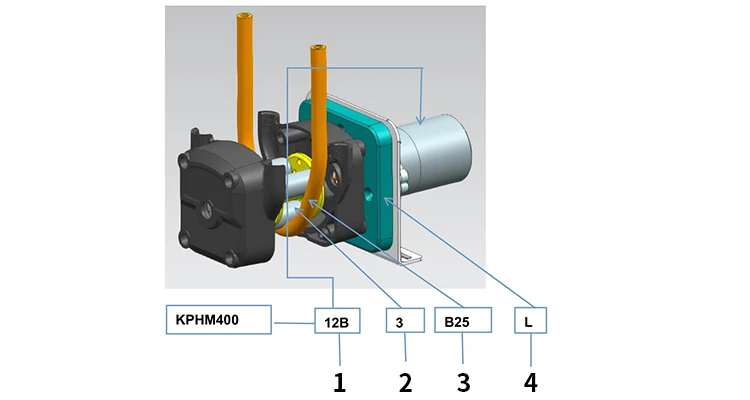

Motor code meaning
1.Motor code 2.Conversions 3.Pump tube selection 4.Installation method

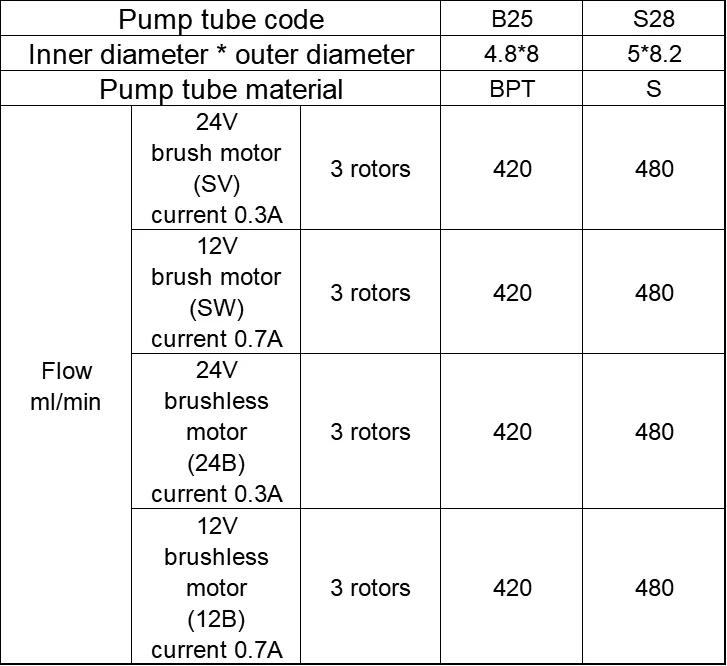

Performance parameter table
Note: The above flow parameters are measured with pure water without pressure at standard atmospheric pressure at room temperature of 20℃. In fact, according to different media and outlet pressure, there will be some error in the flow. The data is used as a reference, and the current value is the reference current of the thickest pipe type.

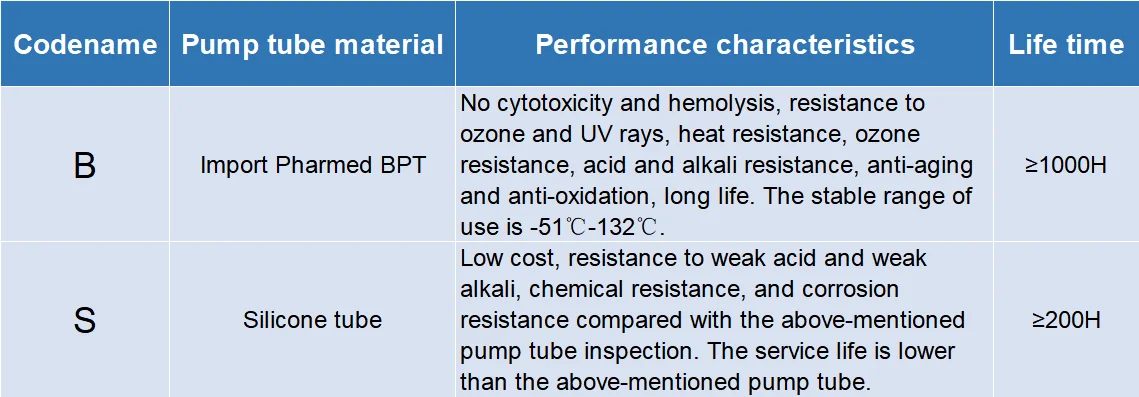

Pump tube model selection
Note: The above test data were measured when the pump head ran continuously and uninterrupted at 420 RPM and the room temperature was 20℃ and pure water without pressure until the pump pipe broke. Pump head speed is different pump pipe life is not the same, in general, the slower the pump head speed, the longer the life of the pump pipe, the actual service life is affected by the media, working conditions, temperature and humidity, voltage and other factors, the test data as a reference.

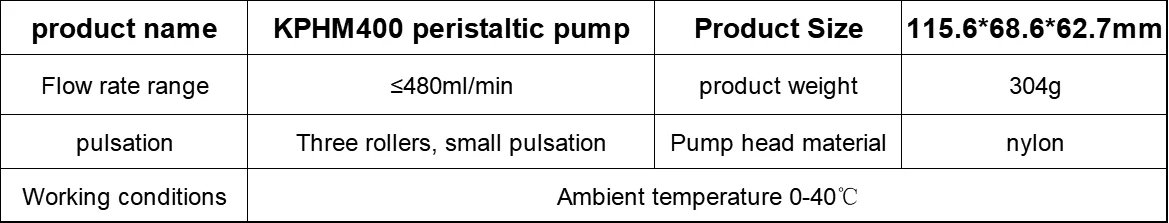

Product parameter：
Selection of motor -KPHM400 series peristaltic pump is a large flow rate and high cost performance peristaltic pump.
Pump tubing options - imported PharmeDebpt (B) and silicone tubing (S) are available for different fluid delivery requirements.
Installation method - the installation method is fixed through the plate (see the attached drawing for details).
Transmission mode - the transmission mode is to drive the output of the pump head by the reducer.
The main material - housing and motor base are nylon plastic.
Pump tubing options - imported PharmeDebpt (B) and silicone tubing (S) are available for different fluid delivery requirements.
Installation method - the installation method is fixed through the plate (see the attached drawing for details).
Transmission mode - the transmission mode is to drive the output of the pump head by the reducer.
The main material - housing and motor base are nylon plastic.
Product parameter：

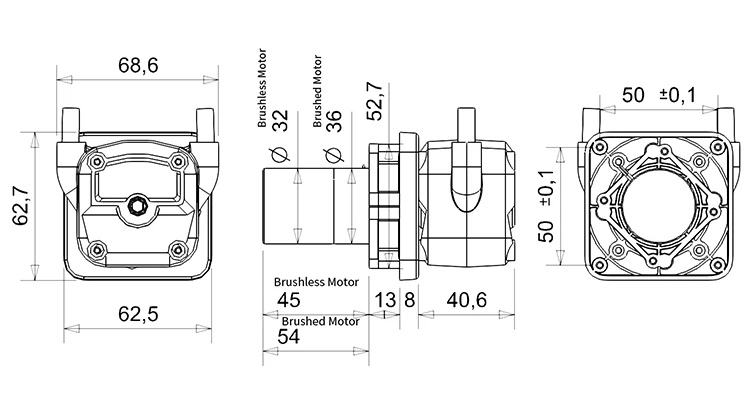

Suggested hole size：

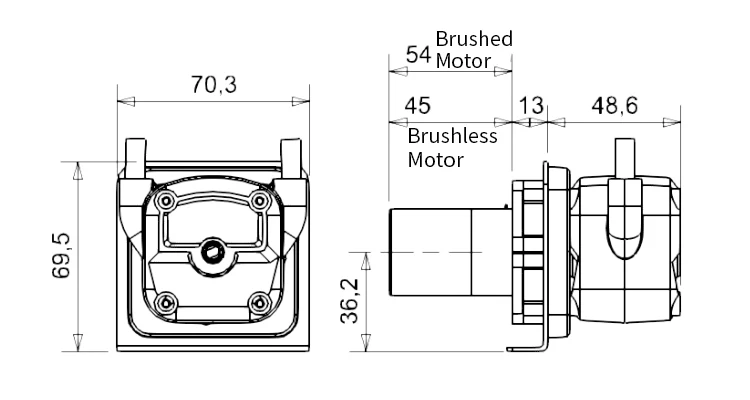

Dimensional drawing of sheet metal：
Brushless motor five line corresponding description:
1. The positive pole of the red power supply, the negative pole of the black power supply, the speed regulation line of the white power supply, the signal feedback line of the yellow power supply (measuring the speed), the commutation line of the green power supply (suspended inversion, connected to the positive pole of the power supply)
2, Speed control port: PWM and 0-5V two speed control mode, speed range 13%-100% PWM frequency 10KHz-30KHz; Amplitude: 5V, duty ratio 0-10% motor does not rotate, 11%-100% speed range; 0-5V voltage speed regulation, 0-0.5V motor does not rotate, 0.6V-5V speed regulation range.
3. Yellow line rotation speed feedback, connected to the oscilloscope probe or upper computer. 1 pulse per revolution.
4. Running at full speed, the red and white wires are connected to the positive power, and the black wires to the negative pole
1. The positive pole of the red power supply, the negative pole of the black power supply, the speed regulation line of the white power supply, the signal feedback line of the yellow power supply (measuring the speed), the commutation line of the green power supply (suspended inversion, connected to the positive pole of the power supply)
2, Speed control port: PWM and 0-5V two speed control mode, speed range 13%-100% PWM frequency 10KHz-30KHz; Amplitude: 5V, duty ratio 0-10% motor does not rotate, 11%-100% speed range; 0-5V voltage speed regulation, 0-0.5V motor does not rotate, 0.6V-5V speed regulation range.
3. Yellow line rotation speed feedback, connected to the oscilloscope probe or upper computer. 1 pulse per revolution.
4. Running at full speed, the red and white wires are connected to the positive power, and the black wires to the negative pole
UL1332 Material:PTFE
1-FG-24AWG-YELLOW signal feedback
2-VCC-24AWG-RED power supply positive pole
3- SP-24AWG-WHITE speed control port
4-GND-24AWG- BLACK anode for power supply
5-F/ R-24AWG-Green commutator port
1-FG-24AWG-YELLOW signal feedback
2-VCC-24AWG-RED power supply positive pole
3- SP-24AWG-WHITE speed control port
4-GND-24AWG- BLACK anode for power supply
5-F/ R-24AWG-Green commutator port

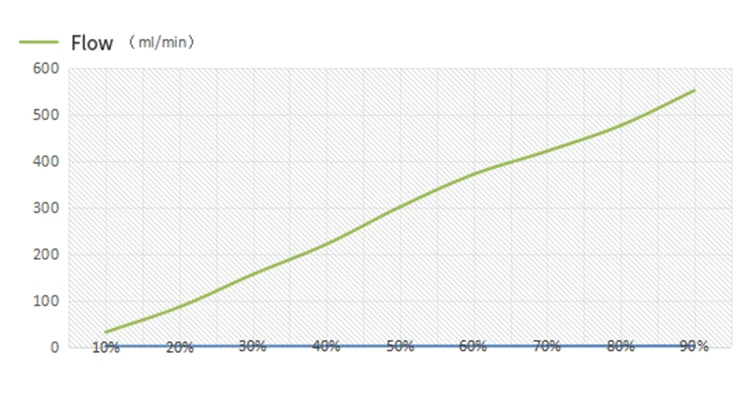

Corresponding curve of PWM speed：
Specification
item | value |
Warranty | 1 year |
Brand Name | Kamoer |
Model Number | KPHM400 |
Place of Origin | China |
Shanghai | |
Application | Developing World Water Solutions, Drinking water treatment, Family Homes, Food and Beverage Industry, Irrigation and Agriculture, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions |
Horsepower | |
Power Source | Electric |
Pressure | Low pressure |
Structure | Gear Pump |
Cable Length | N/M |
Outlet Size | N/M |
Voltage | 12V/24V |
Power | 7.2W/8.4W |
Certification | RoHS, ce |
Name | N/M |
Warranty | 1 year |
Flow rate | 420-480ml/min |
Voltage | 12V/24V |
Motor | brush or brushless motor |
weight | 304g |

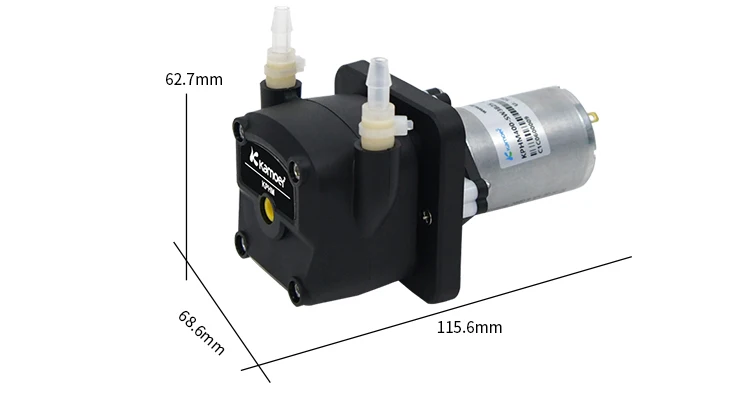

size | 115.6*68.6*62.7mm |
Application | Experiment, environmental protection, smart home, air irrigation |
