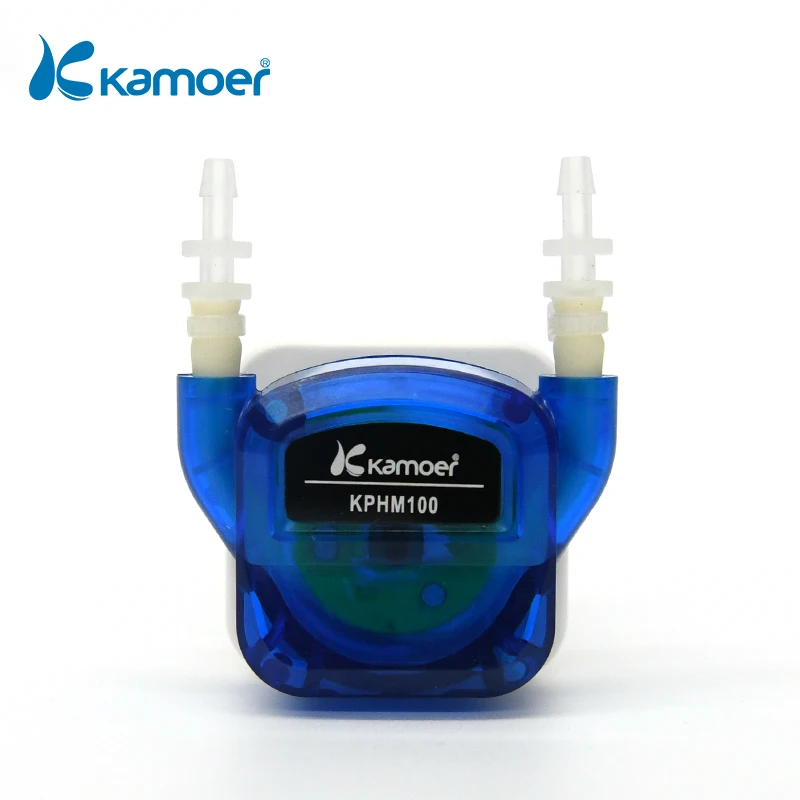

Kamoer KPHM100 100ml/min 12V 24V tiny brushed brushless stepper motor optional small peristaltic liquid dosing pump
Kamoer KPHM100 100ml/min 12V 24V tiny brushed brushless stepper motor optional small peristaltic liquid dosing pump
Kamoer KPHM100 100ml/min 12V 24V tiny brushed brushless stepper motor optional small peristaltic liquid dosing pump
Kamoer KPHM100 100ml/min 12V 24V tiny brushed brushless stepper motor optional small peristaltic liquid dosing pump
Kamoer KPHM100 100ml/min 12V 24V tiny brushed brushless stepper motor optional small peristaltic liquid dosing pump
Kamoer KPHM100 100ml/min 12V 24V tiny brushed brushless stepper motor optional small peristaltic liquid dosing pump
Kamoer KPHM100 100ml/min 12V 24V tiny brushed brushless stepper motor optional small peristaltic liquid dosing pump

Kamoer KPHM100 100ml/min 12V 24V tiny brushed brushless stepper motor optional small peristaltic liquid dosing pump

Share on (1600458010337):


Price:$21.00 - $25.00

Quantity:


Product Overview

Description



Product Description


KPHM-100 Three types of motors are optional
Brushed motors, brushless motors,stepper motors.




Bull head structure design
Solve the problem that the pump pipe is not firmly fixed during operation and is prone to wear and cracking.

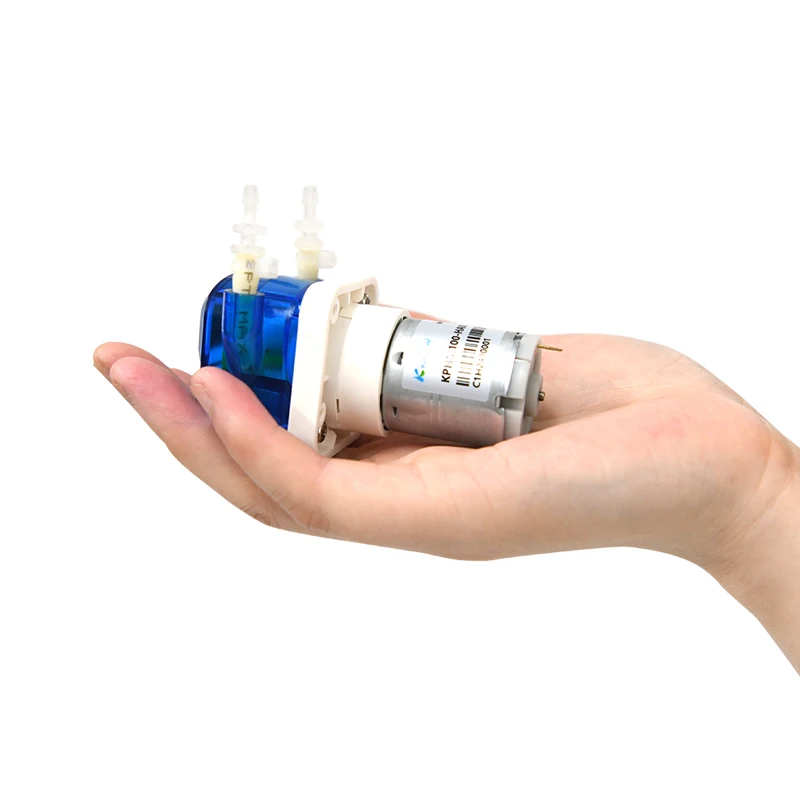

Compact size, only 8.4cm in length, easy to install.




Card pump head snap-on structure design, the pump in operation during the liquid only touch the pump tube.

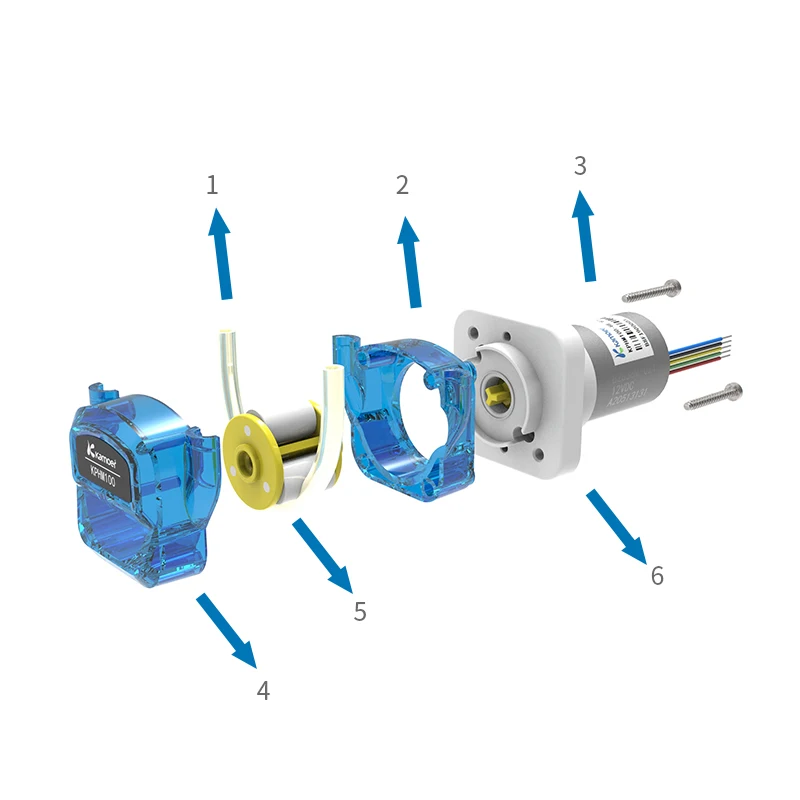

1.Imported BPT tube
2.Highly transparent PC plastic
3.Motor
4. High-transparent PC plastic
5. Rotor
6. Mounting plate


Powerful and superb value for money
Liquid pump air pump, Kamoer's good to use.

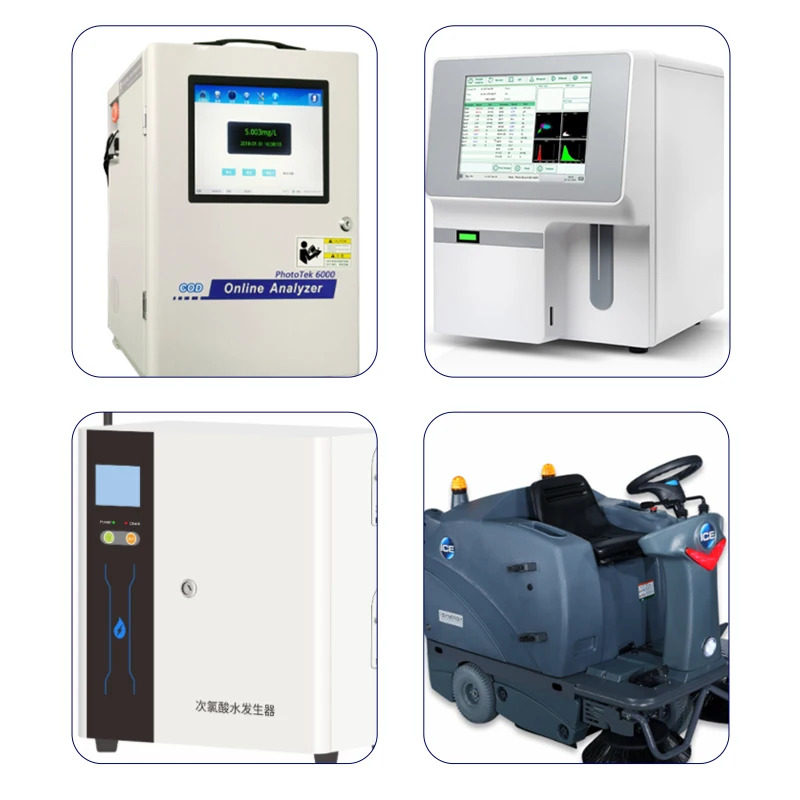

Applications




Water quality online analyzer
Blood analyzer
Hypochlorite generator
Large commercial sweeper

Pump pipe adopts imported BPT pipe
The following is the chemical compatibility table of BPT pipe.

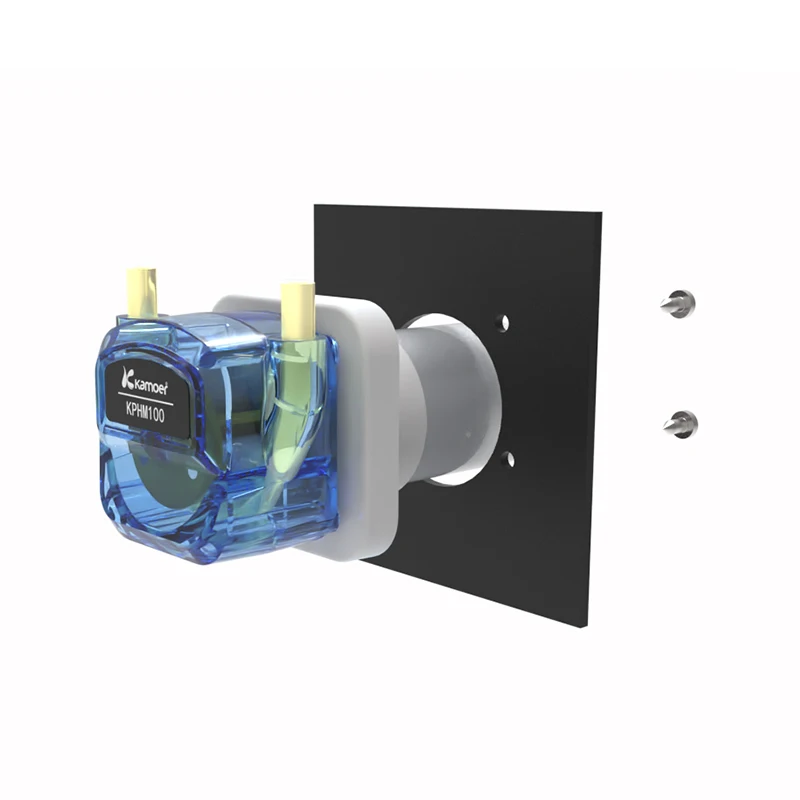

Diagram of Bulkhead Installation

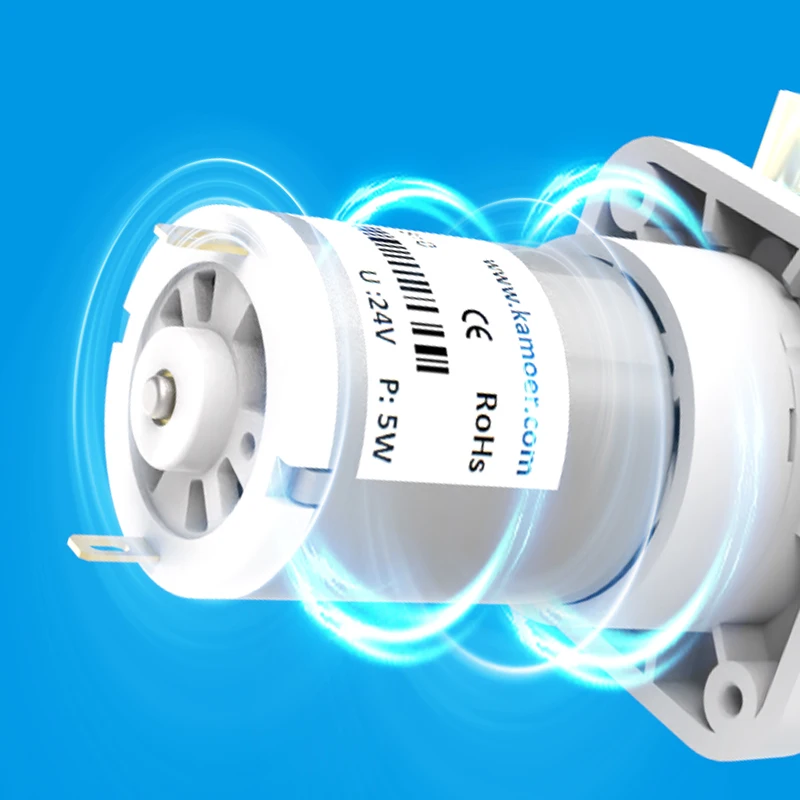

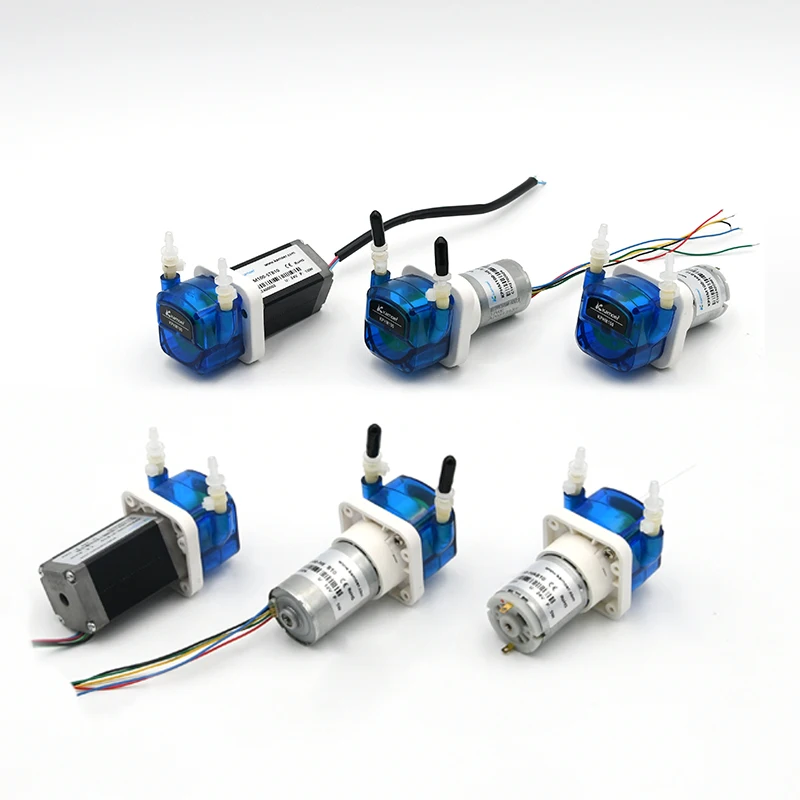

Three types of motors are available: brush motor, brushless motor, and stepper motor

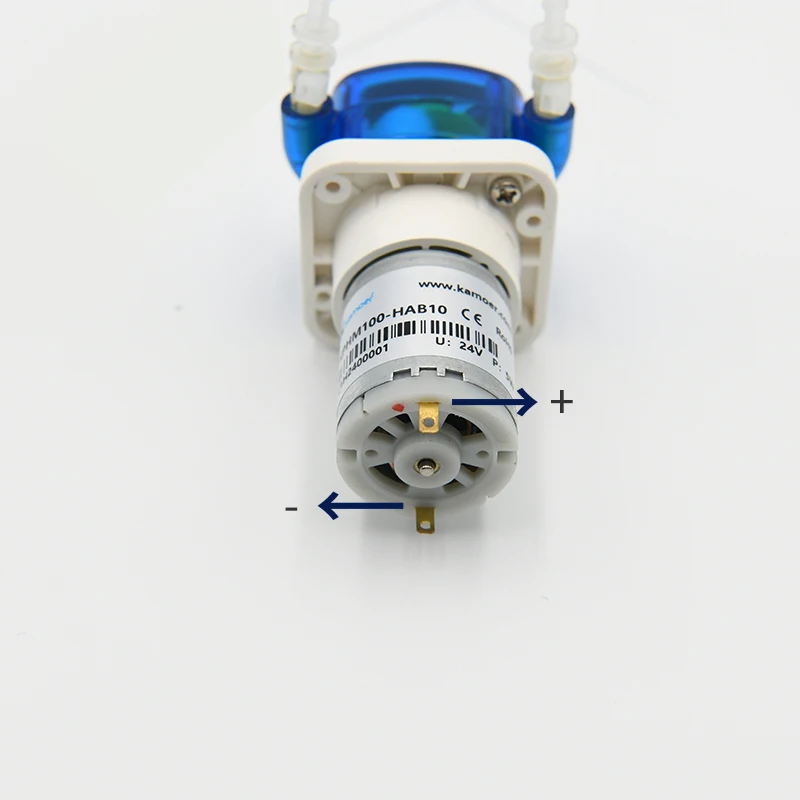

How to use DC brush motor: connect positive and negative pole

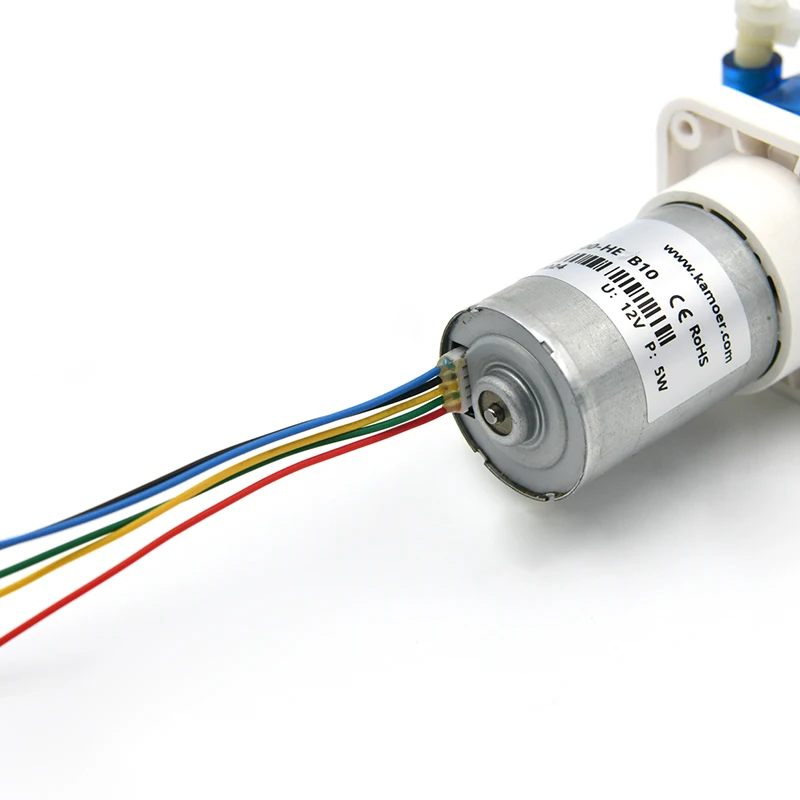

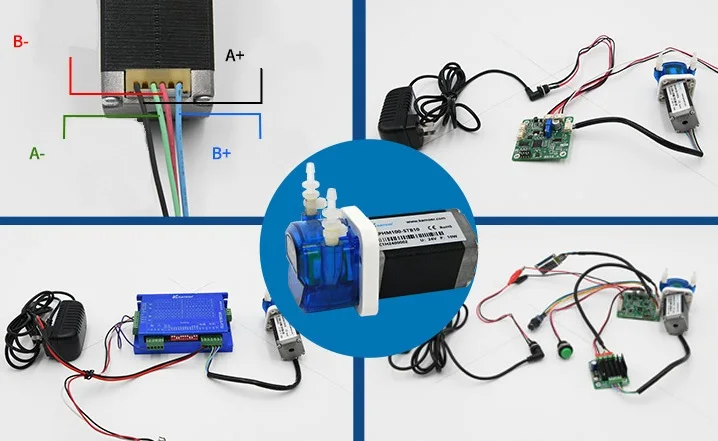

How to use brushless motor peristaltic pump
Black line:connect to negative pole
Red line:connect to positive pole
Yellow line: commutation port
Green wire:signal feedback
Blue wire:PWM speed control

1.Brushless wiring full speed operation
Red wire connects to positive pole, black+blue wire connects to negative pole.
2.PWM speed control board wiring
Red wire connects to positive pole, black wire connects to negative pole, blue wire connects to PWM speed control, yellow wire commutation interface, green wire signal feedback.





The stepper motor needs to be used with a speed control board. If you don't have one, you are welcome to buy it in our store

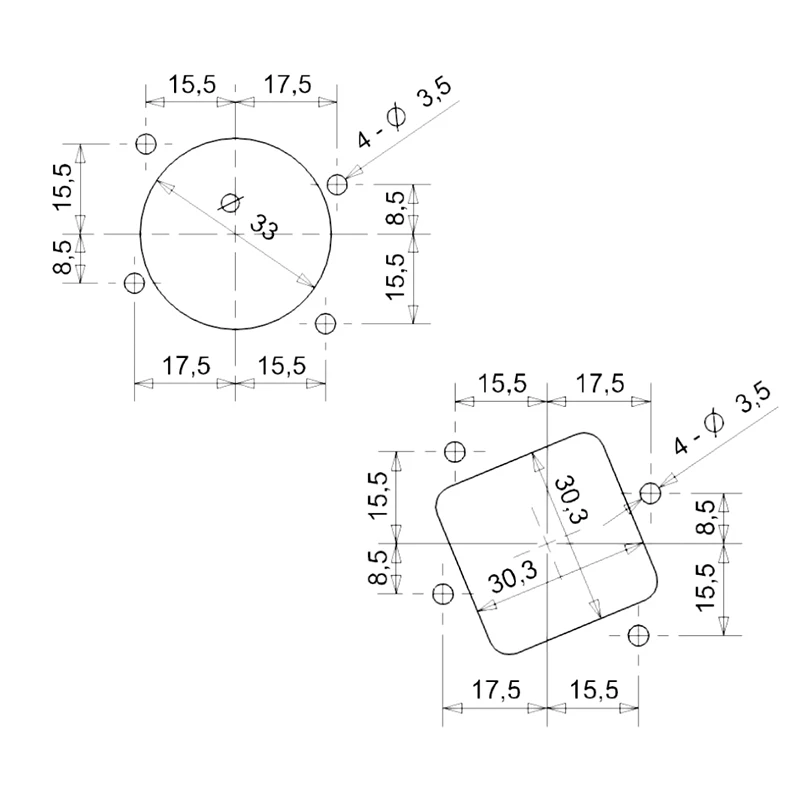

Hole size of DC mounting plate




Stepper type mounting plate opening size

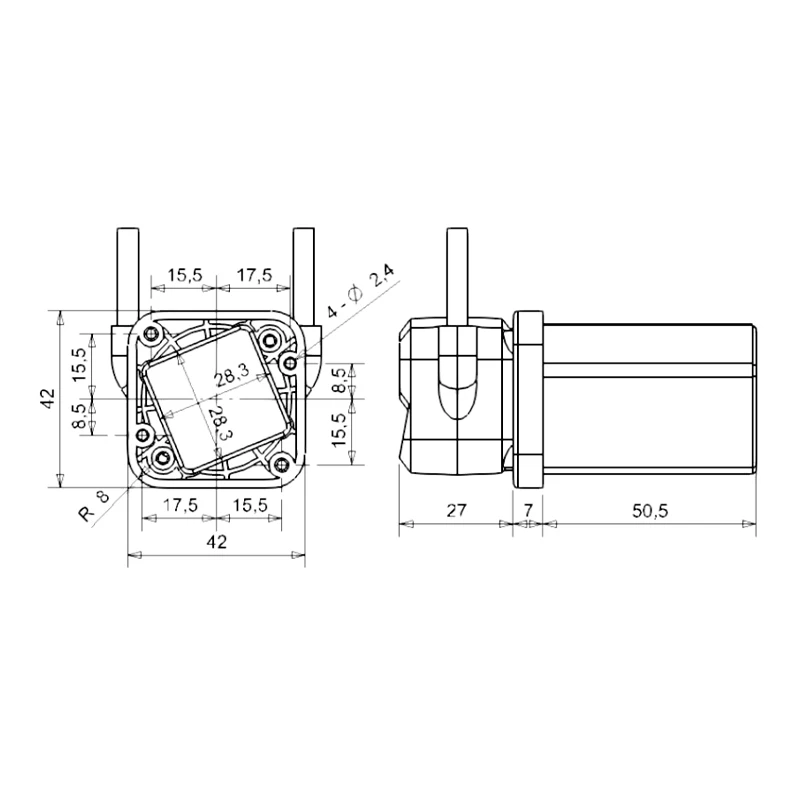

Dimensions

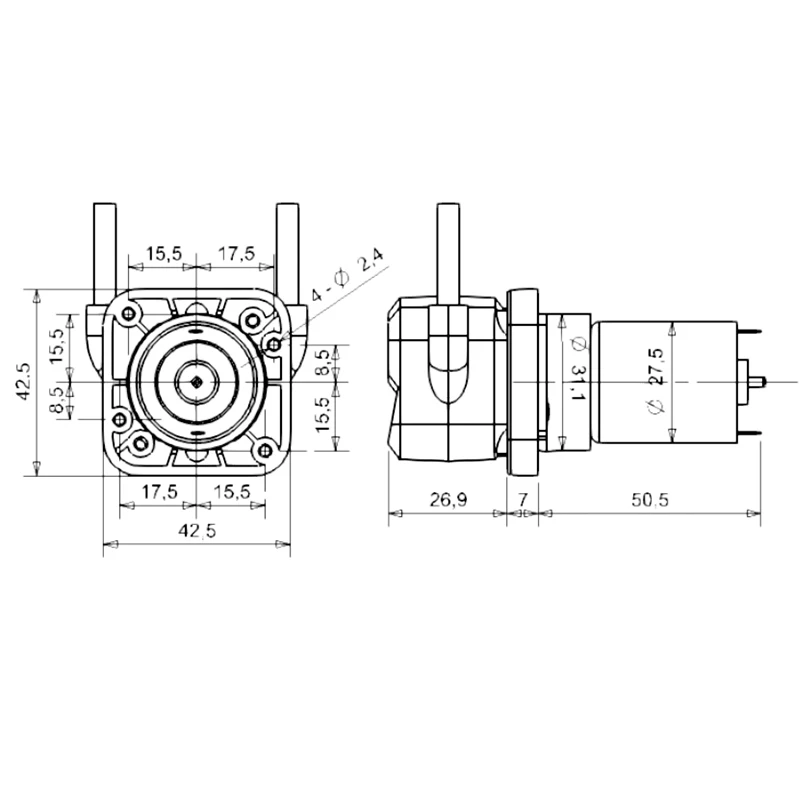

Dimensions
(brush motor with sheet metal bracket)

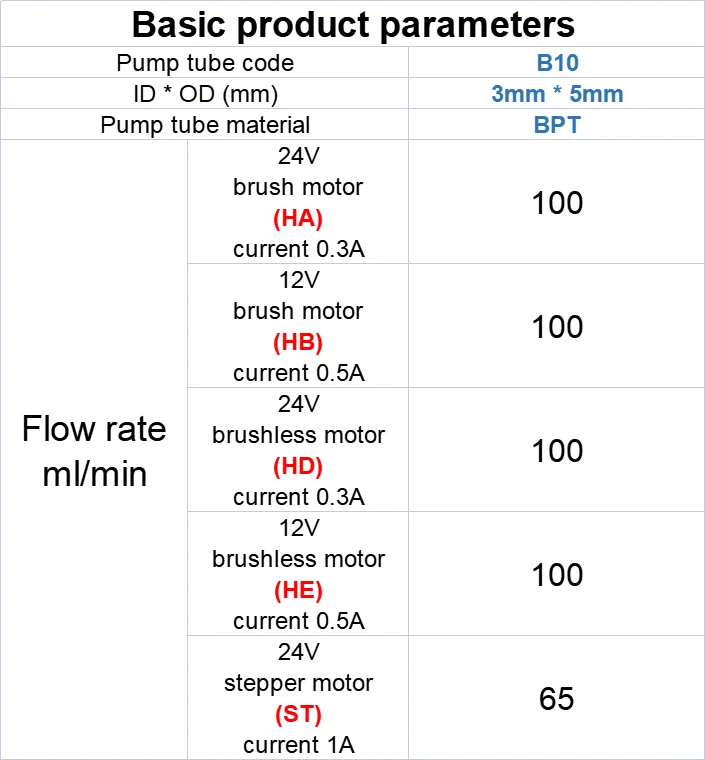

Specification


item
value
Warranty
1 year
Customized support
OEM
Brand Name
Kamoer
Model Number
KPHM100
Place of Origin
China
Shanghai
Application
Developing World Water Solutions, Drinking water treatment, Industrial Utilities, Mining industry, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
Horsepower
N/M
Power Source
Electric
Pressure
Low pressure
Structure
Peristaltic Pump
Cable Length
N/M
Outlet Size
N/M
Voltage
12V/24V
Power
N/M
Certification
RoHS, ce
Product name
KPHM100
Vlotage
12V/24V
Flow rate
100ml/min
Warranty
1 Year
Motor
Brushless motor/brush motor/stepper motor
Function
Water quality analyzer, sweeper, blood analyzer
Tube material
BPT tubing
Tube size
B10:3mm ID * 5mm OD
