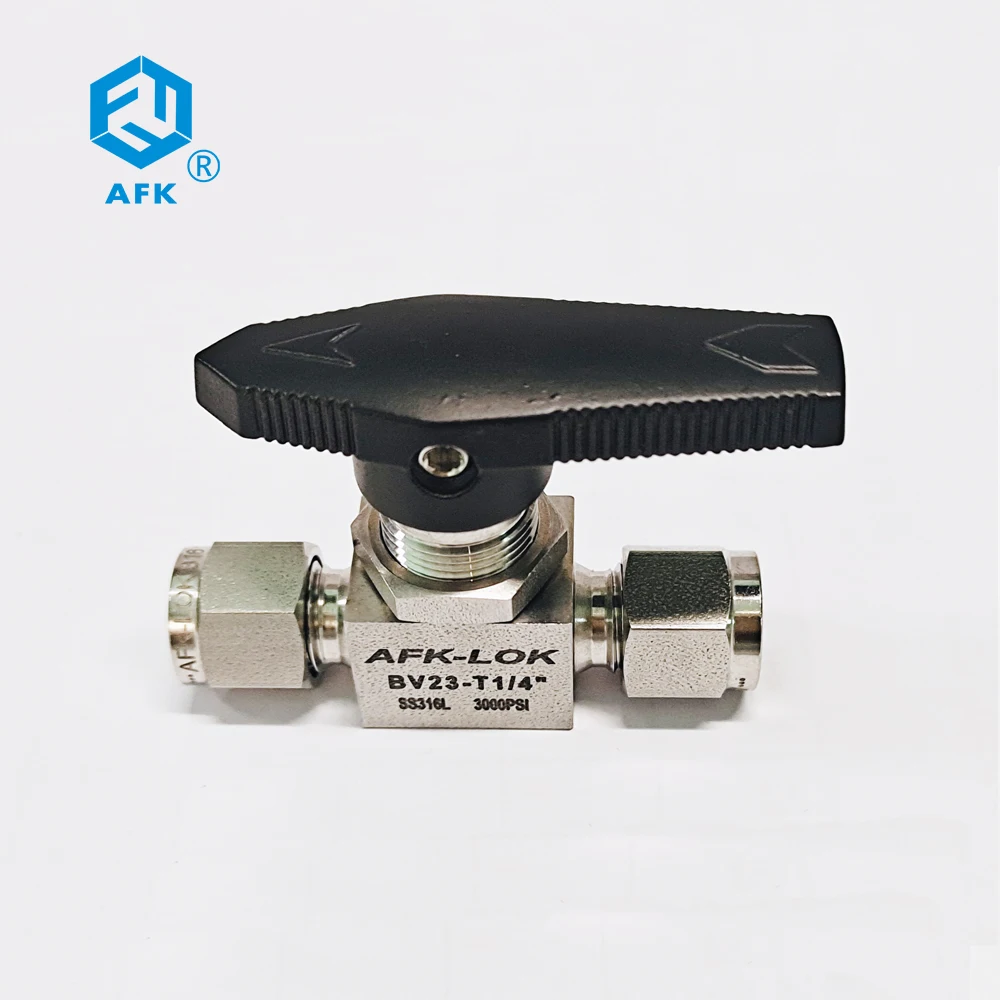

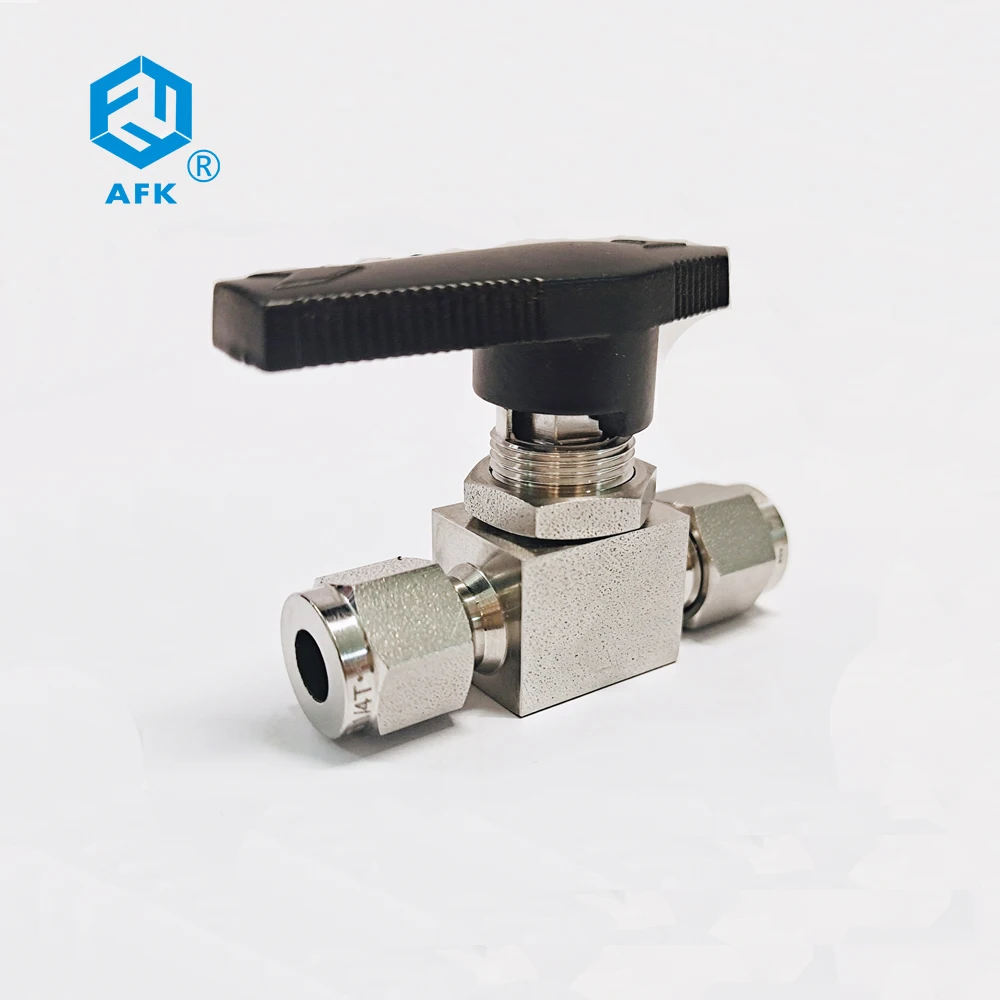

Characteristics of Ball Valve | ||||||||
1 | Black handle with arrow indicate flow direction as standard;metal handles for option | |||||||
2 | Packing bolt easy packing adjustment | |||||||
3 | Panel mountable | |||||||
4 | Bi-directional flow.micro-finished floating ball ensures leak proof shut off | |||||||
5 | End connection available with AFK tube end,BSPT or NPT female & male thread |
features of Ball Valve | ||||||||
1 | On/off service ball valve with 2 way pattern | |||||||
2 | diverter service ball valve with 3way pattern | |||||||
3 | body material in stainless steel SS316/316L | |||||||
4 | Max.allowed working pressure:50kg,3000psig,6000psig | |||||||
5 | with Fluororubber O-ring | |||||||
6 | 100% factory tested |
Material of Construction | ||||||
Item | Part Description | Qty. | Material | |||
1 | Handles | 1 | Nylon | |||
2 | Handles set screw | 1 | Chrom-plated steel | |||
3 | Stem | 1 | SS316/316L | |||
4 | Packing bolt | 1 | SS316/316L | |||
5 | Gland packing | 2 | TFM1600 | |||
6 | Stem o-ring | 1 | Fluororubber | |||
7 | panel nut | 1 | SS304 | |||
8 | Body | 1 | CF8M | |||
9 | Ball | 1 | SS316/316L | |||
10 | Seat | 2 | TFM1600 | |||
11 | Body O-ring | 2 | Fluororubber | |||
12 | end cap | 2 | SS316/316L |
Ordering Information | ||||||||||||||
C- | 3 | BVL- | S6 | 02 | A- | 5K | ||||||||
classification | product type | valve type | material | size(fractional) | size(metric) | connection type | Max.working pressure | |||||||
C:valve | 3:3PC | BVL:castig ball valve | S6:SS316 | 02:1/8" | 6:6mm | AFK:TUBE END | 5k:50kg | |||||||
04:1/4" | 8:8mm | MR:Male BSPT thread | ||||||||||||
06:3/8" | 10:10mm | FR:female BSPT thread | ||||||||||||
08:1/2" | 12:12mm | MN:Male NPT thread | ||||||||||||
012:3/4" | 14:14mm | MN:Female NPT thread | ||||||||||||
16:16mm | ||||||||||||||
18:18mm | ||||||||||||||
20:20mm | ||||||||||||||
22:22mm |
