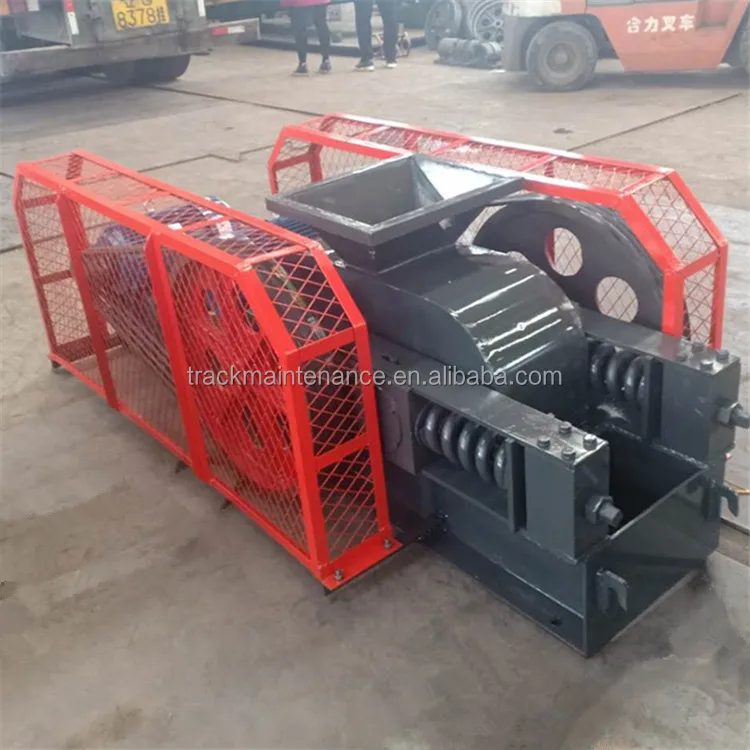

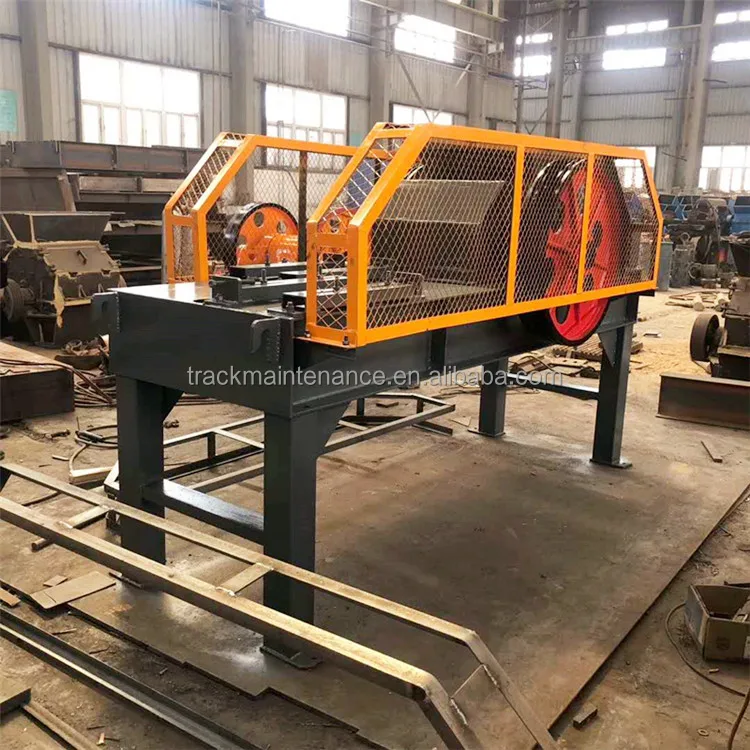

Top Quality Alumina Counter Pellets 4 Stage Toothed Clinker Custom 2 Roller Crusher Price Double Crusher
- Category: >>>
- Supplier: Henan Qiangli Machinery Co. Ltd.
Share on (1600458027902):
Product Overview
Description
Product Description

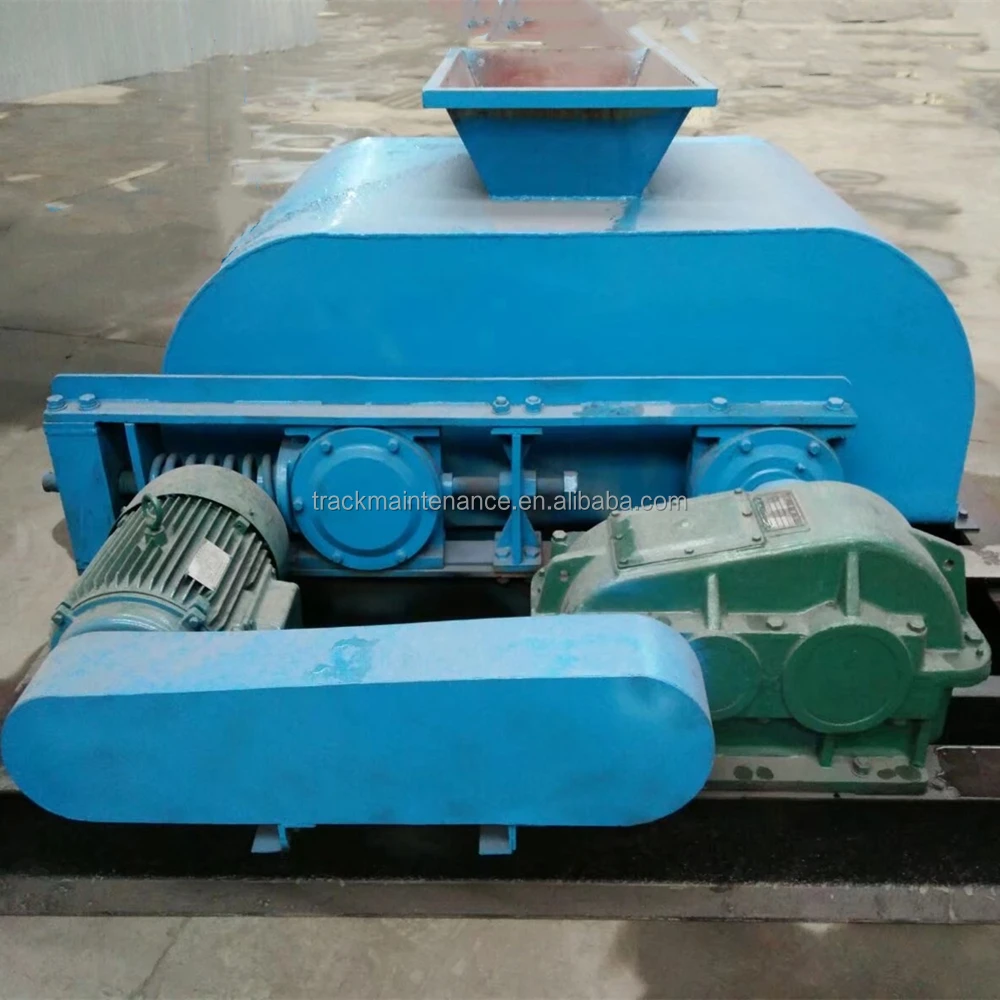

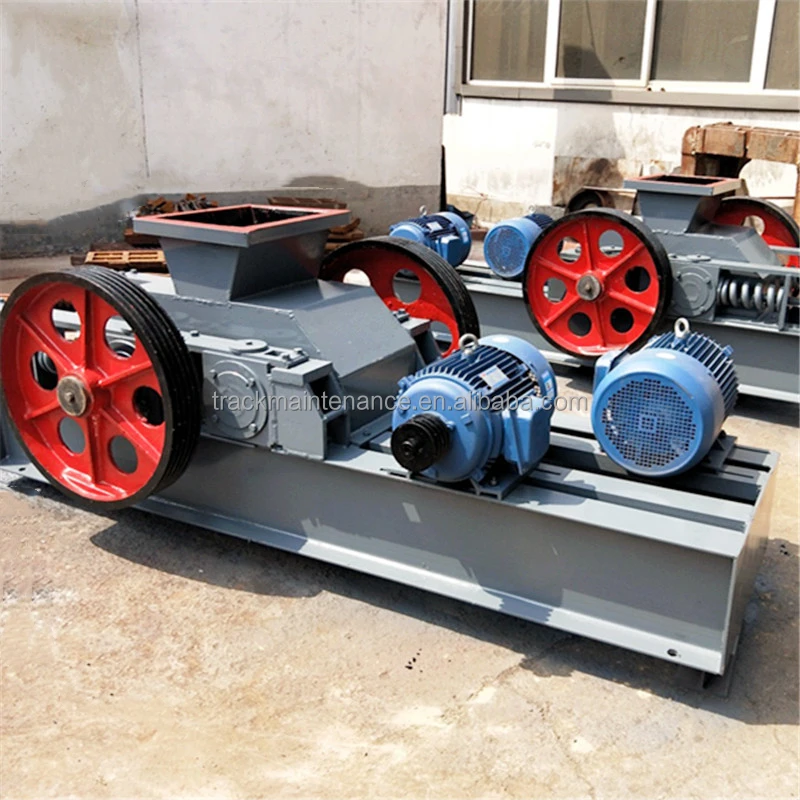

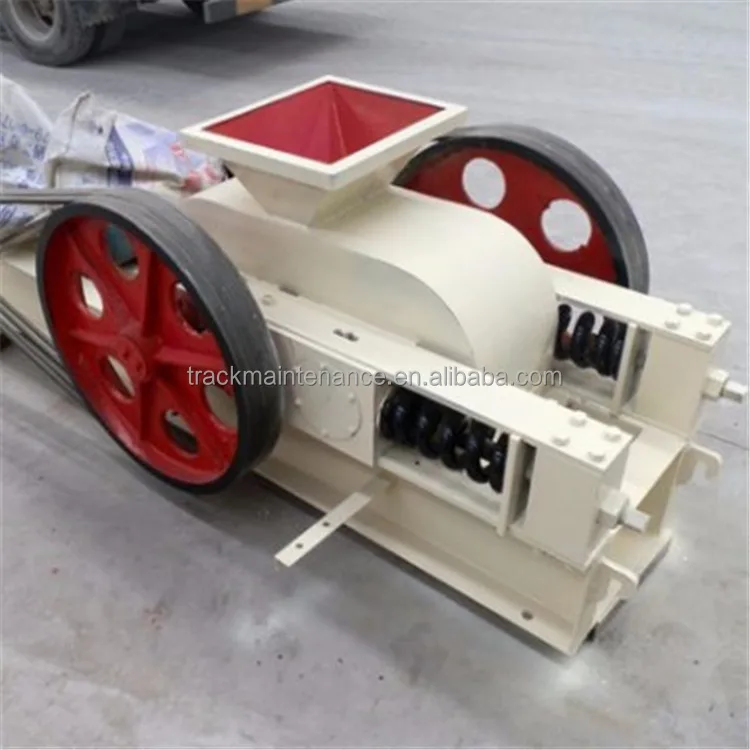

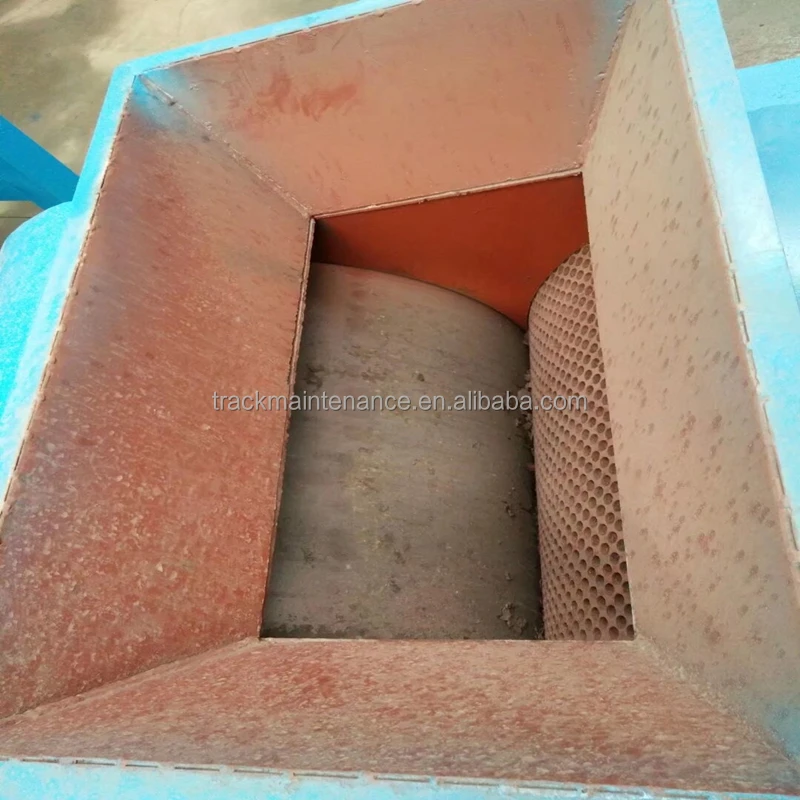

Double Roll Crusher is widely used for fine or superfine crushing in the industries of mining, construction materials,metallurgy and chemical industries. It can crush a wide variety of materials which are of a middle hardness or softer such as ore, rock, coke, coal, clinker, ceramic raw materials, slag, refractory materials and chemical materials. The Double Roll Crusher has an intrinsically simple design. The raw materials are fed into the crusher and fall into the V shape cavity created by the two side by side crushing rollers. The feed is then crushed into qualified sizes by the extruding and cutting force of the two counter-rotating rollers, and then discharged from the outlet. Due to the high velocity the rollers rotate at, the crushing mechanism is highly destructive and can crush large quantities of feed material very quickly.

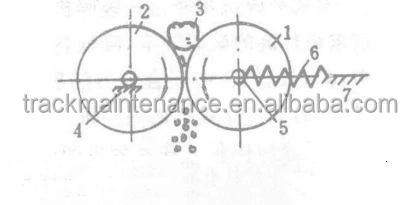

Working principle:

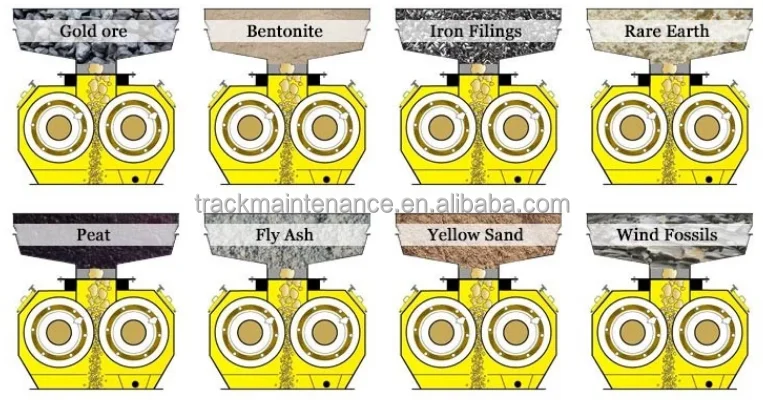

The particles are drawn into the gap between the rollers by their rotating motion and a friction angle formed between the rollers and the particle, called the nip angle. The two rollers force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rollers.
The particles are drawn into the gap between the rollers by their rotating motion and a friction angle formed between the rollers and the particle, called the nip angle. The two rollers force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rollers.
Specification
Model | Input Size（mm) | Output Size Adjustable(mm) | Capacity(T/h) | Power(KW) |
2PG0404 | 120 | 10-50 | 6-40 | 4×2 |
2PG0605 | 200 | 10-70 | 10-80 | 11×2 |
2PG0806 | 300 | 10-90 | 20-150 | 15×2 |
2PG1008 | 400 | 10-110 | 30-200 | 18.5×2 |
2PG0812 | 300 | 10-90 | 40-280 | 22×2 |
2PG1012 | 400 | 10-110 | 50-350 | 30×2 |
2PG1212 | 700 | 10-140 | 65-350 | 37×2 |
2PG1612 | 1000 | 10-180 | 80-600 | 75×2 |
2PG1618 | 1000 | 10-200 | 90-780 | 90×2 |
Application:
Double roller coal crusher (double teeth coal crusher) is widely used in middle and small sized mines for intermediate and fine crashing of the brittle and soft ores of intermediate hardness like coal and coke.
Double roller coal crusher (double teeth coal crusher) is widely used in middle and small sized mines for intermediate and fine crashing of the brittle and soft ores of intermediate hardness like coal and coke.
Suitable Material
River pebble, granite, basalt, iron ore, limestone, quartz, diabase, etc.
Application Field
Sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.

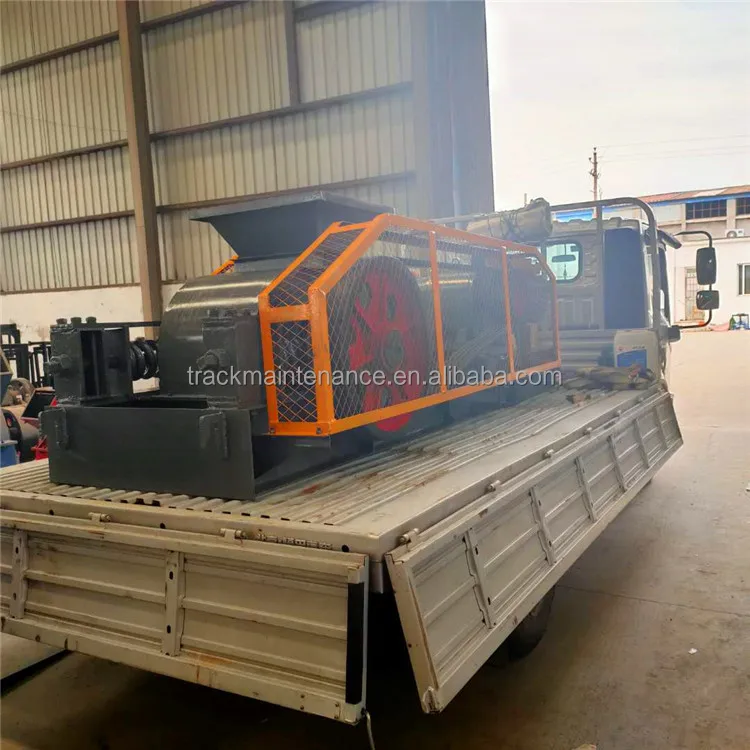

Packing & Delivery
Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
Shiping by sea/air freight
or any way the customer requires.
Company Profile
FAQ
Pre-sales service
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sales service
Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
After-sales service
To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
Lifelong service
One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
described or the promise before you place order, we promise 100% refund.
How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
