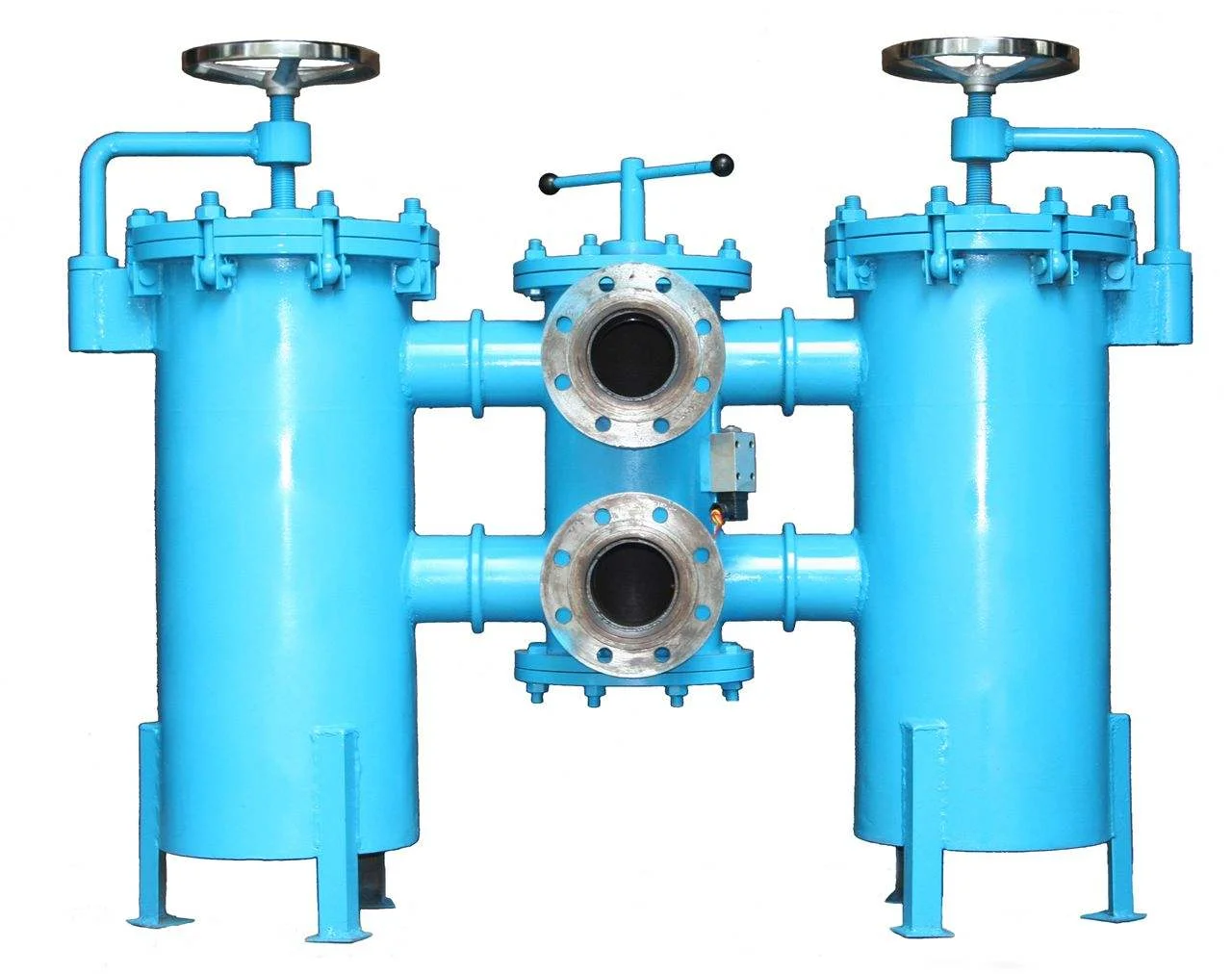

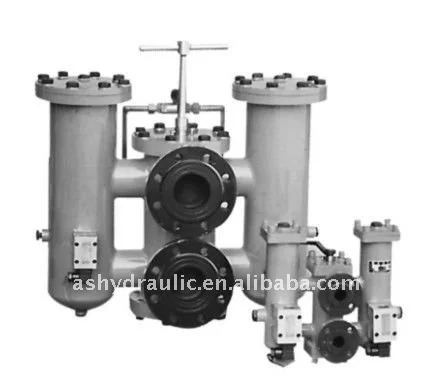

SRLF of SRLF 60,SRLF 110,SRLF 160,SRLF 240,SRLF 330,SRLF 500,SRLF 660,SRLF 850,SRLF 950,SRLF 1300 duplex return line oil filter
- Category: >>>
- Supplier: Xinxiang Xinping Filter Co. Ltd.
Share on (1600458044270):
Product Overview
Description
SRLF of SRLF-60,SRLF-110,SRLF-160,SRLF-240,SRLF-330,SRLF-500,SRLF-660,SRLF-850,SRLF-950,SRLF-1300 duplex cylinder return line
filters
1. The SRLF double-cylinder oil return line filter is composed of two single-cylinder filters and two-position six-way directional
valves
2. It has a simple structure and is easy to use
3. It has a bypass valve and a filter element to block the transmitter to achieve system safety
4. Its working feature is that when one filter element is clogged and needs to be replaced, there is no need to stop the host
machine. Just open the pressure balance valve and turn the directional valve, the other filter 9p can participate in the work, and
then replace the blocked filter element
5. The filter is widely used in hydraulic systems such as heavy machinery, mining machinery, metallurgical machinery and so on
6. Very competitive price and fast delivery time
7. Imported filtration materials
8. 1 year of warranty
filters
1. The SRLF double-cylinder oil return line filter is composed of two single-cylinder filters and two-position six-way directional
valves
2. It has a simple structure and is easy to use
3. It has a bypass valve and a filter element to block the transmitter to achieve system safety
4. Its working feature is that when one filter element is clogged and needs to be replaced, there is no need to stop the host
machine. Just open the pressure balance valve and turn the directional valve, the other filter 9p can participate in the work, and
then replace the blocked filter element
5. The filter is widely used in hydraulic systems such as heavy machinery, mining machinery, metallurgical machinery and so on
6. Very competitive price and fast delivery time
7. Imported filtration materials
8. 1 year of warranty

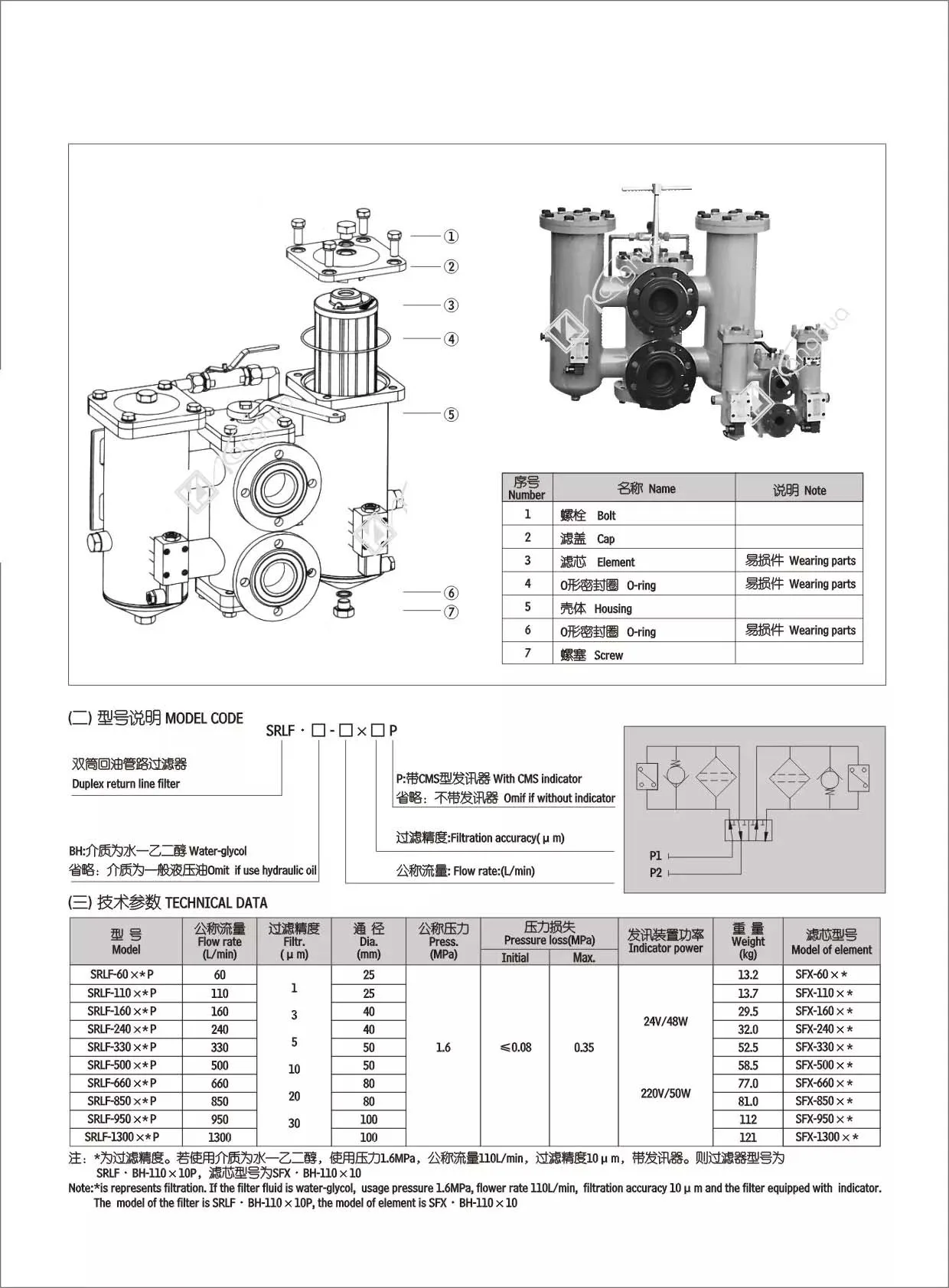

Product Paramenters
Model | Nominal flow(L/min) | Nominal size(mm) | Filtration accuracy(μm) | Nominal pressure(MPa) | Pressure loss(MPa) | Sender device | Weight | Filter element model | ||
Initial | Max | Contact rated power(V/W) | (kg) | |||||||
SRLF-60×*P | 60 | 25 | 1 | 1.6 | ≤0.08 | 0.35 | 24/48 220/50 | 13.2 | SFX-60×* | |
SRLF-110×*P | 110 | 25 | 3 | 13.7 | SFX-110×* | |||||
SRLF-160×*P | 160 | 40 | 5 | 29.5 | SFX-160×* | |||||
SRLF-240×*P | 240 | 40 | 10 | 32 | SFX-240×* | |||||
SRLF-330×*P | 330 | 50 | 20 | 52.5 | SFX-330×* | |||||
SRLF-500×*P | 500 | 50 | 30 | 58.5 | SFX-500×* | |||||
SRLF-660×*P | 660 | 80 | 40 | 77 | SFX-660×* | |||||
SRLF-850×*P | 850 | 80 | 81 | SFX-850×* | ||||||
SRLF-950×*P | 950 | 100 | 112 | SFX-950×* | ||||||
SRLF-1300×*P | 1300 | 100 | 121 | SFX-1300×* | ||||||
Note: * is the filtration accuracy. If the medium used is water-glycol, with a transmitter. The filter model is SRLF · BH-110X *
P, and the filter element model is SFX · BH-110X *.
P, and the filter element model is SFX · BH-110X *.
