50 kOhm Transformer DC Winding Resistance Tester Digital Milliohm Meter Low Resistance Milli Ohm Meter Ohmmeter
- Category: Testing Equipment >>>
- Supplier: Weshine,Electric,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Discount Benefits
Products Description
Transformer insulation resistance deterioration is one of the most common causes of transformer failure: a failing transformer is a costly replacement in an electrical system with the potential for a long downtime. If you fail to maintain your transformer with regular insulation resistance testing (as can be carried out by the Weshine Transformer Ohmmeter (VS-3110 series) of transformer test equipment) then it’s likely to fail before reaching its maximum operating life.
By measuring a transformer's winding resistance from one HV transformer bushing to another, transformer resistance testing can reveal a great deal of information about the transformer. In addition to the obvious faulted transformer winding (i.e., an open winding or shorted turn), subtler problems can be detected. The DC current, in addition to flowing through the winding, also flows through the off-load ratio adjusting switch (DETC), the on-load ratio adjusting switch (on load tap changer or OLTC), as well as numerous welded and mechanical connections. Hence, the integrity of all these components can be verified with the use of transformer resistance test instruments. Applying DC test current through OLTC switches under transition (tap changes) validates proper make-before-break operation. From experience, it is known that the on load time changer has the greatest risk of misoperation as it operates within a transformer.
By measuring a transformer's winding resistance from one HV transformer bushing to another, transformer resistance testing can reveal a great deal of information about the transformer. In addition to the obvious faulted transformer winding (i.e., an open winding or shorted turn), subtler problems can be detected. The DC current, in addition to flowing through the winding, also flows through the off-load ratio adjusting switch (DETC), the on-load ratio adjusting switch (on load tap changer or OLTC), as well as numerous welded and mechanical connections. Hence, the integrity of all these components can be verified with the use of transformer resistance test instruments. Applying DC test current through OLTC switches under transition (tap changes) validates proper make-before-break operation. From experience, it is known that the on load time changer has the greatest risk of misoperation as it operates within a transformer.
For further information on Weshine's Service Solutions, contact our 24/7 online sales representative on alibaba.com or you may
PRODUCT INFORMATION | ||||||
Product Name | 10 A TRANSFORMER WINDING RESISTANCE TESTER | |||||
Test Range | 200 μΩ ~ 50 kΩ | Output Current | 10 A | |||
Power Supply | AC220 V | Accuracy | 0.2% | |||
Resolution | 0.0001 μΩ | Certificates | CE; EMC; LVD; ISO; IEC; | |||
Dimensions | 330 x 250 x 150 mm | Model Number | VS-3110 | |||
For further information on Weshine's Service Solutions, contact our 24/7 online sales representative on alibaba.com or you may
Recommend Products
VS-3102S

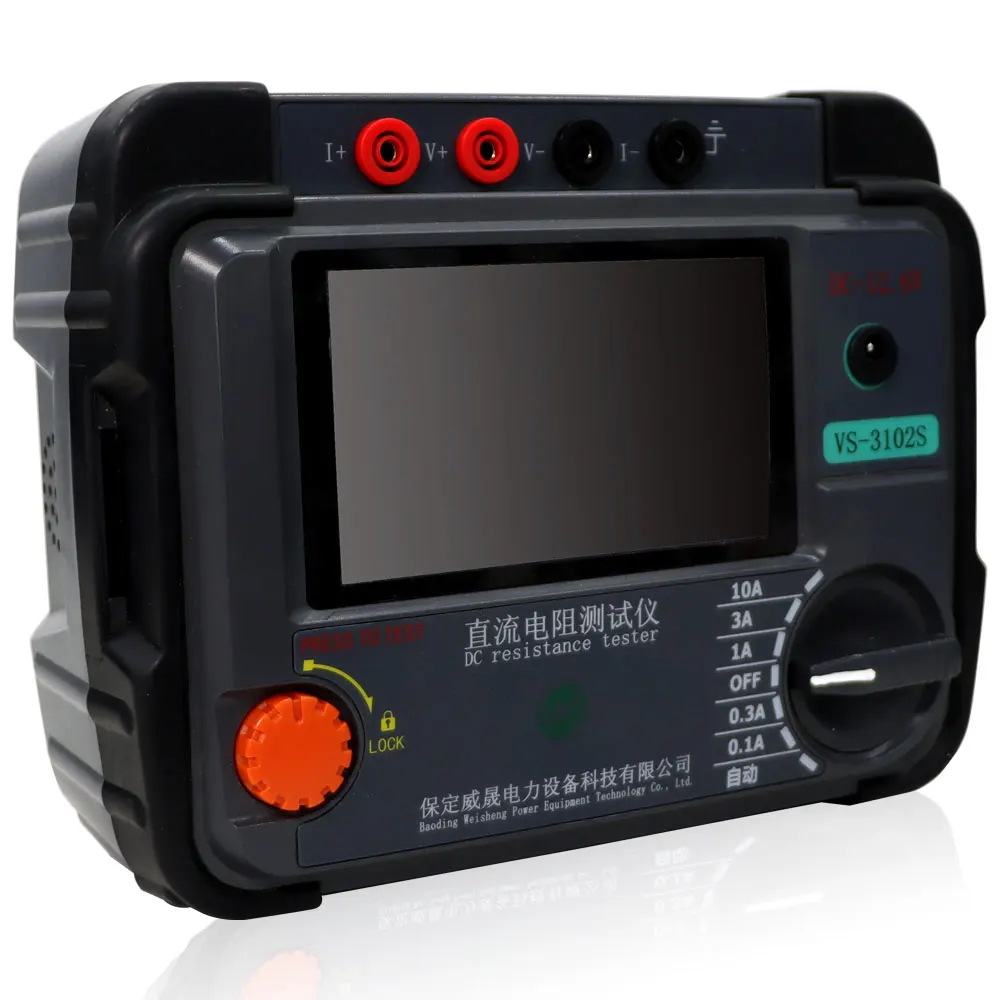

HANDHELD 10A DC RESISTANCE TESTER
* Entry level Transformer Ohmmeter
* Insulating resin shell, lighter and better
* 200 μΩ to 50000 Ω
* Max 10 A current output
* ±0.2% measurement accuracy
* Back EMF protection function
* Multimeter type operation, intuitive and fast
VS-3102A
HANDHELD 10A DC RESISTANCE TESTER
* Entry level Transformer Ohmmeter
* Metal shell with insulation paint, true rugged
* 200 μΩ to 50000 Ω
* Max 10 A current output
* ±0.2% measurement accuracy
* Back EMF protection function
* Multimeter type operation, intuitive and fast
VS-3110 SERIES
DC RESISTANCE TESTER
* Entry level Transformer Ohmmeter
* DC test current up to 50 A maximum
* 50 μΩ to 50 kΩ, wider measuring range
* ±0.2% measurement accuracy
* Back EMF protection function
VS-3310A SERIES
SIX-WINDING DC RESISTANCE TESTER
* Automated 6-winding measurement
* Simultaneous winding magnetization
* Built-in auto-demagnetization feature
* 10 A to 40 A, 500 μΩ to 500 Ω
* ±0.2% measurement accuracy
* Back EMF protection function
VS-6309 SERIES
SHORT CIRCUIT IMPEDANCE TESTER
* Measures the short circuit impedance of transformers
* Capable of performing measurements in single- or three-phase transformers
* Optional load test and no-load test
VS-6528 SERIES
ON-LOAD TAP-CHANGER TESTER
* DC 1 A or 2 A output current
* Optional AC output, behave in a real state
Measurement parameters:
* Switch sequence timing* Transition resistor measurement
* Graphic display transition ripples
VS-6628 SERIES
TURNS RATIO TESTER
* Single- or 3-phase turns ratio
* Polarity and phase angle deviation
* Unmatched accuracy (±0.1%)
Its aids in identifying:
* Shorted coils
* Open circuits
* Incorrect connections
* Internal faults or tap-changer defects in step regulators as well as in transformers
* Open circuits
* Incorrect connections
* Internal faults or tap-changer defects in step regulators as well as in transformers
