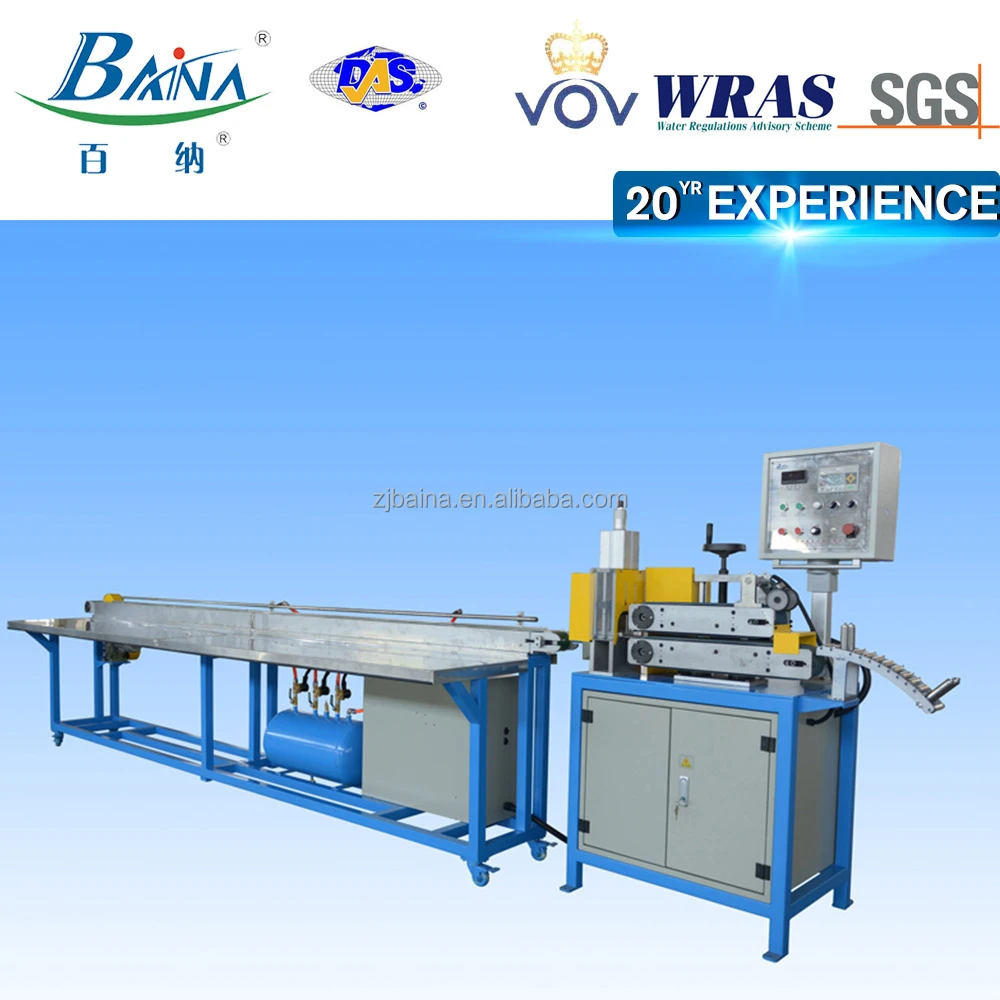

after sales service rubber extruder production line extrusion machine
- Category: >>>
- Supplier: Zhejiang Baina Rubber & Plastic Equipment Co. Ltd.
Share on (1600458370185):
Product Overview
Description
Product Description

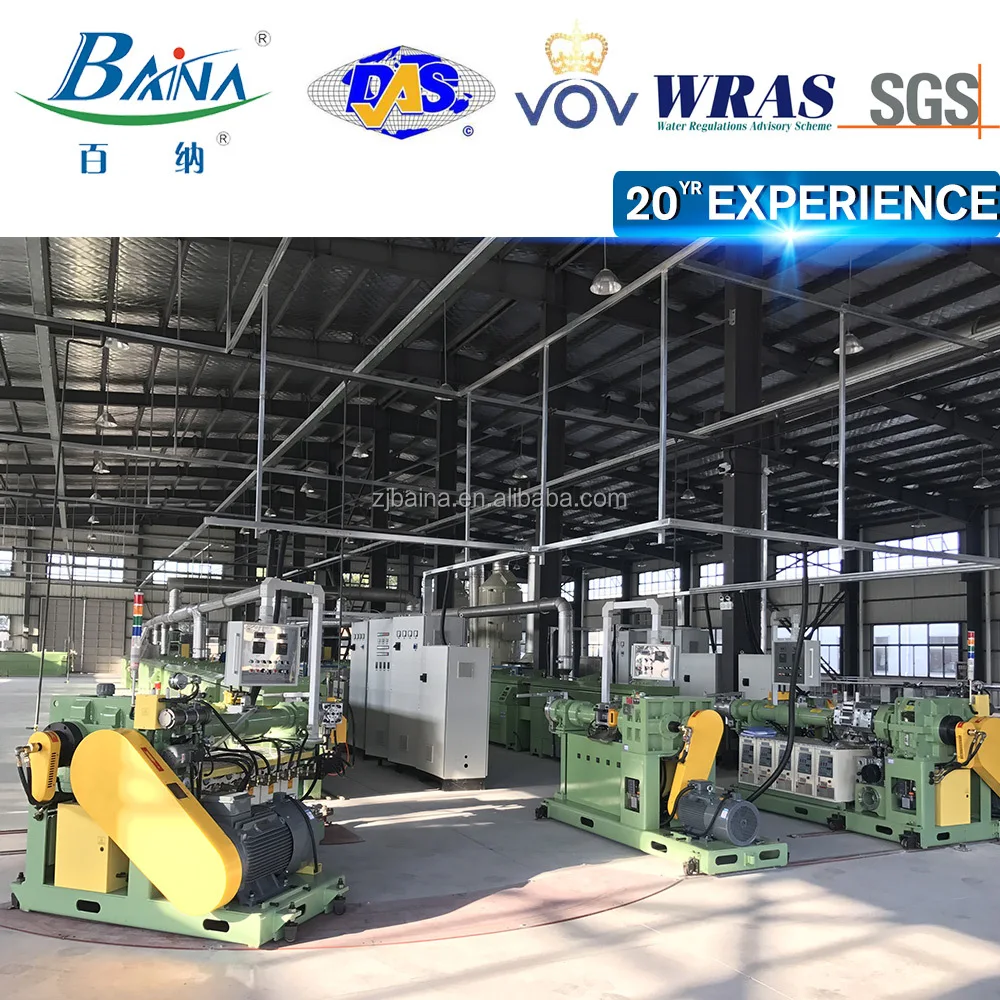

Perfect after-sales service rubber extruder production line extrusion machine
Parameter

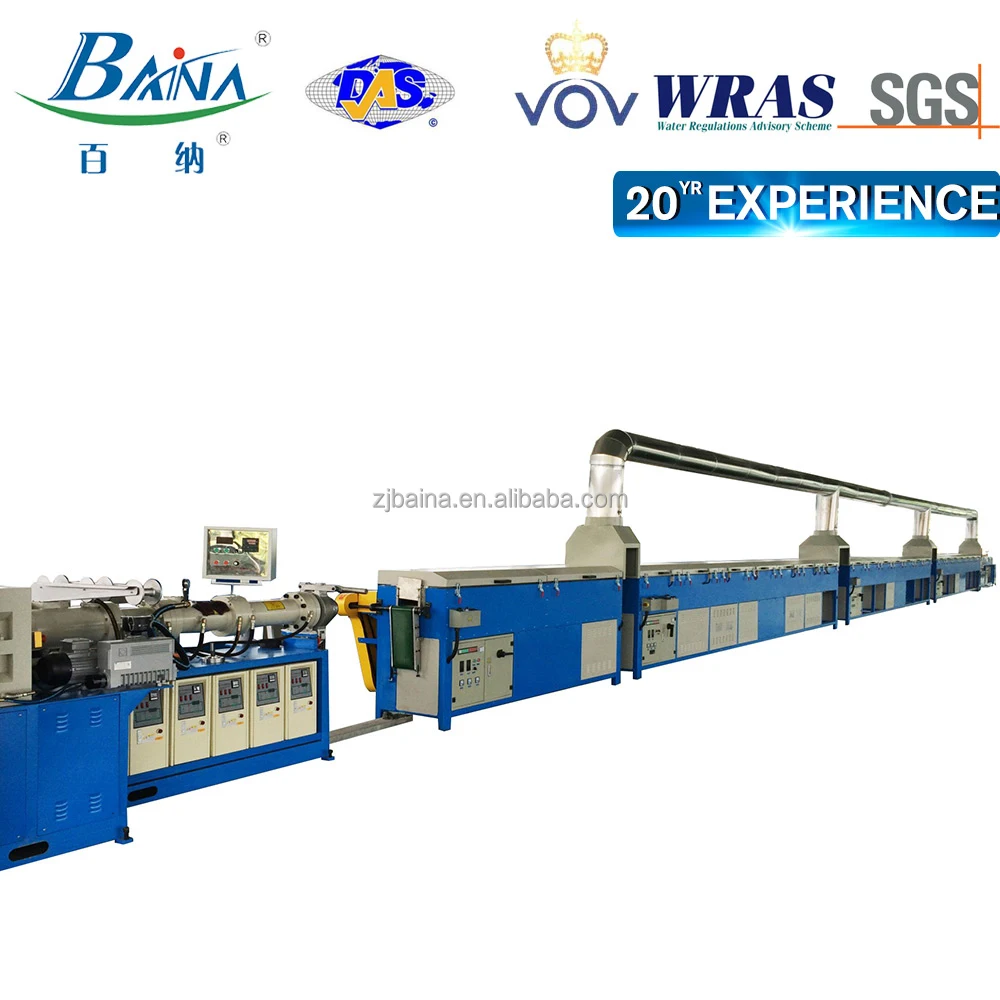

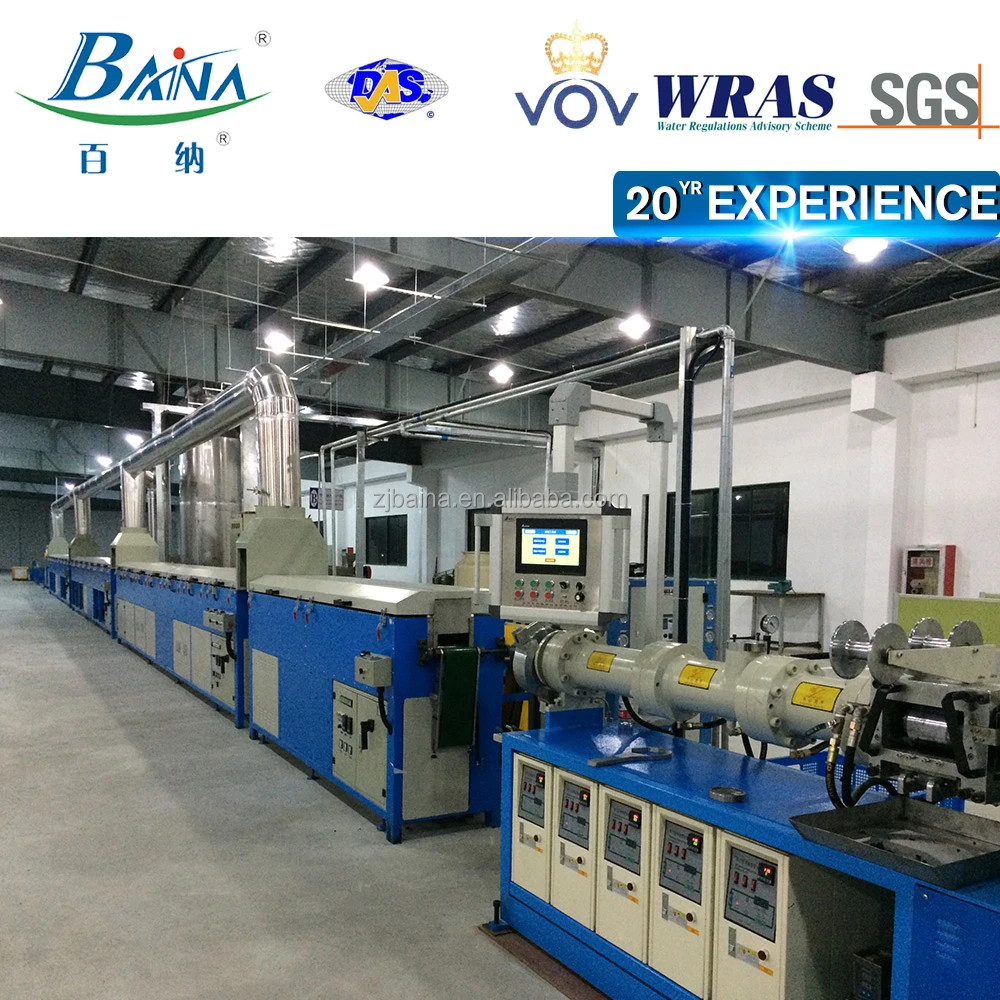

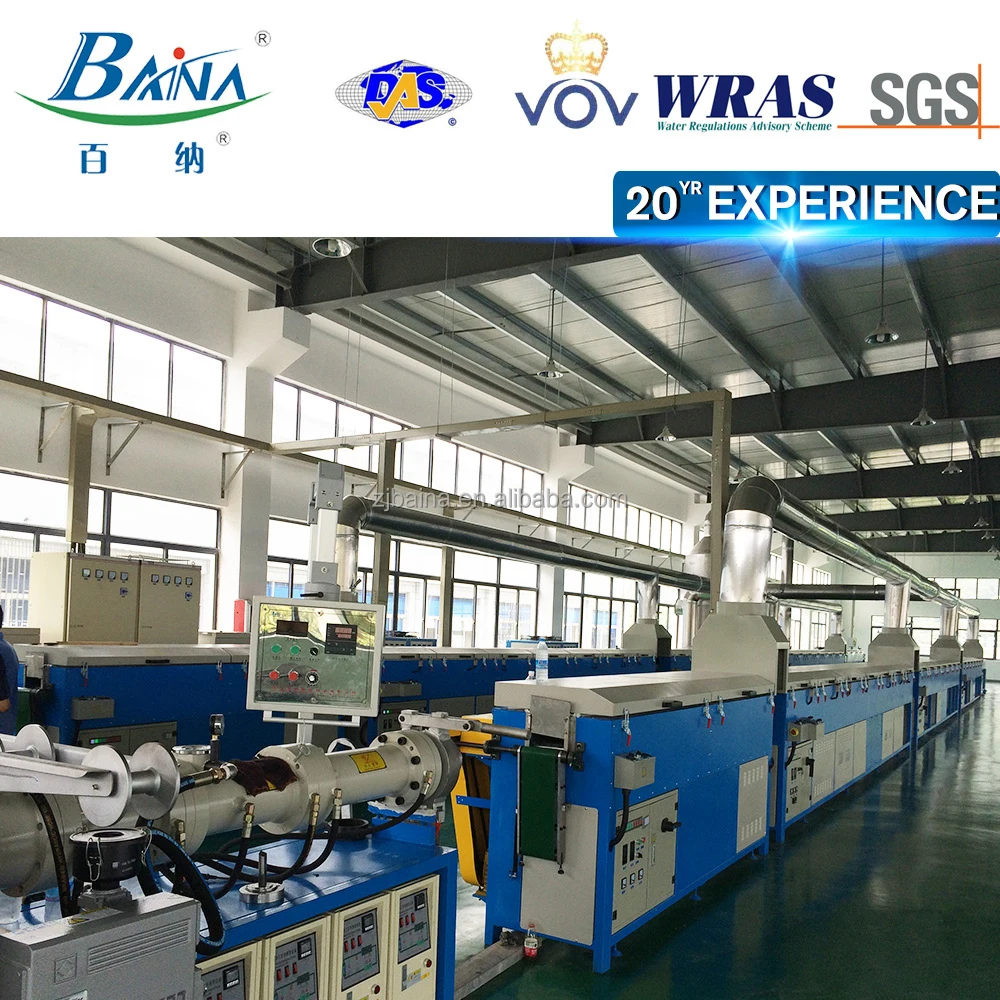

Our production line has the model:
| Item | Quantity (set) |
| 1. 90 mm cold feed vacuum extruder+ Standard head | 1 |
| 2. 3 M high-temperature forming machine | 1 |
| 3. 8.9 m 12KW microwave vulcanization oven | 1 |
| 4. 8.9 M Hot air vulcanization oven | 2 |

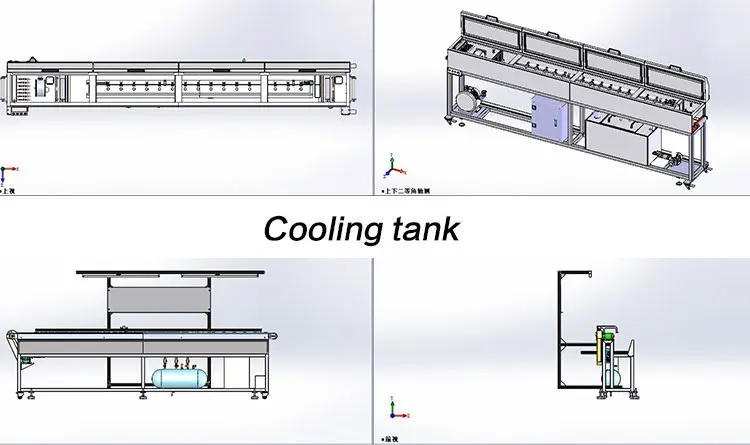

| 5. 4 m Cooling water tank with drying | 1 |
| 6. Traction machine | 1 |
| 7. 16 P Chiller | 1 |
| 8. PLC control | 1 |
Various types of basic parameters:
| Item | Diameter of screw (mm) | L/D ratio | Speed of screw (r/min) | Driving power (KW) | Max output of production (kg/h) | Weight (kg) |
150mm 20D (vacuum) | 150 | 20:1 | 0-45 | 160 | 1000 | 6500 |
| 150mm 16D | 150 | 16:1 | 0-45 | 132 | 800 | 6500 |
120mm 20D (vacuum) | 120 | 20:1 | 0-50 | 110 | 700 | 5200 |
| 120mm 16D | 120 | 16:1 | 0-50 | 110 | 600 | 5200 |
90mm 20D (vacuum) | 90 | 20:1 | 0-55 | 55 | 320 | 3200 |
| 90mm 16D | 90 | 16:1 | 0-55 | 55 | 280 | 3200 |
75mm 20D (vacuum) | 75 | 20:1 | 0-55 | 37 | 160 | 1200 |
| 75mm 16D | 75 | 16:1 | 0-55 | 37 | 140 | 1200 |
| 50mm 12D | 50 | 12:1 | 2-70 | 7.5 | 50 | 600 |
