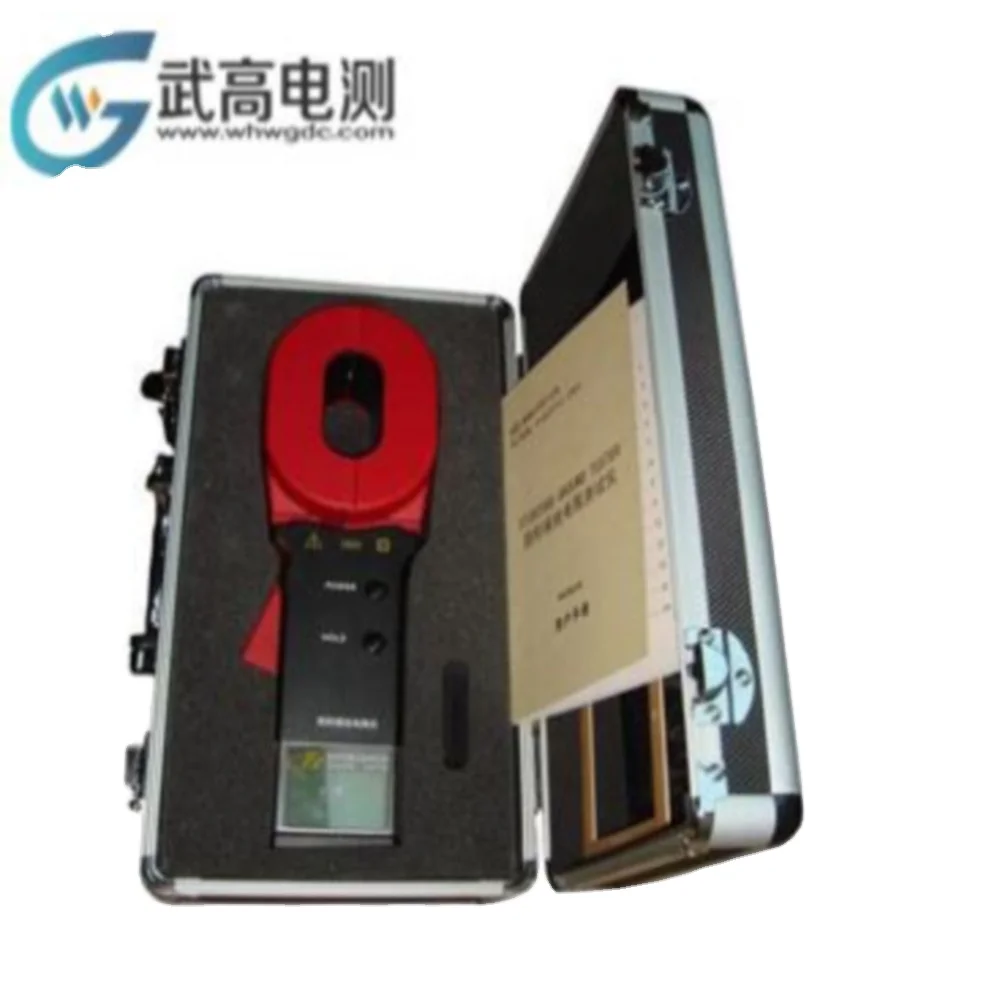

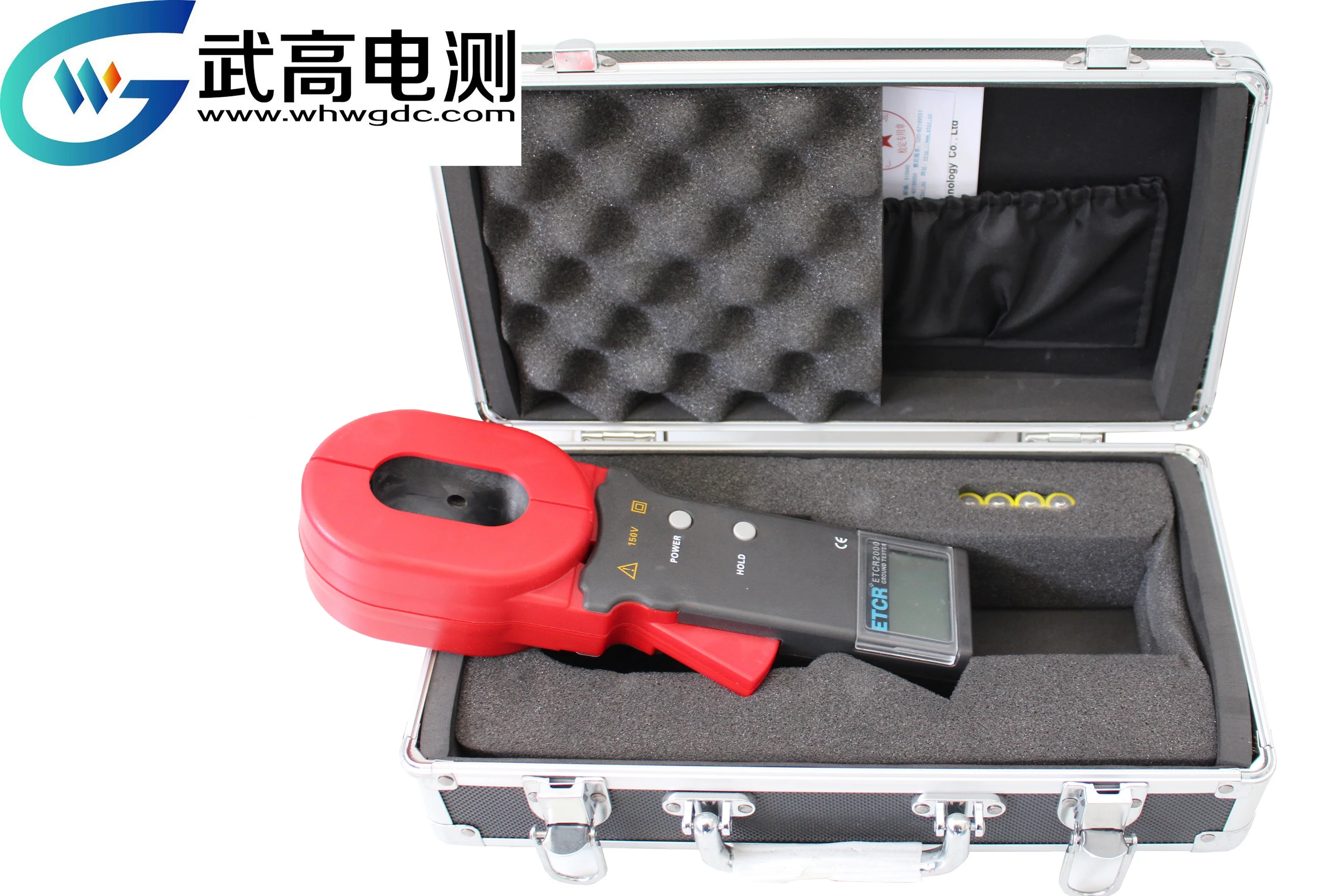

WDCR2000 Portable clamp earth resistance tester
- Category: Resistance Meters >>>
- Supplier: Wuhan Wugao Electric Measurement Co. Ltd.
Share on (1600458396622):
Product Overview
Description
Product Overview

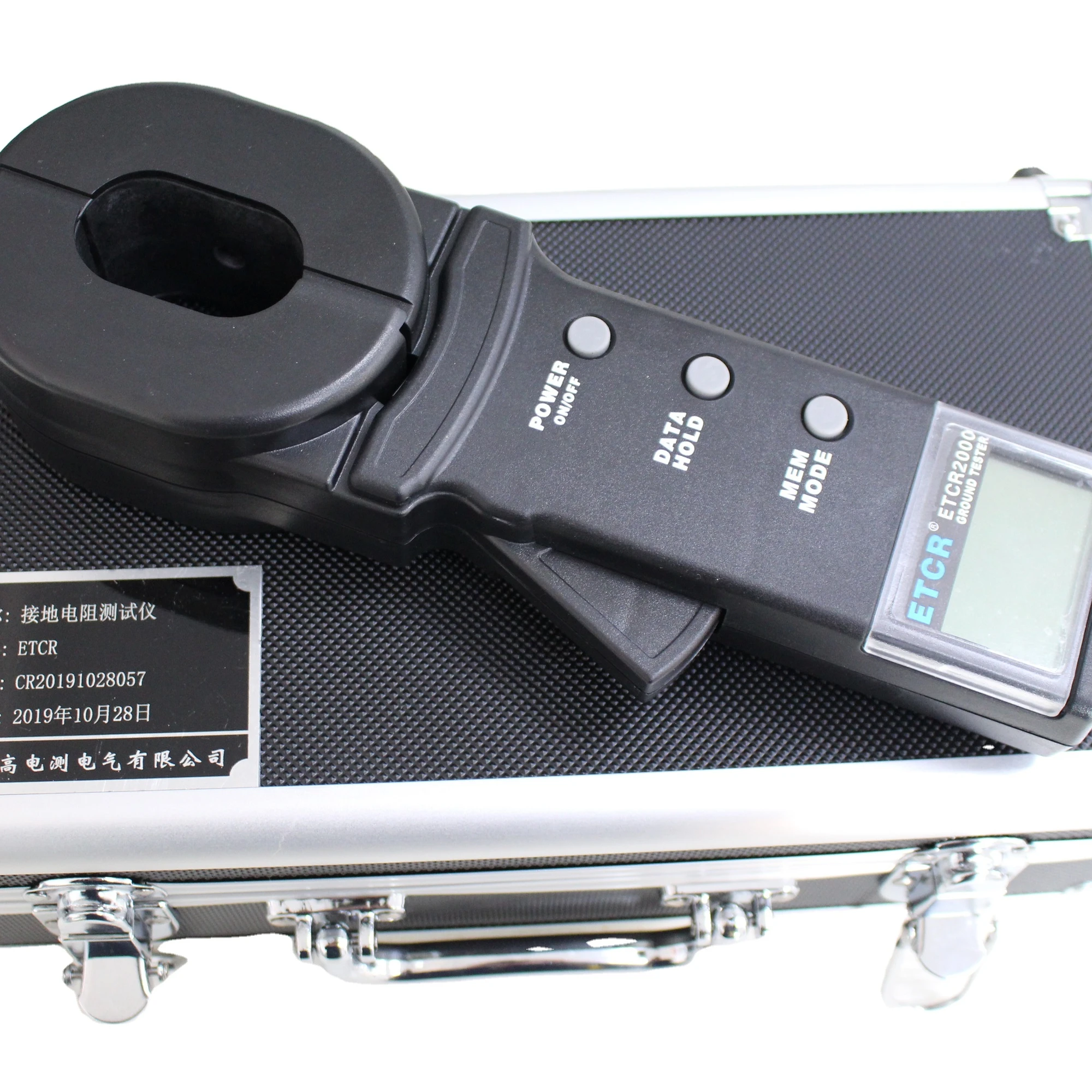

ETCR2000 clamp earth resistance tester
ETCR2000 is mainly used for measuring grounding resistance of electric power, telecommunication, meteorological and other electrical equipment. The measurement principles used in ETCR2000 have been used successfully for many years. When using this method, no auxiliary electrode is used and there is no pole error. When the tests were repeated, the results were very consistent. The result of the comparison test between ETCR2000 and the traditional voltage and current method shows that it can replace the traditional grounding resistance measurement method and measure the grounding resistance accurately. In practical application, ETCR2000 clamp earth resistance meter in all walks of life, a variety of different use environment has been recognized by the majority of customers.
Products Description
ETCR2000 grounding resistance tester features
1, simple operation:
With ETCR2000, you can read the grounding resistance value from the LCD screen by wrapping the tongs of the tongs around the measured grounding wire. However, the traditional voltage and current measurement method must separate the grounding wire from the grounding system and drive the voltage and current poles into the soil as auxiliary electrodes according to the specified distance.
2, accurate measurement:
The accuracy of the traditional voltage and current measurement method depends on the position between the auxiliary electrodes and their relative position with the grounding body. In addition, the heterogeneity of soil resistivity between the voltage and current poles and the grounding body will affect the measurement results. If the position of the auxiliary electrode is limited and does not conform to the calculated value, the so-called pole distribution error will occur. For the same grounding body, different auxiliary electrode positions may make the measurement results have a certain degree of dispersion. Thus affecting the accuracy of measurement.
The measurement principles used in ETCR2000 have been used successfully for many years. There is no pole error. As long as the customer first measures the test ring attached to the product when measuring, if the reading is accurate, then the measured grounding resistance value is accurate.
3, not limited by the surrounding environment:
The traditional voltage and current test method requires two auxiliary electrodes with relative position requirements, so it has requirements on the surrounding environment, otherwise it will affect the accuracy of measurement. With the development of China's urbanization, it is sometimes difficult to find the soil around the grounding body, they are all covered by cement, and it is sometimes more difficult to find the soil to meet the requirements of the relative position. The ETCR2000 clamp earth resistor does not have these limitations. The correct grounding resistance value can be obtained by opening and closing the nipper once.
1, simple operation:
With ETCR2000, you can read the grounding resistance value from the LCD screen by wrapping the tongs of the tongs around the measured grounding wire. However, the traditional voltage and current measurement method must separate the grounding wire from the grounding system and drive the voltage and current poles into the soil as auxiliary electrodes according to the specified distance.
2, accurate measurement:
The accuracy of the traditional voltage and current measurement method depends on the position between the auxiliary electrodes and their relative position with the grounding body. In addition, the heterogeneity of soil resistivity between the voltage and current poles and the grounding body will affect the measurement results. If the position of the auxiliary electrode is limited and does not conform to the calculated value, the so-called pole distribution error will occur. For the same grounding body, different auxiliary electrode positions may make the measurement results have a certain degree of dispersion. Thus affecting the accuracy of measurement.
The measurement principles used in ETCR2000 have been used successfully for many years. There is no pole error. As long as the customer first measures the test ring attached to the product when measuring, if the reading is accurate, then the measured grounding resistance value is accurate.
3, not limited by the surrounding environment:
The traditional voltage and current test method requires two auxiliary electrodes with relative position requirements, so it has requirements on the surrounding environment, otherwise it will affect the accuracy of measurement. With the development of China's urbanization, it is sometimes difficult to find the soil around the grounding body, they are all covered by cement, and it is sometimes more difficult to find the soil to meet the requirements of the relative position. The ETCR2000 clamp earth resistor does not have these limitations. The correct grounding resistance value can be obtained by opening and closing the nipper once.
Product Paramenters
1. Power supply: 6VDC (4 AA alkaline dry batteries)
2. Working temperature: -10℃-55℃
3. Relative humidity: 10%-90%
4. Liquid crystal display: 4-digit LCD digital display, length and width 47×28.5mm
5. Jaw opening size: 32mm
6. Clamp meter quality (including battery): long jaw 1160g; round jaw 1120g
7. Clamp meter size: long jaw length 285mm, width 85mm, thickness 56mm
8. Round jaw length 260mm, width 90mm, thickness 66mm
9. Explosion-proof mark: ExiaⅡ BT3Ga (explosion-proof certificate number: CE13.2263)
10. Protection level: double insulation
11. Structural features: jaw type
12. Range shift: automatic
13. External magnetic field: <40A/m
14. External electric field: <1V/m
15. Single measurement time: 1 second
16. Resistance measurement frequency: >1KHz
17. The highest resolution of resistance measurement: 0.001Ω
18. Resistance measurement range: 0.01-1000Ω
2. Working temperature: -10℃-55℃
3. Relative humidity: 10%-90%
4. Liquid crystal display: 4-digit LCD digital display, length and width 47×28.5mm
5. Jaw opening size: 32mm
6. Clamp meter quality (including battery): long jaw 1160g; round jaw 1120g
7. Clamp meter size: long jaw length 285mm, width 85mm, thickness 56mm
8. Round jaw length 260mm, width 90mm, thickness 66mm
9. Explosion-proof mark: ExiaⅡ BT3Ga (explosion-proof certificate number: CE13.2263)
10. Protection level: double insulation
11. Structural features: jaw type
12. Range shift: automatic
13. External magnetic field: <40A/m
14. External electric field: <1V/m
15. Single measurement time: 1 second
16. Resistance measurement frequency: >1KHz
17. The highest resolution of resistance measurement: 0.001Ω
18. Resistance measurement range: 0.01-1000Ω

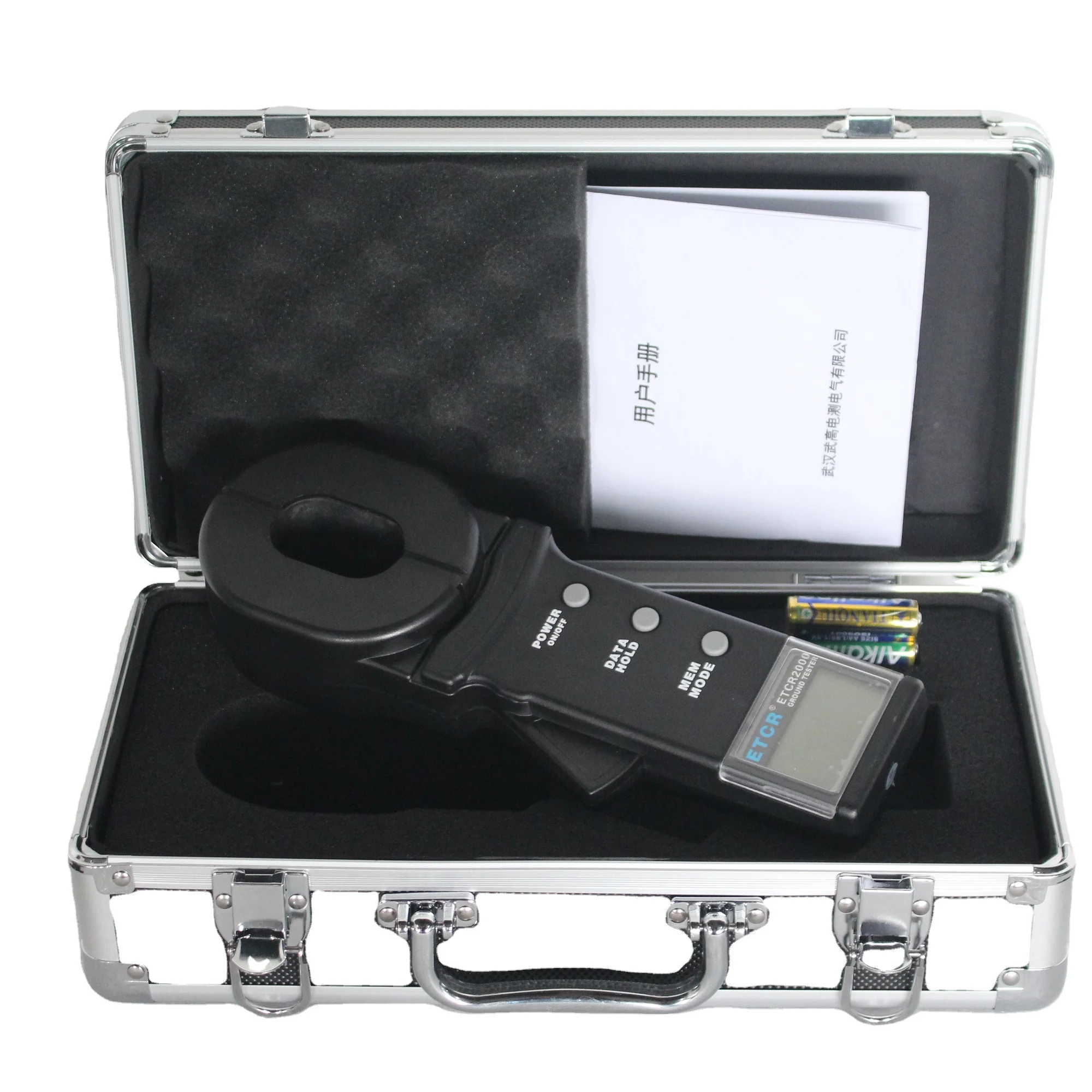

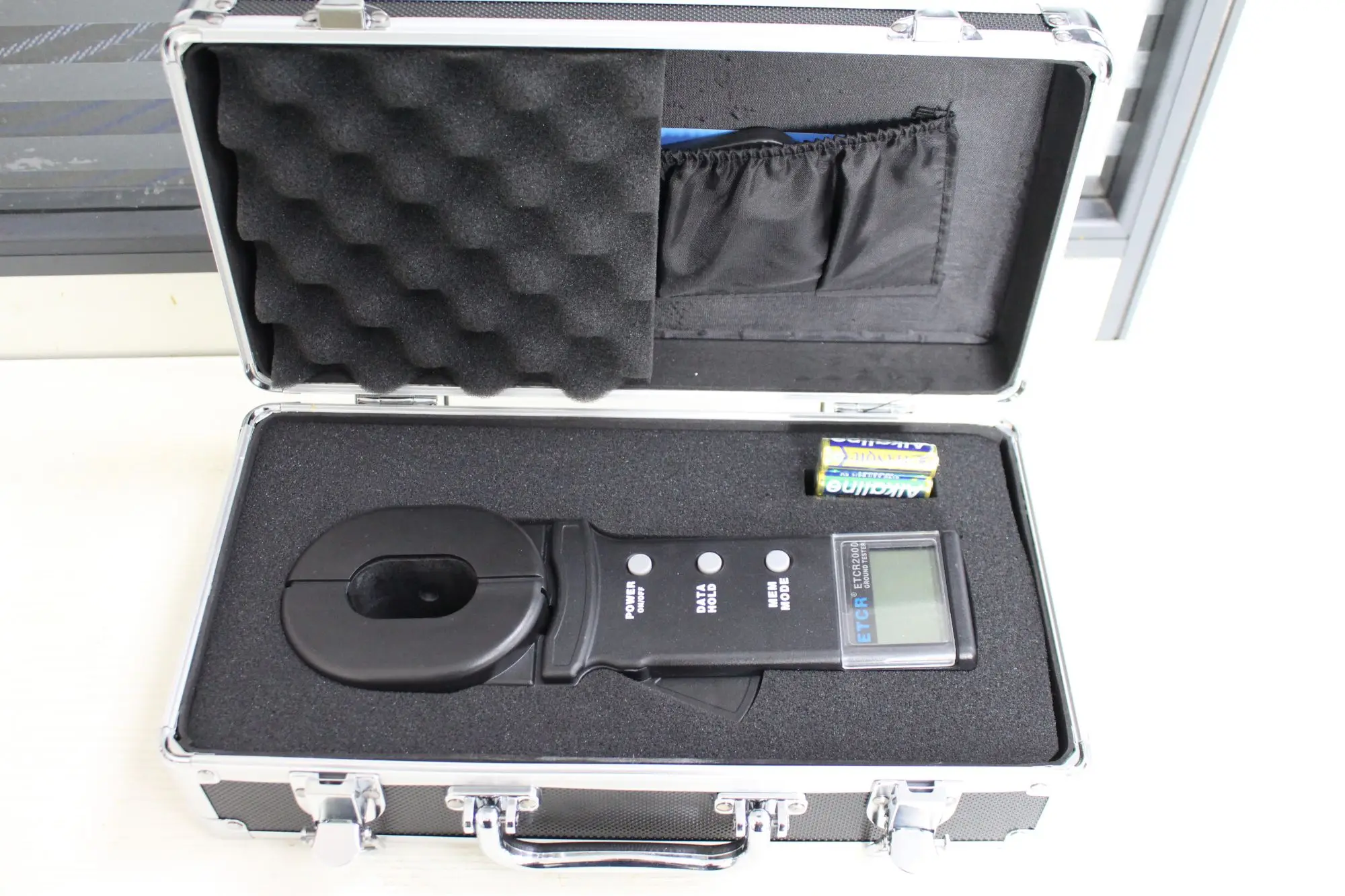

Product packaging
