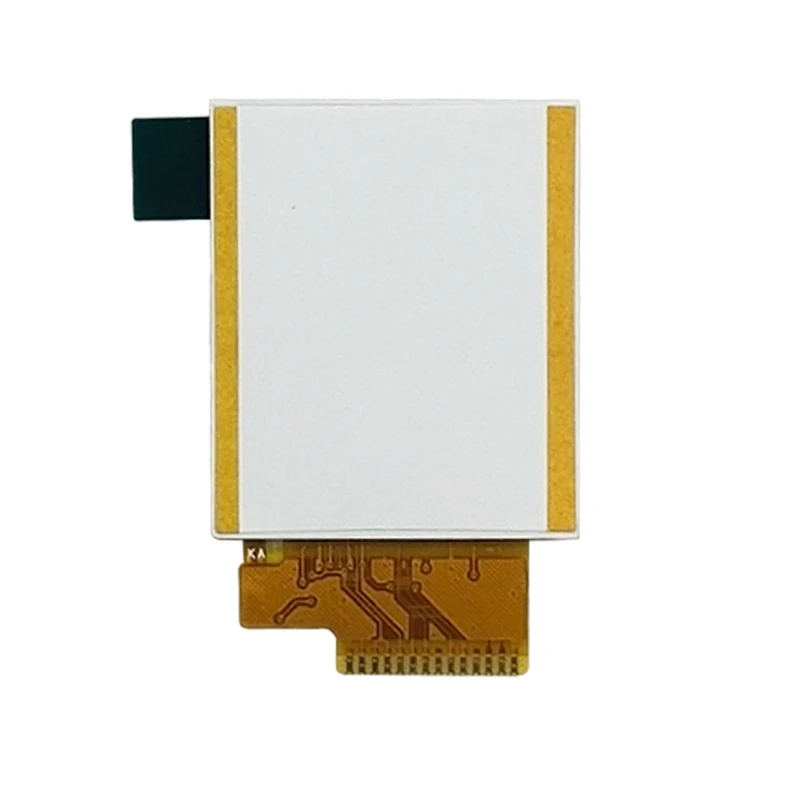

Custom 1.44' LCD Modules 128x128 Resolution Small Size 1.44 Inch TFT LCD Screen Modules
- Category: >>>
- Supplier: Shenzhen Yes-Display International Technology Co. Ltd.
Share on (1600458434579):
Product Overview
Description
Custom 1.44'' LCD Modules 128x128 Resolution Small Size 1.44 Inch TFT LCD Screen Modules
Products Description
High quality LCD displays, HMI, TFT and OLED. For industrial, medical, automotive application. Monochrome and colored, super flat and intelligent with SPI ...

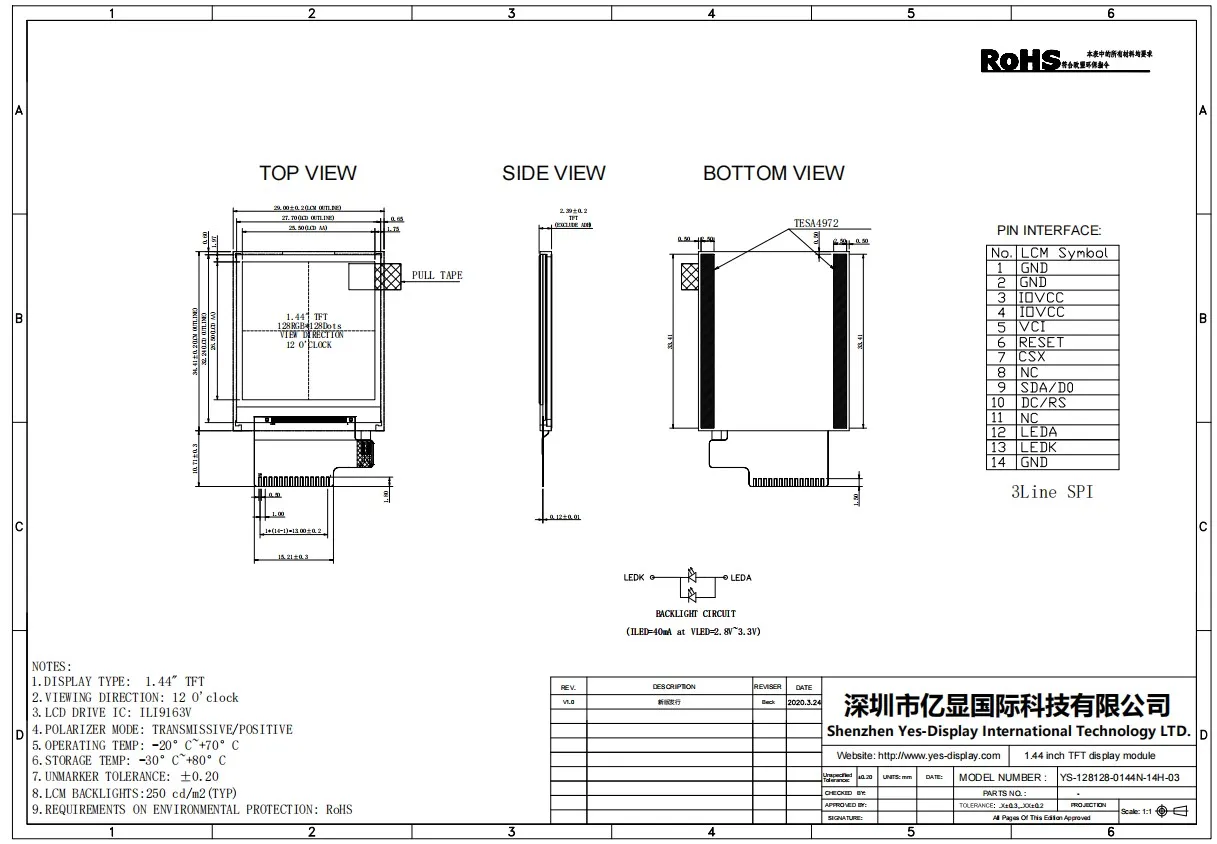

LCM Specifications | ||||||||
LCD type | 1.44 inch TFT | |||||||
Dot arrangement | 128(RGB)×128 | |||||||
Color filter array | RGB vertical stripe | |||||||
Display mode | TN / Transmission / Normally White | |||||||
Eyes Viewing Direction | 12 O’CLOCK | |||||||
Module size | 29(W)×34.41(H)×2.39(T)(Exclude FPC) | |||||||
Active area | 25.5(W)×26.5(H) | |||||||
Driver IC | ST7735S | |||||||
Interface | 3-SPI | |||||||
Operating temperature | -20 ~ +70°C | |||||||
Storage temperature | -30 ~ +80°C | |||||||
Back Light | White LED*2 | |||||||
TFT LCD Display Module
We can according to your demand to customized your display.
Such as:
1.Customized the frame,
2.Backlight brightness,
3.Backlightshape,
4.long-life led wick,
5.FPC shape and interface definition,
6.Silk-printing your Logo and so on.
1.Customized the frame,
2.Backlight brightness,
3.Backlightshape,
4.long-life led wick,
5.FPC shape and interface definition,
6.Silk-printing your Logo and so on.
CTP Touch Panel Touch Screen
We can according to your demand to customized your touch screen.
Such as:
1.Customized cover glass's shape,
2.Silk-printing color,
3.Touch with water,
4.With salt water touch,
5.With gloves and so on.
1.Customized cover glass's shape,
2.Silk-printing color,
3.Touch with water,
4.With salt water touch,
5.With gloves and so on.
Details Images
Recommend Products
More Products
Need other products not showed as below ?
Size | Type | Model No. | Pixels | Active Area(WxH mm) | Panel Size (WxHxT mm) | Interface |
0.96 | IPS | 80(RGB)×160 | 10.8(W)×21.7(H) | 14.04(W)×27.95(H)×1.35(T) | 4-SPI | |
1.14 | IPS | 135(RGB)×240 | 14.86(W)×24.91(H) | 18.1(W)×30.91(H)×1.6(T) | 4- SPI | |
1.3 | IPS | 240(RGB)×240 | 33.0(W)×33.0(H) | 35.4(W)×38.0(H)×1.8(T) | 4-SPI, MCU8 | |
1.44 | TN | 128(RGB)×128 | 25.5(W)×26.5(H) | 29(W)×34.41(H)×2.39(T) | 4-SPI | |
1.54 | IPS | 320(RGB)×320 | 27.74(W)×27.74(H) | 31.52(W)×33.72(H)×1.45(T) | 4-SPI | |
1.77 | TN | 128(RGB)×160 | 28.03(W)×35.04(H) | 34(W)×45.83(H)×2.4(T) | 4-SPI | |
2.0 | IPS | 480(RGB)×360 | 40.8(W)×30.6(H) | 46.1(W)×40.96(H)×2.53(T) | MIPI | |
2.1 | IPS | 480(RGB)×480 | 53.28(W)×53.28(H) | 59.71(W)×56.18(H)×2.26(T) | MIPI | |
2.2 | TN | 240(RGB)×320 | 33.84(W)×45.12(H) | 38.03(W)×53.60(H)×2.4(T) | 4-SPI | |
2.4 | IPS | 240(RGB)×320 | 36.72(W)×48.96(H) | 42.72(W)×60.4(H)×2.61(T | RGB | |
2.8 | TN | T028002 | 240(RGB)×320 | 43.2(W)×57.6(H) | 50(W)×69.2(H)×2.45(T) | RGB18 |
3.0 | IPS | T030001 | 240(RGB)×400 | 38.88(W)×64.8(H) | 44.84(W)×75.70(H)×3.0(T) | MCU |
3.1 | IPS | T031002 | 480(RGB)×800 | 40.32(W)×67.2(H) | 43.68(W)×77.02(H)×2.44(T) | MIPI2 |
3.2 | TN | 240(RGB)×320 | 48.6(W)×64.8(H) | 55.04(W)×77.5(H)×2.41(T) | RGB | |
3.5 | TN | 320(RGB)×480 | 48.96(W)×73.44(H) | 54.48(W)×84.71(H)×2.2(T) | RGB | |
3.9 | TN | 480(RGB)×128 | 95.04(W)×25.34(H) | 105.5(W)×40.64(H)×2.95(T) | 24bit RGB | |
4.3 | IPS | 800(RGB)×480 | 95.04(W)×53.86(H) | 105.42(W)×67.7(H)×3.0(T) | 24bit RGB | |
5.0 | TN | 480(RGB)×272 | 110.88(W)×62.83(H) | 120.7(W)×75.8(H)×2.95(T) | RGB | |
7.0 | IPS | 800(RGB)×480 | 152.4(W)×91.44(H) | 165(W)×104.09(H)×5.3(T | RGB | |
8.0 | TN | 1024(RGB)×600 | 176.64(W)×99.36(H) | 192.8(W)×116.9(H)×6.4(T) | LVDS | |
8.8 | TN | T088001 | 1280(RGB)×320 | 216.95(W)×54.24(H) | 229.66(W)×67.50(H)×3.5(T) | LVDS |
9.0 | TN | 800(RGB)×480 | 198.00(W)×117.7(H) | 210.7(W)×126.4(H)×3.5(T) | RGB | |
10.1 | IPS | 1024(RGB)×600 | 135.36(W)×216.58(H) | 143.00(W)×228.60(H)×2.60(T) | MIPI |
Company Profile
Our Advantages
100,000 kind of TFT LCD Display Complete Solution Manufacturer
1.We are a professional designer manufacturer of LCD module,LCD display,UART display and capacitive touch module .
2.We have the IATF16949 certificate issued by TUV, which can produce automotive-grade LCD display modules that are higher in
impact resistance, reliability, consistency, life and manufacturing standards than ordinary industrial products.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5.We have 3 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
7.We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose us.
1.We are a professional designer manufacturer of LCD module,LCD display,UART display and capacitive touch module .
2.We have the IATF16949 certificate issued by TUV, which can produce automotive-grade LCD display modules that are higher in
impact resistance, reliability, consistency, life and manufacturing standards than ordinary industrial products.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5.We have 3 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
7.We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose us.
ShenZhen Yes-Display international Technology CO.,LTD.
As a high-tech company, Shenzhen Yes-display International Technology Co., Ltd. mainly provides clients with the service of
designing liquid crystal display panels (LCD) and liquid crystal display modules (LCM). Our company is committed to the
customization service, R&D, sale and after-sales service of LCD and TFT display products.At present, our company has a team of
more than 100 employees. Our products include monochrome LCD (TN and STN), color LCD (CSTN and TFT) and LCD modules (both COG and COB). Our products are widely used in PDA, Telecommunication terminals, medical equipment, meters and apparatus. We have an annual turnover of hundreds of millions of Yuan.
designing liquid crystal display panels (LCD) and liquid crystal display modules (LCM). Our company is committed to the
customization service, R&D, sale and after-sales service of LCD and TFT display products.At present, our company has a team of
more than 100 employees. Our products include monochrome LCD (TN and STN), color LCD (CSTN and TFT) and LCD modules (both COG and COB). Our products are widely used in PDA, Telecommunication terminals, medical equipment, meters and apparatus. We have an annual turnover of hundreds of millions of Yuan.
Lead Time | ||||
Samples (1-30 PCS ) | Immediately , most case | |||
31-100 PCS | 1 Week | |||
101- 500 PCS | 1-2 Weeks | |||
501-1000 PCS | 2-4 Weeks | |||
1001-5000 PCS+ | 4-6 Weeks | |||
