DHF 10PM 7.5 KW Energy Saving Rock Drilling Air Compressor Line Filter Air Compressor Screw Air Compressor
- Category: Industrial Compressors >>>
- Supplier: Guangdong Baldor-Tech Co. Ltd.
Share on (1600458443166):
Product Overview
Description

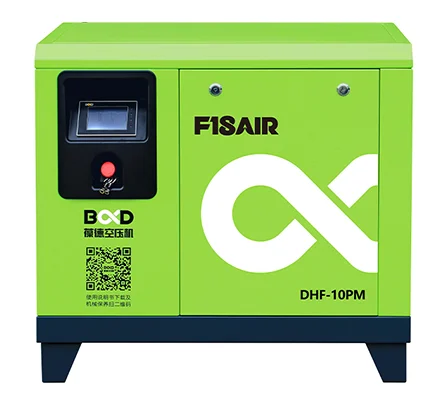

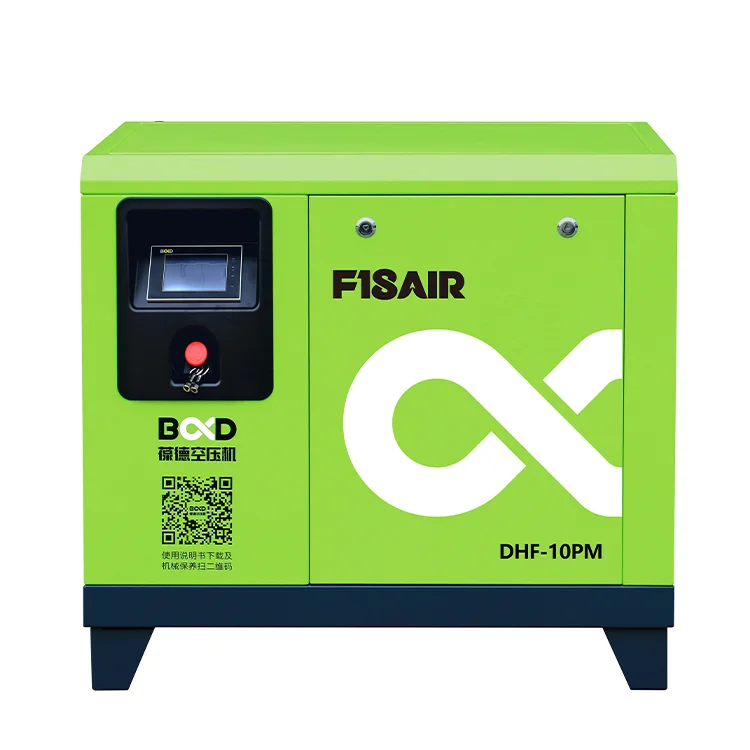

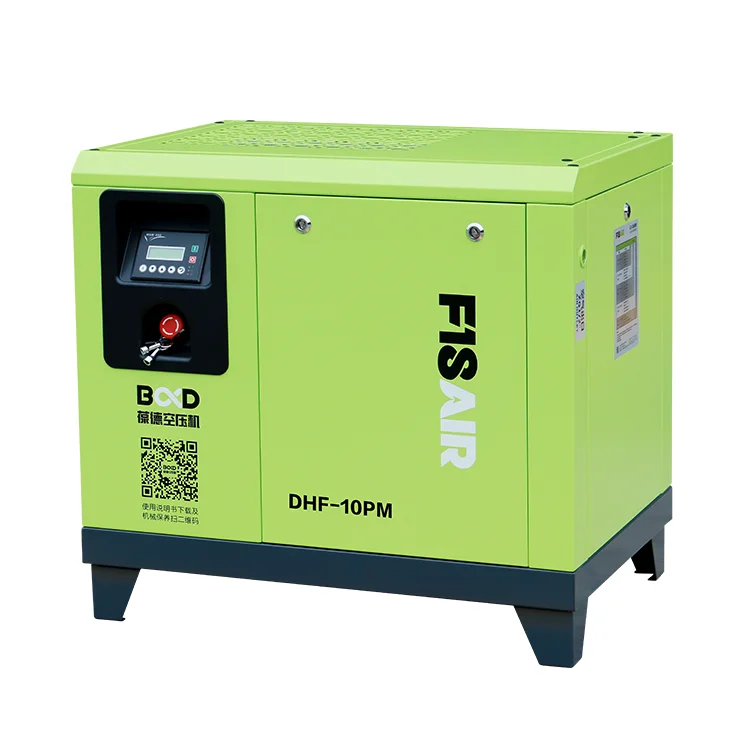

DHF Series VSD Screw Air Compressor
■Permanent magnet synchronous motor adopts ammonium iron boron permanent magnet, low speed and high energy efficiency.
■Balde-body mainframe, new-generation line design, low noise, low maintenance cost, reliable and stable.
■The control panel uses a simple and convenient operating system, and the operating status is clear at a glance.
■Using Schneider distribution box, Balde inverter, etc., to ensure stable operation of the equipment.
■Balde-body mainframe, new-generation line design, low noise, low maintenance cost, reliable and stable.
■The control panel uses a simple and convenient operating system, and the operating status is clear at a glance.
■Using Schneider distribution box, Balde inverter, etc., to ensure stable operation of the equipment.
Intelligent VSD Inverter
It can control the air delivery of the compressor with the frequency modulation, and eliminate the loading and unloading waste.
It can control the air delivery of the compressor with the frequency modulation, and eliminate the loading and unloading waste.

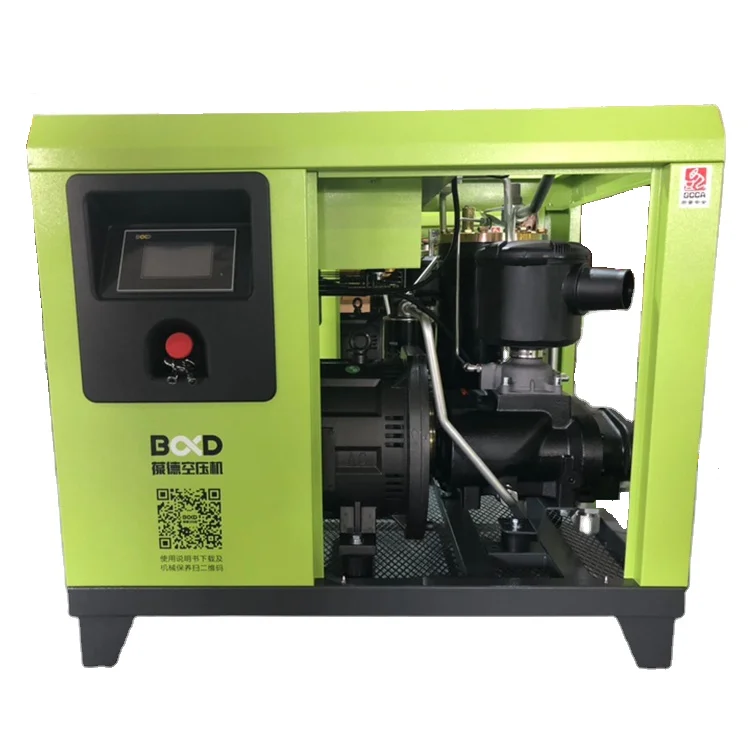

Highly Effective Airend
The rotors with high rigidity help lengthen the lifetime of the airend, improve the compression efficiency of the screws and
reduce operating noise.
The rotors with high rigidity help lengthen the lifetime of the airend, improve the compression efficiency of the screws and
reduce operating noise.
Permanent Magnet Motor
Reliable and durable with efficient heat dissipation, stable operation and low noise.
Reliable and durable with efficient heat dissipation, stable operation and low noise.

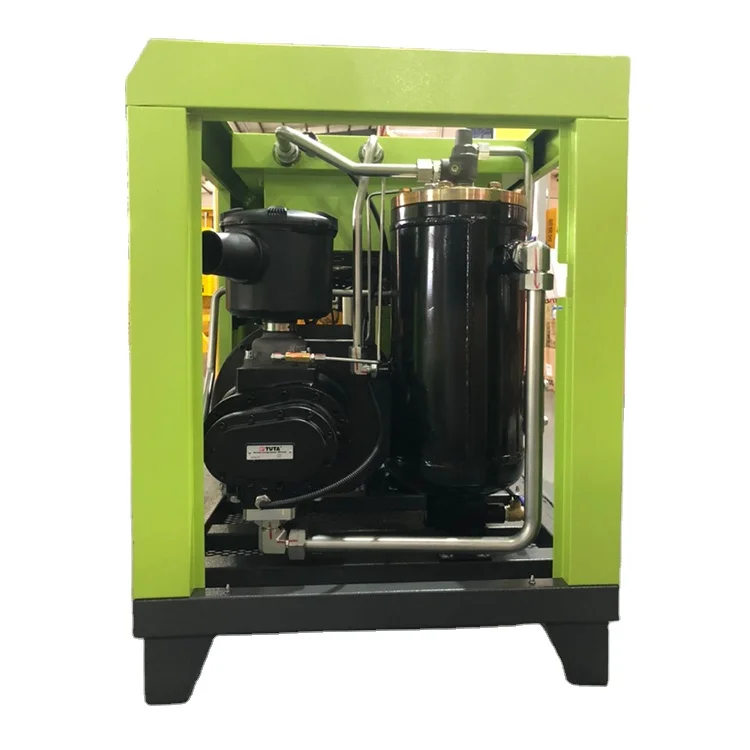

Efficient Air/Oil Separator
It can prevent oil pollution with its vertical design. The separation efficiency is high, and the compressed air loss during the
loading and unloading cycle is low.
It can prevent oil pollution with its vertical design. The separation efficiency is high, and the compressed air loss during the
loading and unloading cycle is low.
Reliable Air Filter
It can filter the tiny solid particles in the air to ensure the normal operation and service lifetime of the equipment.
It can filter the tiny solid particles in the air to ensure the normal operation and service lifetime of the equipment.
Smart Operation
It sets monitoring, control, and protection of the air compressor in one with easy operation and one-click start-stop.
It sets monitoring, control, and protection of the air compressor in one with easy operation and one-click start-stop.
Model | Mpa | DHF-10PM | DHF-15PM | DHF-20PM | DHF-30PM | DHF-50PM | |||||
FAD M³/min | 0.7/0.6~0.8 | 0.54~1.35 | 0.72~1.8 | 1.04~2.6 | 1.52~3.8 | 2.72~6.8 | |||||
Amblent Temperature | ℃ | -5~+40℃ | |||||||||
Cooling Mode | Air-cooling | ||||||||||
Discharge Temperature | ℃ | ≤10℃ Environment Temp+10℃< 40℃ | |||||||||
Lubricant | Liter | 4 | 9 | 16 | 22 | ||||||
Noise | dB(A) | 62±2 | 65±2 | ||||||||
Driven mode | Permanent Magnet Synchronous | ||||||||||
Electricity(V/Ph/Hz) | 220V/380V/415V/440V/460V/480V/3ph/50Hz/60Hz | ||||||||||
Power | KW | 7.5 | 11 | 15 | 22 | 37 | |||||
Dimension | Length mm | 800 | 940 | 1120 | 1120 | 1250 | |||||
Width mm | 550 | 630 | 765 | 900 | |||||||
Height mm | 740 | 840 | 940 | 1080 | |||||||
Weight kg | 145 | 213 | 235 | 312 | 610 | ||||||
Air Outlet Pipe Diameter inch | ZG½" | ZG1" | ZG½" | ZG1¼" | ZG1½" | ||||||
IOT System | × | √ | √ | √ | √ | ||||||
