20x4 with IIC/I2C/ Serial Interface Adapter 2004 LCD Display Module

The LCD2004 with an I2C port is developed to solve the multiple IOs problem. It is also simple to handle. It has only two bidirectional data lines, a serial data line and a serial clock one.

Specification:
Display: 2 lines x 16 characters
Backlight: blue with white character color

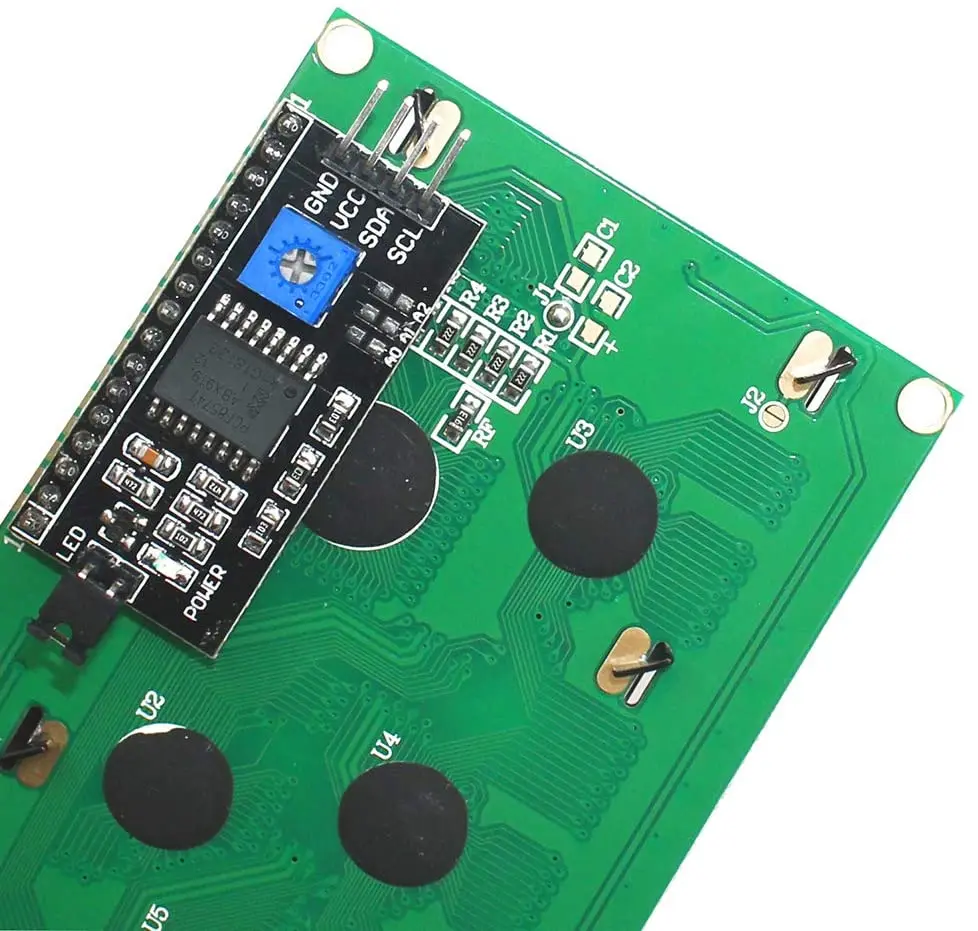

Pin Definition: VCC/ GND/SDL and SCA
Contrast Adjust: Potentiometer
Backlight Adjust: Jumper
Default Address: 0x27
Working Voltage: 5V

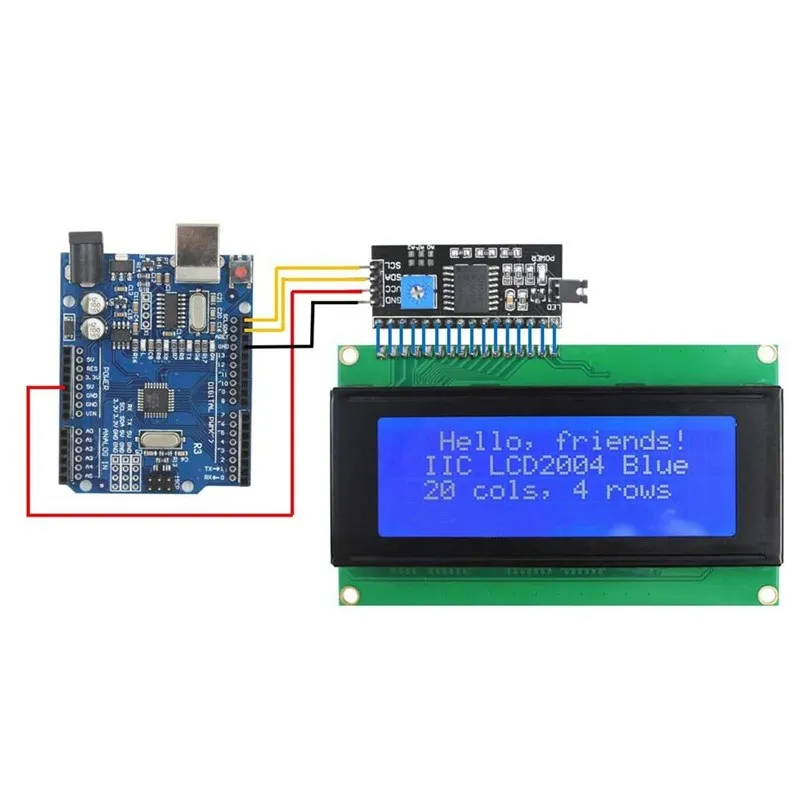

How to wire: GND—GND; VCC—VCC; SDA—A4; SCL—A5
Application: Used to display Characters, letters and Numbers

Package Included:
1 x 2004 LCD Display Module Blue
