format cutting machine ipg Large format laser cutting machine Multifunctional model cnc cutting
- Category: >>>
- Supplier: Wuxi Cylion Technology Co. Ltd.
Share on (1600458470656):
Product Overview
Description
Products Description

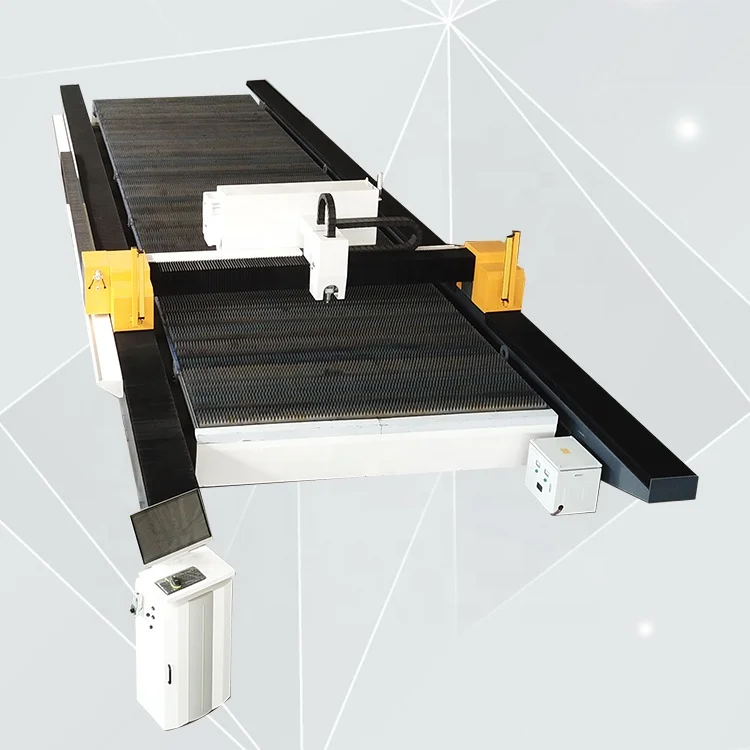

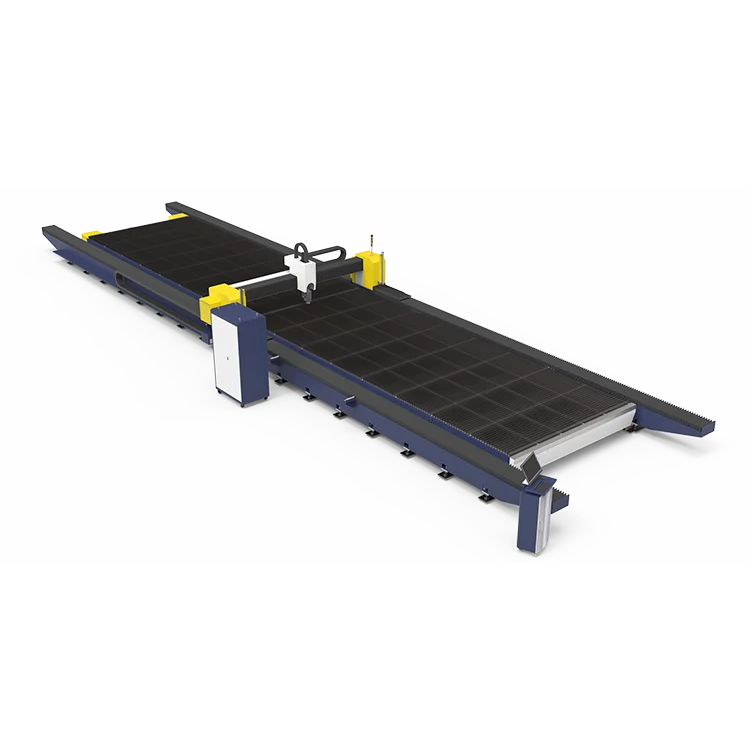

JLH Gantry Laser Machine
Length: 6m, 12m, 14m, 16m, 19m, 24m……
Width: 2m, 2.5m, 3m, 4m
Power: 2000w,3000w,4000w,6000w, 8000w, 12000w, 20000w, 30000w,40000w……
1、The machine body is designed with a low center of gravity and compact structure.
2、The maximum fast forward speed can achieve 60m/min
Install a safety light curtain directly in front of the machine body,High security.
Professionally cut system，Simple and convenient operation！
3、Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.
4、The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding,customer will have long-term payback.
5、Beam structure adopts the modular design, with aviation aluminum control processing, effectively controlled the weight of beam.This structure design greatly improves the high speed response, and precision of cutting.
2、The maximum fast forward speed can achieve 60m/min
Install a safety light curtain directly in front of the machine body,High security.
Professionally cut system，Simple and convenient operation！
3、Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.
4、The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding,customer will have long-term payback.
5、Beam structure adopts the modular design, with aviation aluminum control processing, effectively controlled the weight of beam.This structure design greatly improves the high speed response, and precision of cutting.
Full covering side open door for loading
Front covering
Without covering
Video Description
Specification
Item | Technical Parameters | ||
Rated Plate Size | 18000*3100(customizable） | ||
Cutting Stroke | X(mm) | 3130 | |
Y(mm) | 18100 | ||
Z(mm) | 150 | ||
Positioning Accuracy | X(mm) | ±0.05 | |
Y(mm) | ±0.15 | ||
Repeatability Positioning Accuracy | X(mm) | ±0.03 | |
Y(mm) | ±0.05 | ||
Positioning Accuracy | X(mm) | 40 | |
Y(mm) | 72 | ||
Z(mm) | 30 | ||
Average Power Consumption（kwh） | 50 | ||
Machine Size | 21800*4300*1900 | ||
CYLION® assemble their lasers cutting machine 2000w/3000w/4000w/6000w/8000W/12000W/20000W/40000W to the strictest quality standards with nothing but world class components to ensure lasting quality at an attractive price.
JLH Gantry is the general purpose 2D laser cutting machine by CYLION utilized around the globe across a multitude ofapplications, manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 2,000W to 40000W fiber Laser.
The following elements are included:
* Laser Cutting Head: Raytools laser cutting head;Precitec Cutting head
* CNC Controller: CypCut Fscut 2000 CNC System; BECKHOFF TwinCAT Touch Screen Control System
HYPCUT Touch FSCUT8000 TwinCAT CNC System
* Cutting Area: 3000x1500mm, 4000×20000mm,6000x2000mm,6000x2500mm,8000x2500mm
* Cutting Speed: Max 100m/min; Positioning: 140m/min; Accelerations:1.6G
JLH Gantry is the general purpose 2D laser cutting machine by CYLION utilized around the globe across a multitude ofapplications, manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 2,000W to 40000W fiber Laser.
The following elements are included:
* Laser Cutting Head: Raytools laser cutting head;Precitec Cutting head
* CNC Controller: CypCut Fscut 2000 CNC System; BECKHOFF TwinCAT Touch Screen Control System
HYPCUT Touch FSCUT8000 TwinCAT CNC System
* Cutting Area: 3000x1500mm, 4000×20000mm,6000x2000mm,6000x2500mm,8000x2500mm
* Cutting Speed: Max 100m/min; Positioning: 140m/min; Accelerations:1.6G
Related Products
CUTTING HEAD RAYTOOLS
The RAYTOOLS AG comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete
the rapid perpiercing of thick sheets or other different thickness and material sheets.
the rapid perpiercing of thick sheets or other different thickness and material sheets.
CUTTING HEAD PRECITEC LIGHTCUTTER AUTO FOCUS(OPTIONAL)
The cutting head LightCutter 2.0 is the perfect solution for efficient and cost-effective laser cutting. The new generation of our Light Cutter family is designed for cutting applications in the medium power range up to 40kW and is characterized by a high cutting quality for all metals - especially mild steel, stainless steel and aluminum.
Laser Source-Raycus
Laser Source-IPG
Sample
Packing
Exhibition Information
Company Profile
Wuxi Cylion Technology Co., Ltd is a branch of Qiaolian group, responsible for R&D advanced industrial technology for Qiaolian group long-term growth, and promoting CNC equipment and parts produced Qiaolian group companies on oversea market. Qiaolian group companies are engaged in steel production line, steel fabrication equipments like CNC machining centre, lathe,Plasma, laser cutting & welding machines, CNC control systems and parts design, production and service.
Welcome to visit our factories in Wuxi.
Welcome to visit our factories in Wuxi.
