15KW 20KW 30000W Ultra high Power IPG CNC Bevel Cutting Large Format Fiber Laser Cutting Machine Price
- Category: >>>
- Supplier: Wuxi Cylion Technology Co. Ltd.
Share on (1600458490477):
Product Overview
Description
Products Description

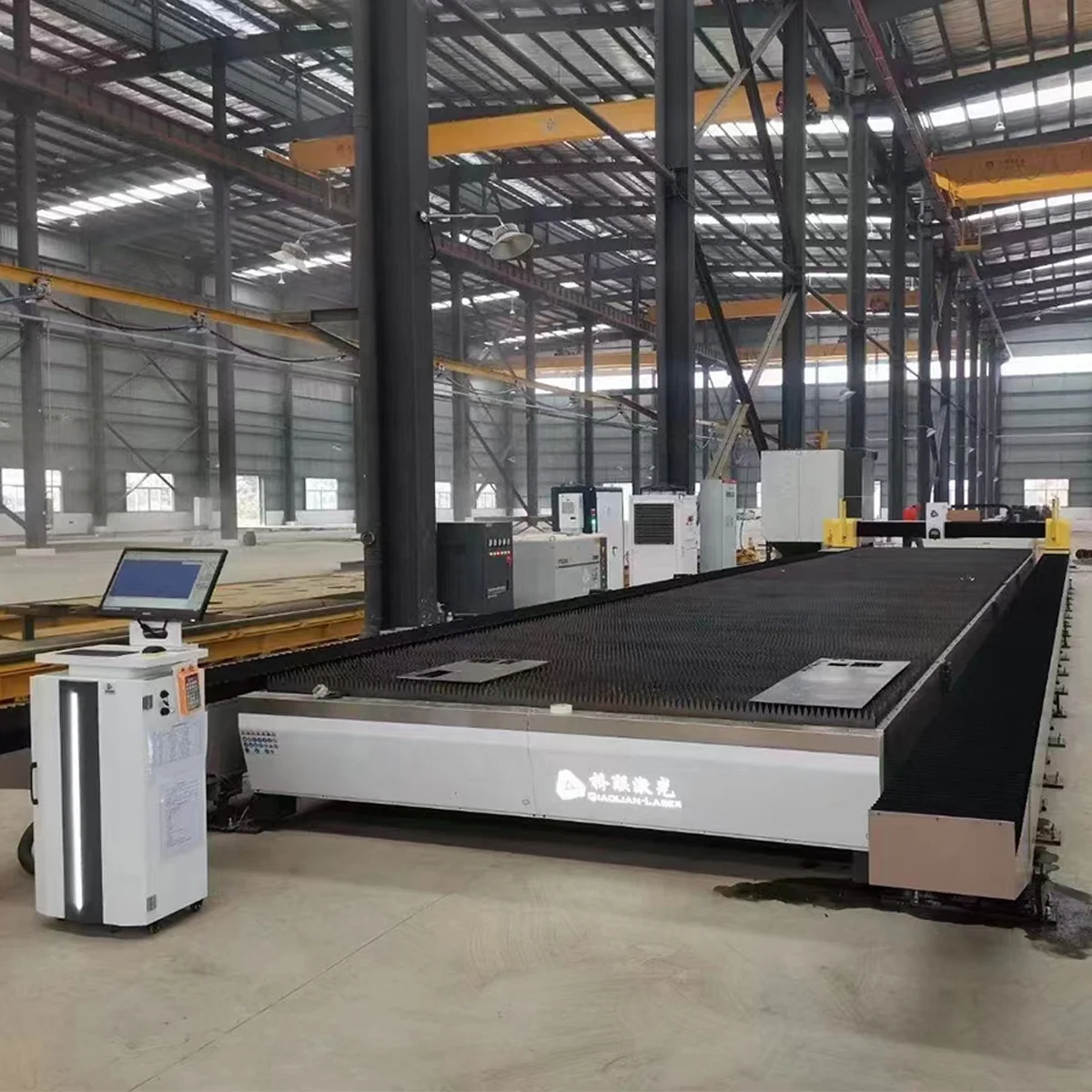

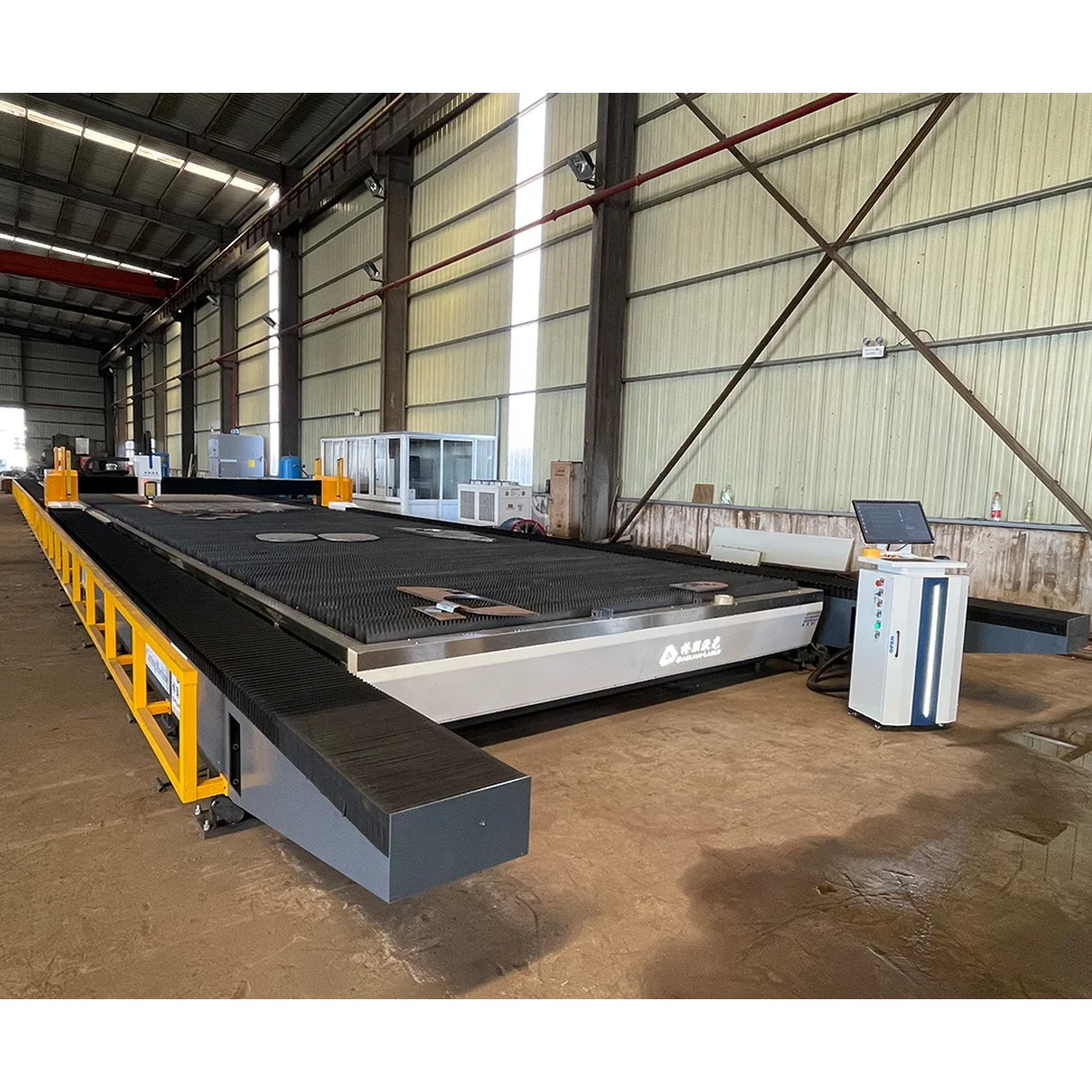

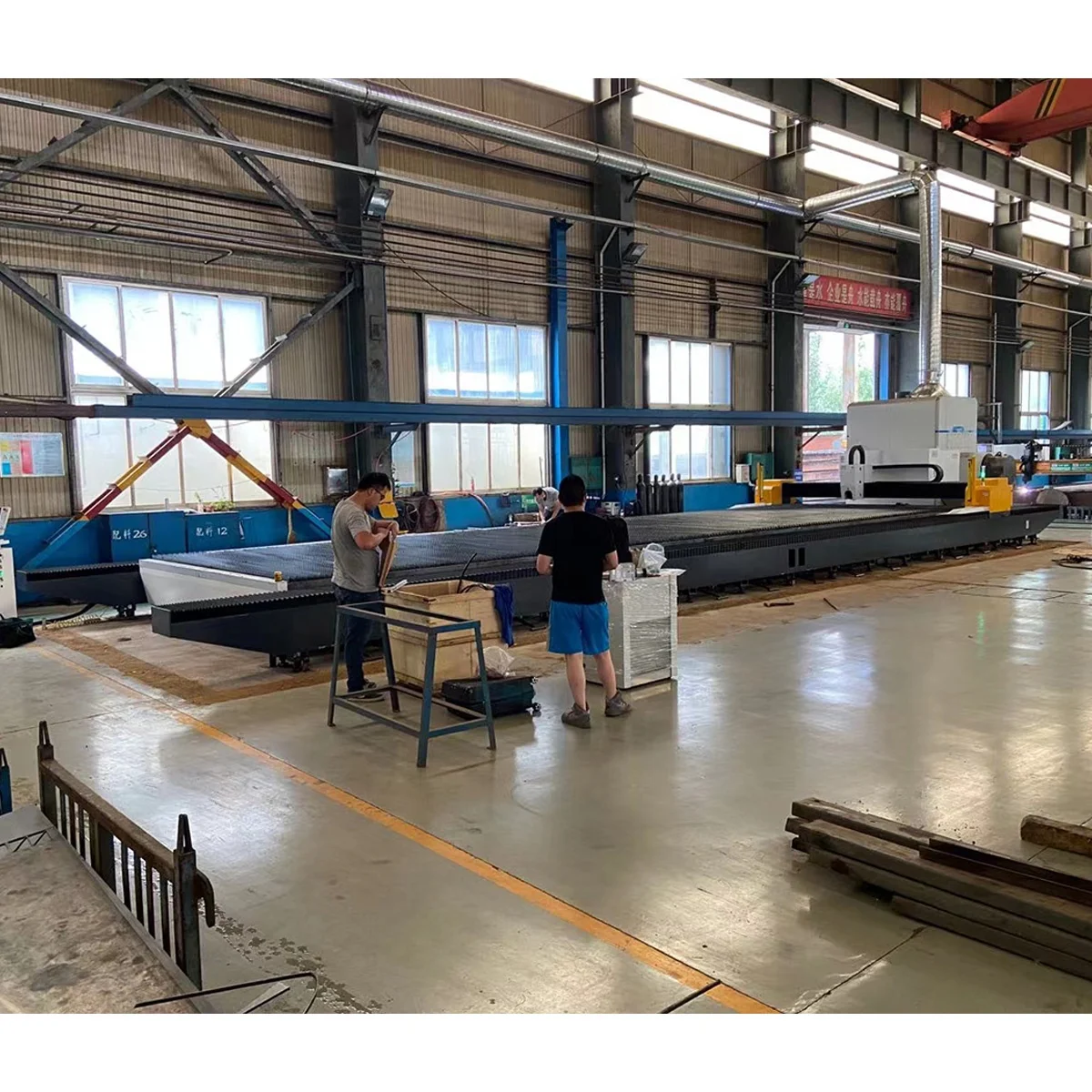

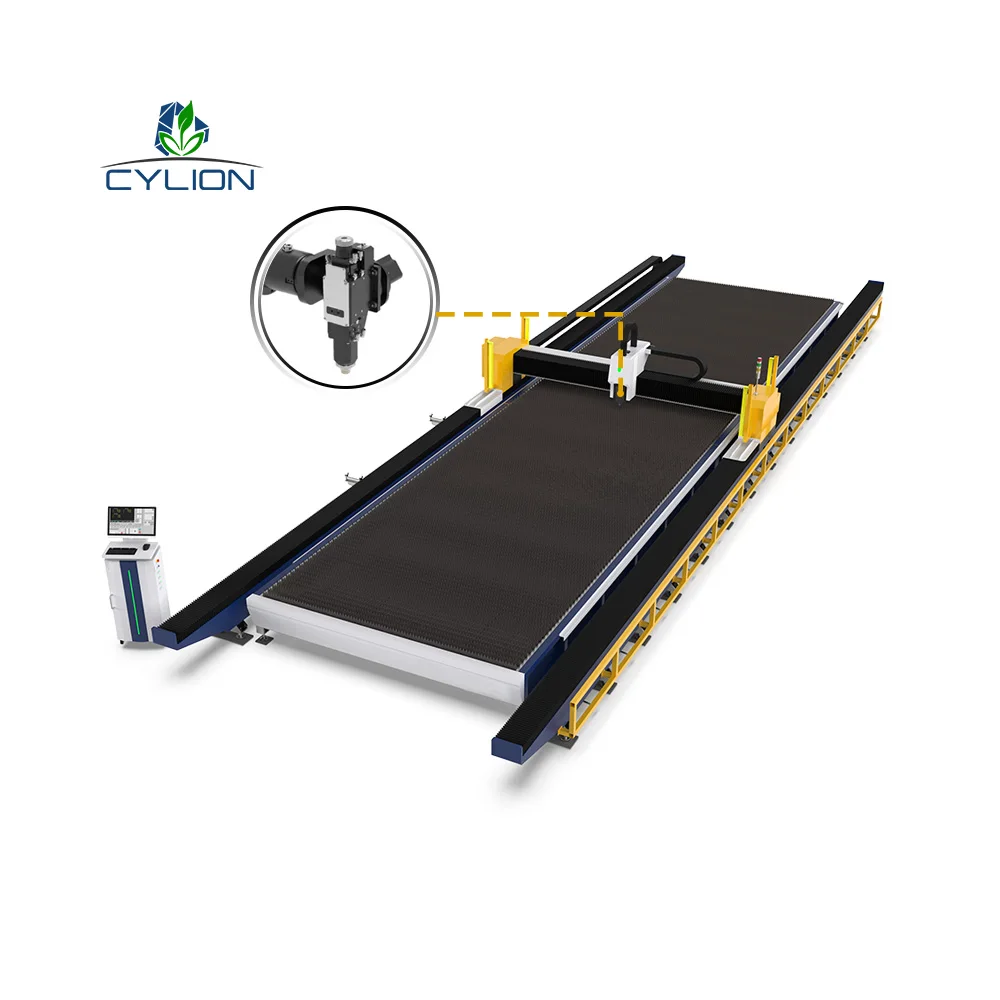

JLH Gantry Laser Machine
Length: 6m, 12m, 14m, 16m, 19m, 24m……
Width: 2m, 2.5m, 3m, 4m
Power: 2000w,3000w,4000w,6000w, 8000w, 12000w, 20000w, 30000w,40000w……

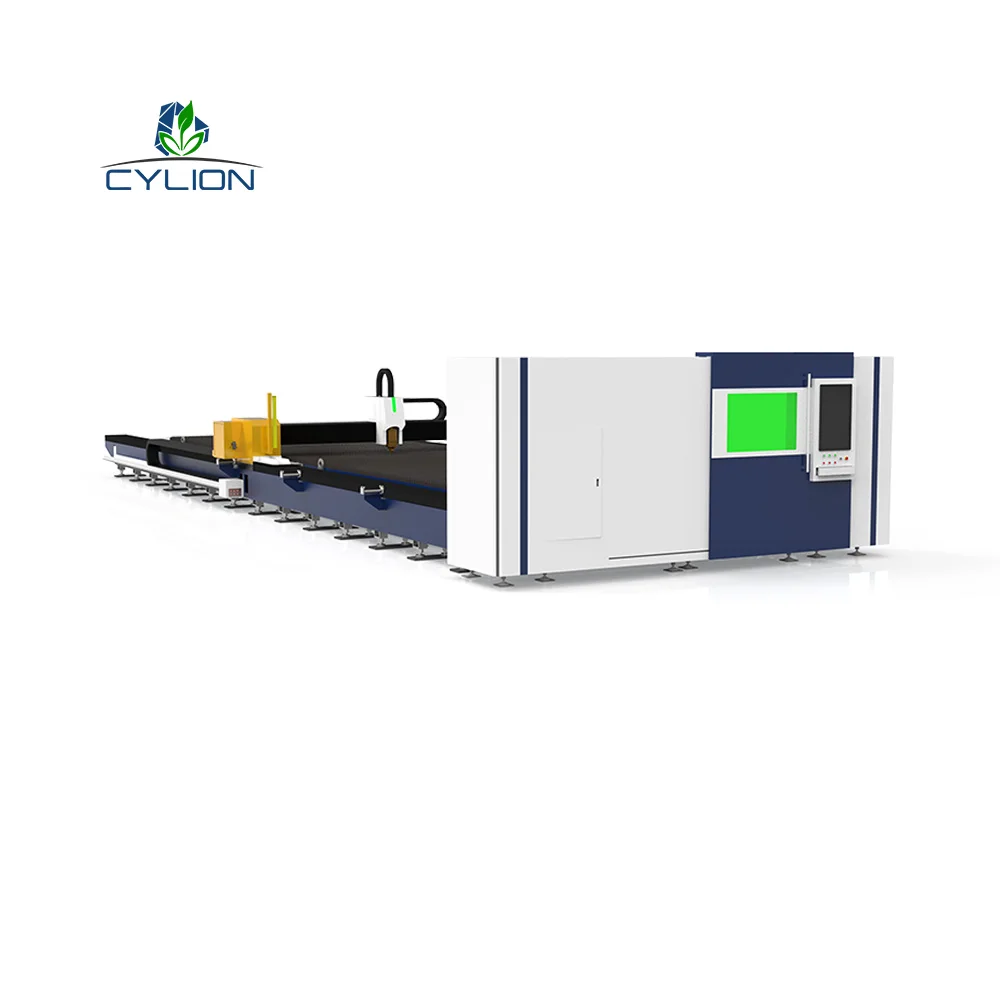

Full covering side open
door for loading
Front covering
Without covering
1、The machine body is designed with a low center of gravity and compact structure.
2、The maximum fast forward speed can achieve 60m/min
Install a safety light curtain directly in front of the machine body,High security.
Professionally cut system，Simple and convenient operation！
3、Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.
4、The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding,customer will have long-term payback.
5、Beam structure adopts the modular design, with aviation aluminum control processing, effectively controlled the weight of beam.This structure design greatly improves the high speed response, and precision of cutting.
2、The maximum fast forward speed can achieve 60m/min
Install a safety light curtain directly in front of the machine body,High security.
Professionally cut system，Simple and convenient operation！
3、Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.
4、The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding,customer will have long-term payback.
5、Beam structure adopts the modular design, with aviation aluminum control processing, effectively controlled the weight of beam.This structure design greatly improves the high speed response, and precision of cutting.
No | Item | Brand |
1 | Machine cutting table | Cylion |

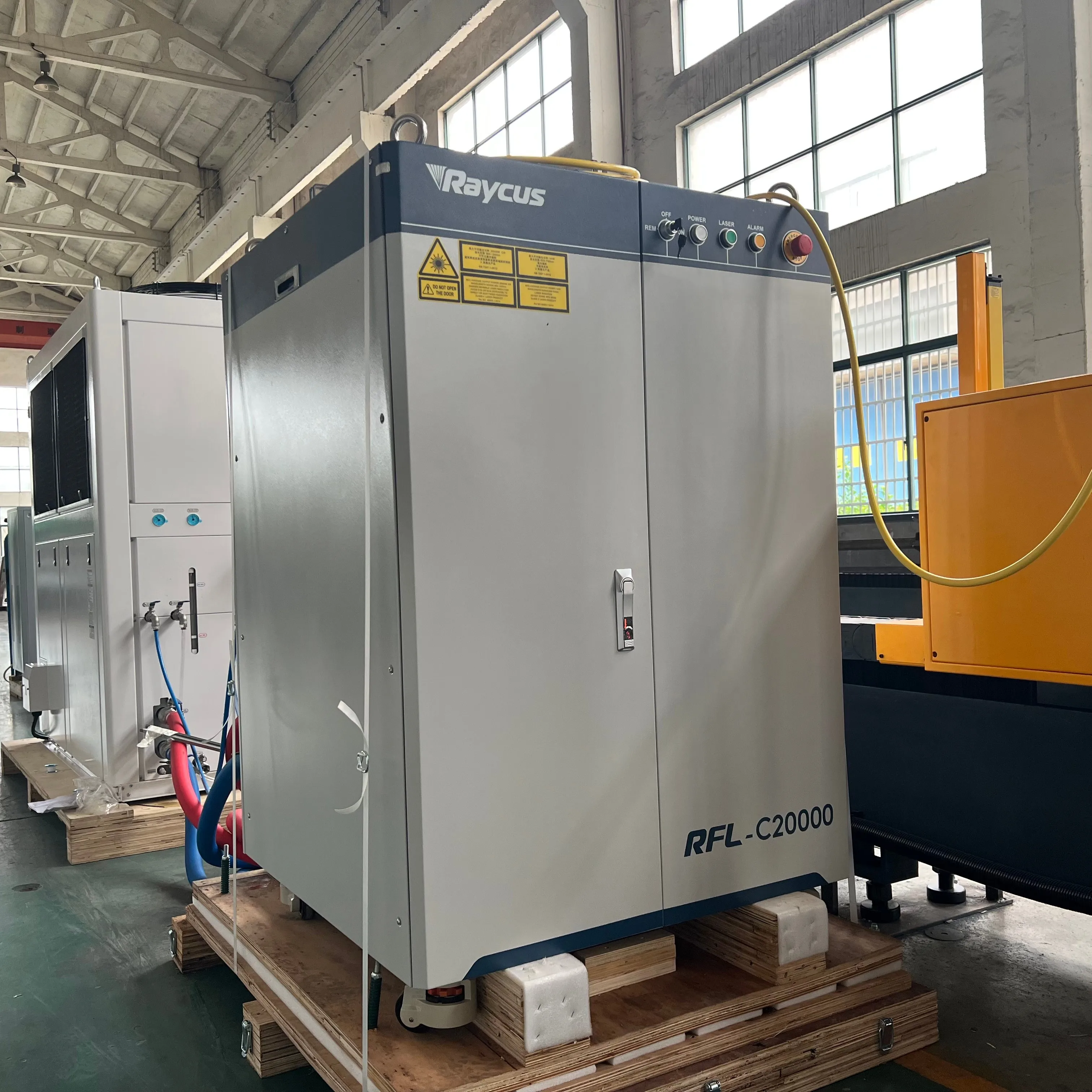

2 | Laser power | IPG |
3 | Laser head | Precitec/Boci |

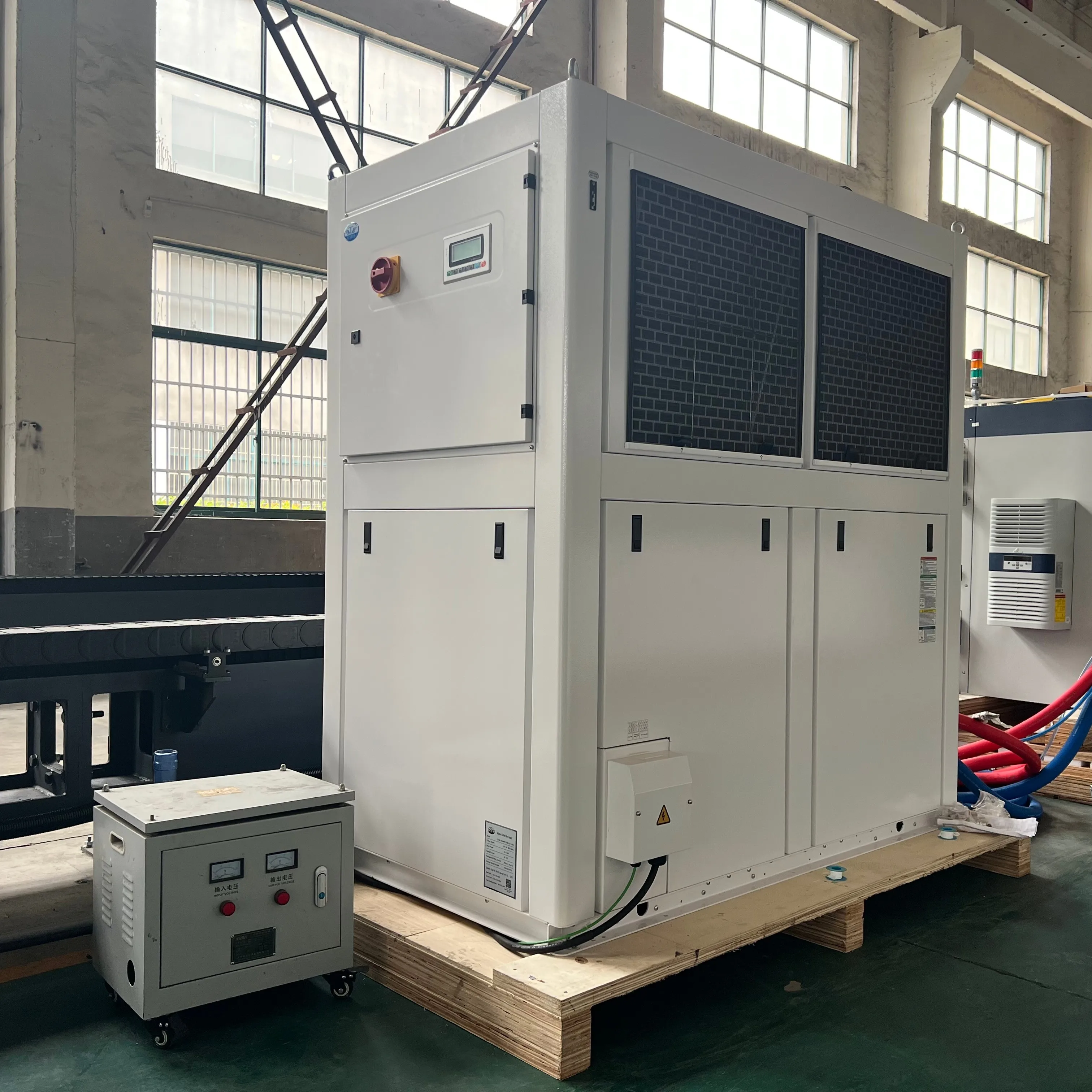

4 | Chiller | Tongfei |
5 | CNC controller | FSCUT8000 |
6 | Gear rack | YYC |
7 | Rail guide | Rexroth |
8 | X/Y/Z axis Servo | Yaskawa |
9 | Nesting software | Cypnest |
10 | Planetary Gearbox | Shimpo |
11 | Proportional valve | SMC |
12 | High pressure proportional valve | SMC |
13 | Pressure valve | Parker |
14 | Auto height controller | BCS210E |

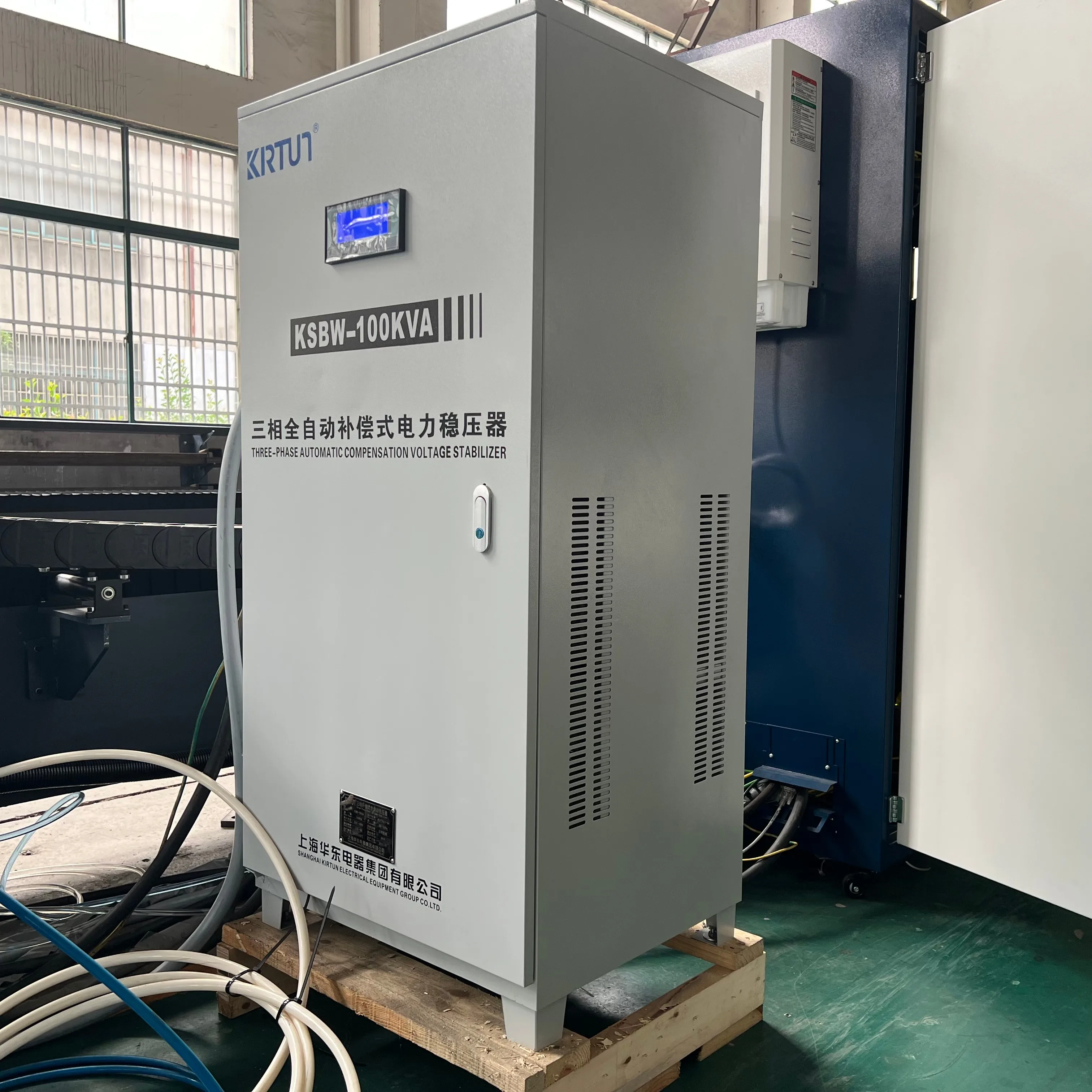

15 | Stabilizer | Kirtun |
16 | Transformer | Kirtun |
17 | Relay | Schneider |
18 | Other valves | SMC |
19 | AC | Tongfei |
Can be equipped with 40KW+ laser generator
Single axis acceleration up to 1.2G
The maximum air movement speed of single axis is 100 m/min
The effective processing width can be expanded
Front and rear grating safety protection

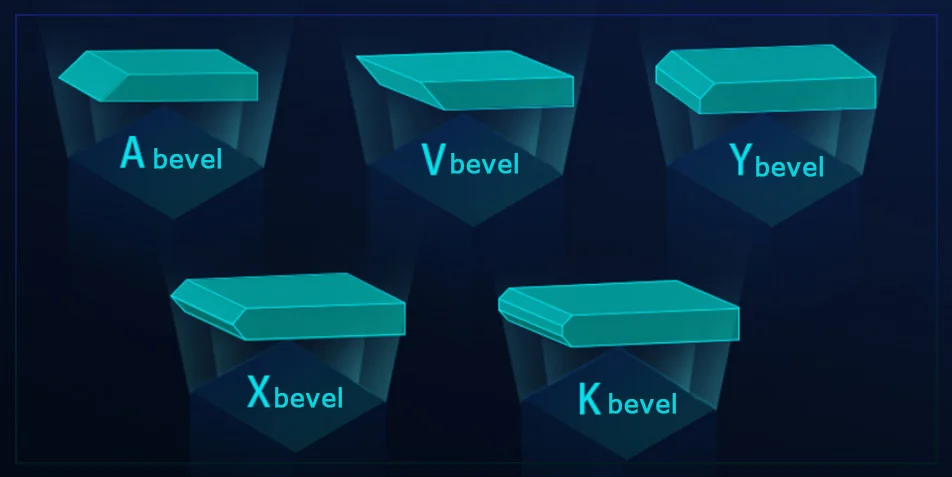

Meet the requirements of any groove of A\\K\\Y\\X\\V type less than 45 degrees
Single axis acceleration up to 1.2G
The maximum air movement speed of single axis is 100 m/min
The effective processing width can be expanded
Front and rear grating safety protection
Meet the requirements of any groove of A\\K\\Y\\X\\V type less than 45 degrees

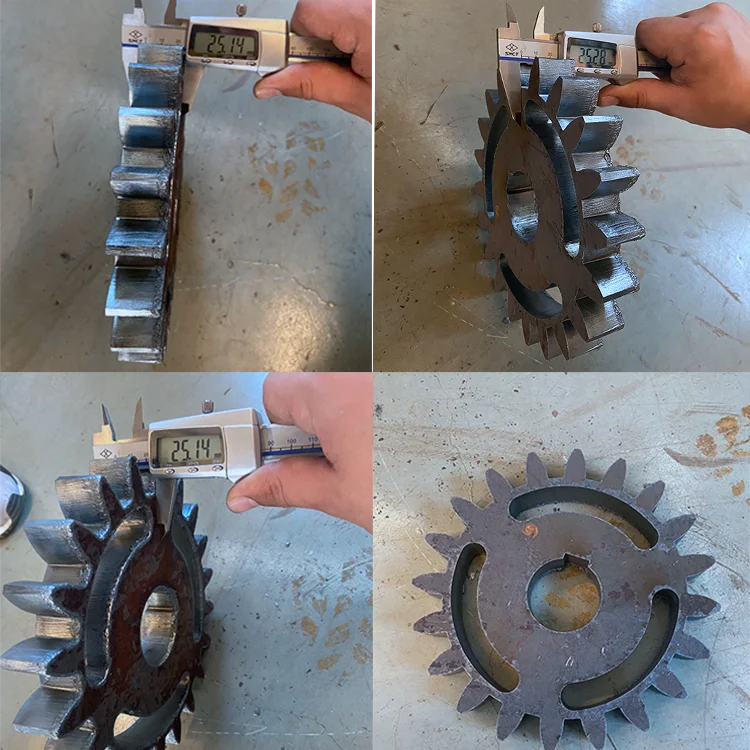

Sample
The straight cutting effect of the thin plate can reach the quality of the plane machine
Maximum ±45 degree bevel, can be cut with gradient bevel
Can meet various types of groove requirements
Can meet various types of groove requirements
Details
Certifications

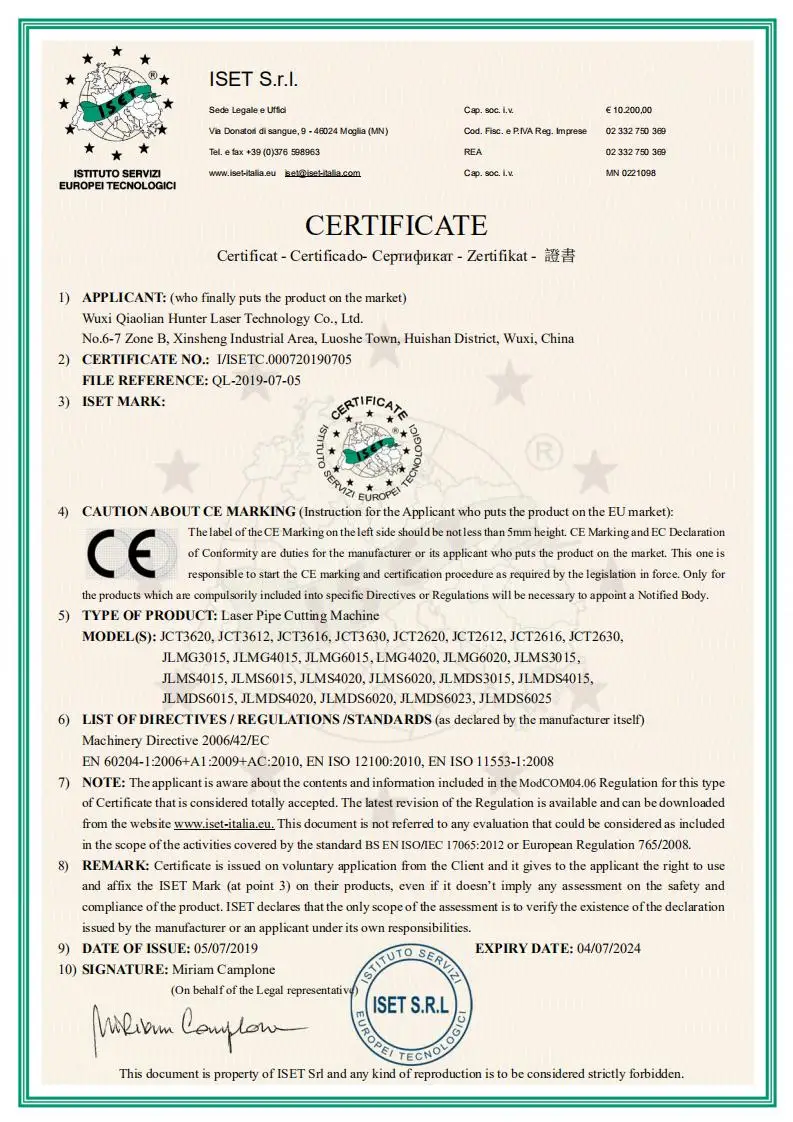

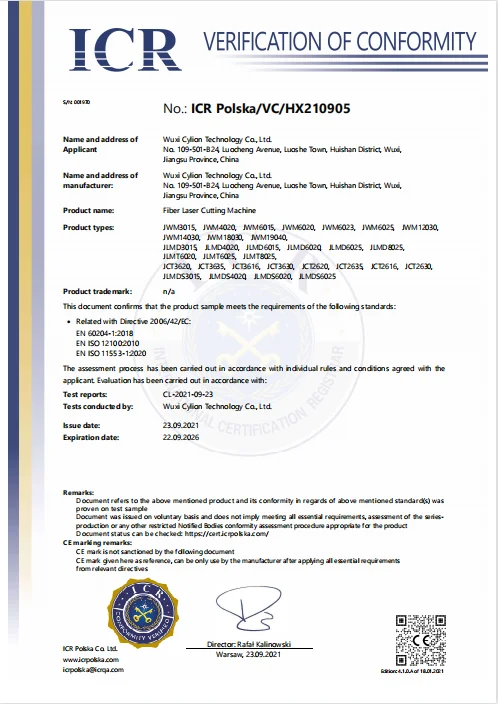

We have CE, ISO, SGS and other certificates, if you need it, you can contact us and we can send it to you.
Packing
Exhibition Information
Company Profile
Wuxi Cylion Technology Co., Ltd is a branch of Qiaolian group, responsible for R&D advanced industrial technology for Qiaolian group long-term growth, and promoting CNC equipment and parts produced Qiaolian group companies on oversea market. Qiaolian group companies are engaged in steel production line, steel fabrication equipments like CNC machining centre, lathe,Plasma, laser cutting & welding machines, CNC control systems and parts design, production and service.
Welcome to visit our factories in Wuxi.
Welcome to visit our factories in Wuxi.
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q: I don’t know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q: I don’t know which one is suitable for me?
A :just tell us below information
1) Max work size: choose most suitable model.
2) Materials and Cutting thickness: Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q: I don’t know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q: I don’t know which one is suitable for me?
A :just tell us below information
1) Max work size: choose most suitable model.
2) Materials and Cutting thickness: Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
