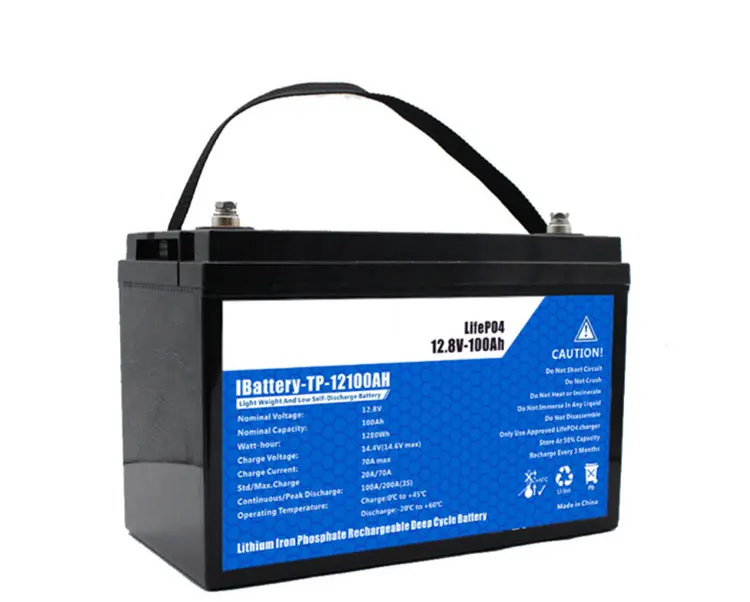

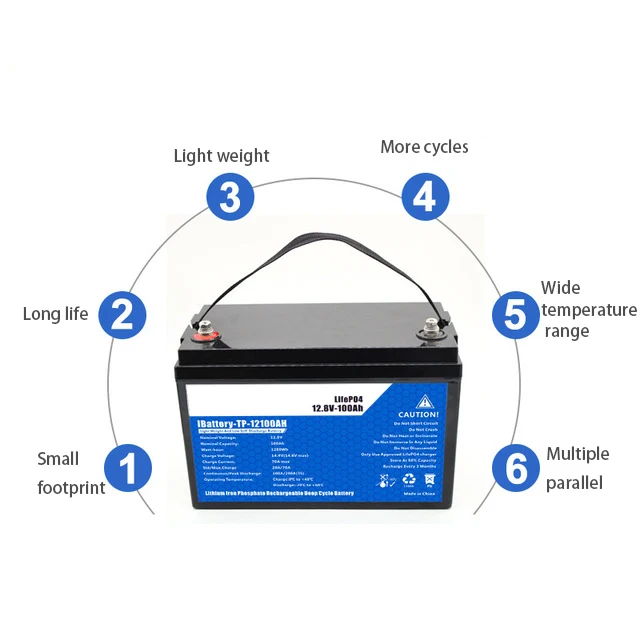

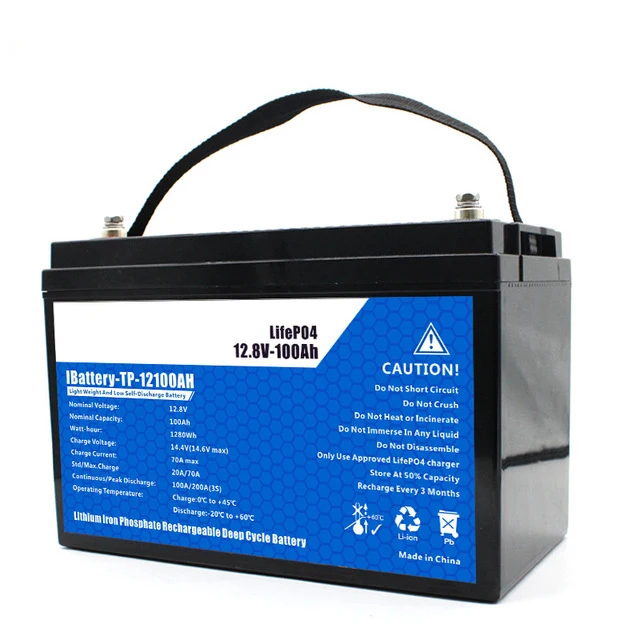

Lithium Iron Phosphate Lifepo4 Battery Pack 24v 200ah With BMS For Solar System
- Category: >>>
- Supplier: Jingjiang Guomao Auto Parts Manufacturing Co. Ltd.
Share on (1600458769446):
Product Overview
Description
Product Description
Specification

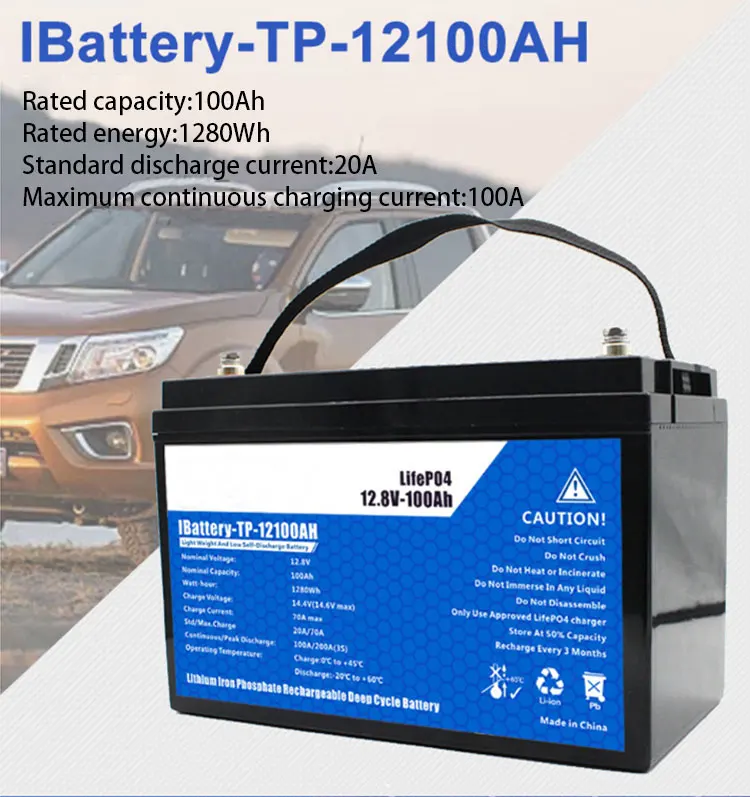

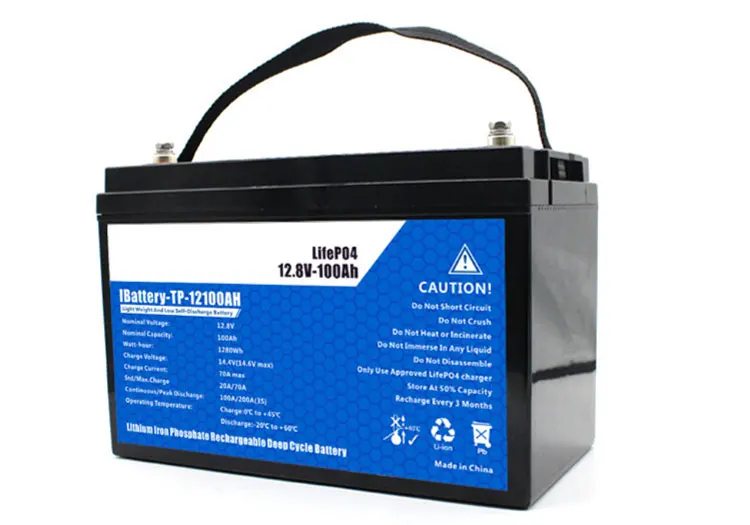

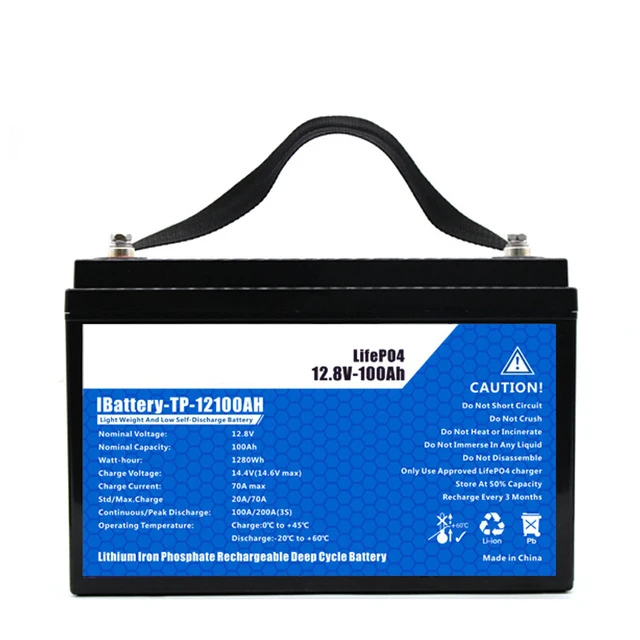

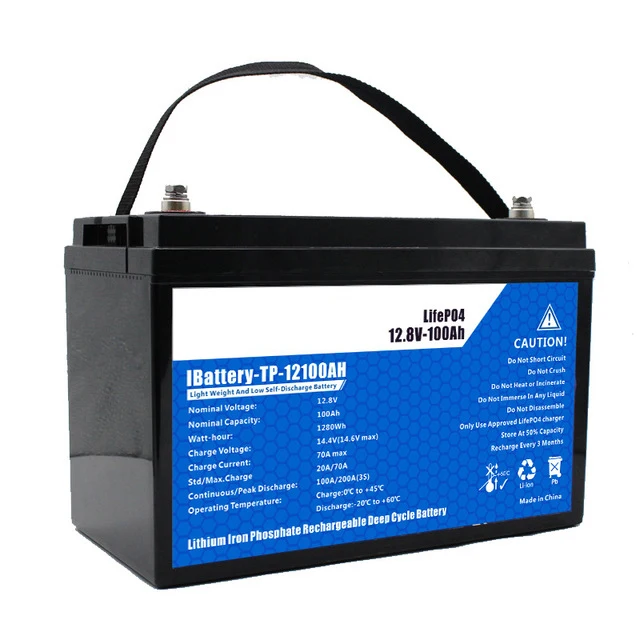

Model | IBattery-TP-12100AH | ||
Rated Capacity | 100Ah | ||
Minimum capacity | 98Ah | ||
Rated energy | 1280Wh | ||
Battery pack cell combination structure | 23140160-4S2P | ||
Rated voltage | 12.8V | ||
Discharge termination voltage | 10.8V | ||
Standard charging voltage | 14.6±0.2V | ||
Float charging voltage | 13.8V | ||
Standard discharge current | 20A | ||
Recommended charging current | ≤20A | ||
Maximum continuous charge current | 70A | ||
Standard discharge current | 20A | ||
Recommended discharge current | ≤50A | ||
Maximum continuous discharge current | 100A | ||
Peak current | 250A,10Sec | ||
Internal resistance | ≤40mΩ | ||
Weight | Approx. 12.0kg±5% | ||
Shipped electricity | Approx.50% SOC | ||
Operating temperature | Discharge | -20℃~60℃ | |
Charge | 0℃~45℃ | ||
Storage environment | ≤1Month | -20～+60℃、5～75%RH | |
≤6Month | -10～+45℃、5～75%RH | ||
Recommended environment | 15～+35℃、5～75%RH | ||

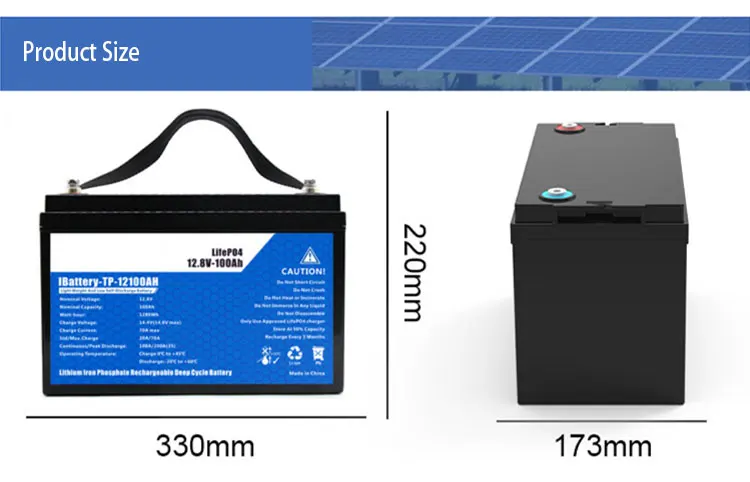

Net size | 330*173*220mm | ||
Package dimensions | 400*245*295mm | ||
Net weight | 11.5kg | ||
Package weight | 12.5kg | ||

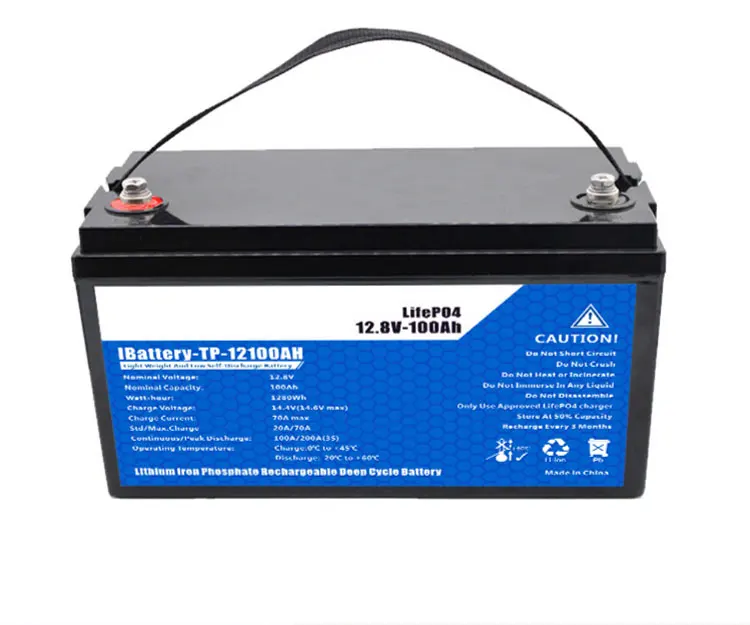

Details Images

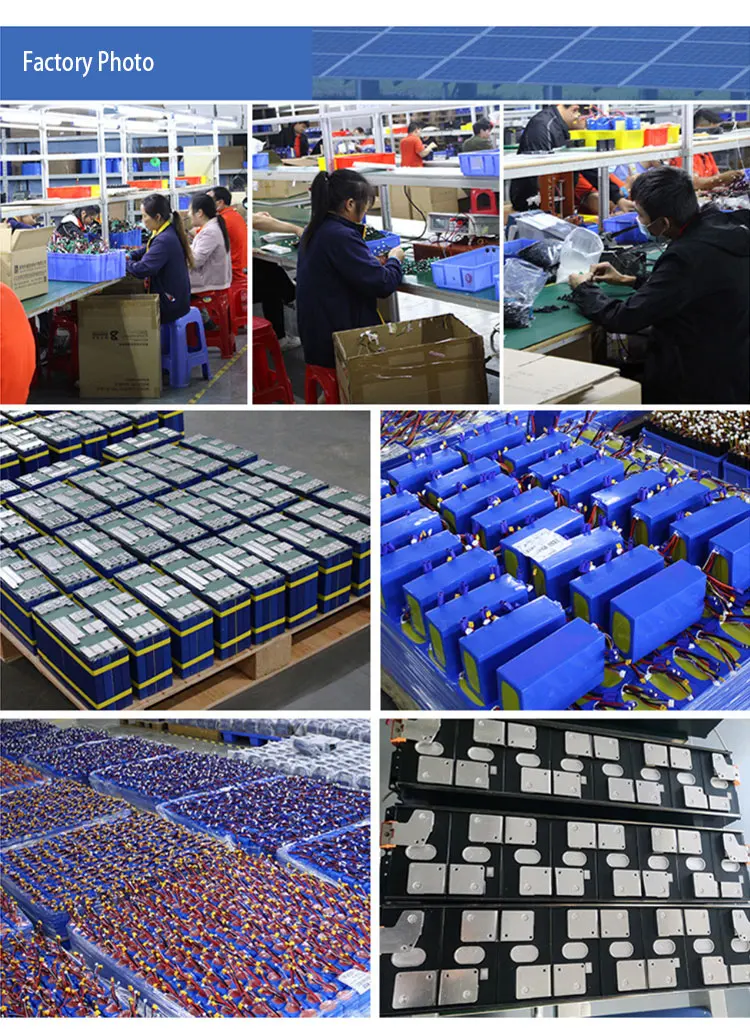

Company Profile
GUOMAO is a manufacturer of solar power system with well-equipped testing facilities and strong technical force.It is located in Jingjiang.
GUOMAO, specialized in R&D.We are concentrated on on-grid system,off-grid system and intergrated solar system.The main products including Mono-crystalline PV panel,Poly-crystalline PV panel,Storage battery,solar charge controller,solar inverter and so on.We have our own factory to product solar mounting and PV modules.
GUOMAO has introduced advanced automatic production equipment from Germany,Italy and Japan.Our products are global and trusted by users.
GUOMAO provide one-stop service for design, production, sales and installation.We are looking forward to cooperating with you sincerely.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.Why choose us?
A: We are absolutely excellent quality, reasonable price, as well as the entire team to customers for a full range of services to ensure the interests and satisfaction of customers, we always take integrity and respect as the foundation.
2.What are the price terms?
2.What are the price terms?
A: The prices listed are ex-factory. There may be additional shipping costs depending on the forwarder and method of transportation. Prices may fluctuate due to changes in material cost/labor cost/exchange rate. Please consult our sales staff confirm the order.
3.How's about the packing?
A: To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
4.What are the terms of payment?
A: Telegraphic transfer 30% as deposit, before delivery telegraphic transfer 70%. We'll show you a picture of the product and packaging before you pay.
5.What's your delivery time?
A: For the products in stock, we can deliver them to you in 5-10 days. The normal lead time for mass production is 20-45 days. Specific also depends on destination port and decide.
6.How to place and pay?
A: You can contact our Sales Manager to draw up your π or Transaction Guarantee Order, or you can press the "Order Start" button on Alibaba.
A: You can contact our Sales Manager to draw up your π or Transaction Guarantee Order, or you can press the "Order Start" button on Alibaba.
