Series Wire Drawing Machine Cable Intermediate Drawing Machine
- Category: >>>
- Supplier: Jiangsu Brainpower Intelligent Technology Co. Ltd.
Share on (1600458783441):
Product Overview
Description
PRODUCT OVERVIEW
9Dies Intermediate Drawing Machine
9Dies Intermediate Drawing Machine is used for drawing copper wire from 3.0 mm to 1.13-2.78 mm.
Outlet wire can be collected by single spool take up.
FEATURE
(1) Max.Dies Qty: 9
(2) Outlet wire size: 1.13-2.78 mm
(3) Max speed: 20 m/s
(4) Three or four sections horizontal annealing is optional choice.
(2) Outlet wire size: 1.13-2.78 mm
(3) Max speed: 20 m/s
(4) Three or four sections horizontal annealing is optional choice.
MAIN SPECIFICATION
Machine type | BRN-9DHT |
Control system | PLC with touch screen |
Inverter control | Dual inverter control |
Drawing dies No./max. | 9 |
Inlet diameter | Ø 2.6- 3.5mm |
Out diameter | Ø1.1- 2.78mm |
Drawing line speed | 1200mpm/max |
Slip ratio of m/c | 18% |
Fix speed capstan slip ratio | 15.5% |
Frame | Ironed cast |
Capstan | Ceramic plasma capstan |
Main motor | 55kw |
Spooler motor | 11kw |
Capstan dia.(max) | Ø 300mm |
Fix speed capstan dia. | Ø 300mm |
Spool bobbin size | Ø 500-630mm OR according to customers |

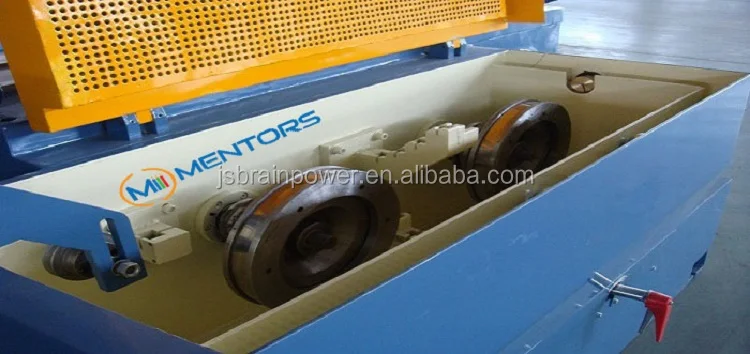

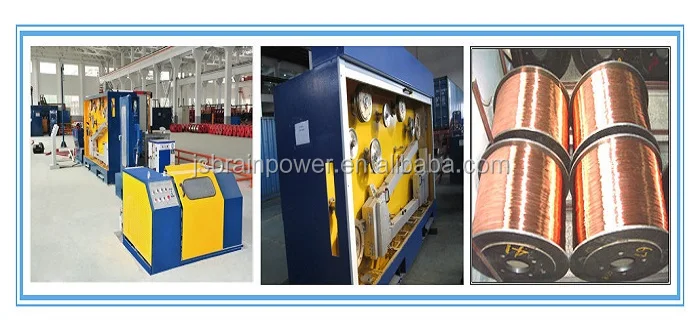

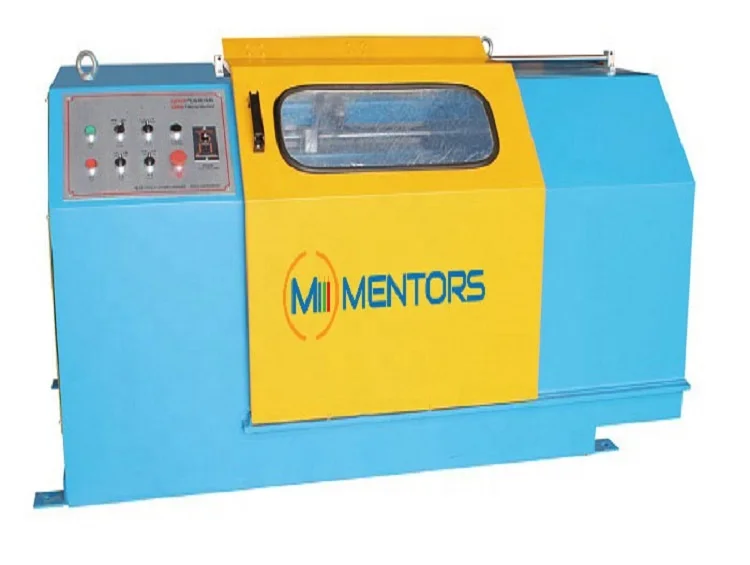

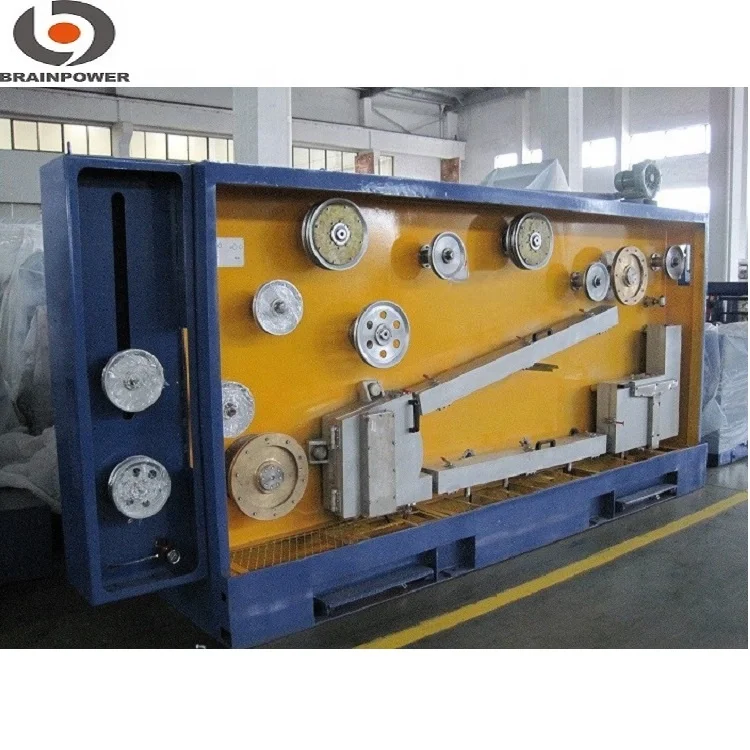

PHOTO SHOW
ADVANTAGES
(1). For same finished size, compare to Rod Breakdown Machine, electricity and energy saving.
(2). Ironed cast and Wear-resistant capstan can keep long life.
(3). Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.
(4). Besides normal copper, also is a good choice for welding wire
(5).Horizontal annealing design is easily for operating.
(6). Longer annealing section with tension ensure good and stable elongation.
(2). Ironed cast and Wear-resistant capstan can keep long life.
(3). Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.
(4). Besides normal copper, also is a good choice for welding wire
(5).Horizontal annealing design is easily for operating.
(6). Longer annealing section with tension ensure good and stable elongation.
ABOUT US

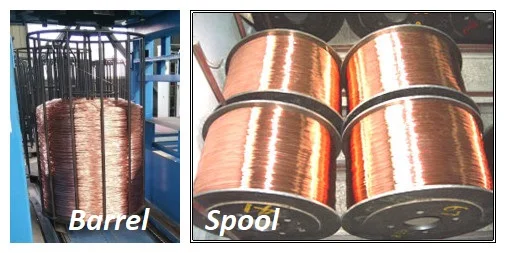

FINISHED PRODUCT SHOW
FAQ
Q1: What’s the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
