1080P AHD H.265 4 Channel Mobile DVR Sim Card With Dual SD Card 3G 4G Wifi Gps 4Ch MDVR With Free Monitor For Car Truck Bus
- Category: >>>
- Supplier: Dongguan Lintech Electronic Limited
Share on (1600458807474):
Product Overview
Description
1080P AHD H.265 4 channel mobile DVR sim card with dual SD card 3g 4g wifi gps 4ch MDVR with free monitor for car truck bus
Model No:DVR-F4
Description
This radar detector car DVR/camera is a high-end mobile SD version's DVR dedicated for mobile surveillance market.
Applying high-speed processor and embedded operating system and integrating various
state-of-the-art technologies of IT industry, such as audio/video codec technologies,
large-capacity hard drive storage technologies, stream media network technologies,
video/audio noise reduction technologies, mature damping technologies and wide voltage
design, it features concise appearance, flexible installation, powerful functions and safe and
reliable system.
DVR Specifications:
-- 4CHs video input, 1 channel video output; 1.0Vp-p, 75Ω
--Frame Rate: PAL: 200 frames/s, up to 25 frames/s per channel; NTSC: 240 frames/s, up to 30 frames/s per channel
--Resolution: CIF, HD1 and D1 for selection, supporting 2 channels of D1, 6 channels of CIF at the most
--Audio Input, Output: 4-channel input, 1-channel output
--H.264 video code compression, dual stream output;

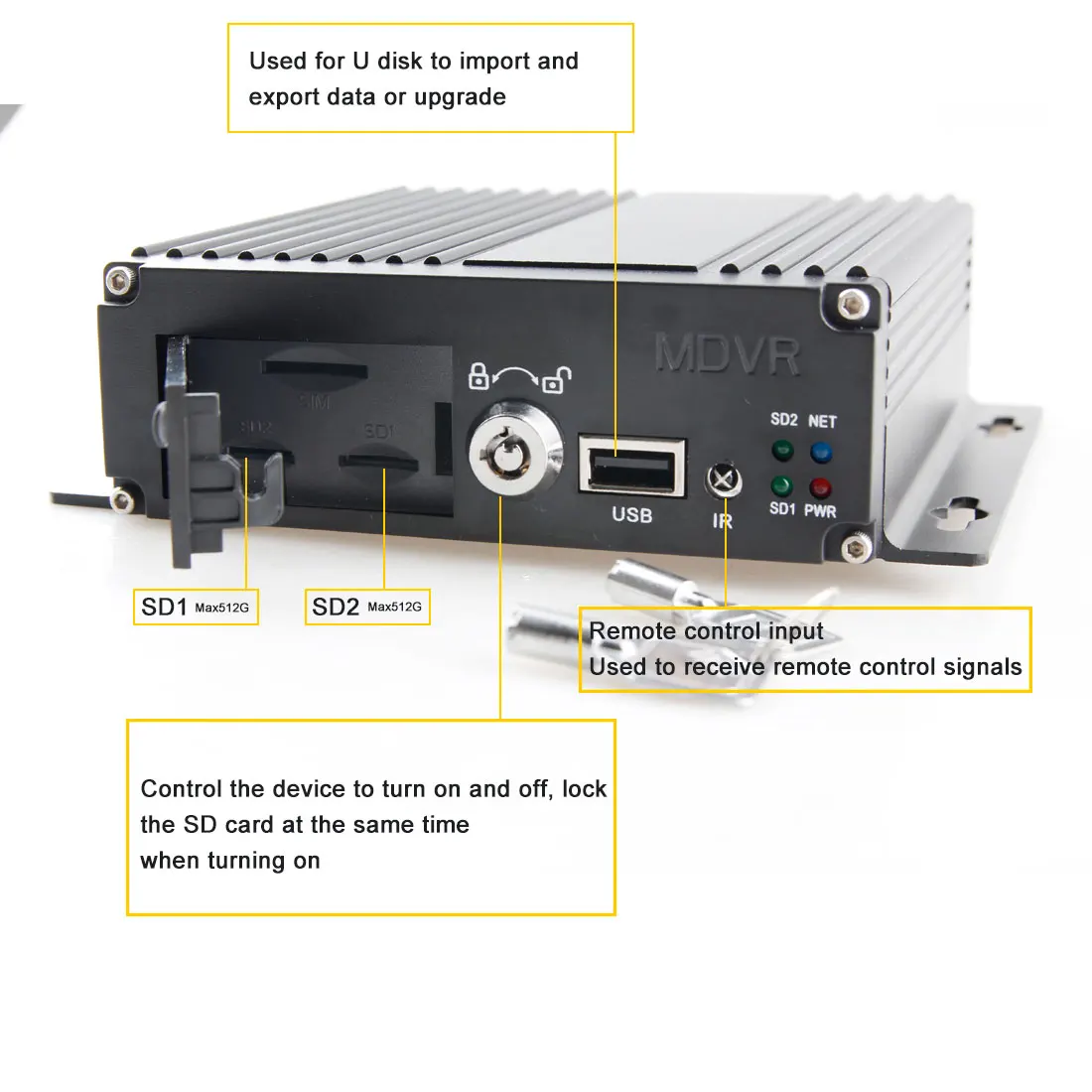

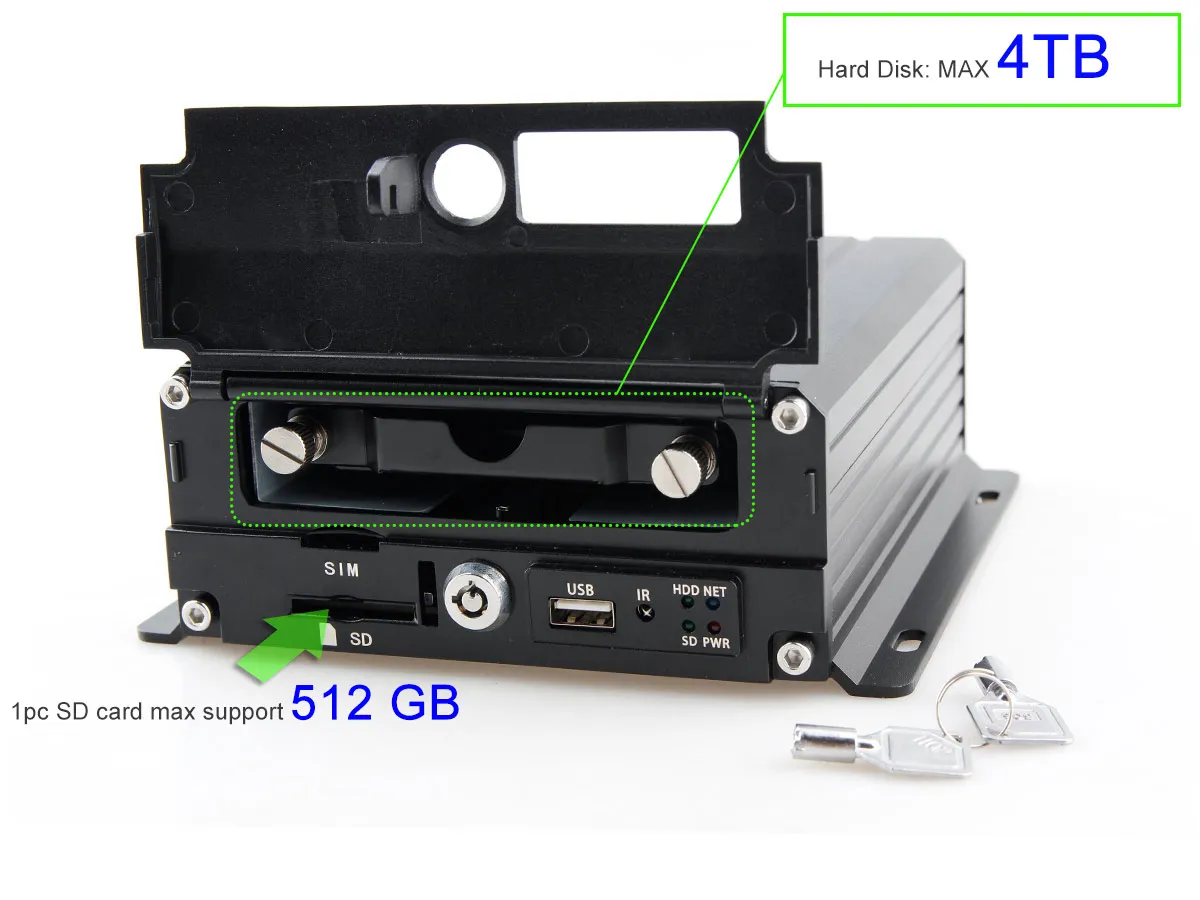

--Supporting 2 SD cards, which supports up to 512G + 512G

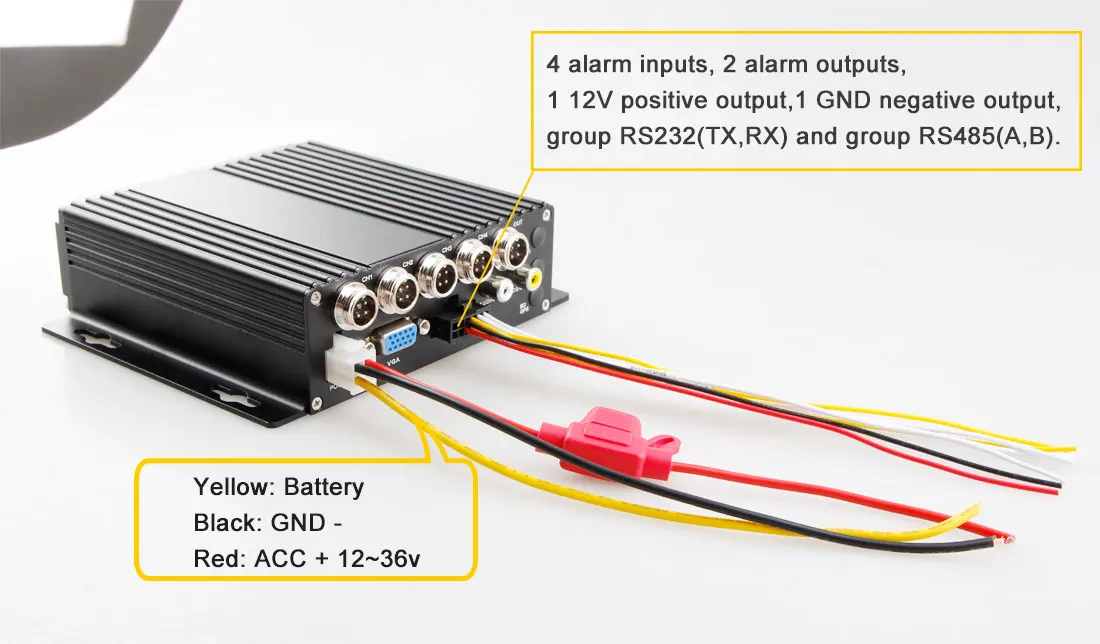

--Alarm Input / Output: 6-channel ON/OFF signal alarm input, 1-channel on/off signal alarm output
--Alarm Recording: Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
--Communication Ports: RS232/485, RJ45 10M/100M self-adaptable network interface

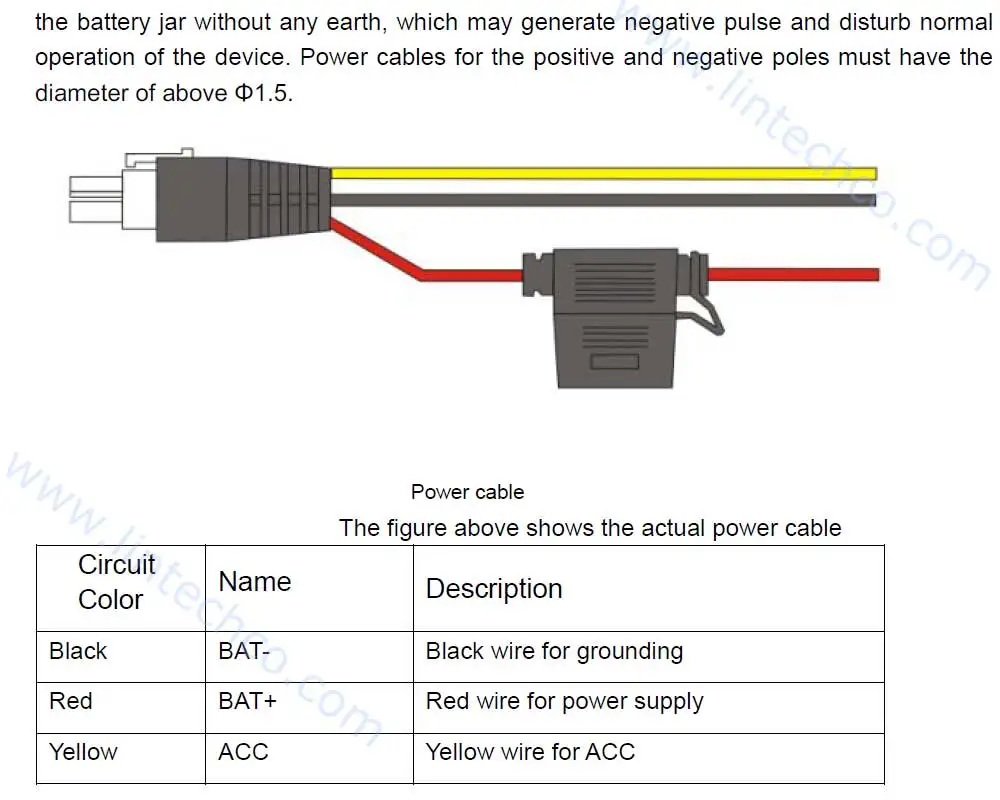

--Input Voltage: DC: +8V ~ +36V
--Output Voltage: +12V/8*0.5A; +5V/0.5A
--Dimensions: 147(L) x136(W) x42(H) mm.
Optional functions:
--4-Channel/8-Channel
--3G wireless transmission;
--Wi-Fi wireless transmission;
--GPS, G-sensor acceleration sensor, with precise time correction;

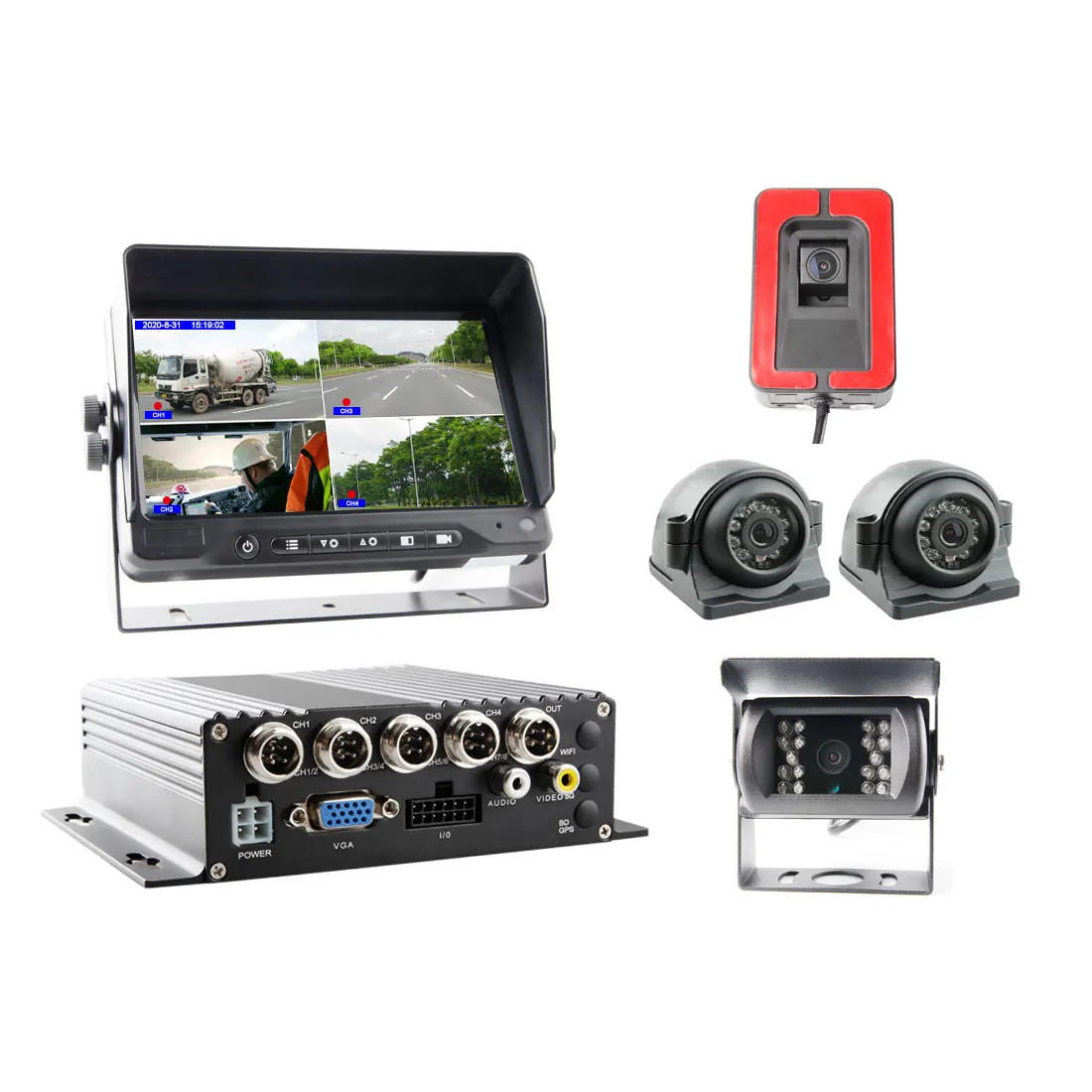

More details of 4CH Car Blackbox DVR :
7 Inch Monitor(LM-070F2):
specifications:
| Screen size | 7 inches new AU TFT-LCD panel |
| type | Stand-alone monitor (16:9) display |
| Display Resolution | 800 R.G.B x480 dots / AHD 1024*600 optional |
| System | PAL/NTSC auto switching |
| Video input | 4CH slipt funstion for DVR use |
| Power supply | 12~32VDC |
| Power consumption | less than 7W |
| Image | Up/down, Left/right functions |
| Loudspeaker | Optional |
| Remote control | Yes |
| Operating temperature | -10 ~ +65degrees |
| Storage temperature | -40 ~ +65degrees |
| Without signal | Video signal disappear, display blue screen |
| Languages | English, Dutch, French, Spanish, Russian, German, Italian |
| Suitable for | camera/DVD/VCD player |
| trigger cable | yes |
| Color | black color |
| Warranty | 18 months |

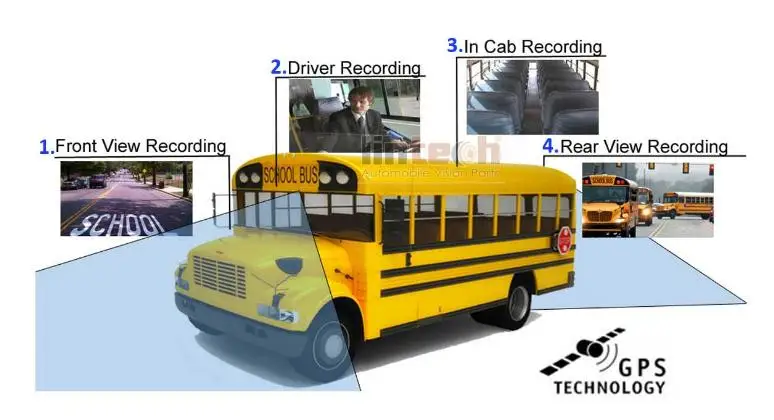

Support 4 CHs Cameras work with it:

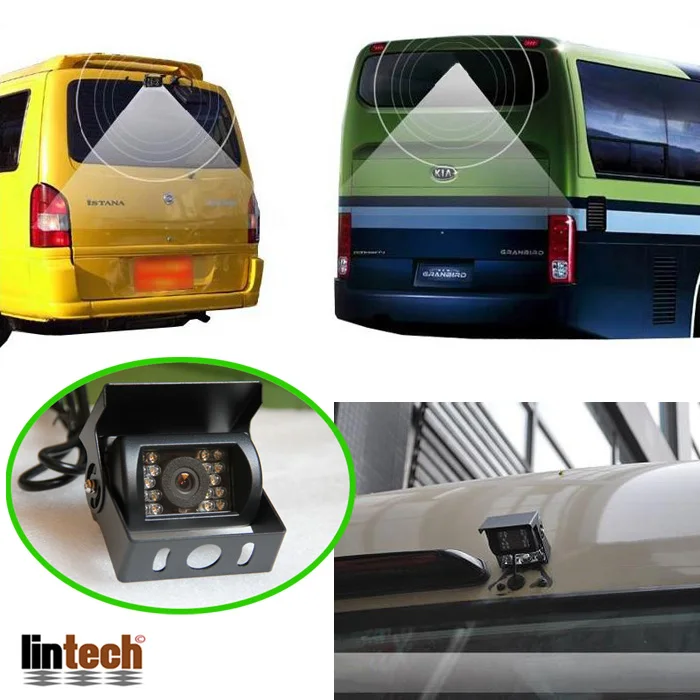

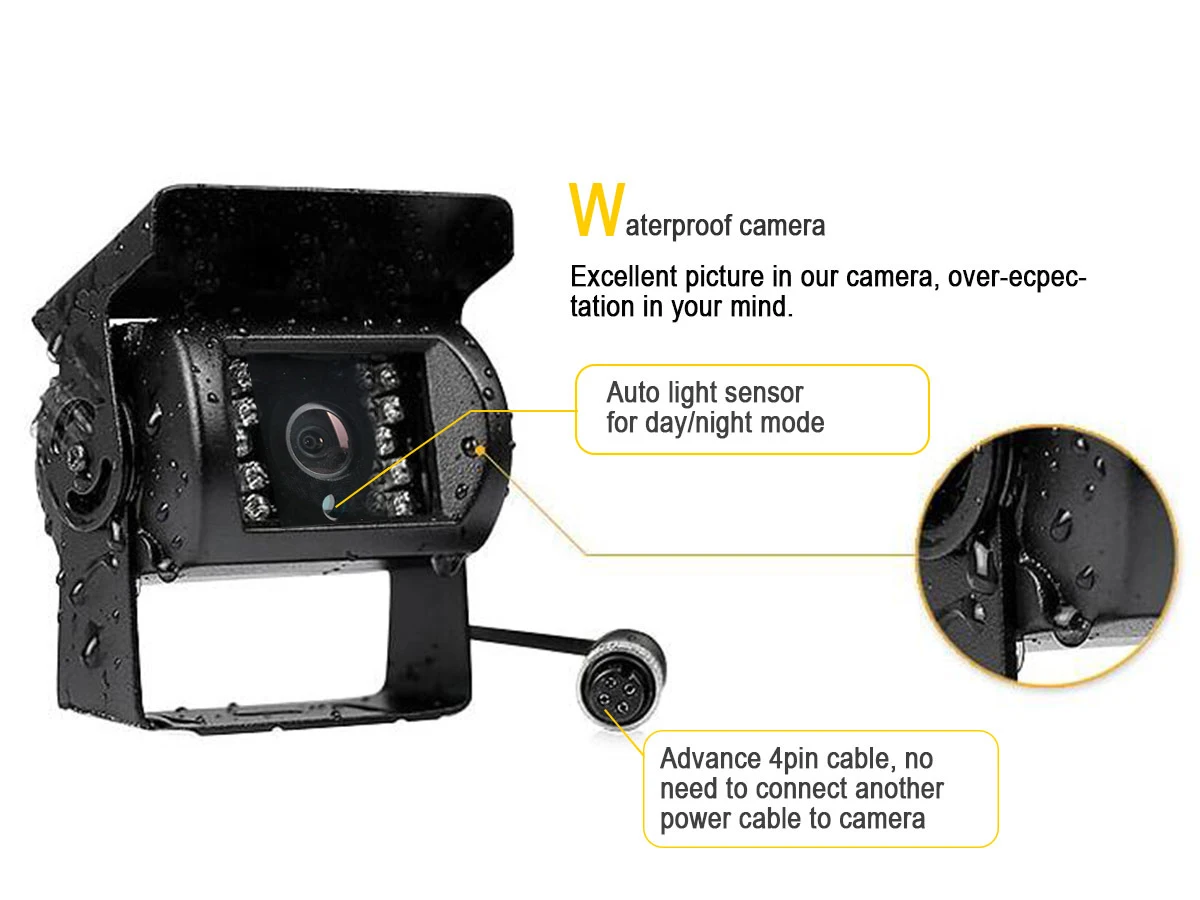

Rearview Camera(LC-018A):

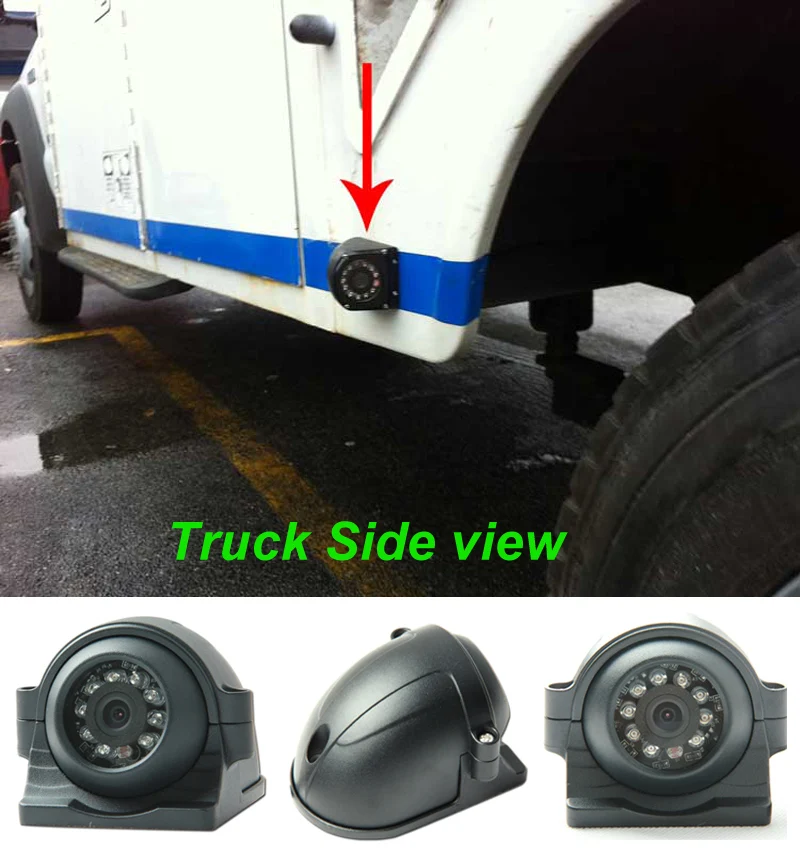

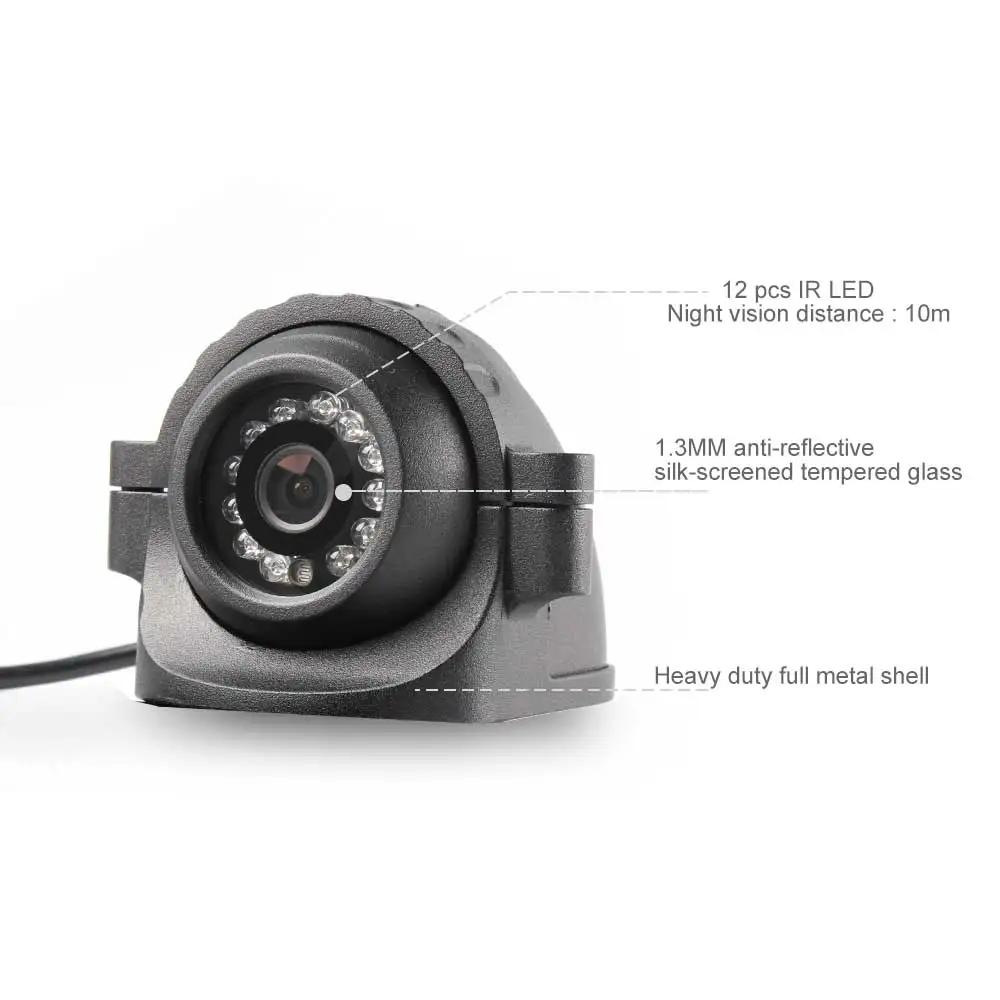

Side or Front camera(LC-009D1) can be install:

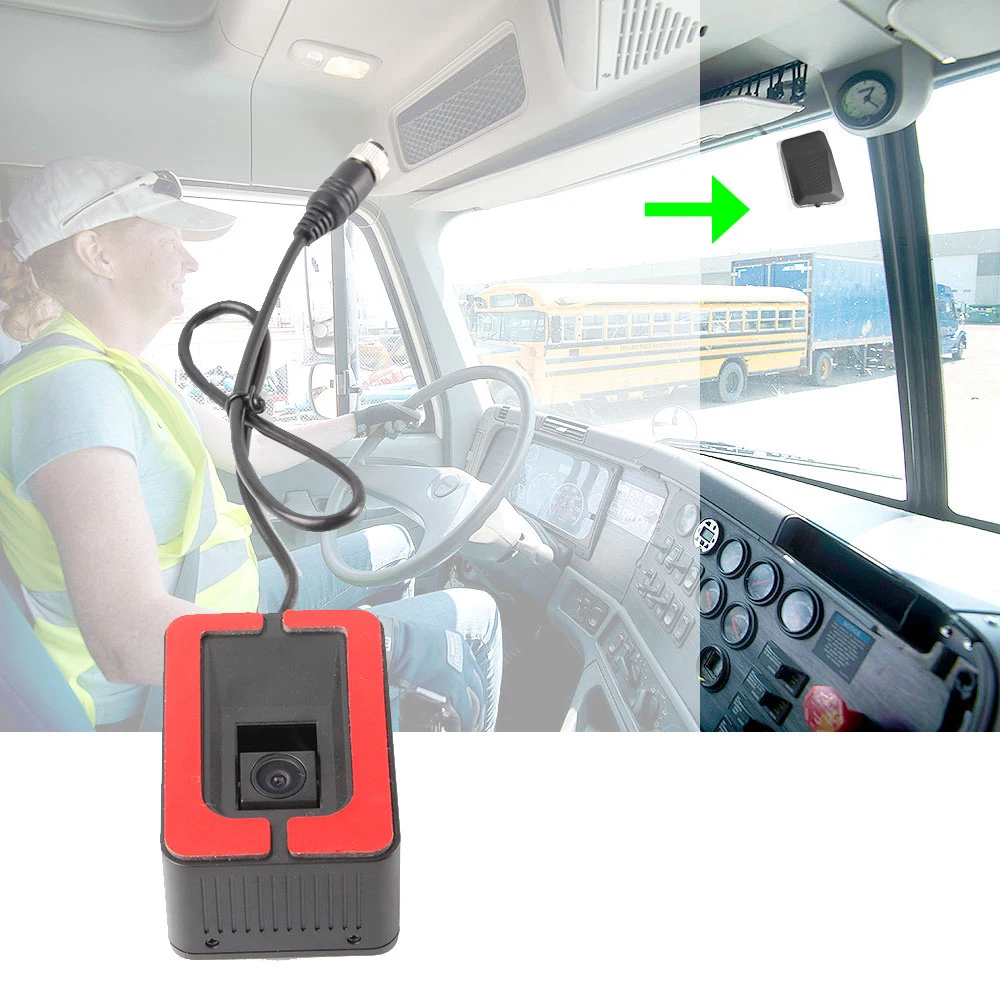

Front camera install:

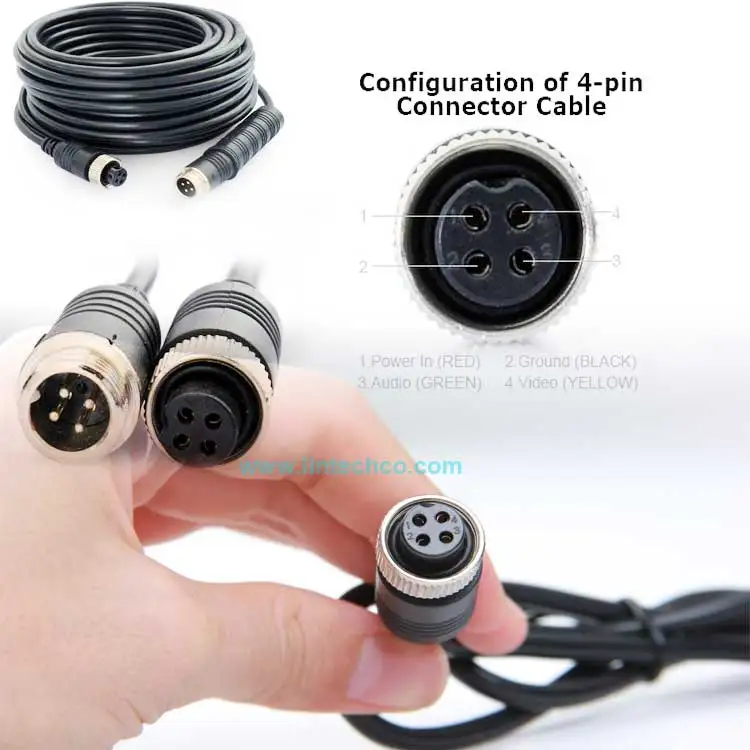

4 pin aviation extension cables
4PIN cables Allows the monitor,DVR to power up cameras, no need to connect to another power cable.

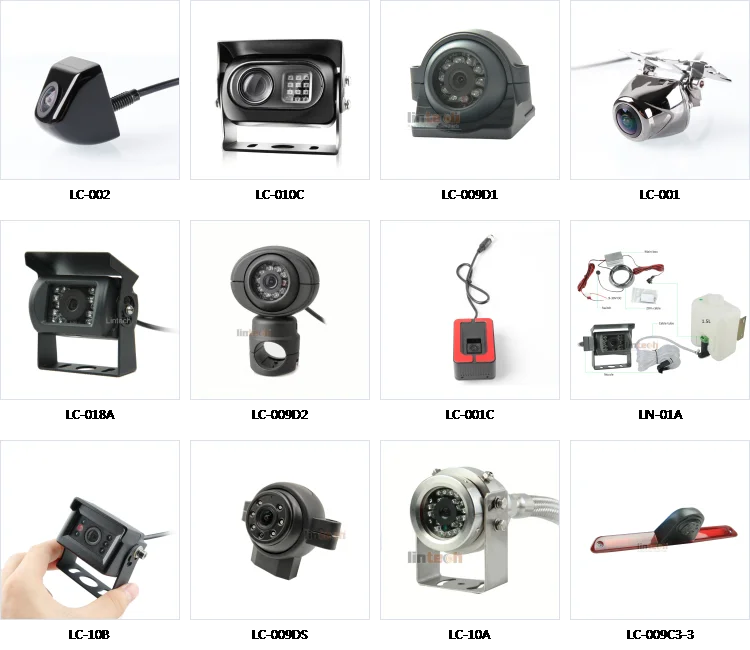

Similar Product:
Packaging & Shipping
1.Standard packing: 8sets/carton. .
2.Payment terms:T/T,Western Union,Paypal
3.Shipping:DHL,FEDEX,UPS,TNT,EMS ect
Company Information
Lintech Enterprises Limited / Dongguan Lintech Electronics Limited is a professional automotive safety video technical systems
supplier. we have our own factory and cooperated factories for producing different auto equips products.
With years experience and based on a traditional security products background, we have a clear target that to provide the most
competitive products not only in quality but also at price to clients with those mature auto equips.
We like to make those equips provide to our clients exactly meet their requirements and surely we adjust our products design
according to end user useful advise. And our innovation will make our enterprises as a leader in the auto equips field.
Auto mobile parts for safety purpose, product quality management system require equiped, ISO/TS16949 certificates and policy, EMC
certificates, E-mark(E9-10R05 / E9-S3 R7), CE, RoHs, FCC, SAE…, Lintech fllowing with market demand and keep working for improving
customer’s produt using experience.
supplier. we have our own factory and cooperated factories for producing different auto equips products.
With years experience and based on a traditional security products background, we have a clear target that to provide the most
competitive products not only in quality but also at price to clients with those mature auto equips.
We like to make those equips provide to our clients exactly meet their requirements and surely we adjust our products design
according to end user useful advise. And our innovation will make our enterprises as a leader in the auto equips field.
Auto mobile parts for safety purpose, product quality management system require equiped, ISO/TS16949 certificates and policy, EMC
certificates, E-mark(E9-10R05 / E9-S3 R7), CE, RoHs, FCC, SAE…, Lintech fllowing with market demand and keep working for improving
customer’s produt using experience.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. And also can offer OEM Brand for clients based on the Order Qty.
Q2. What is your terms of payment?
A: --Small order 100% before delivery.
--For bulk order T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages,before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB
Q4. How about your delivery time?
A:For sample order,about 3~5days after we get payment.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Any question about this DVR system, please feel free to contact or leave an inquiry for us at anytime!
We will make the fast answer. Thanks for your patience!
