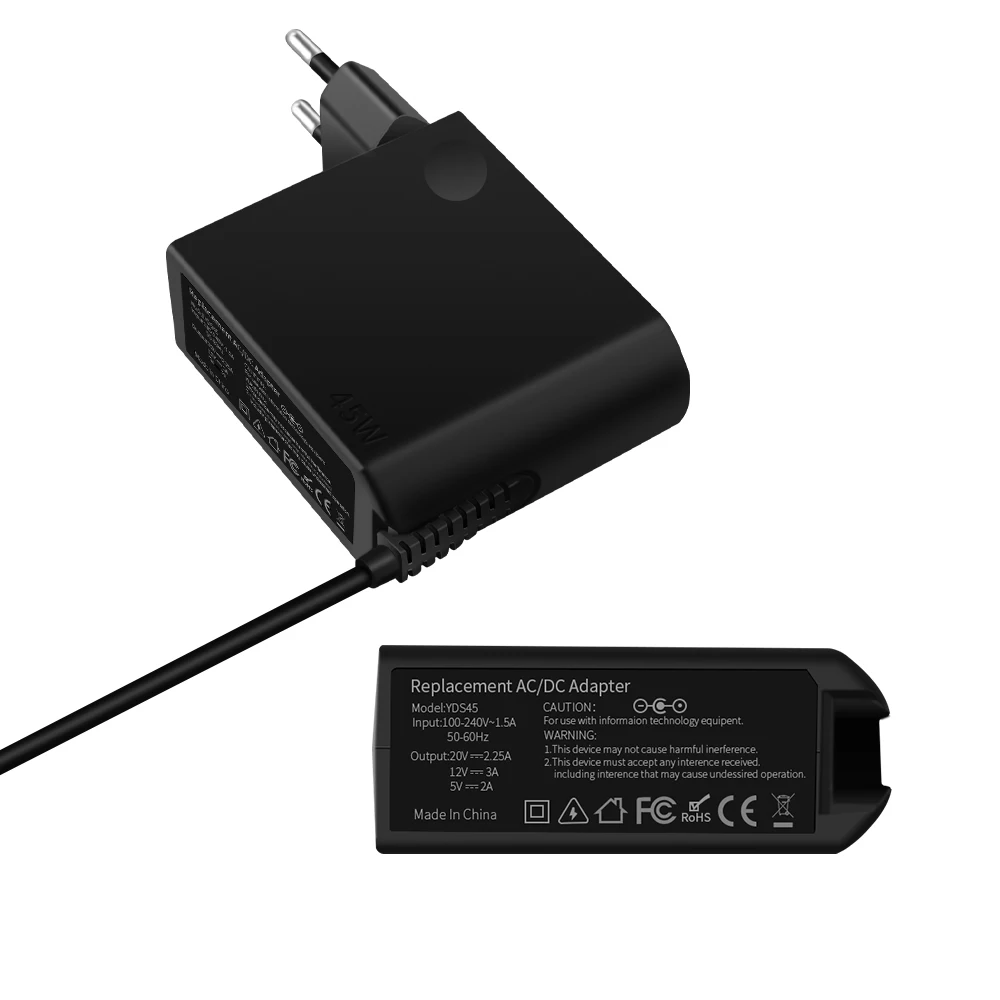

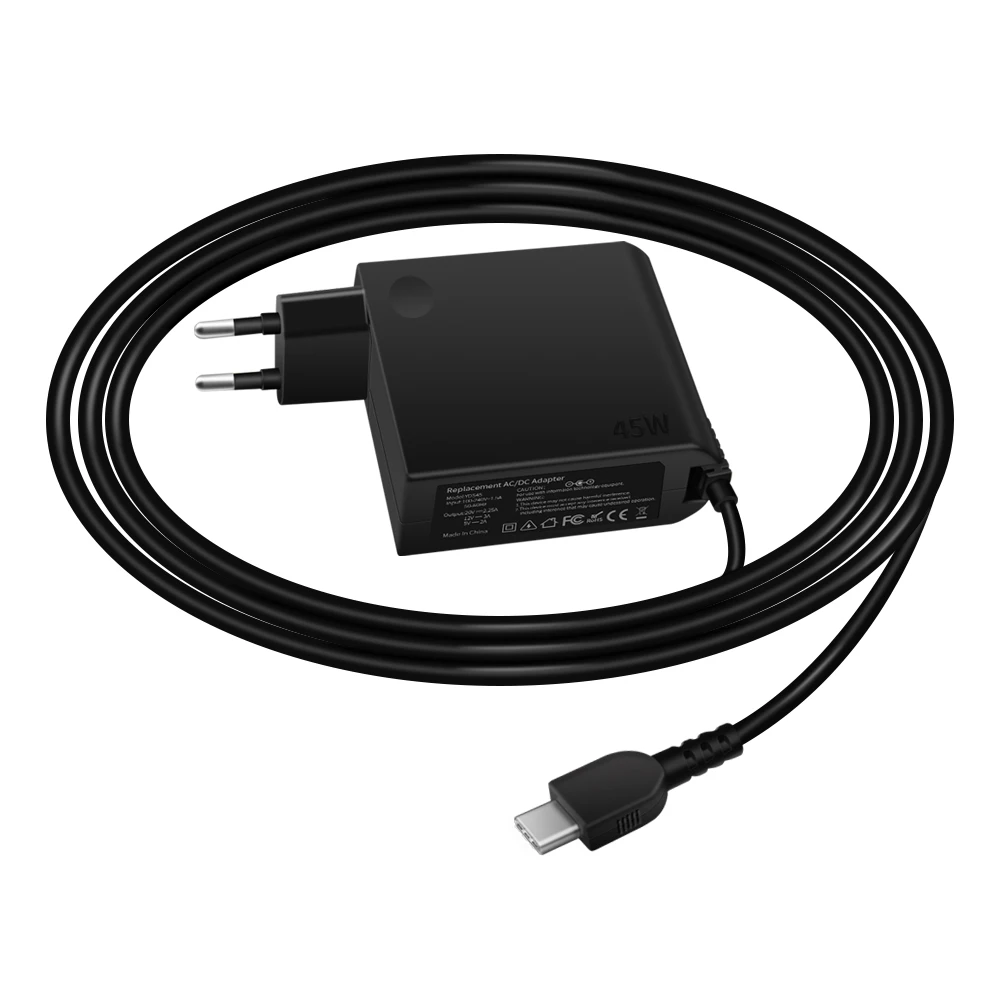

AC 100V 220V power supply 5V 9V 15V 20V USB C PD Laptop adapter 45W Type c Charger For Lenovo

Specifications

Model No.

YTS405

AC Input

Nominal Input Voltage

AC 100V~240V

Input Voltage Range

AC 95V~265V

Input Frequency

50/60Hz

DC Output

Output Voltage& current

5V3A/9V 3A/ 15V 3A /20V2.25A

Output Power

45W

DC Connector Size

NEW TYPE C

Line Regulation

2%

Load Regulation

5%

Ripple Noise

180 Mvp-p

Efficiency

>85%

Output Cable Standard

0.5mm2, OD 4.0mm  Pure Copper

Output Cable Length

2m normally or customized requirement

Environment

Operating Temperature

0°C ~40°C

Operating Humidity

5%~95%RH

Storage Temperature

-20°C ~85°C

Storage Humidity

5%~95%RH

Protection

Over Load Protection

Short Circuit Protection

Over Current Protection

Over Temperature Protection

Certificates

CE, ROHS, REACH, FCC

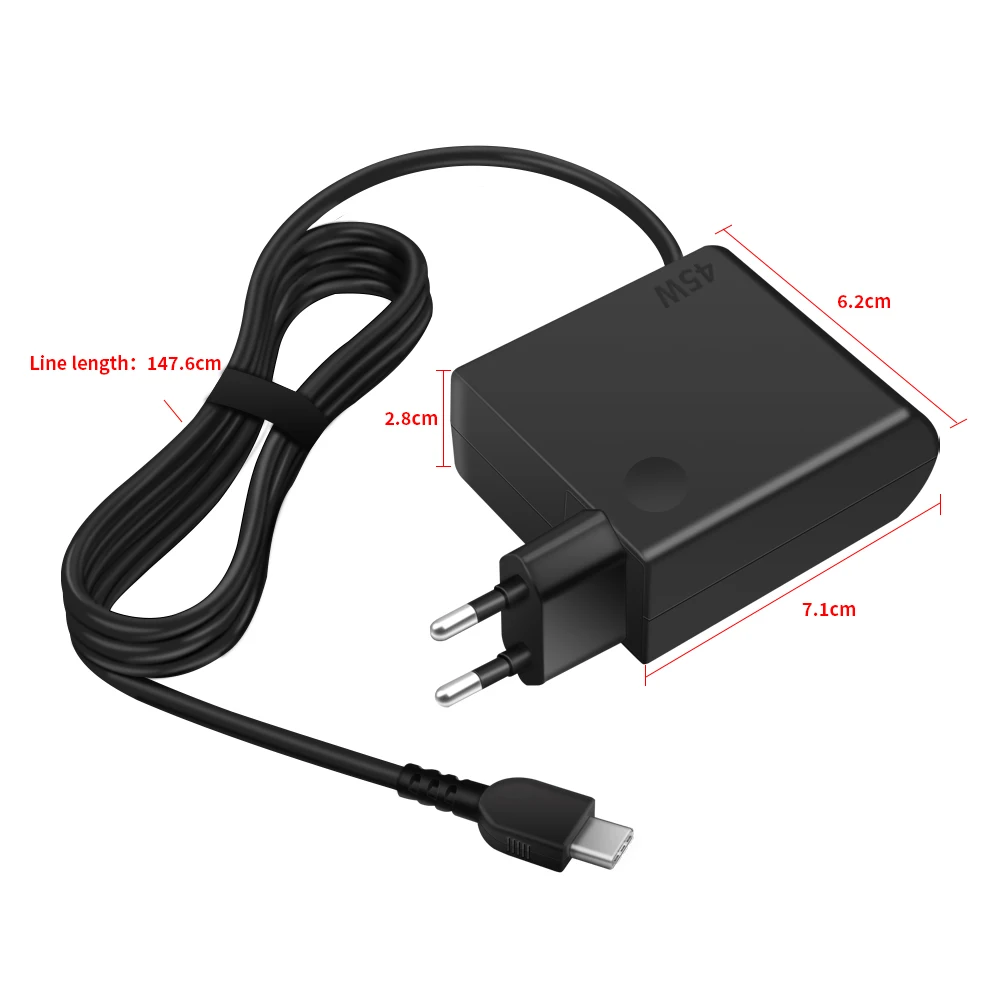

Dimensions

Adapter Size

65*65*29 MM(not including the AC plug)

Ac plug length

40mm

Adapter Weight

171.5G

Inner Box Size

19*13*4.7 CM

Inner Box Weight

40G

PCS/CTN

50PCS

Outer Carton Size

48.5*32*40 CM

Outer Carton Weight

860G

GW/CTN

11435G

Package

Inner Box

Normally neutral brown box or customized requirement

Outer Carton

Normally neutral standard carton or customized requirement

Warranty

Guarantee

30 days

Warranty

2 years

Terms and Conditions

MOQ

100PCS for mixed order

Payment Terms

T/T, L/C, PayPal, western union

Delivery Time

3-5 days

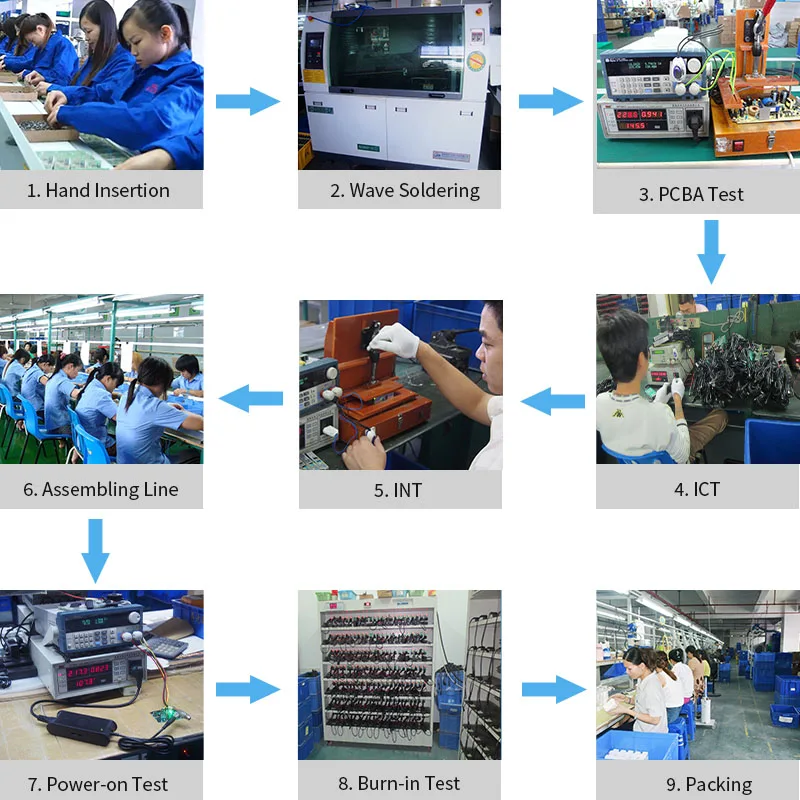

Manufacturing Process

1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

Test Procedures

1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
