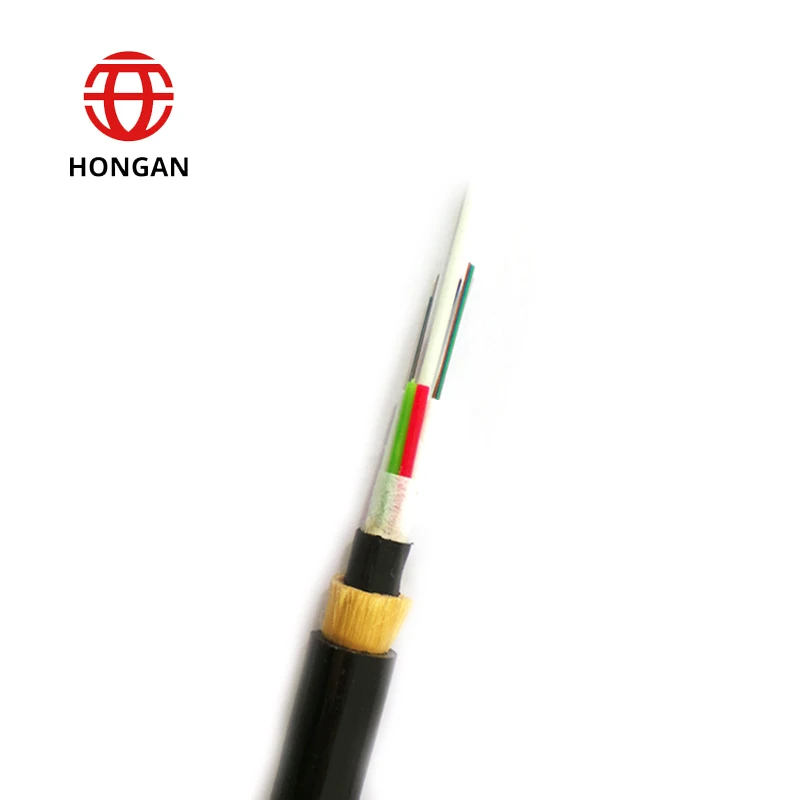

Manufacturer Supply Fiber Optic Cable Adss 4 6 12 24 48 Core Outdoor Fiber Optic Cable

Manufacturer Supply Fiber Optic Cable Adss 4 6 12 24 48 Core Outdoor Fiber Optic Cable

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.ADSS is an alternative to OPGW and OPAC with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.

Applications:

Railways, power and telecommunication pole routes

Can be used in areas suffered from frequent lightning

Ideal for transmission lines with high electrical field strength

Suitable for installation on poles and on the power distribution network

Aerial self-supporting applications at short, medium and long span distances

Characteristics:

Excellent water-blocking performance;

Excellent resistance to lateral pressure, and mechanical and temperature performance.

Excellent performance of resistance to electromagnetic interference.
