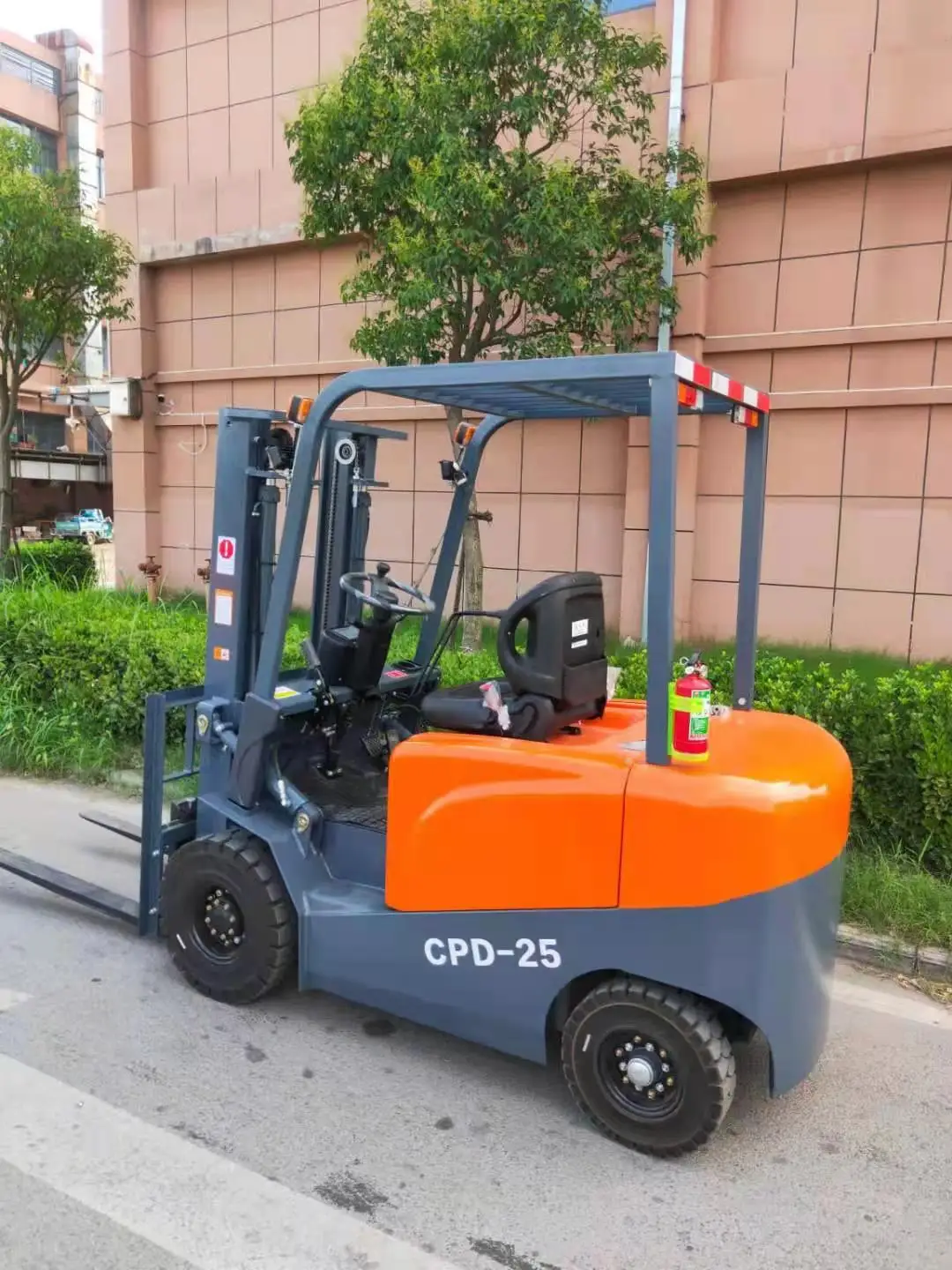

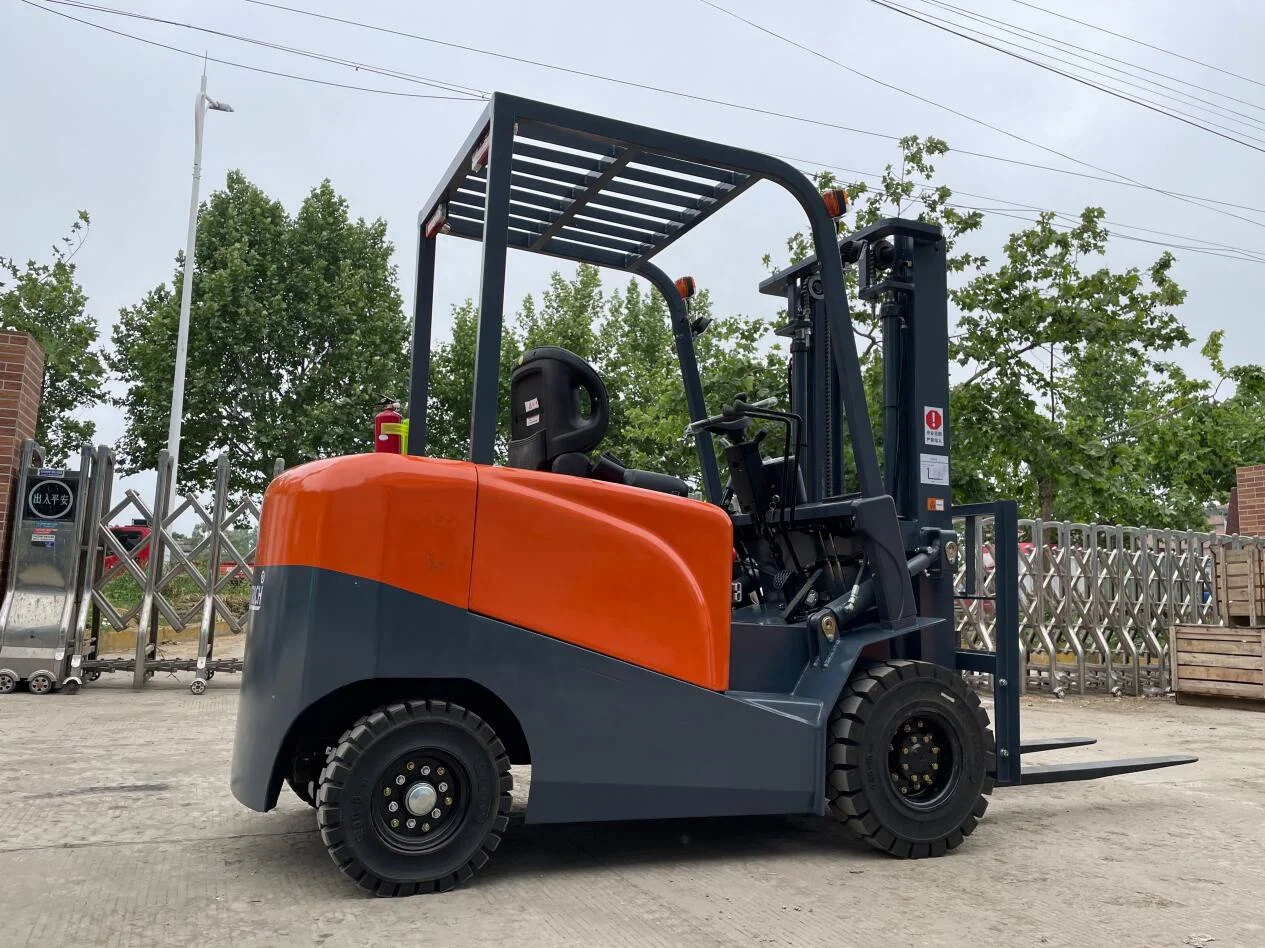

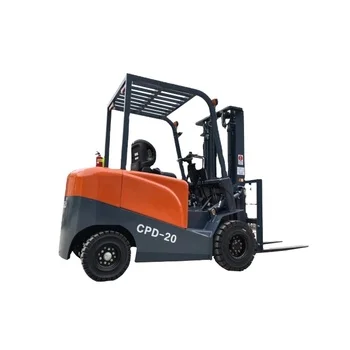

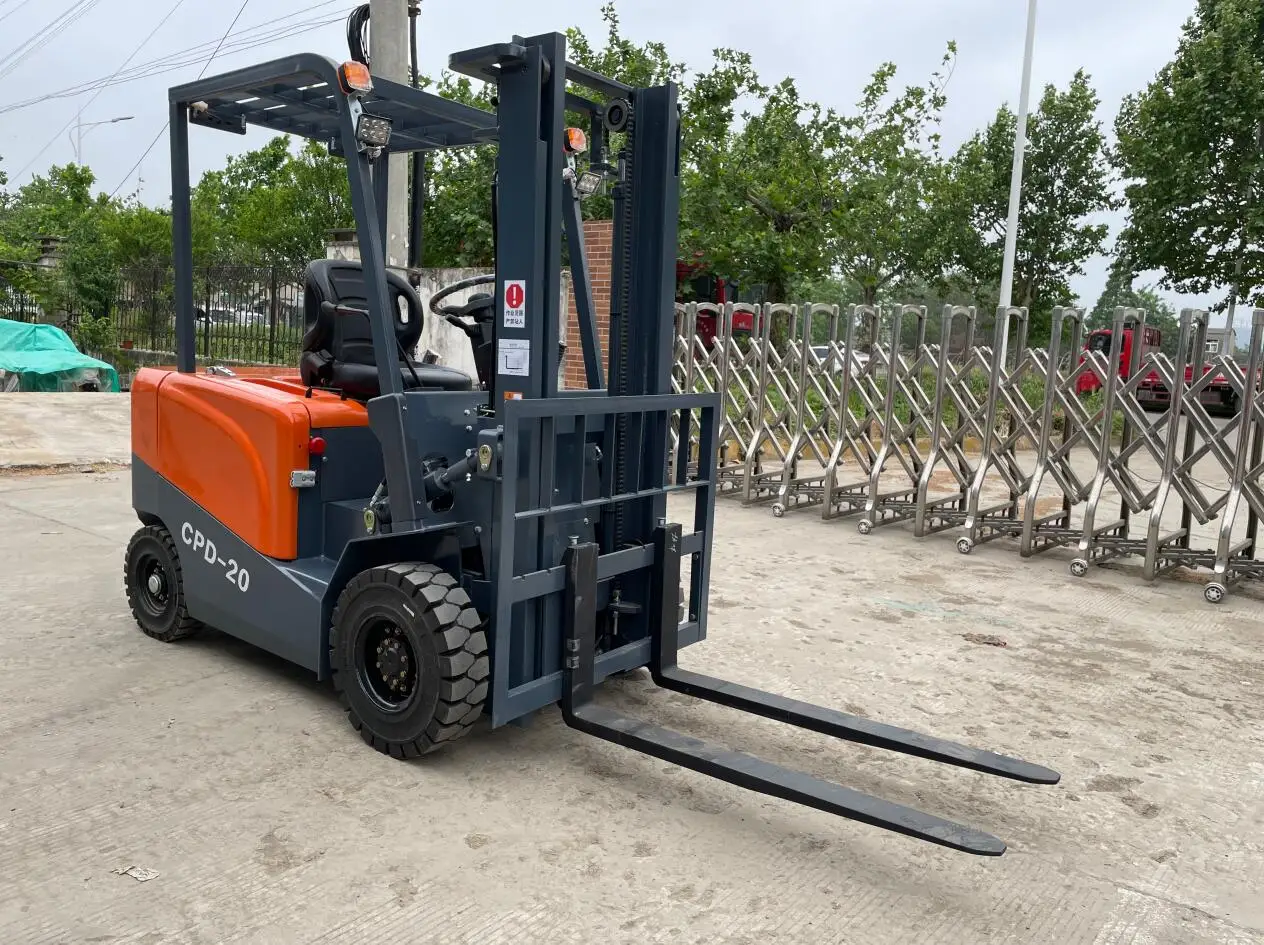

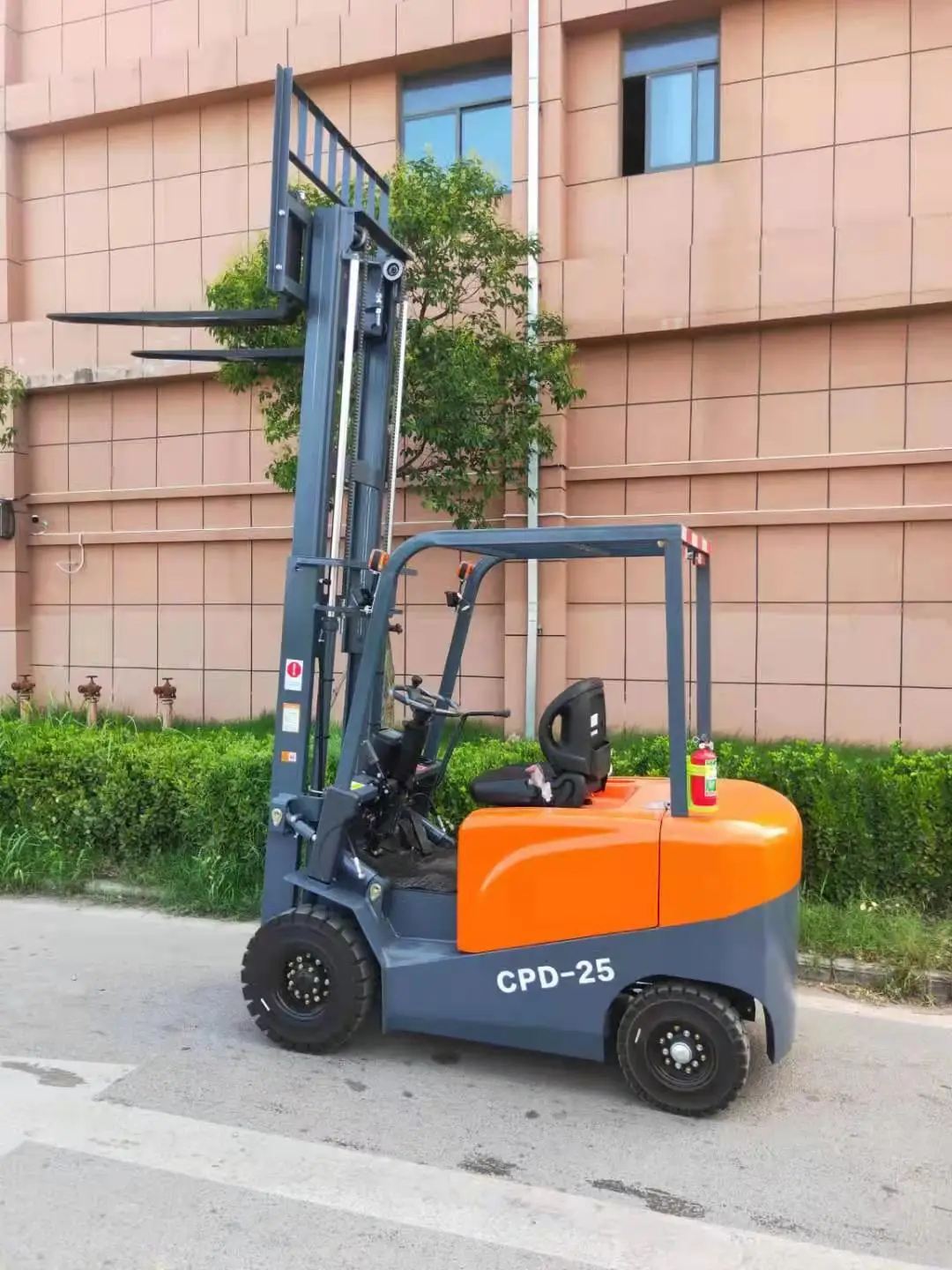

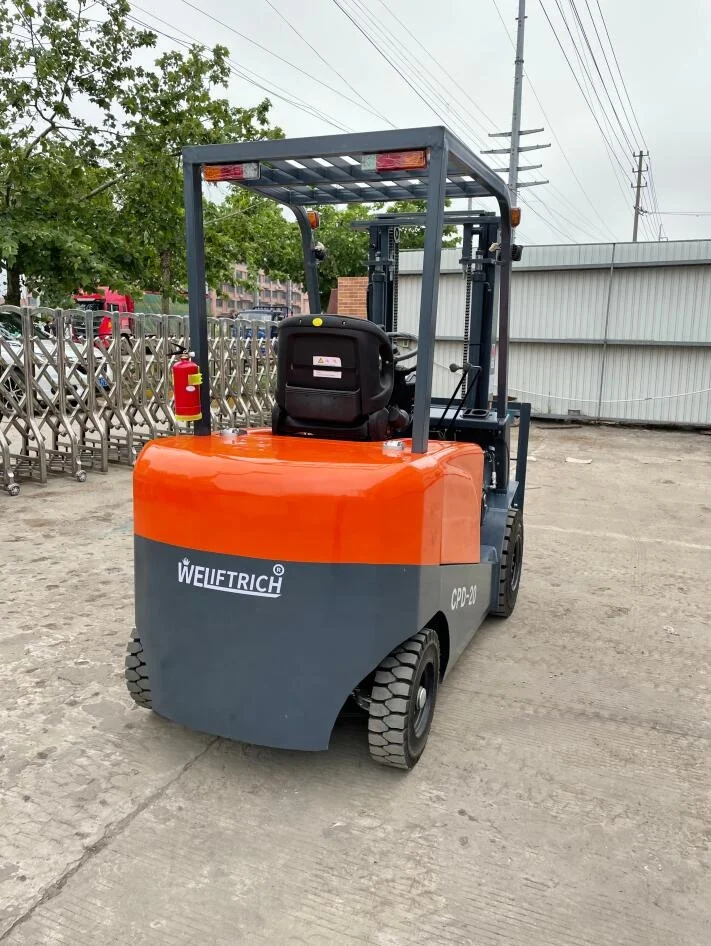

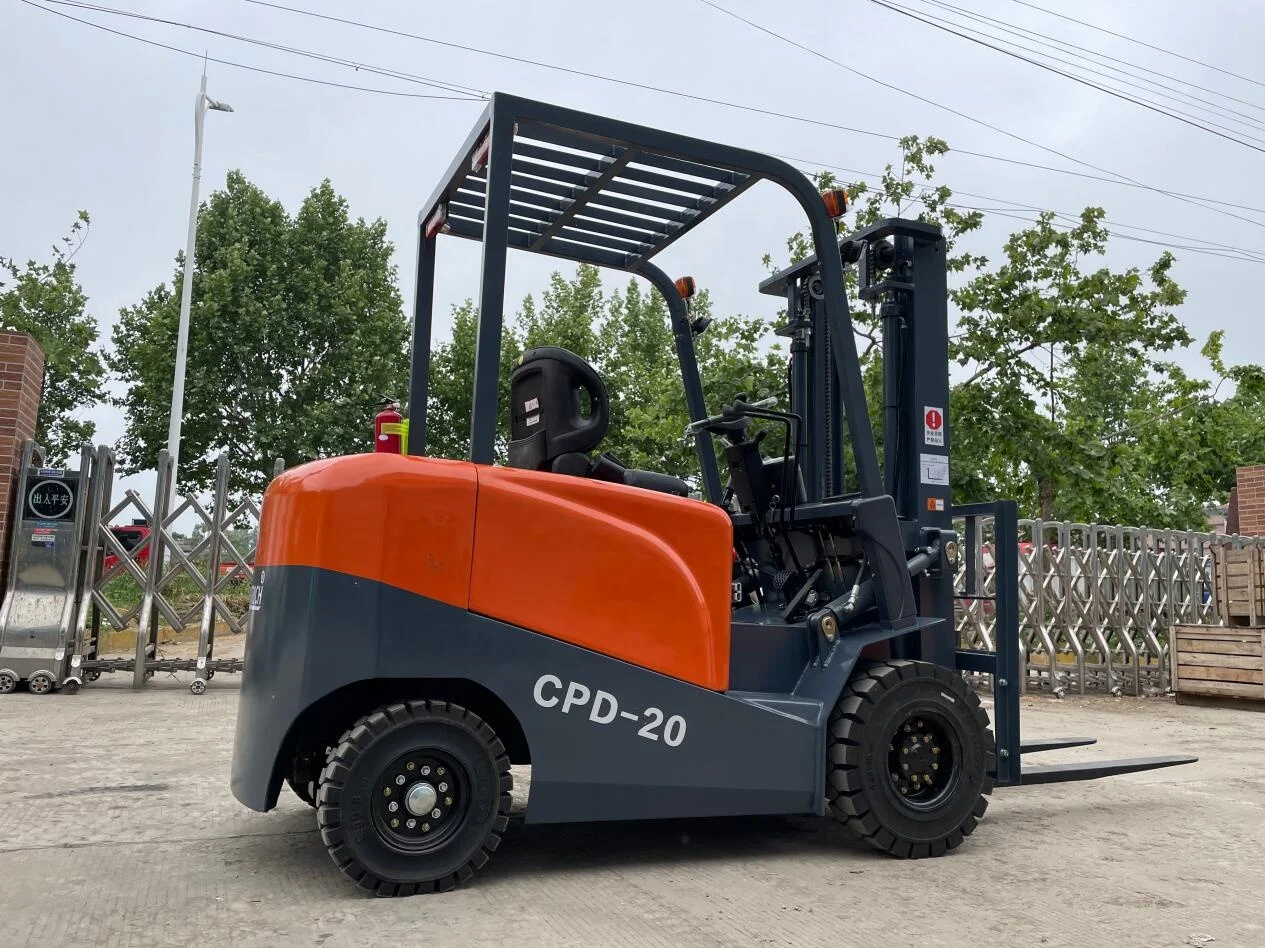

Stock Battery Powered 2.5ton 2500kg 4 wheels duplex triplex mast Electric Forklift manufacturer Lithium Battery electric
- Category: >>>
- Supplier: Welift Machinery (Changzhou) Co. Ltd.
Share on (1600458926720):
Product Overview
Description
Electric Forklift
| Model | CPD10 | CPD15 | CPD20 | CPD25 | CPD30 | |
| Drive type | Electric | |||||
| Operate type | Seated | |||||
| Steering mode | Electronic | Hydraulic | ||||
| Rated load | KG | 1000 | 1500 | 2000 | 2500 | 2500 |
| Front overhang/rear overhang | MM | 340/300 | 380/340 | 430/410 | ||
| Wheelbase | MM | 1150 | 1250 | 1500 | 1650 | 1650 |
| Weight (with battery) | KG | 1800 | 2700 | 3200 | 3800 | 3800 |
| Tyre type | Rubber | |||||
| Total length (excluding forks)/total width/total height (top cover) | MM | 1850/1020/2000 | 1960/1100/2000 | 2300/1100/2050 | 2600/1230/2200 | |
| Load center | MM | 500 | ||||
| Lifting height | MM | 3000 | ||||
| Extened mast height | MM | 3560 | 3980 | 3980 | 3980 | 4100 |
| Lowered mast height | MM | 2000 | 2000 | 2050 | 2200 | |
| Total height of shelf | MM | 820 | ||||
| Tilt | ° | 6 - 12 | ||||
| Turning radius | MM | 1750 | 1960 | 2000 | 2000 | 2080 |
| Fork width | MM | 200-970 | 240-970 | |||
| Min.Aisle widdth | MM | 1850 | 1940 | 2350 | 2350 | 2450 |
| Fork size (width * length * thickness) | MM | 100*1070*35 | 100*1070*40 | 120*1070*45 | ||
| Minimum ground clearance | MM | 80 | ||||
| Maximum travel speed | Km/h | 12KM/14KM | ||||
| Lifting speed (no load/full load) | MM/S | 265/220 | ||||
| Lowering speed (full load) | MM/S | 380 | ||||
| Gradeability (no load/full load) | % | 15/10 | ||||
| Walking control type | Continuously variable speed | |||||
| Walking motor power | KW | 4 | 5 | 7.5 | 7.5 | 12 |
| Battery capacity | AH | 220 | 260/240 | 260 | 260 | 260 |
| Battery voltage | V | 60 | 48/72 | 72 | 72 | 72 |
| Battery weight lead-acid | KG | 180 | 300 | 450 | 450 | 450 |
| Full battery working time | H | 6—8 | 6—8 | 6—8 | 6—8 | 3—4 |
| Motor | AC | |||||
| Battery lead-acid/lithium battery | TianNeng | |||||
| Tires | ChaoYang/QianJin | |||||
| Charging time lead-acid | H | 6-7 | ||||
| Cylinder | Hydraulic | |||||
| The driver's ear noise level conforms to DIN12053 | dB(A) | <70 | ||||
