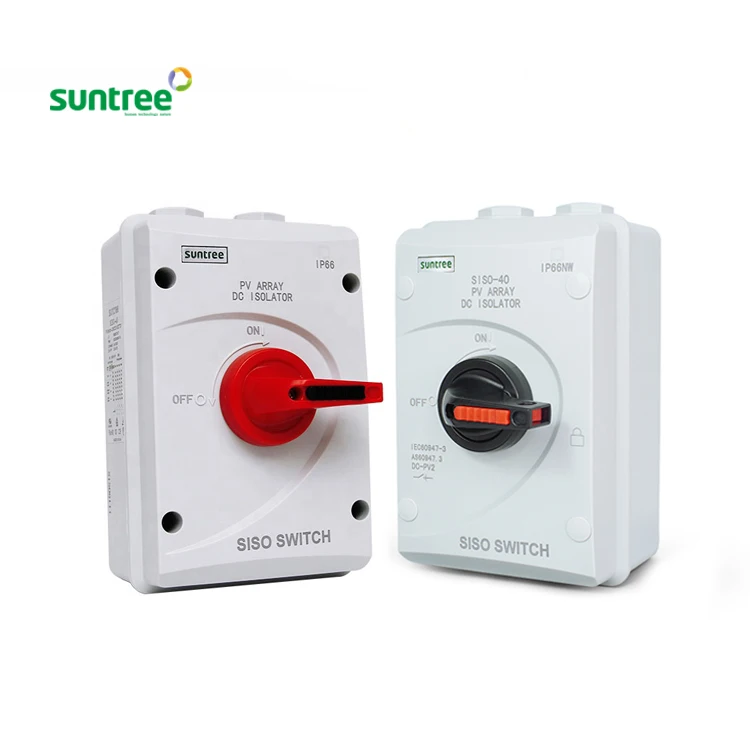

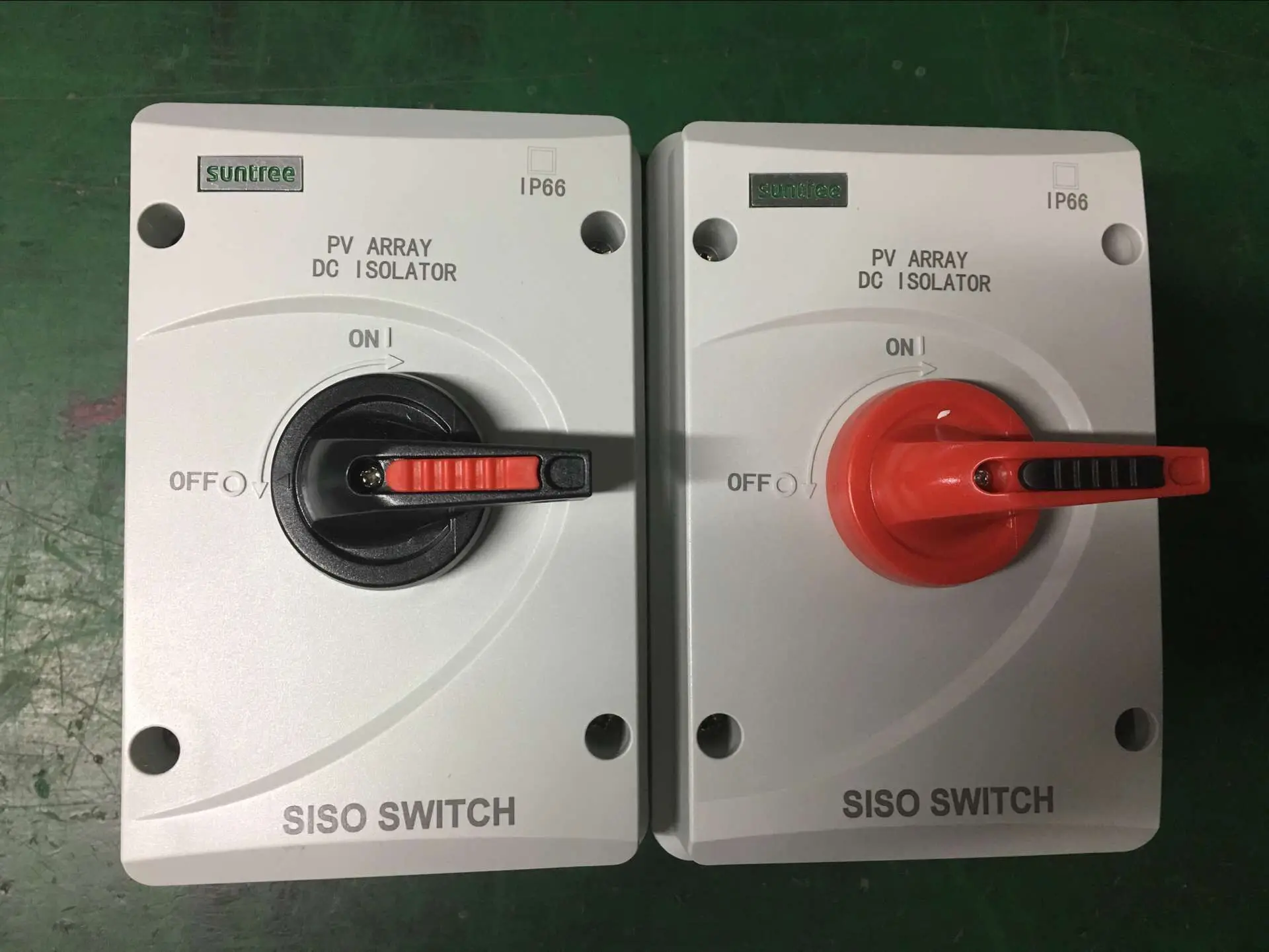

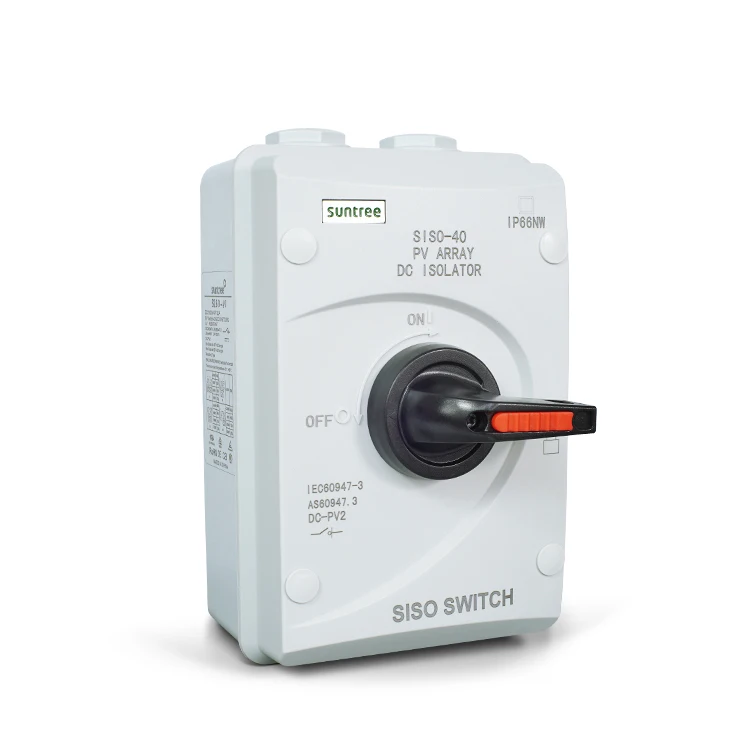

Australian Standard IP66 4P 1000V to 1200V electric solar dc isolator switch
- Category: >>>
- Supplier: Wenzhou Xinchi International Trade Co. Ltd.
Share on (1600458981985):
Product Overview
Description
Product Description
Specification
Model | SISO-40 |
Pole | 3P/4P |
Rated voltage | 1000VDC to 1200VDC |
Rated current | 10A/16A/20A/25A/32A |
Dimensions | 108X101X166mm |

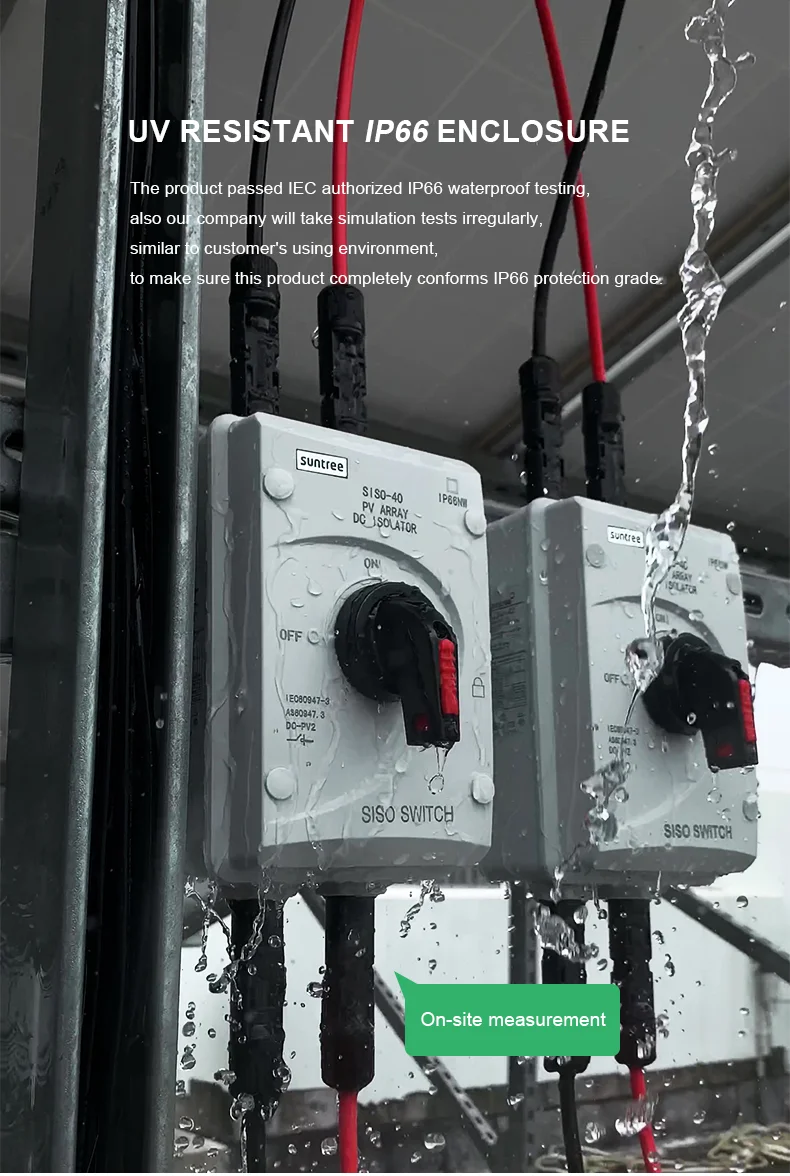

Waterproof degree | IP66 |
Breaking capacity | 1000/1700 |
Certificate | CE/CB/TUV/IEC/SAA |
Standards | IEC60947-3 |
Ambient temperature | -25℃-- +85℃ |
Insulated voltage | DC 1500V |
Connection type | M20 M25 MC4 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
What are the common faults of isolator switches
1. Contact parts overheating,
2. Refuse opening and closing,
3. Error opening and closing.
What is the cause of the overheating of the contact part of the isolator switch during operation
During operation Isolator switch overheating, mainly due to heavy load, increased contact resistance, the operation is not fully
satisfactory
Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
1. Contact parts overheating,
2. Refuse opening and closing,
3. Error opening and closing.
What is the cause of the overheating of the contact part of the isolator switch during operation
During operation Isolator switch overheating, mainly due to heavy load, increased contact resistance, the operation is not fully
satisfactory
Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
