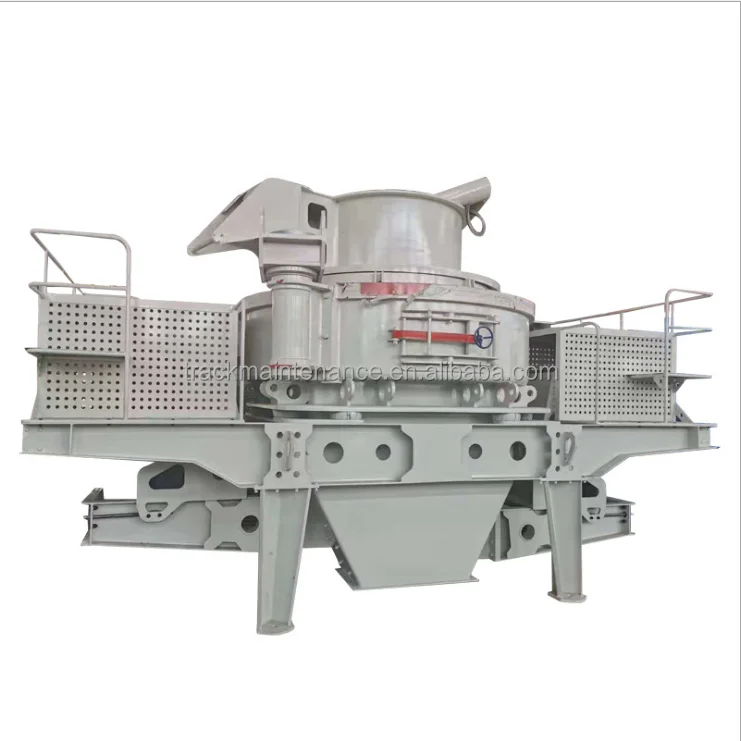

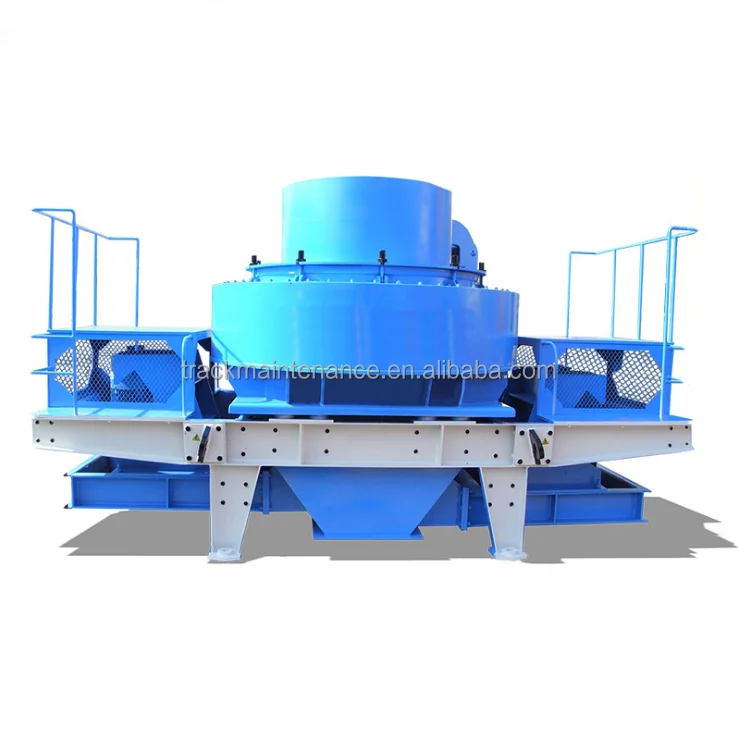

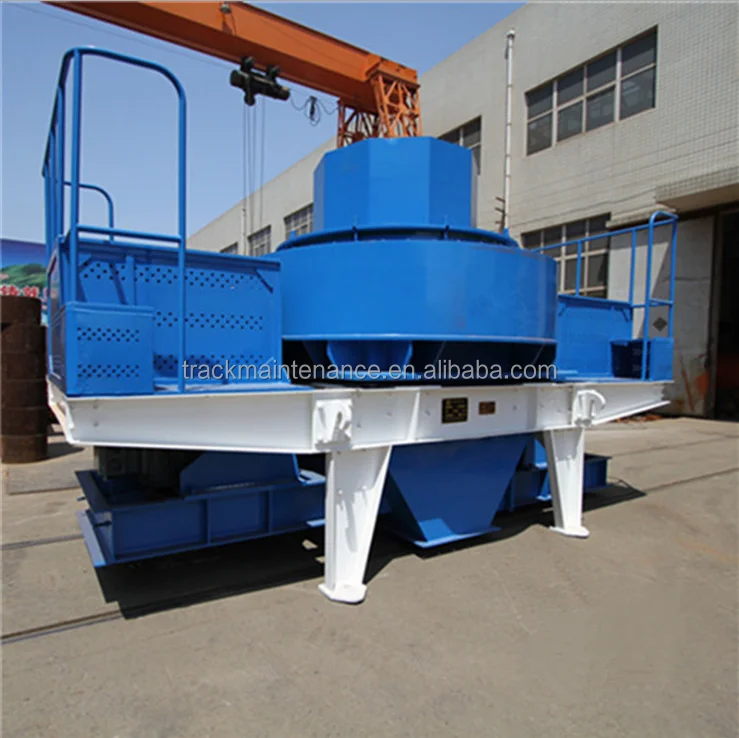

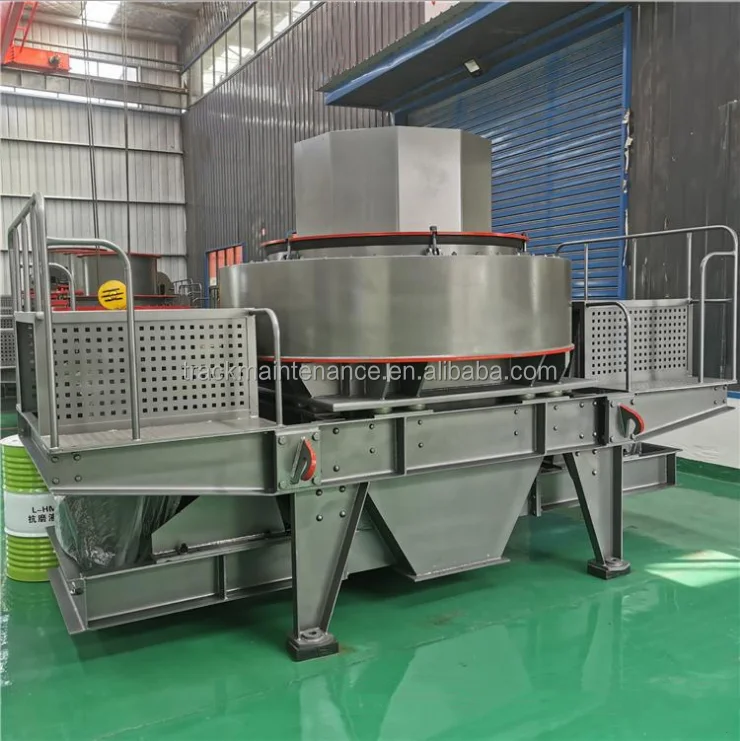

Rock Polymer Sand Tiles Making Machine Basalt Granite Pebble Building River Stone Construction Sand Making Machine
- Category: >>>
- Supplier: Henan Qiangli Machinery Co. Ltd.
Share on (1600458984872):
Product Overview
Description
Product Description

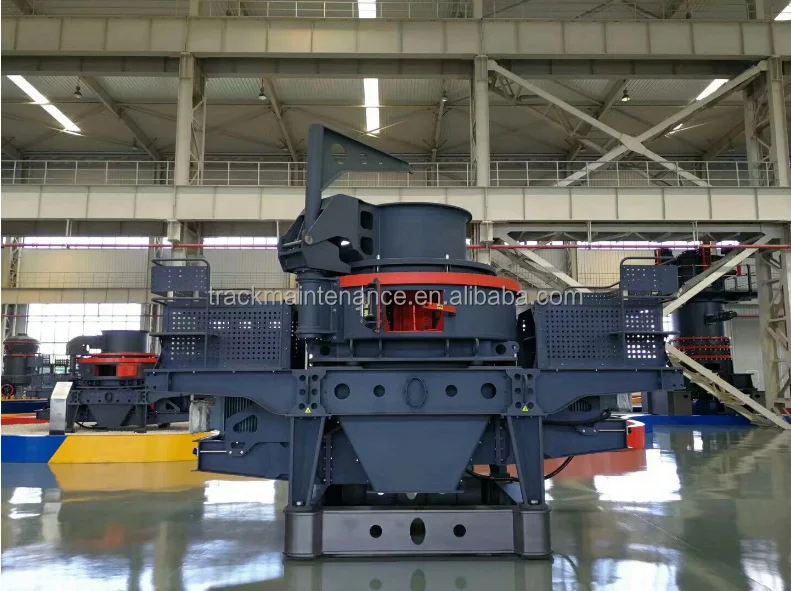

Sand making machine, also known as fine crushing crusher, is widely used for medium and fine crushing (sand making) of various hard and brittle materials such as rocks, abrasives, refractory materials, cement clinker, quartz, iron ore, concrete aggregate and so on. For construction sand, road sand is especially suitable.

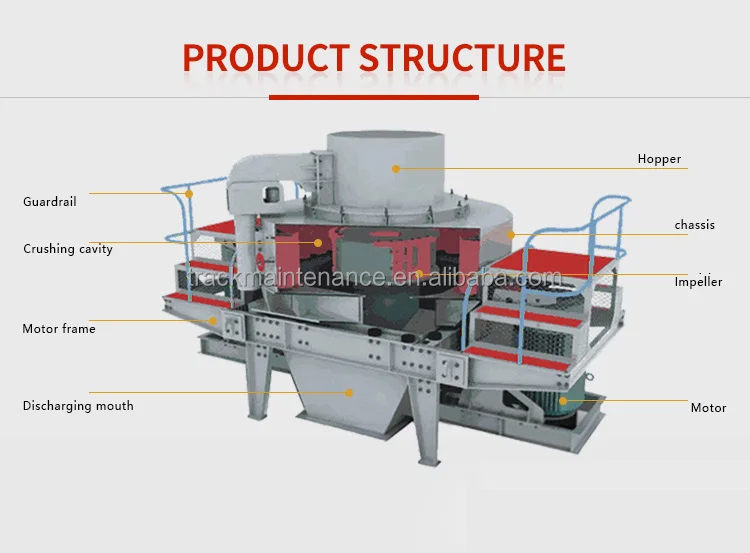

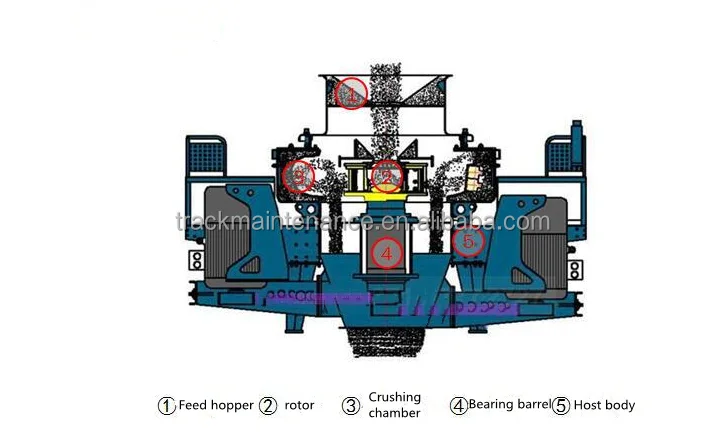

The stones directly fall into the high-speed rotating rotary table from the upper part of the machine. Under the action of high-speed centrifugal force, they are separated with another part in an umbrella form. The target stones around the rotary table produce high-speed impact and high-density crushing. After hitting each other, the stones will form eddy motion between the rotary table and the casing, resulting in multiple mutual blows, friction and crushing, which will be discharged directly from the lower part. Form a closed circuit for multiple cycles, and the required particle size is controlled by the screening equipment.
Specification
Model | Throughput（t/h） | Maximum feed rate（mm） | Spindle speed（r/min） | power（kw） | Motor model | Overall dimension |
VSI7611 | 120-180 | 35 | 1700-1890 | 4-55*2 | Y250M-4/55 | 4100*2250*2258 |
VSI8518 | 200-260 | 40 | 1520-1690 | 4-90*2 | Y280M-4/90 | 4140*2280*2425 |
VSI9526 | 300-380 | 45 | 1360-1510 | 4-132*2 | Y315M-4/132 | 4560*2450*2780 |
VSI1140 | 150-520 | 50 | 1180-1310 | 4-200*2 | Y315L2-4/200 | 5100*2690*3200 |
Suitable Material
Company Profile
FAQ
Pre-sales service
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sales service
Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
After-sales service
To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
Lifelong service
One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
described or the promise before you place order, we promise 100% refund.
How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
